Xl830L Digital Multimeter Lcd Backlight Portable Ac/Dc Ammeter Ohm Voltage Tester Meter Multimetro
- 140 reviews
- 3520 Sold
USD $6.07VAT Included50% OFFFree Shipping
Just for Dropshipping and Wholesale
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
Display Type: Digital display
Measuring Resistance Range: 200Ω-2MΩ ±(0.8%+2dgt)
Certification: CE
Operating Mode: Manual measurement of current and voltage resistance HFE
Model Number: XL830L
Dimensions: 131*52*32mm
Operating Temperature: 0 - 50 ℃
AC Current: 10A
AC Voltage: 200-600V ±(1.2%+8dgt)
DC Voltage: 200mV-600V ±(0.5%+2dgt)
Measuring Inductance Range: 2-20-200-600V ±0.5%
DC Current: 200uA-10A ±(1.0%+2dgt)
Feature 1: 3 1/2 digital LCD screen, maximum display value 1999
Feature 2: Data retention function
Feature 3: Low voltage symbol display

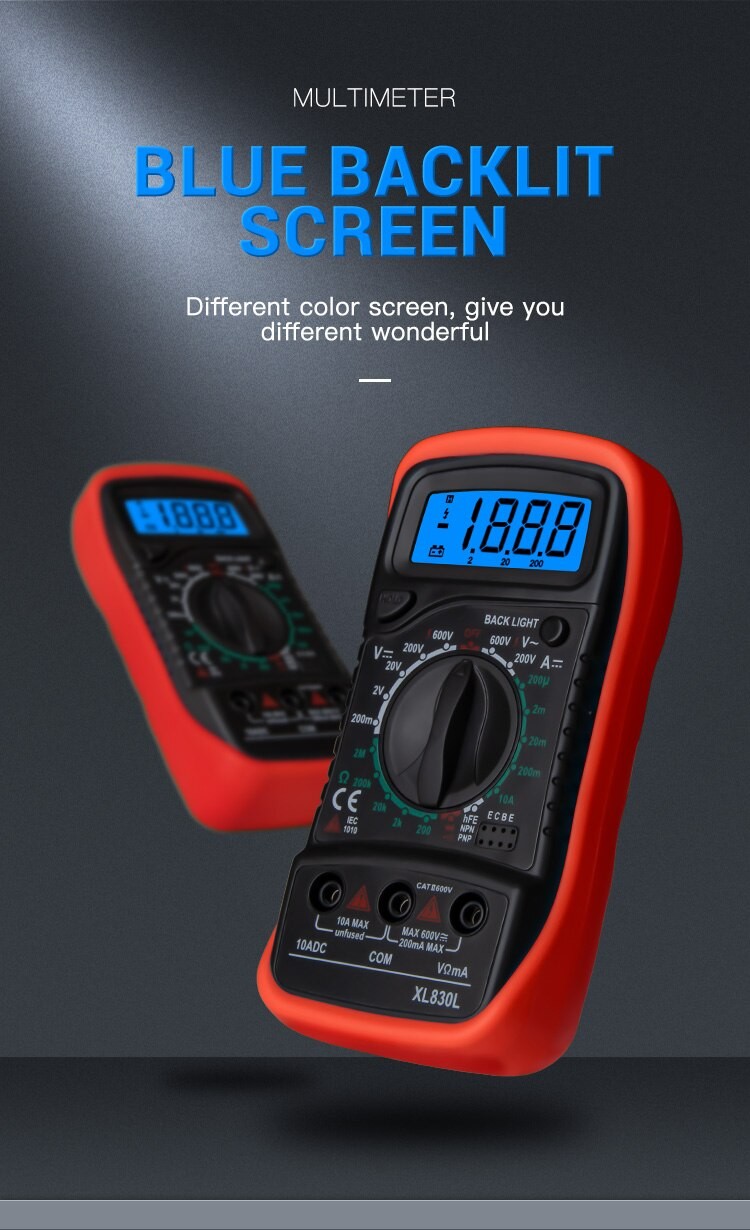

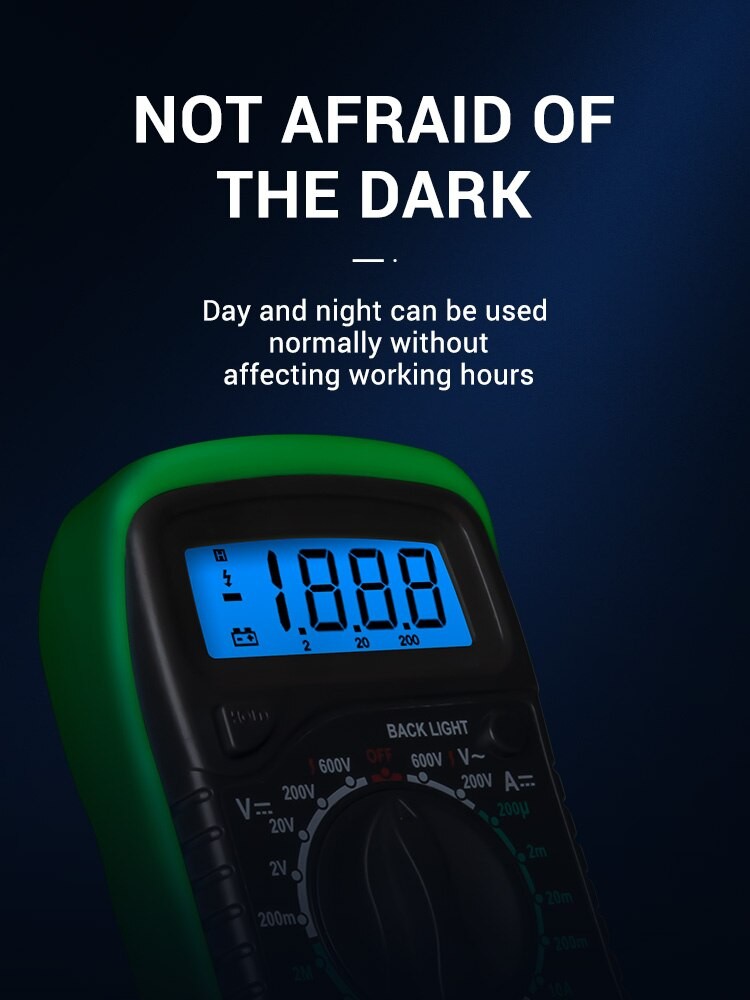

Feature 4: Backlight function
Feature 5: Overload protection
Feature 6: On-off measurement
Designed for perfect fit.
High quality 100% brand new.
The Digital Multimeter is a practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
15mm high LCD Display.
Max display: 1999, Auto polarity display.
Portable and compact design, overload protection on all ranges.
Diode assembly test/Transistor P-N junction test/Transistor HFE test.
Continuity test with buzzer sound in circuit.
Low battery voltage indication.
DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%.
AC Voltage: 200V/600V ±1.2%.
DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%.
Resistance: 200ω/2Kω/20Kω/200Kω/2Mω ±0.8%.
Fuse protection: F-200mA/250V.
Operating Temperature: -0to 40.
Overrange Indication: Only figure "1" on the display.
Polarity Indication: "-" displayed for negative polarity.
Low Battery Indication: - /+ display.
Battery: 9V (Battery not include).
Dimension: Approx 138mm x 69mm x 31mm.
# Battery won't be included in shipping becased of new air post regulation.
Package included
1 x LCD Digital Multimeter.
2 x Test Loads.
1 x Back Cover.
1 x English User Manual.
