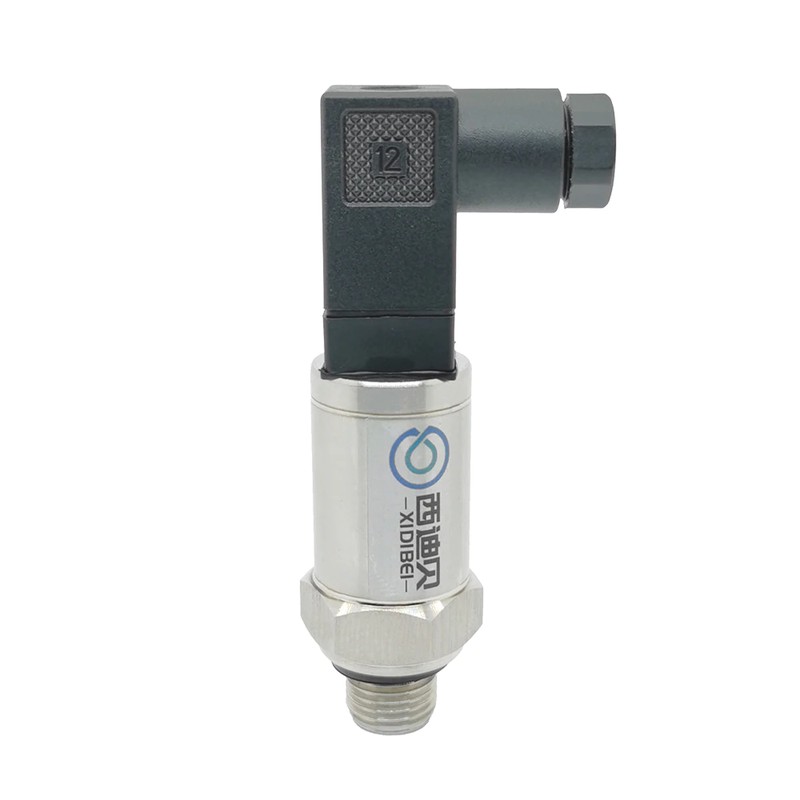

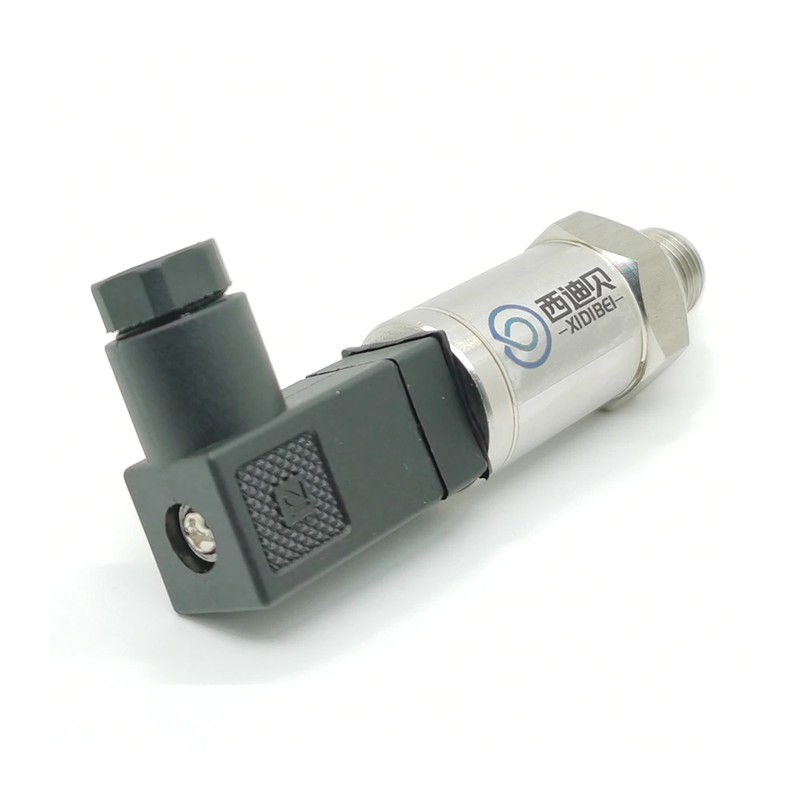

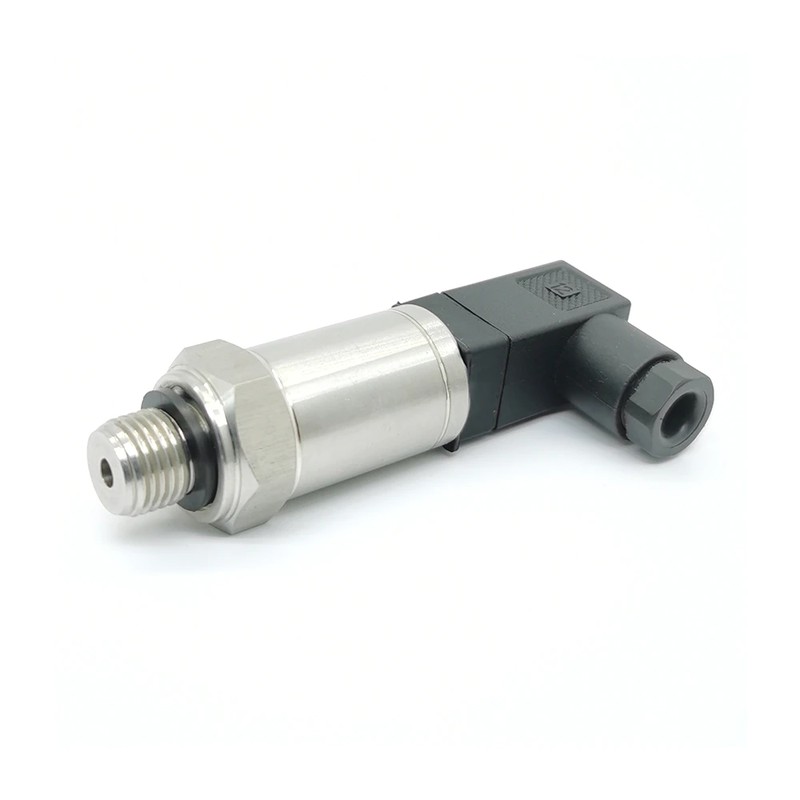

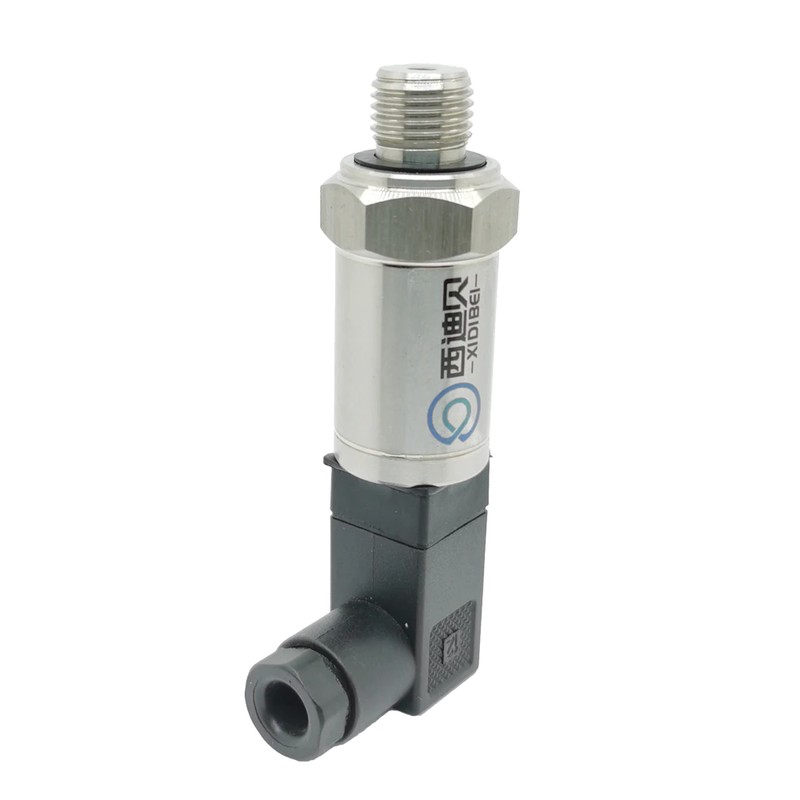

• Water Oil Fuel Gas Air Pressure G1/4 12-36V 4-20Ma 0-600Bar Optional Stainless Steel Pressure Transducer Sensor


    USD $19.93VAT Included50% OFFFree Shipping
    Just for Dropshipping and Wholesale



    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    Z***s Verified Buyer

    The goods are very high quality made. Packed very well. The range of up to 5bar was checked according to the sample-one in one. I do not need more-just took with a margin .... It came quickly. Definitely recommend the sensor and the seller.

    5
    F***t Verified Buyer

    Very good communication and aftersale support. One of both sensors arrived in not-working condition. Fair and responsive seller, we agreed on a partial refund. It is already made and now I will buy from them again. I recommend. Correct!

    4
    I***y Verified Buyer

    Got it fast enough. Well packed. Externally, the sensor is made qualitatively. In work, too, there are no complaints, it shows exactly. Special thanks to the seller for the customer orientation, well done!)

    5
    Q***f Verified Buyer

    The condition is perfect-in appearance. Installation and verification of performance will be only in 2 months, I.E. When will the summer season begin

    4
    P***j Verified Buyer

    The order came quickly. Packaging is reliable. In the terminal block was untwisted wire, I fixed. Connected the sensor to the device-it works.

    4
    I***j Verified Buyer

    Come quickly. Checked, works. As long as he lives, time will show. Price pleases. Analog from Danfoss and Carel is 4 times more expensive.

    5
    E***w Verified Buyer

    The sensor finally arrived, looking good. How it works, I will not check later. I recommend the seller, it worked quickly. Thank you.

    5
    T***q Verified Buyer

    Delivered quickly. As u requested with 1/2 inch thread. The performance was checked in conjunction with the frequency regulator hy2.

    5
    F***k Verified Buyer

    Thank you very much is at home in Slovakia quickly in 13 days. I am satisfied with the product and the seller. Super

    5
    F***f Verified Buyer

    Works great, the pressure matches an analog gauge I have on the same circuit so it seems to be reasonably accurate.

    5
    A***g Verified Buyer

    The seller just did well, sent quickly, everything is packed securely. Highly recommend! I haven't believed it yet.

    5
    Q***n Verified Buyer

    I have not yet connected, but externally made qualitatively + ordered in the order the thread that I need

    5
    S***c Verified Buyer

    Thank you seller. Sent with thread 1 \ 2 as requested. It came quickly. Quality at altitude.

    5
    C***u Verified Buyer

    Bought for an independent gauge. It works on the table. Tomorrow hydraulic test in boxing))

    5
    G***w Verified Buyer

    Everything is fine! Good seller, responsive. Quality Sensor, I order not the first time.

    4
    N***c Verified Buyer

    Very pleased. At my request, the seller put the sensors on 1/2. I will order only here.

    5
    U***s Verified Buyer

    Very good quality of pressure transsmitters, very fast delivery to Bulgaria(Europe)

    5
    O***q Verified Buyer

    As always, all is fine. Do not take the first time. Aid workers, sent quickly

    5
    M***z Verified Buyer

    The products are very good as usual. I have bought these sensor many times.

    4
    S***p Verified Buyer

    Good packaging quality goods perfectly fit in replacement of factory sensor

    5
    A***x Verified Buyer

    Everything is fine. Quickly came, took for a frequency on a squared pump.

    5
    U***c Verified Buyer

    the sensor is in very good condition I hope it works with my Fiat Ducato

    5
    K***r Verified Buyer

    Very fast delivery. The product corresponds to the description.

    4
    R***h Verified Buyer

    Very good quality of pressure transmitters, fast delivery.

    4
    N***i Verified Buyer

    Delivery in a week. Sensor Working. The wire is included.

    5
    A***k Verified Buyer

    This sensor looks good quality it remains only to test

    5
    O***s Verified Buyer

    The sensor is made very high quality. Recommend.

    5
    V***k Verified Buyer

    Went a bit longer than planned, but all good!

    5
    I***l Verified Buyer

    Packing good came quickly did not check.

    4
    E***t Verified Buyer

    Order prishol all whole

    5

    Max Measuring Range: 400 Bar & Above
    Model Number: XDB305
    Measuring range: 0-600bar gauge pressure
    Supply voltage: 12-36VDC
    Output signal: 4-20mA
    Accuracy: ≤±1.0%FS
    Operating temperature: -40-105℃
    Housing material: 304 Stainless Steel
    Pressure connection: G1/4 or other
    Electrical connection: Hirschman DIN43650C
    Protection class: IP65
    Explosion-proof class: Exia2CT6
    Electromagnetism Compatibility: EN50051-1
    Paired cable: 1m



    Descriptions

    XDB305 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.

    Features

    ◆ CE conformity ◆ Low cost and high quality ◆ All stainless steel integrated structure ◆ Small size, convenient to install and operate ◆ 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage output ◆ Complete surge voltage protection function ◆ For applications such as air, water, oil ◆ Provide OEM, flexible customization

    Applications

    ◆ Intelligent IoT constant pressure water supply ◆ Engineering machinery, industrial process control and monitoring ◆ Energy and water treatment systems ◆ Steel, light industry, environmental protection ◆ Medical, agricultural machinery, testing equipment ◆ Flow measurement equipment ◆ Hydraulic and pneumatic control systems ◆ Air-conditioning unit and refrigeration equipment ◆ Water pump, air compressor pressure monitoring

    Parameters

    Measuring range: 0~600Bar Accuracy: ±1.0%FS Output signal: 4-20mA (2 wire) Supply voltage: 12~36(24)VDC Operating temperature: -40~105℃ Compensation temperature: -20~80℃ Operating current: ≤3mA Temperature drift (zero&sensitivity): ≤±0.03%FS/℃ Long-term stability: ≤±0.2%FS/year Response time: ≤3ms Overload pressure: 150%FS Burst pressure: 300%FS Cycle life: 500,000 times Pressure medium: Non-corrosive liquid or gas Pressure connection: G1/4, Other pressure connection is on request Electrical connection: Hirschman DIN43650C Housing material: 304 Stainless Steel Protection class: IP65 Explosion-proof class: ExiaⅡCT6 Weight: ≈0.120kg

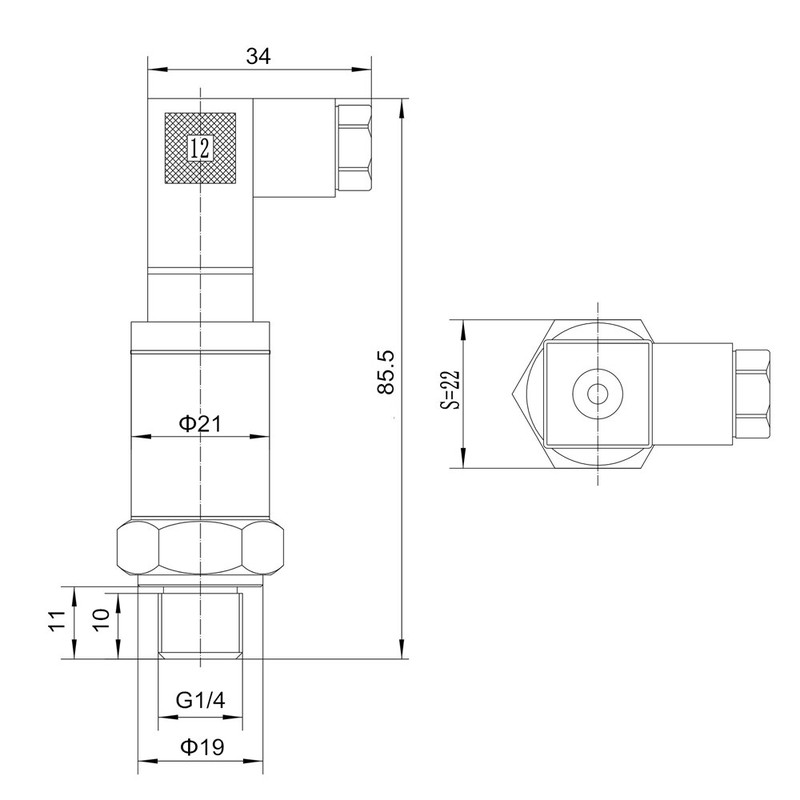

    Dimension (unit:mm)

    Electrical connection

    Pin1: Supply + (Red) Pin2: Output + (Black) With shielded cable

    Ordering information

    Default cable length: 1.0m / 11.8inch cable. If you have other special requirements, please contact us and note in the order.
