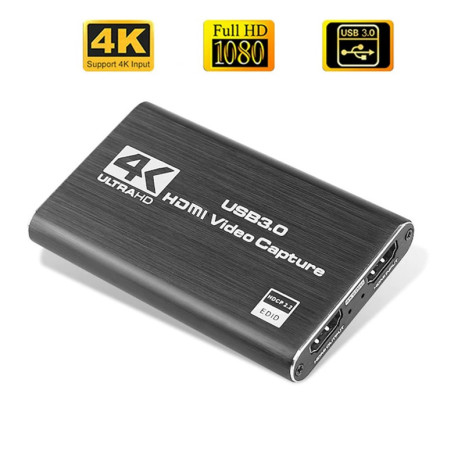

Usb 4K 60Hz Hdmi-Compatible Video Capture Card 1080P For Game Recording Plate Live Streaming Box Usb 3.0 Grabber For Ps4 Camera

Description

This USB capture card can collect HDMI-Compatible audio and video. HDMI-Compatible audio and video signals can be
transmitted to the computer and smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features

l Support input resolution up to 4K
l Support output resolution up to 1080P

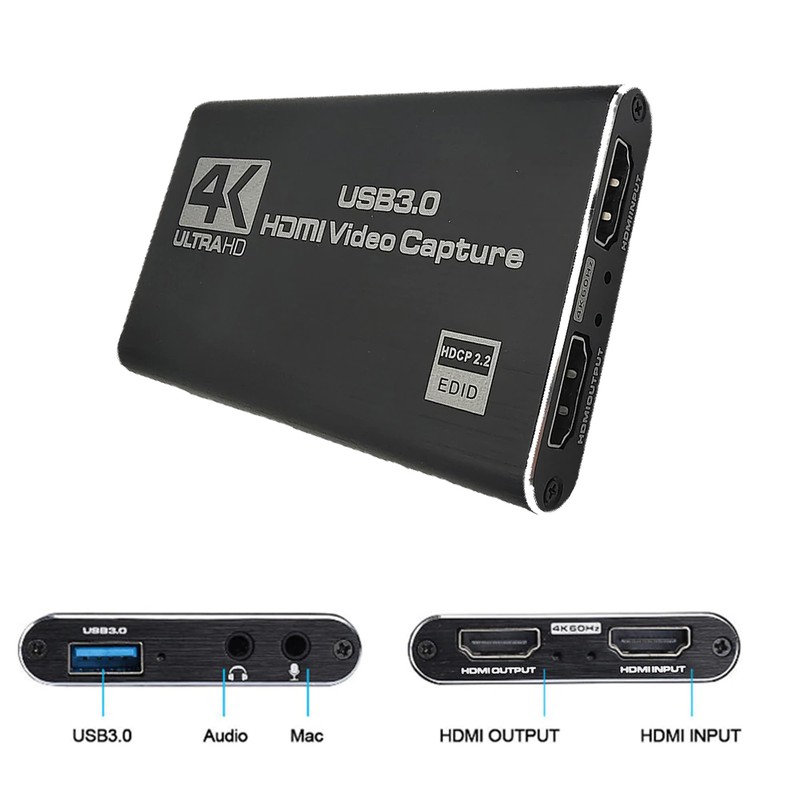

l One HDMI-Compatible input, One HDMI-Compatible loop out, Watching and Recording
l One Microphone input
l One 3.5mm stereo output
l Support 8/10/12 bit color depth
l Support AWG26 HDMI-Compatible standard cable, the maximum input transmission distance is 15 meters
(1080P and below resolution)
l Support most acquisition software, such as for VLC, OBS, Amcap, etc.
l Support for Windows, for Android and for Mac OS
l Complies with USB video UVC specifications
l Complies with USB audio UAC specifications
l No external power supply, compact size, easy to Carry

Specification

HDMI-Compatible resolution.....................Maximum input support 4K
Video input format ...................... 8/10/12-bit color depth
Video output mode..............................................MJPEG
Video output resolution........ Maximum output resolution
1080P @ 30Hz
Support audio format ............................................ LPCM
Input cable length. ≤15m, AWG26 HDMI-Compatible-Compatible standard cable
Maximum working current...........................0.4A / 5V DC
Operating temperature range...................(-10 to + 55 ℃)
Product size(LxWxH).................................68x27x9(mm)
Product weight...........................................................50g

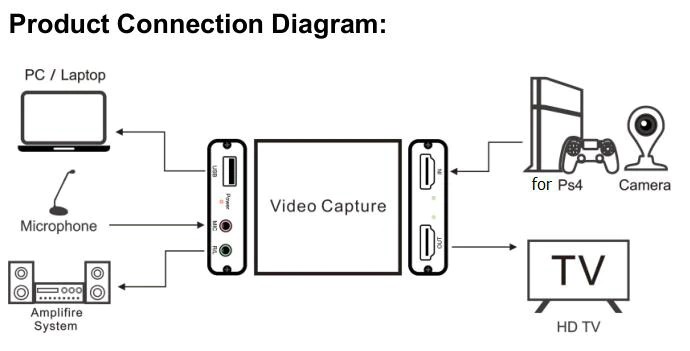

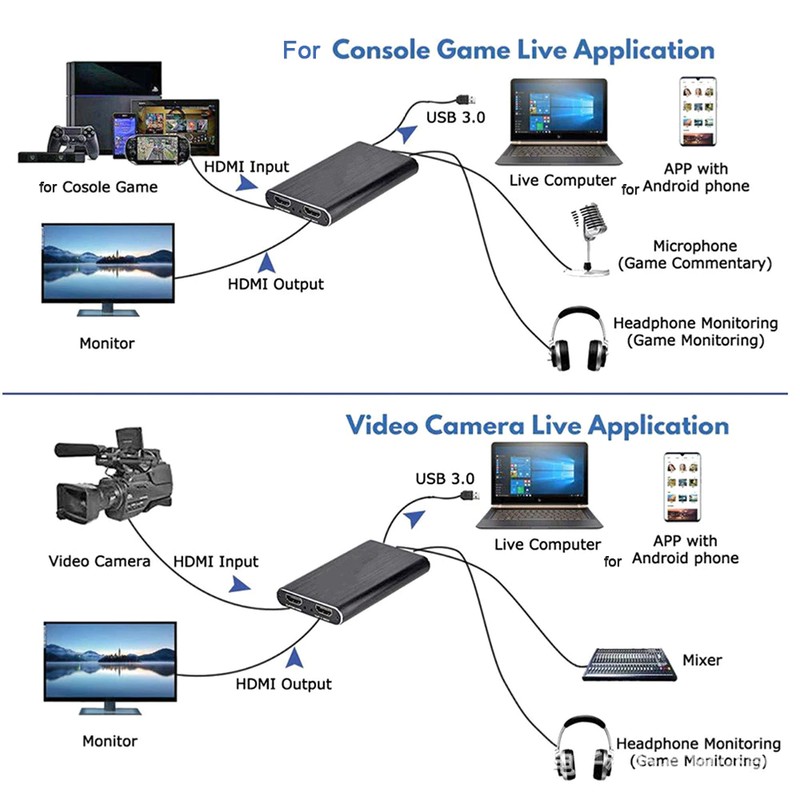

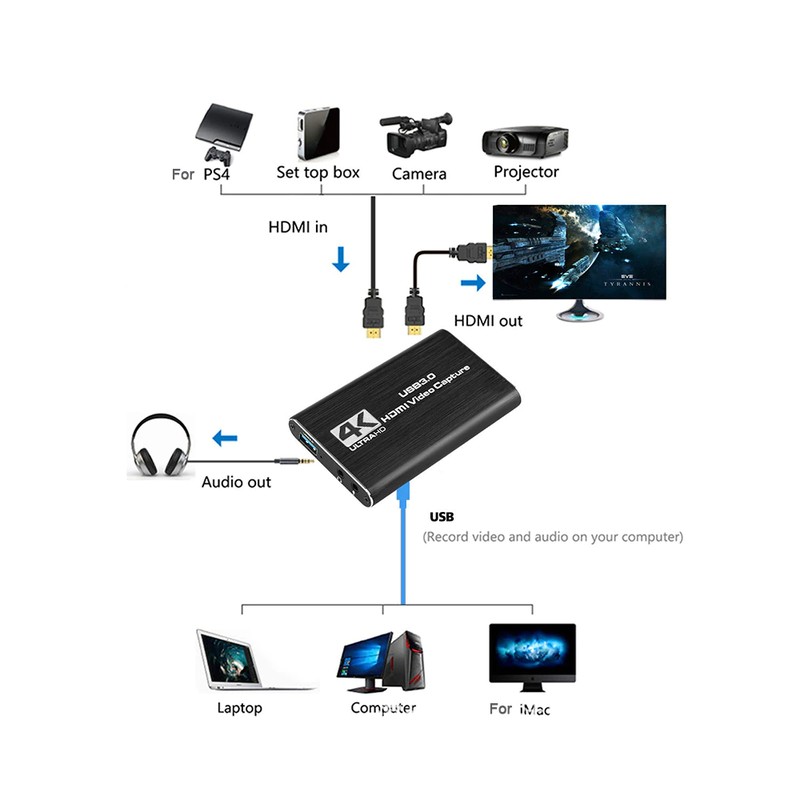

Connection Operation

1. Connect the USB port of the video capture card to the USB port of the computer.
2. Use the HDMI-Compatible cable to connect the “HDMI-Compatible IN”interface of the capture card to the HDMI-Compatible output port of the video source device to be captured, and use another HDMI-Compatible cable to connect the “HDMI-Compatible OUT” interface of the video capture card to the display device,
3. Insert the microphone into the MIC interface of the capture card
4. Connect the headset or sound system to the R/L interface of the capture card, and the preliminary installation and connection work is completed.

Note

Computer hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT35M or above
Storage: 4G RAM

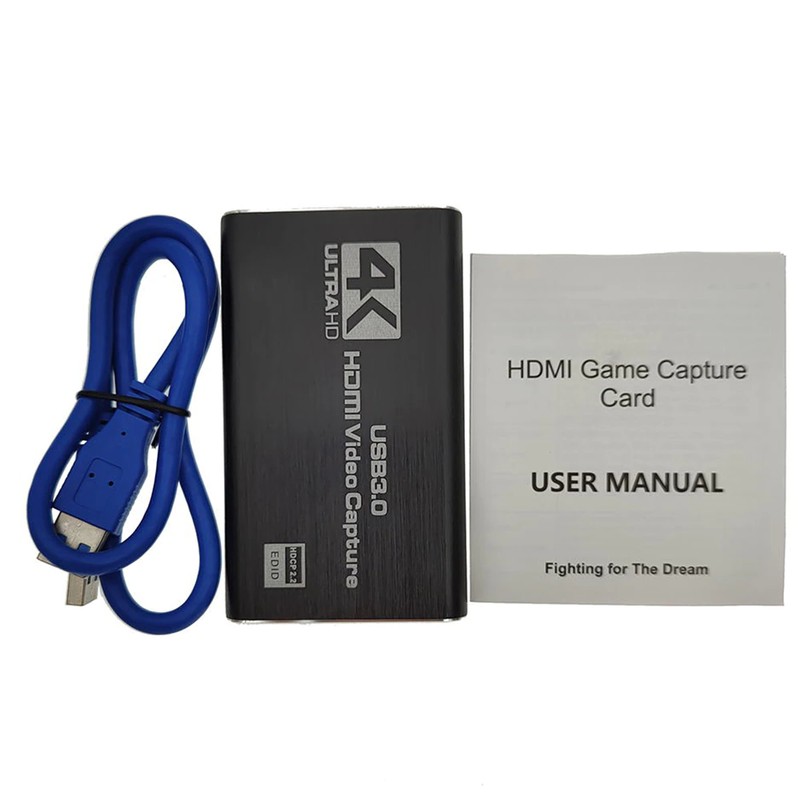

Package included

1x HDMI-Compatible to USB Video Capture Card
1x User Manual
