Uni-T Ut116C Smd Tester 36V Voltage Battery Measurement Rotable Led Diode Multimeter Resistor Capacitor Tester
- 137 reviews
- 444 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
Model Number: UT116C
Measuring Range: 60MΩ
Dimensions: 204mm*33mm*25mm
Testing Voltage: Max 36V
Operating Temperature: 0 - 50 ℃
Display Type: Digital Only
Certification: CE
Features: UT116C:Battery measurement
Resistance Measurement: Continuity
Capacitance Measurement: up to 100mF
Diode Measurement: Rotable tweezer

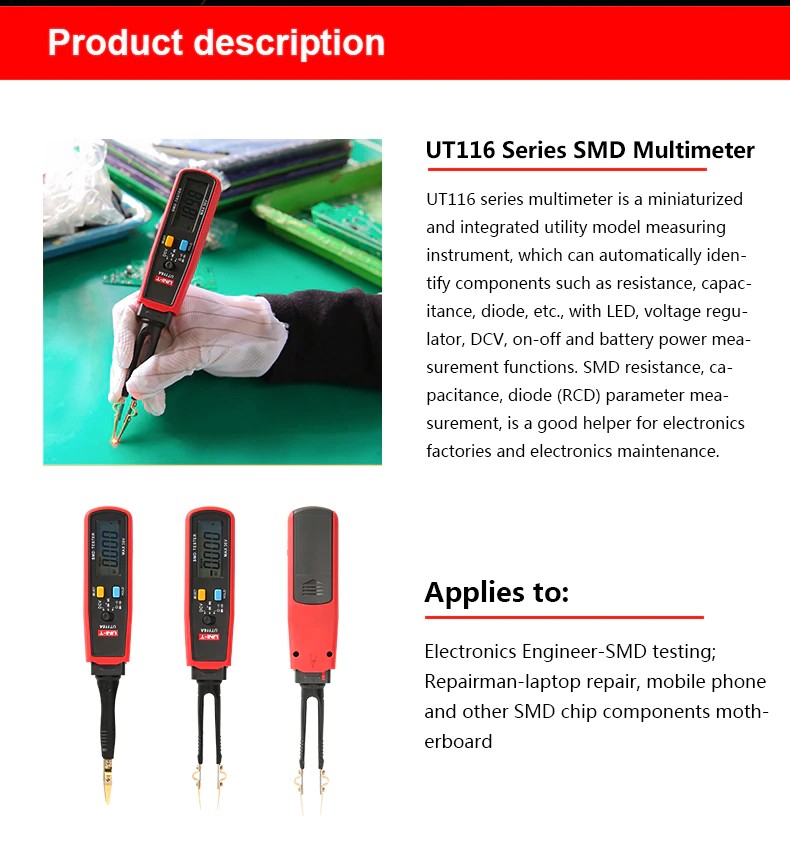

UNI-T UT116C SMD Tester 36V Voltage Battery Measurement Rotable Tweezer LED Diode Multimeter Resistor Capacitor Tester
36V DC voltage measurement
Battery measurement(10mA) Only UT116C
Resistance ,Capacitance(UT116C: up to 100mF), continuity,diode measurement
The pen can be rotated by 180 degree, which is convenient for reading and diode/LED
20V/1mA LED Zener diode polority test
6000 count display

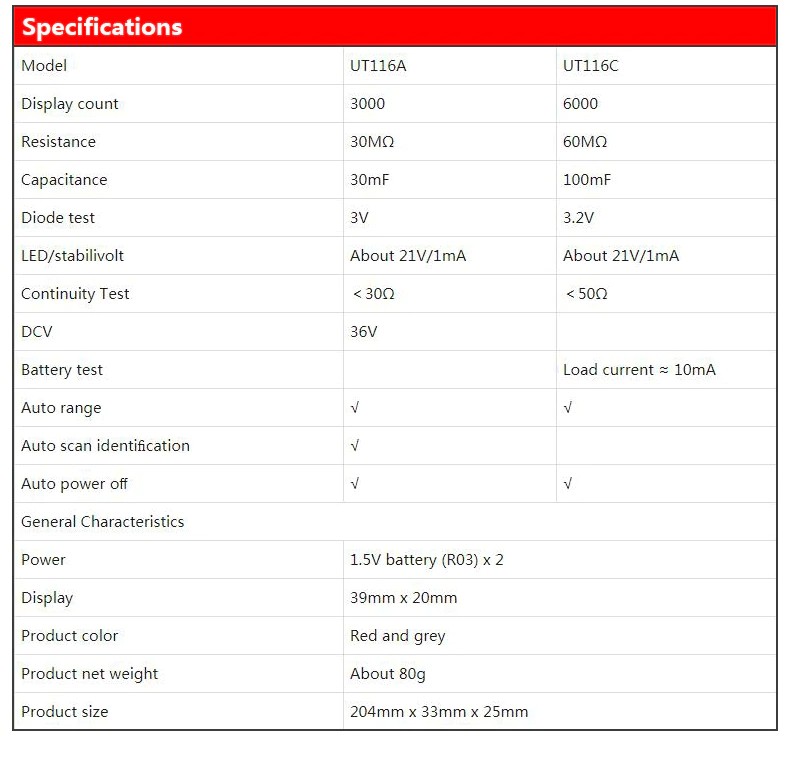

Specifications | ||
Model | UT116A | UT116C |
Display count | 3000 | 6000 |
Resistance | 30MΩ | 60MΩ |
Capacitance | 30mF | 100mF |
Diode test | 3V | 3.2V |
LED/stabilivolt | About 21V/1mA | About 21V/1mA |
Continuity Test | <30Ω | <50Ω |
DCV | 36V | |
Battery test | Load current ≈ 10mA | |
Auto range | √ | √ |
Auto scan identification | √ | |
Auto power off | √ | √ |
Notice please: battery no include!
