Tm618H Dc 12V 24V Ac 110V 120V 220V 230Vage Output Digital 7 Days Timer Switch Time Relay Control
- 140 reviews
- 1086 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Certification: RoHS
Model Number: TM618H
Usage: Timer Switch
Theory: Digital
Type: Mini
DIMENSION: 60*60*30mm
POWER SUPPLY: 12V,24V,110V,220V
OUTPUT: Voltage 220V
Max. Current of Output Load: 16A
CERTIFICATES: CE ROHS EMC LVD
Clock Format: 12/24hr Format
Mini interval: 1 minute
Max interval: 7 days
Countdown OFF time range: 1 min ~ 24 hours
Amazing Price for BatchTIMERS:

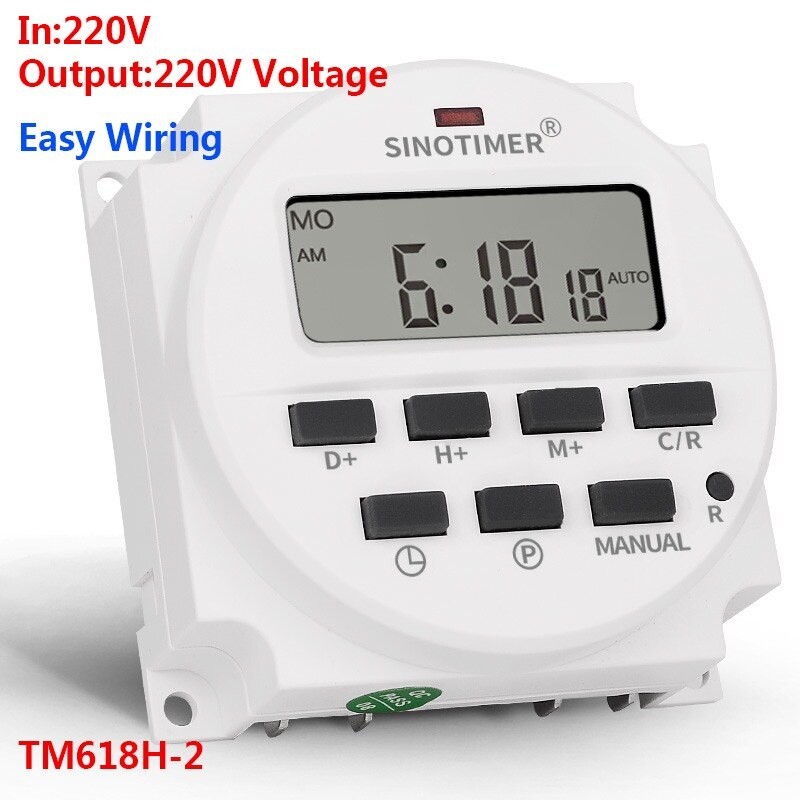

TM618H-2 220V AC Digital Timer Switch Output 220V Voltage Easy Wiring 7 Days Programmable Time Switch
1. CLOCK DISPLAY
2.TIMER (12/24hr FORMAT)
3.AUTO TIME DEFLECTION CORRECTION, WEEKLY
4.SLEEP MODE
Usage:
The TM618timer MODULE can open or close kinds of electrical apparatus and power automatically, according to the preset time,the items can be streetlight, neon light (sign), billboard, electrical appliances, broadcast equipments etc., the digital timer switch is within rechargeable battery, in 1.2V/40Ma, high-accuracy CMOS chip, strongly anti-jamming, easy to use.
THREE:Easy program,everyone can program itafter he reads the manual JUST one time.
FOUR:Stable performancebecause of professinal manufacturing in power saver since 2002.
Characteristics:
* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
* 16 ON/OFF programs per day, 15 combinations to a week.
* 24 hours / 7 days a week programmable.
* Built-in battery for backup the memory (save the programs you set)when power failure
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually,

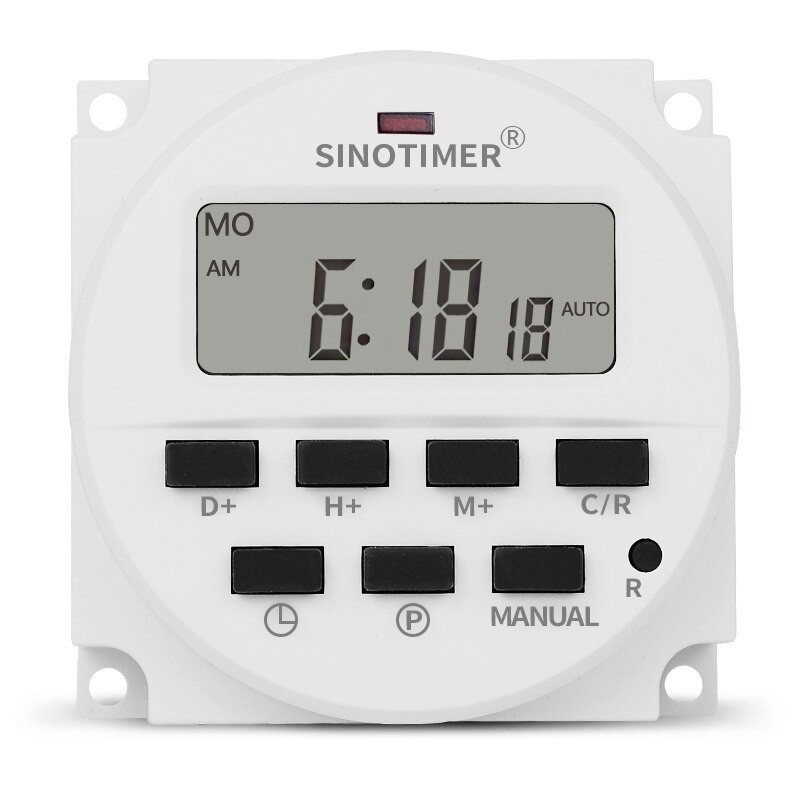

* Easy to read LCD display, LED indicators
Techanical Data:

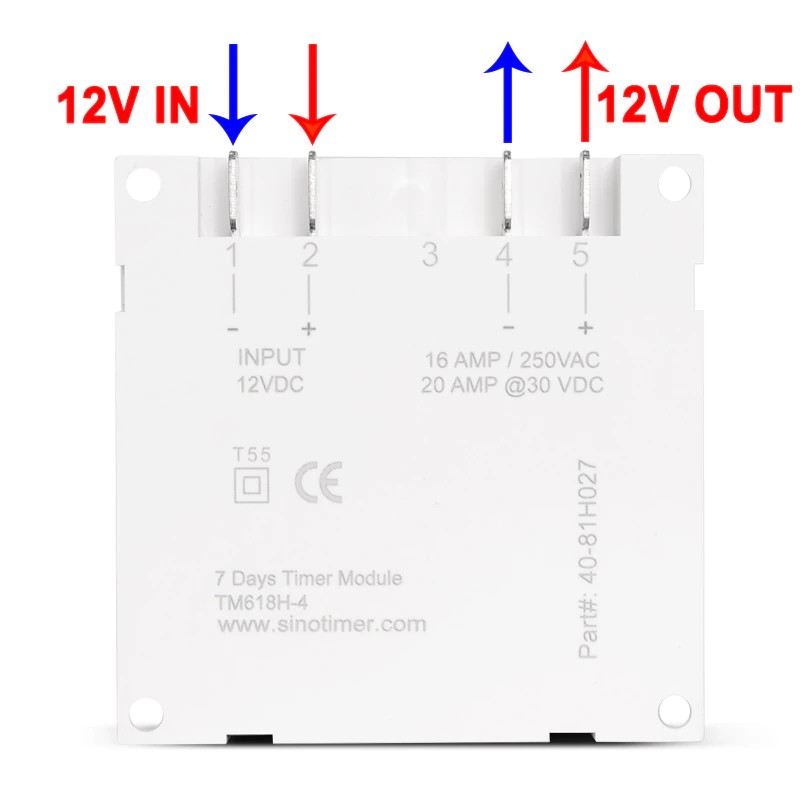

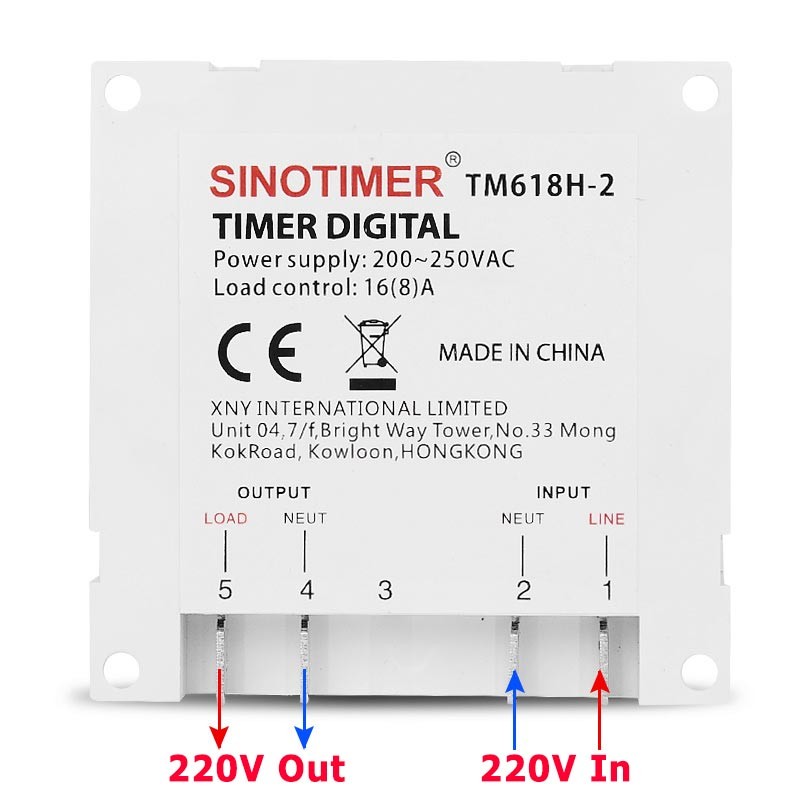

Models: | TM618H-2 220V TM618H-1 110V TM618H-4 12V TM618H-3 24V TM618H-5V 5V |
Temp.range: -20°C+50°C | Power Supply: according order |
Power consumption 4.5 VA (MAX) | Display: LCD |
Output: Voltage output | Programs:16on/off each day or week |
Hysteresis 2 sec/day (25°C) | Mini interval: 1min |
Capacity: 16(8)A 250V AC | Black-out: 60 days |
Timer range: 1min~168hr | Recharge battery: 1.2V 40Ma |
Average error: 1s/24h, 25°C | Weight: 0.08kg |

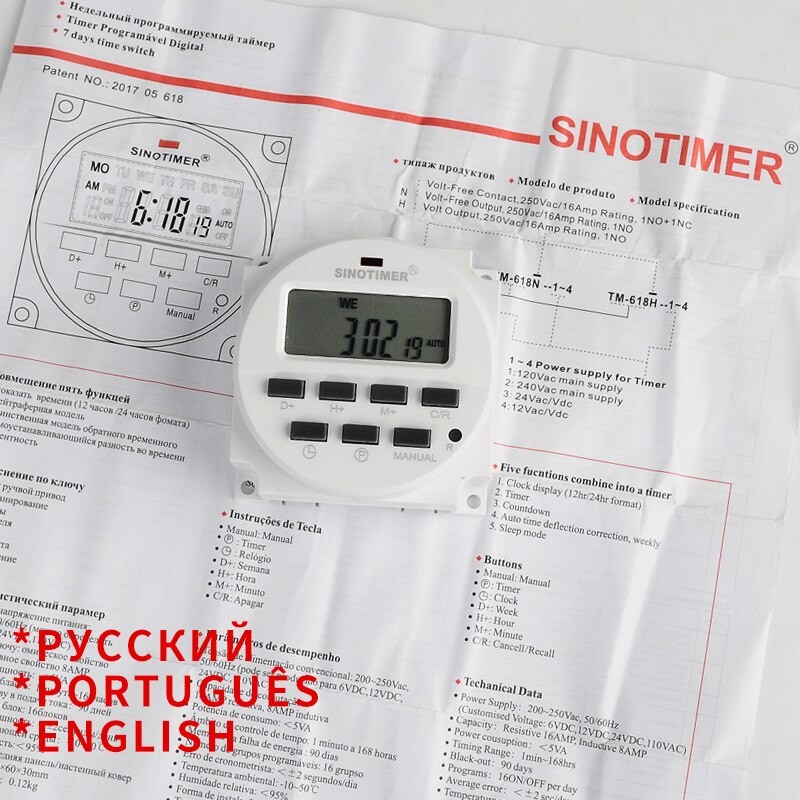

Note: The InstructionsManual is in Russian,Portuguese and English language.
