Thermalright Odyssey Heat Dissipation Silicone Pad Cpu/Gpu Graphics Card Thermal Pad Motherboard Silicone Grease Pad Multi-Size
- 140 reviews
- 3228 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Certification: CE

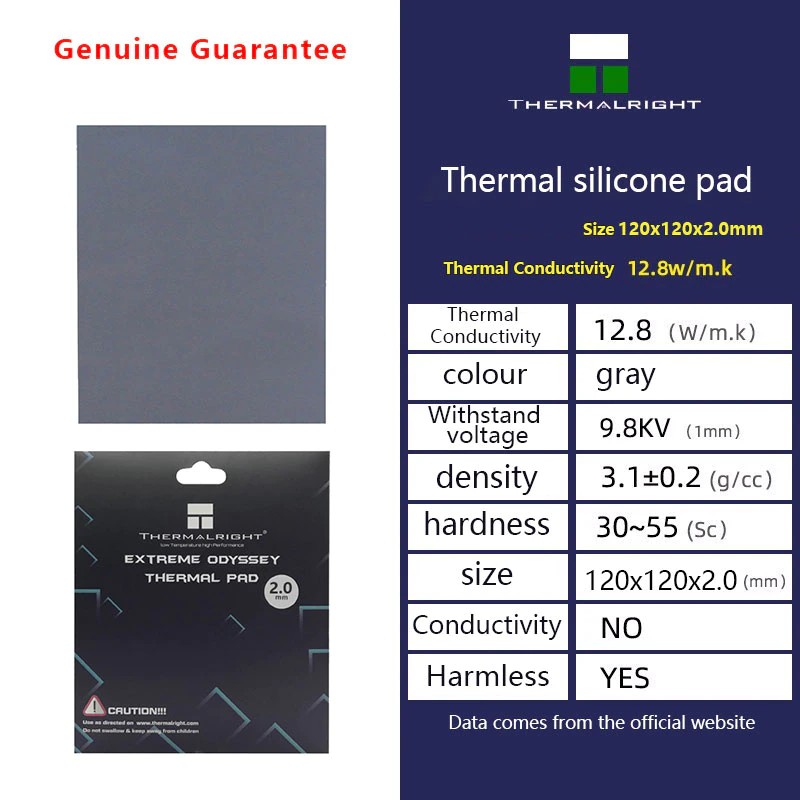

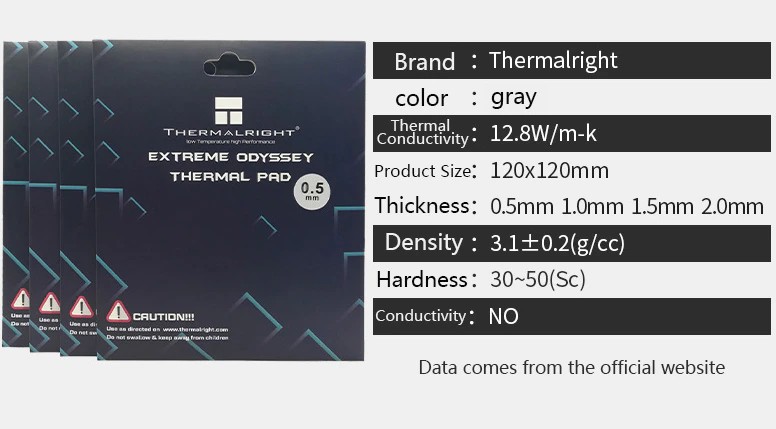

Application: Processor
Package: Yes
Color: gray
Denstiy (g/cc): 3.1
Hardness: 30-55
Thermal Conductivity: 12.8 vwo/mnk

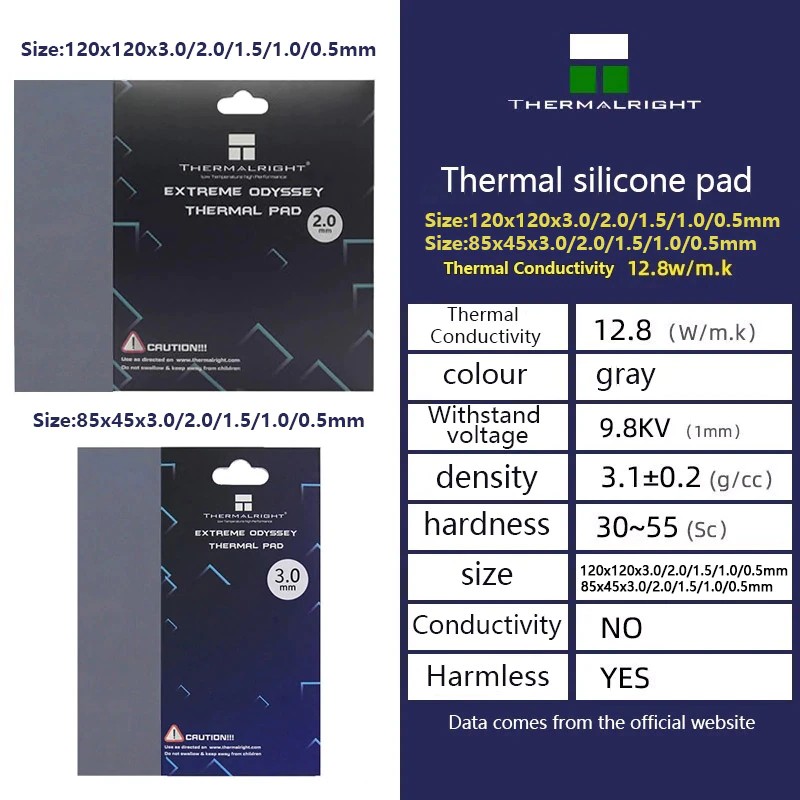

Specifications 1: 85x45x0.5/1.0/1.5/2.0/3.0mm
Specifications 2: 120x120x0.5/1.0/1.5/2.0/3.0mm
Breakdown voltage: 9.8KV
Winter clearance Poromo code!!
Full-Brand Thermal Pad, More Choices
Note:
The cooling effect is the best only when the two sides of the thermal pad are closely attached and are not crushed by crushing.
Feature
Ultimate Heat Conductivity
Non-Electrical Conductive
Non-Corrosive, Non-Curing & Non-Toxi
Size 1 Specifications 12.8W

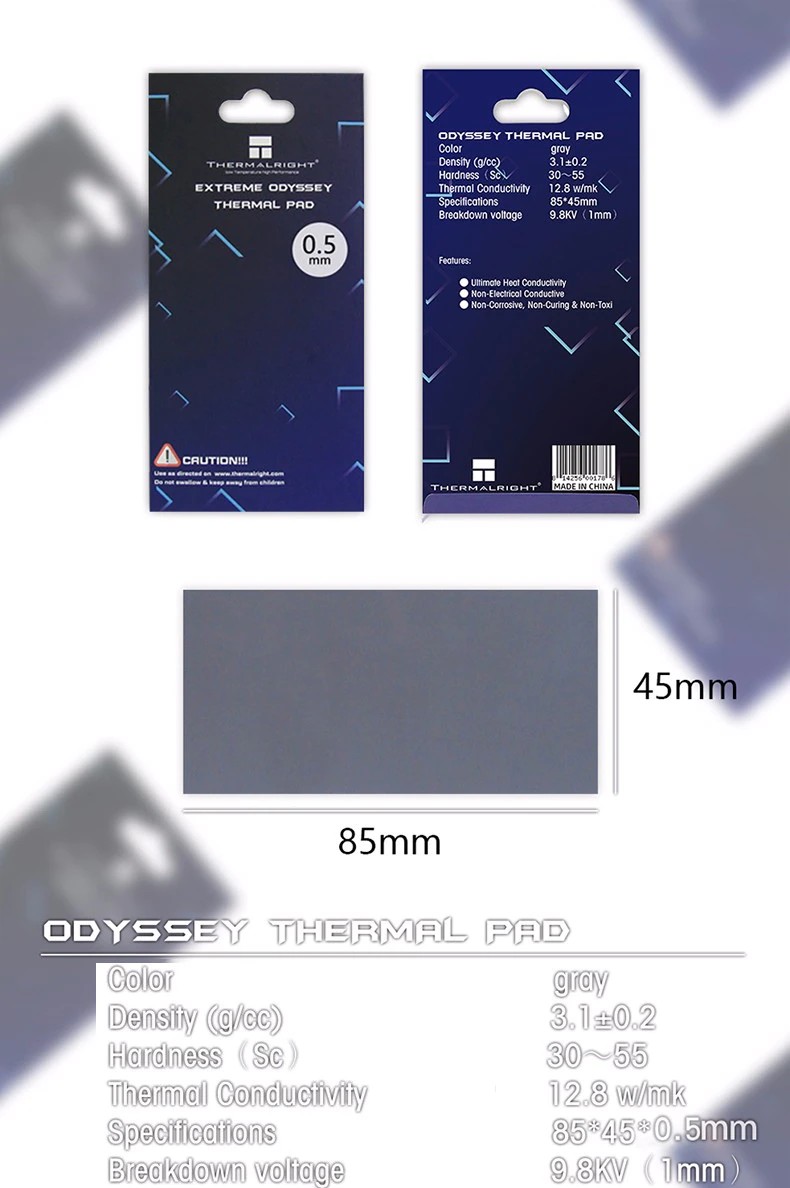

85(long)x45(width)x0.5mm(thickness)
85x45x1.0mm
85x45x1.5mm
85x45x2.0mm
85x45x2.5mm
85x45x3.0mm
120x20x0.5mm
120x20x1.0mm
120x20x1.5mm
120x20x2.0mm
120x20x2.5mm
120x20x3.0mm
120x120x0.5mm
120x120x1.0mm
120x120x1.5mm
120x120x2.0mm
120x120x2.5mm
120x120x3.0mm

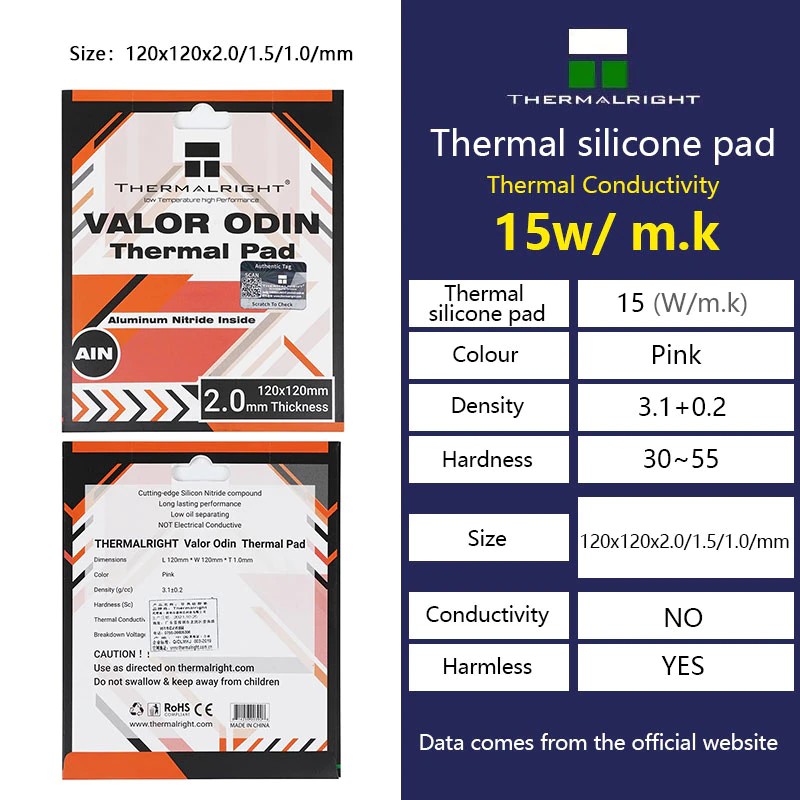

Size 2 Specifications 15W
90(long)x50(width)x1.0mm(thickness)
90x50x1.0mm
90x50x1.5mm
90x50x2.0mm
120x20x1.0mm
120x20x1.5mm
120x20x2.0mm
Suitable for notebook solid state, CPU/GPU heat pipes, and various heating circuits, excellent heat dissipation performance, Liquid cooling thermal accessories,up to 12.8W thermal conductivity
FAQ:
How to choose the size you need
1: Calculate the area of your GPU/CPU/circuit board
2: Calculate the thickness of the thermal pad according to the gap between the circuit boards
Reminder: The thermal conductivity of each thickness of the thermal conductive silicone pad is the same, and it can be cut at will
Instructions For Use
INSTALLING THERMAL PADS
Thermal pads are much simpler in their installation than thermal paste because they can be easily and precisely applied, so that even newcomers have no difficulties. However, the thermal output is usually lower than that of the paste and so they can only be used to a limited extent on CPUs.
REMOVING THERMAL PADS
When using thermal pads, it should always be borne in mind that these are intended for single use only. If heat sinks are moved or replaced, the pad must be replaced completely. All adhesive residue should also be removed, otherwise there will be new bumps and gaps on the surface.
THERMAL PADS IN VARIOUS STRENGTHS AND DIMENSIONS
Thermal pads can be purchased from in various thicknesses and sizes. They can also be cut to the necessary dimensions by the user.
This link allows you to purchase Thermalright ODYSSEY in 120*120 size and 85*45 size at the same time
Purchase steps:
Purchase steps:
First: select the size and quantity of the desired product
Second: Put the goods you choose into the shopping cart
Third: Go to Wish Cars for unified liquidation
Reminder (the logistics cost depends on the country and the weight of the product)

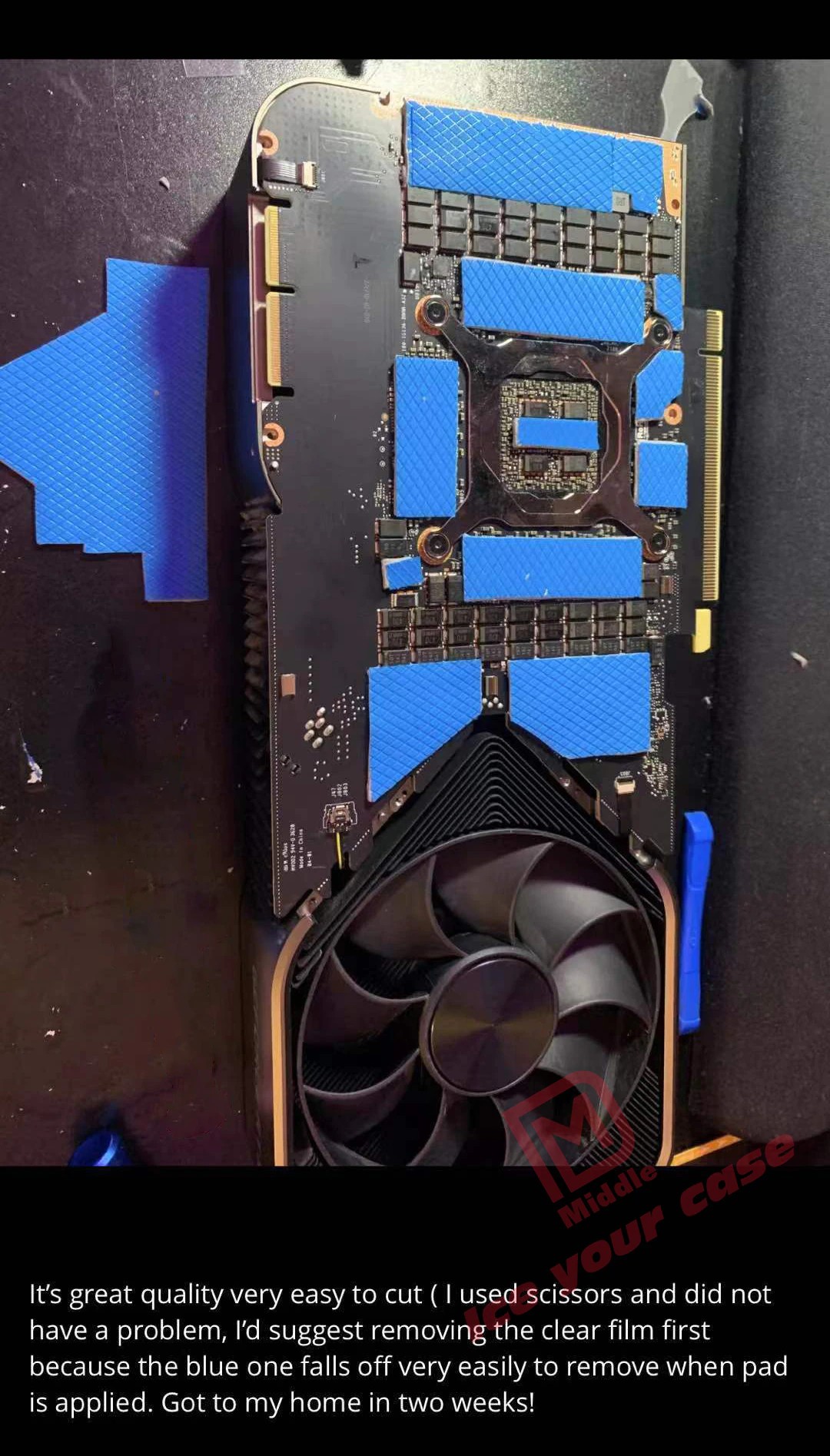

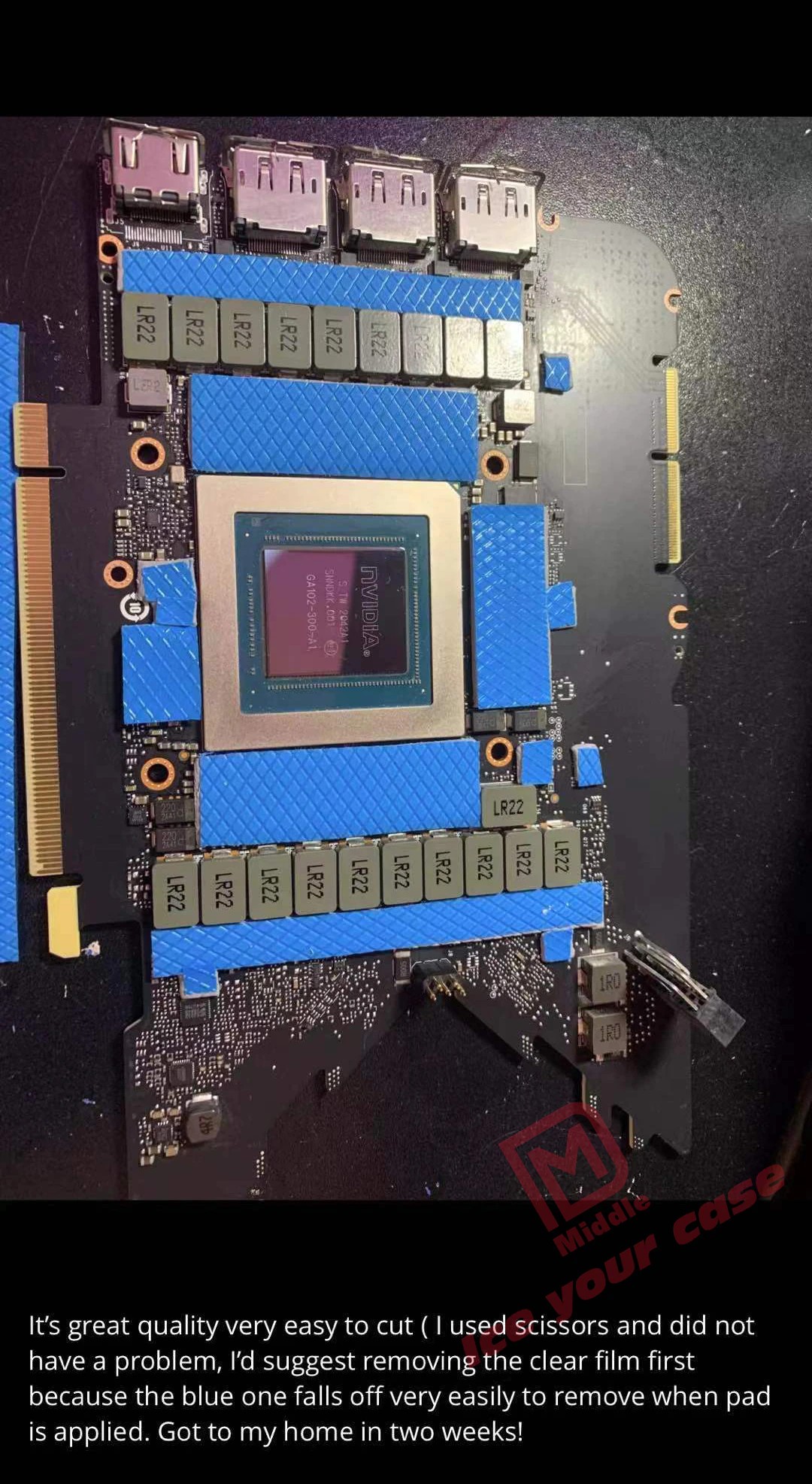

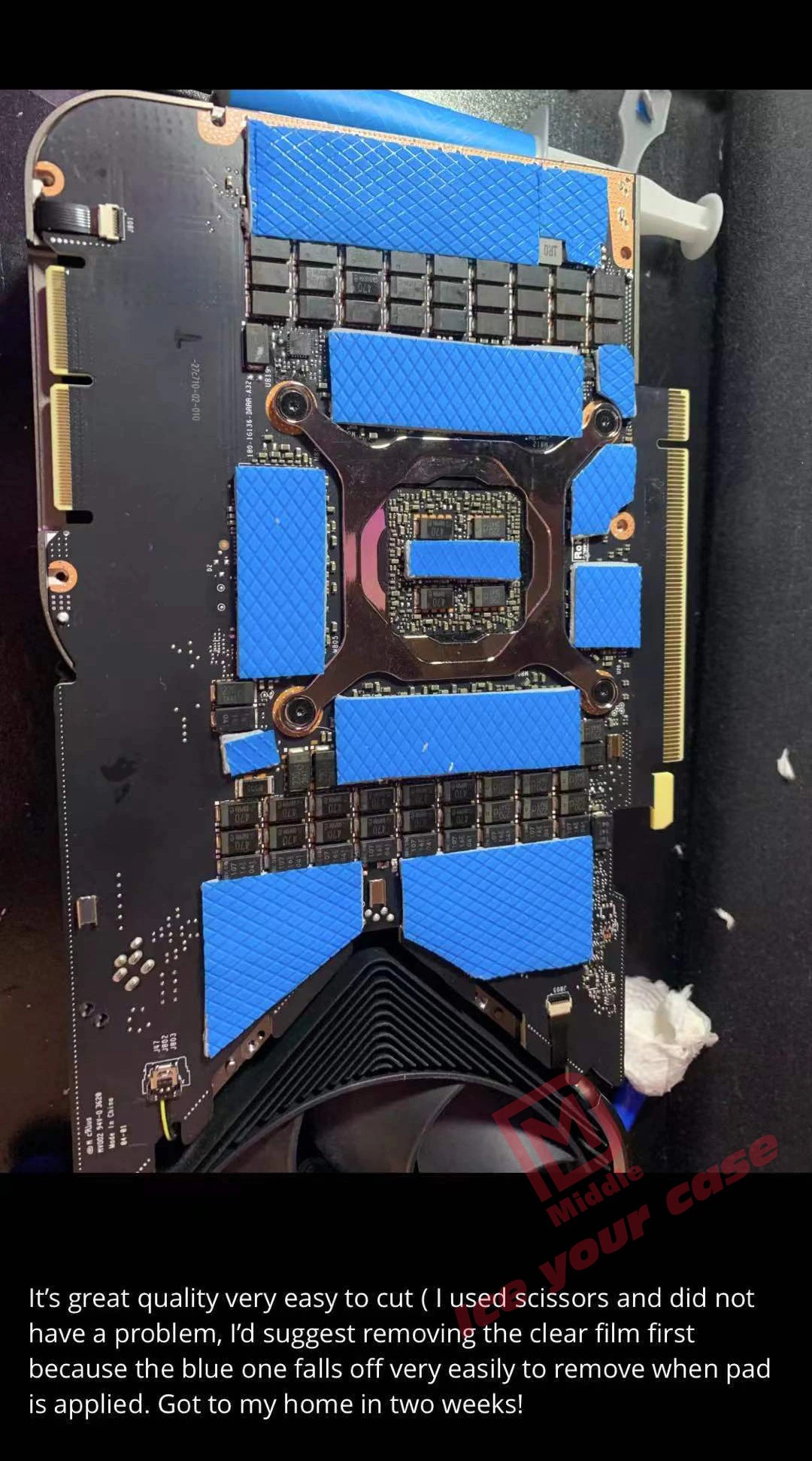

Buyers Show
