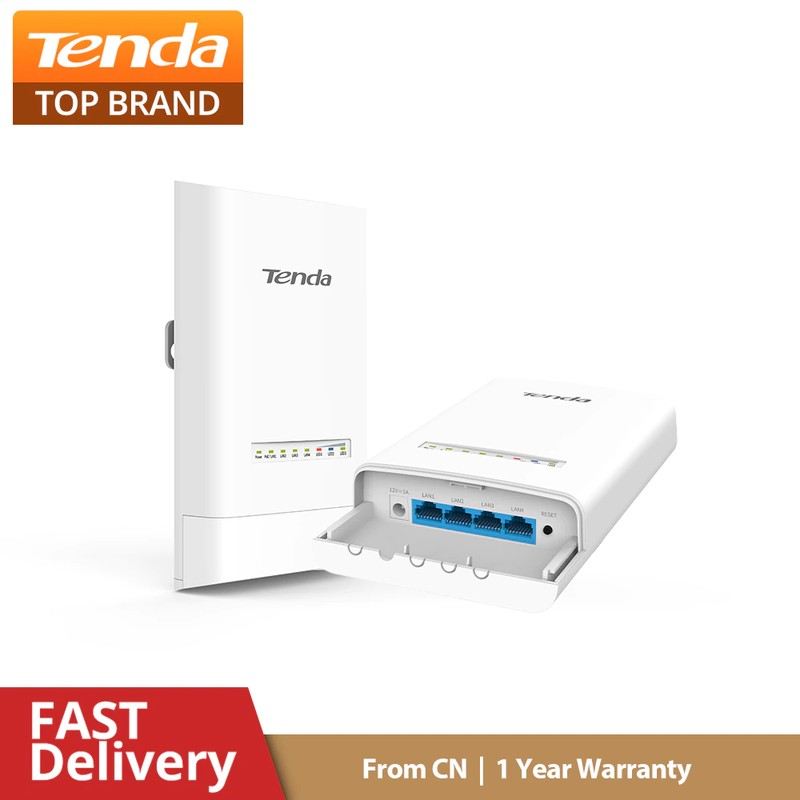

Tenda Os3 5Km 5Ghz 867Mbps Cpe Wireless Wifi Repeater Router Ap Access Point Wi-Fi Bridge With Poe Adapter

Product Overview

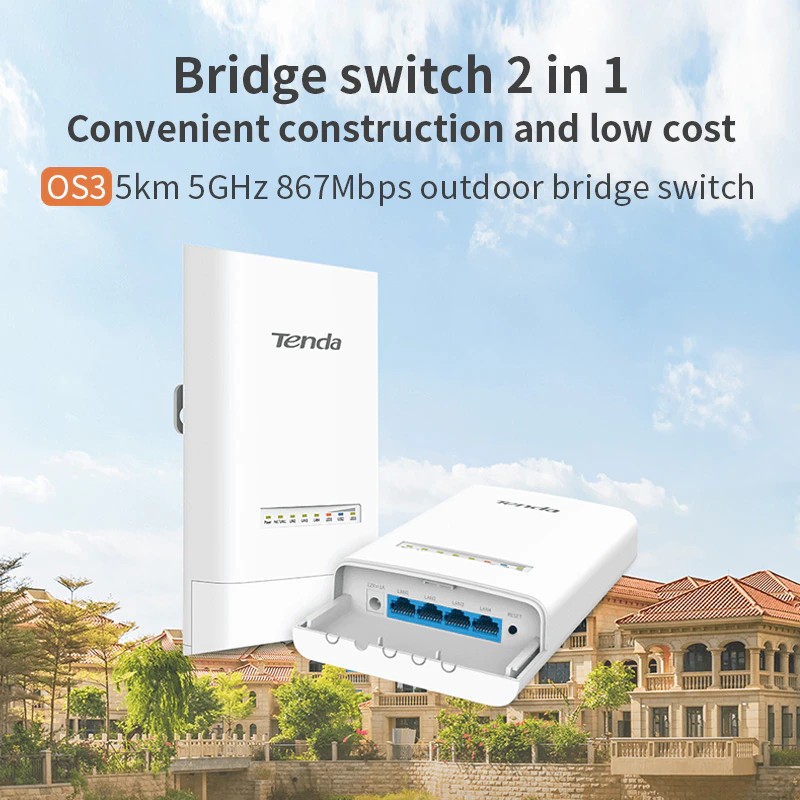

OS3 5GHz 867Mbps outdoor Point to Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission.

It features with an external power amplifier and a built-in 12dBi directional antenna to provide an efficient way to pick up And maintaining a stable signal for a wireless network connection range up to 5 km.

Main Features

• 5GHz 11ac 867Mbps

• 4 *10 / 100Mbps LAN ports

• 12dbi dual polarization antenna

• IP65 weatherproof enclosure

• 6000V Lightning Protection

• AP,Station,WISP operating mode supported

Note

What we sell is: 1 PCS. If you need a pair of OS3, please buy two products.

For community, school, factory, agricultural and breeding farms and other scenes road multi-directional monitoring, high-altitude parabolic monitoring and corner multi-angle monitoring applications.

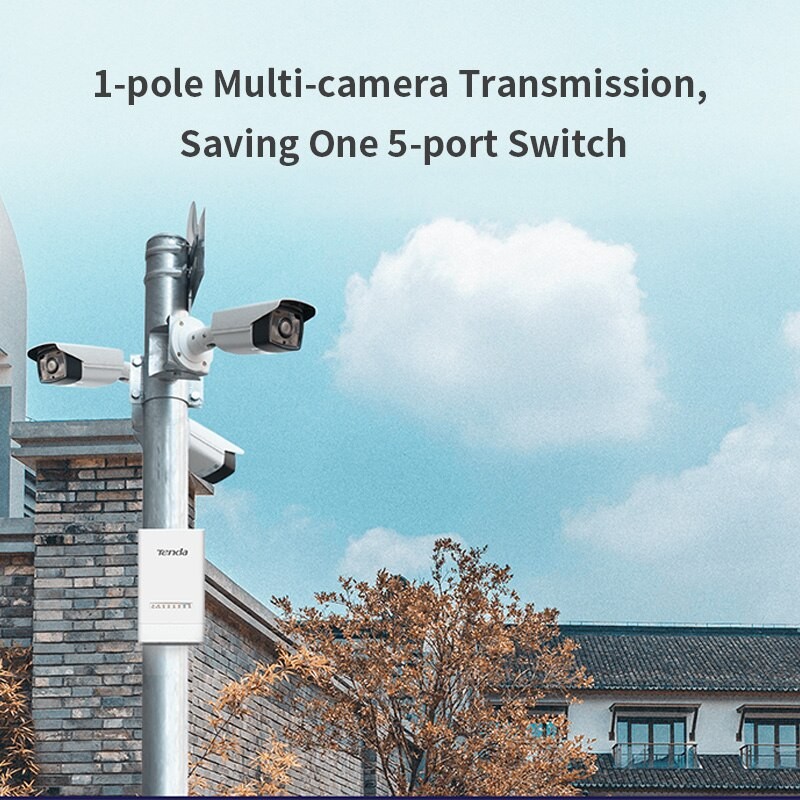

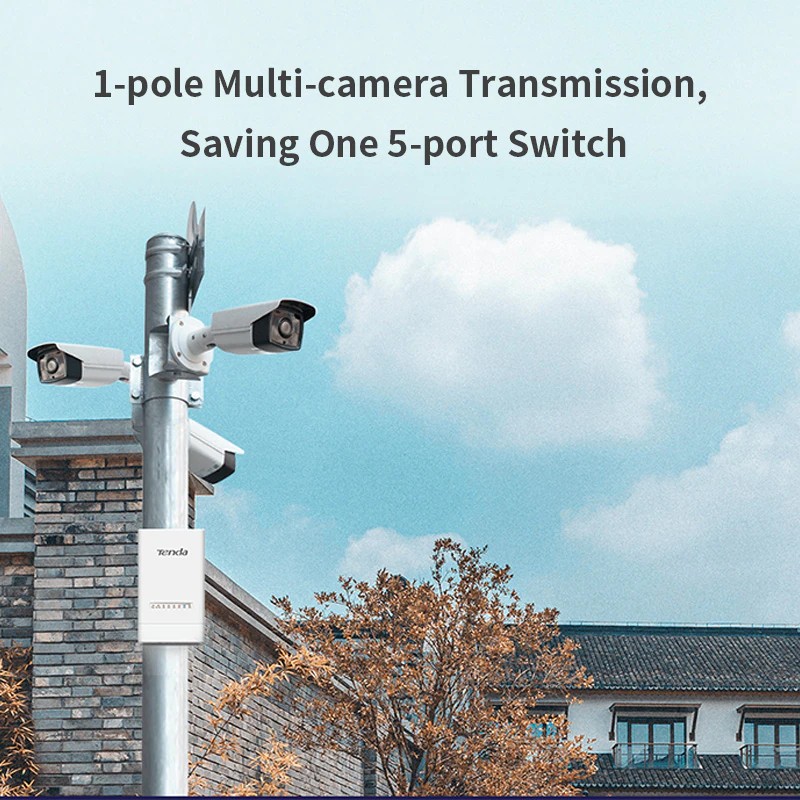

OS3 integrates 4 network ports design, can connect up to 4 cameras at the same time.

OS3 uses a 100mW power amplifier with a built-in 12dBi high-gain directional antenna. The horizontal coverage angle is 30 degrees and the vertical angle is 30 degrees.

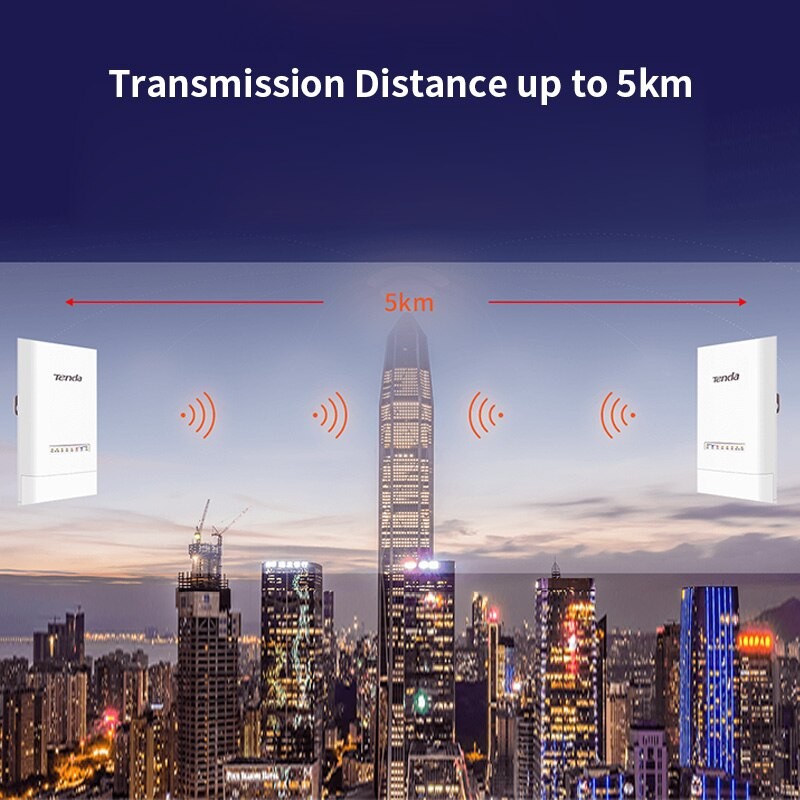

The wireless transmission energy is more concentrated. After testing, the point-to-point bridging distance can reach up to 5 kilometers.

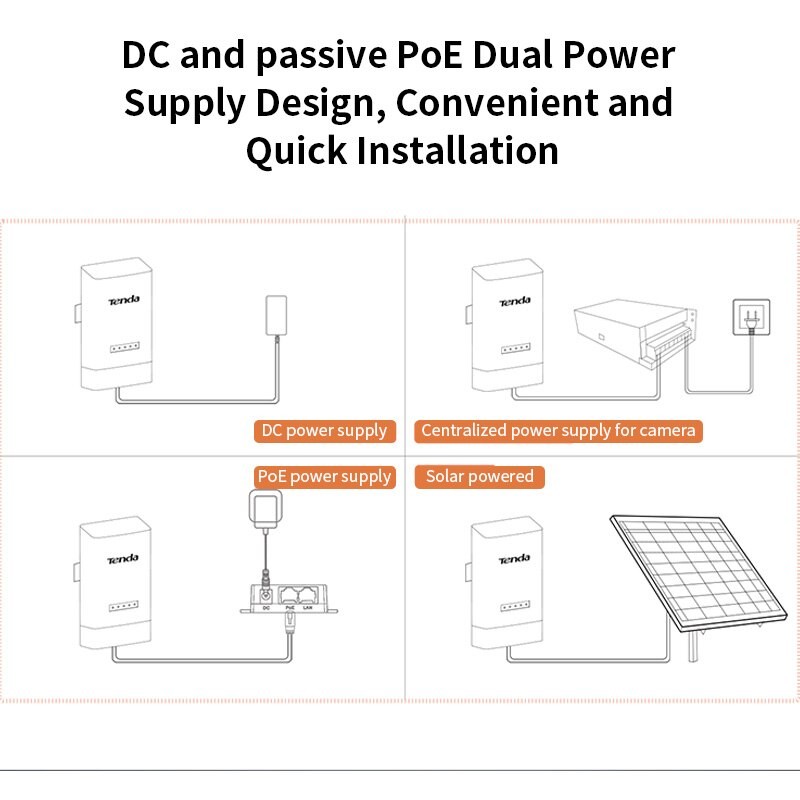

The power supply range of OS3 equipment is 9V-13V, and it supports DC direct power supply and passive PoE network cable power supply.

When the equipment is installed close to the weak current box, the centralized power supply of the camera can be used for direct power supply.

When the equipment is installed far away from the weak current box, the network cable can be used for power supply.

The equipment is installed outdoors and is powered by a solar power supply system.

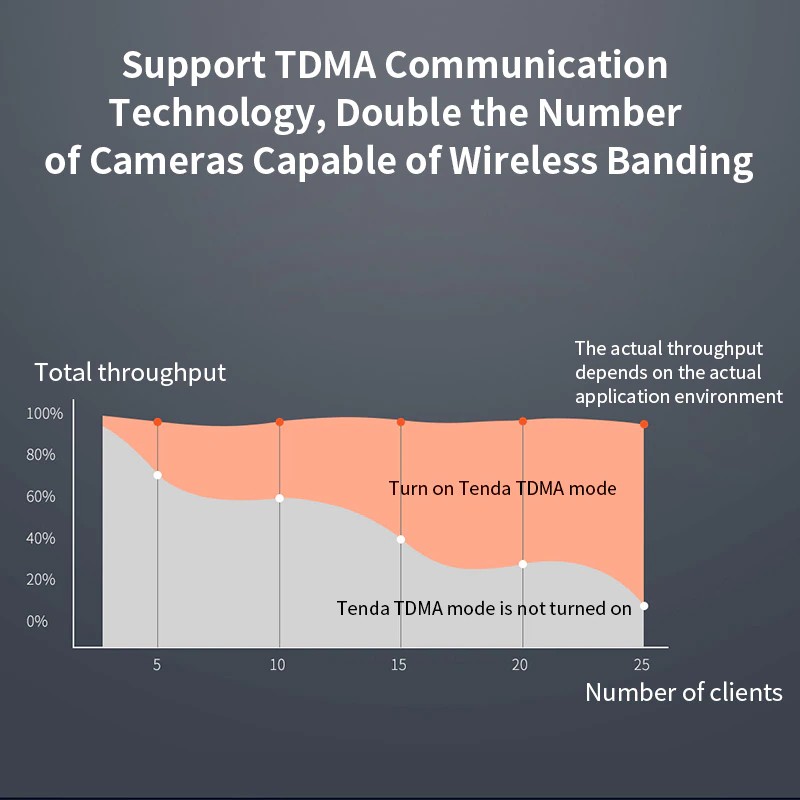

TDMA is a technology that allows wireless data to change from disordered transmission to ordered transmission.

There is no order in sending data between traditional bridges. When multiple pairs of bridges transmit at the same time, disordered transmission will cause channel congestion.

TDMA technology Using the polling mechanism, when the bridge is one-to-many transmission, the bridge sends and receives data in an orderly sequence through TDMA technology, which greatly improves the transmission efficiency of the entire wireless transmission network channel, and can enhance the throughput of wireless transmission during monitoring Increase the number of cameras with cameras.

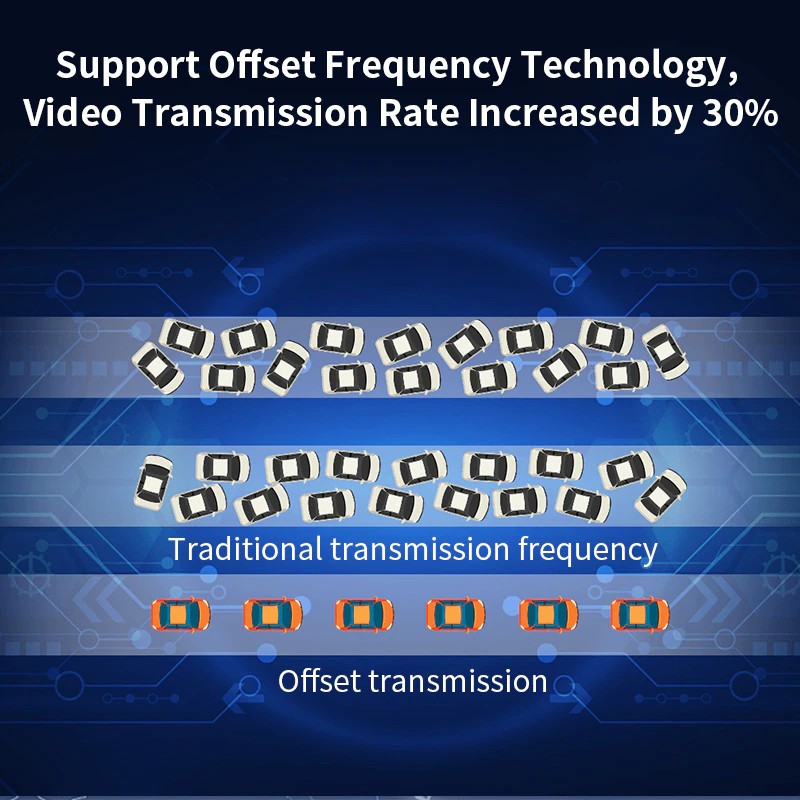

Aiming at the complex outdoor transmission environment with much interference, the Tenda spread spectrum bridge specifically improves the channel frequency of the traditional bridge.

It can offset the frequency of the traditional channel by 5MHz, avoiding the same frequency interference between the signals, which is equivalent to the network Bridge Transmission has created a "proprietary wireless signal frequency", which is more than 30% higher than the transmission rate of bridges with the same specifications in the market.

The waterproof and dustproof level of OS3 can reach IP65, and it supports 6000V network port lightning protection, no fear of thunderstorm weather; high-specification electronic materials are used, and it can work stably even in extreme high and low temperature environments (-30℃ to 60℃).
