New Mt-18 Grey 0-99.9% Two Pins Digital Wood Meter Paper Humidity Tester Wall Hygrometer Timber Damp Detector
- 139 reviews
- 445 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: Woodworking
Certification: RoHS
Display Type: DIGITAL
Model Number: MT-18
With Backlight Or Not: Yes
Congratulations on your purchase of this Moisture Meter. This instrument is a conductivity moisture meter specifically designed for the wood/paper/building material industries.
The instrument has for ABCD wood scales, enabling the user to take accurate moisture measurements in all kinds of wood species. You can choose paper mode to Test moisture of Cardboard, carton and paper. And you can select WALL mode to test moisture of sheetrock, wallboard, or other building materials.
Operation:
Caution: The electrode measurement pins are extremely sharp. Users care when handling this instrument. Cover the pins with the protective cap when the instrument is not in use.
Measurement Instructions:
1. Remove the cap to expose the needle electrodes.
2. Power ON the Instrument.
3. Select the appropriate wood calibration scale A, B, C, D (See the Wood Calibration Tables later in this guide) Using "WOOD" button.

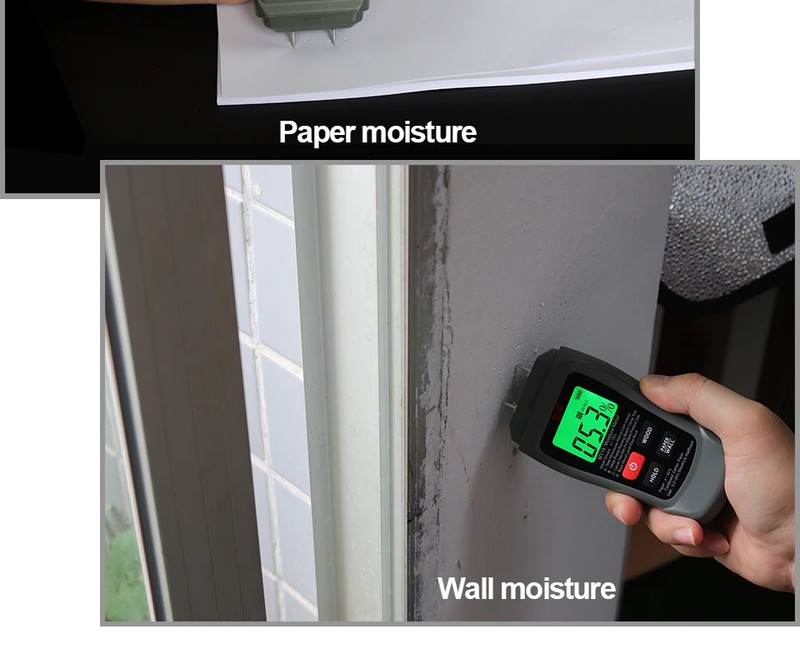

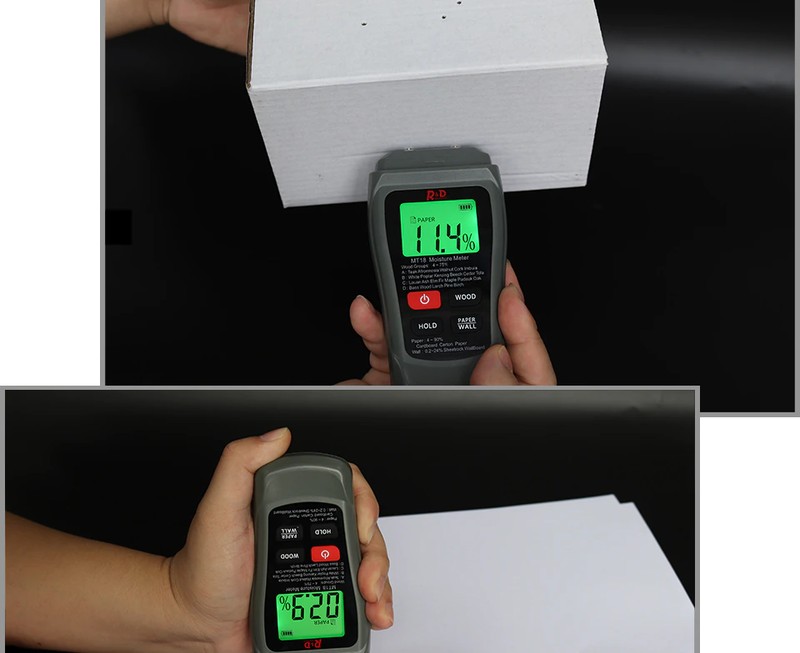

4. Or Press “PAPER/WALL” key to Choose Paper Mode or Wall Mode. Paper mode is used for testing Cardboard/Carton. Wall mode is used for testing Sheetrock/Wall Board/Floor.

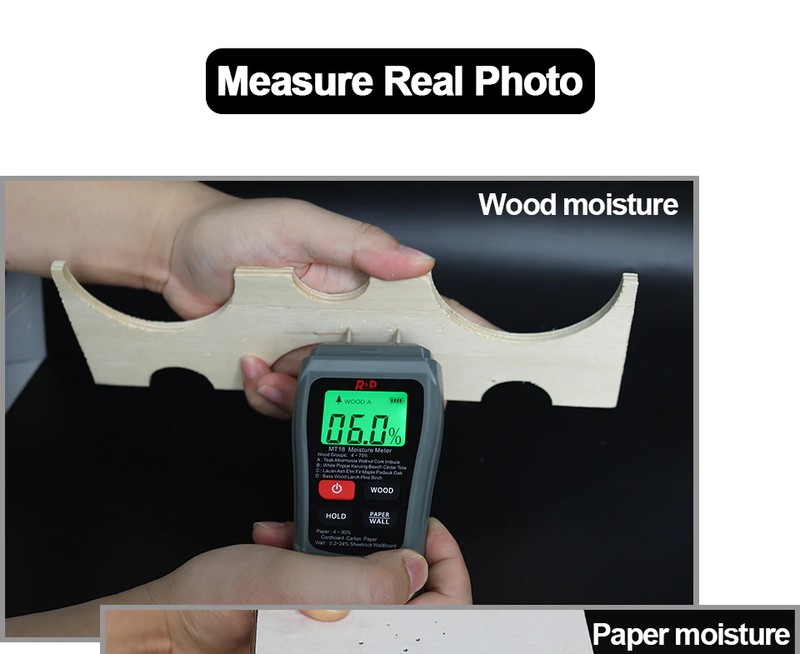

4. Push the needle pins into the material and observe the reading.
5. Power OFF the instrument.
Auto Power OFF:
This instrument will be Auto Power OFF if there is no any button pressing in 5 minutes. This design is for saving battery power consumption.

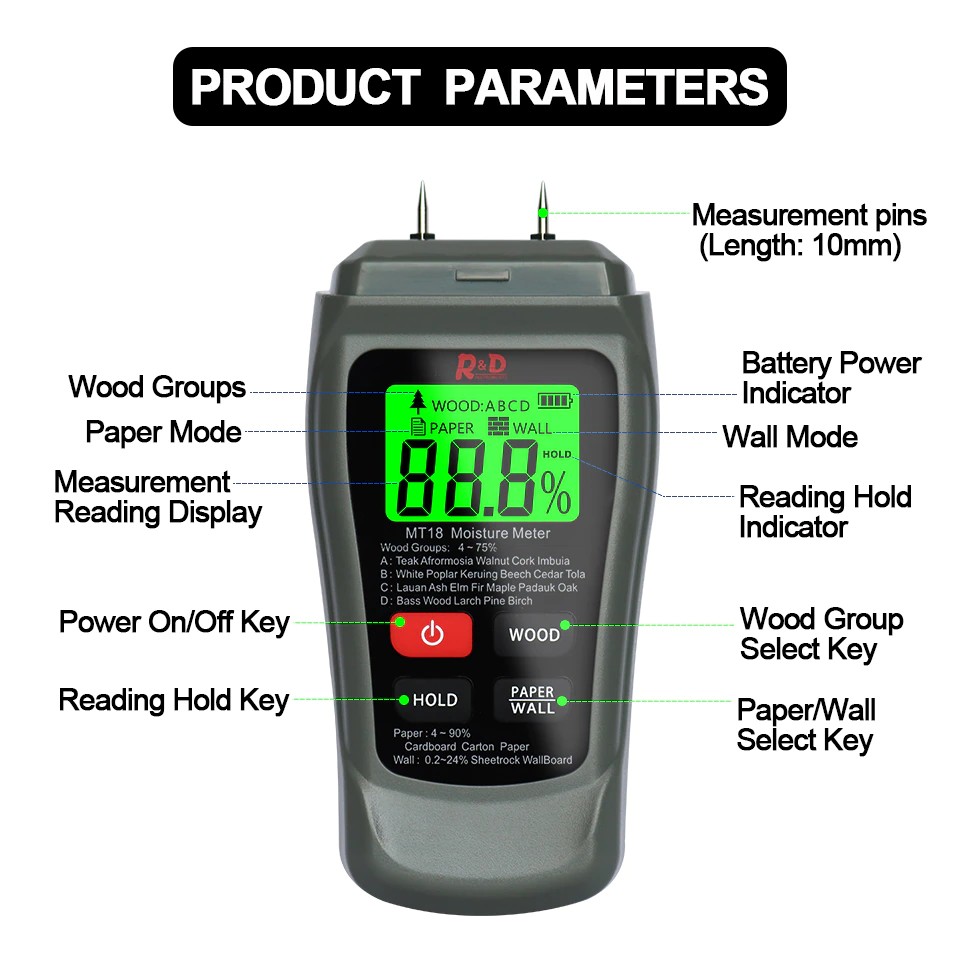

Specifications:

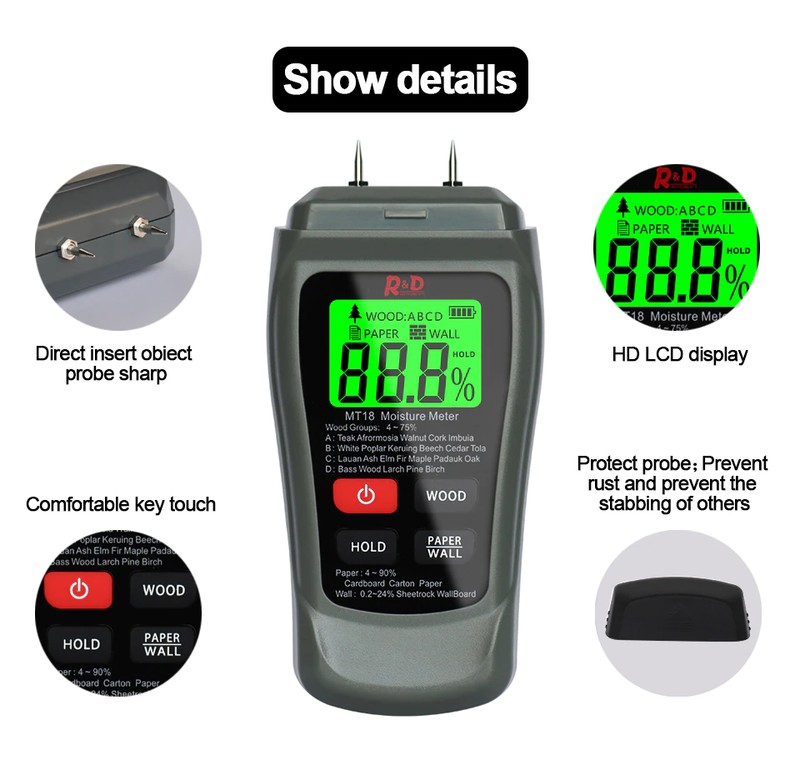

uf06eLCD Display With Backlight
uf06ePrinciple: Electrical resistance
uf06eWood Range: 4~75%
uf06ePaper Range: 4~90%
uf06eWall Range: 0.2~24%
uf06eResolution: 0.1%
uf06eAccuracy: ±0.5%
uf06eElectrode length: 10mm(0.4")
uf06eElectrode pins: Integrated
uf06eAuto Power OFF: After approx.5 minutes

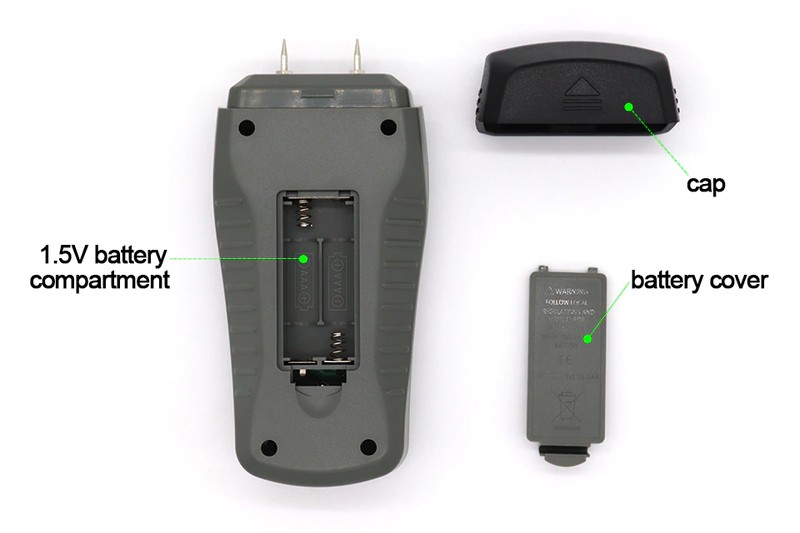

uf06ePower Supply: 2*AAA batteries
uf06eMeter housing: ABS plastic
uf06eOperating Temperature: 0 to 40 (32 to 104)
uf06eDimensions: 145 X 67 X 32mm (5.7" x 2.6" x 1.3")
uf06eWeight: 200g (7.0 oz)
Wood Species Group Table:
A: Teak, Walnut, Afrormosia, Rubber Tree, Imbuia, Kokrodua, Niove Bidinkala, Cork
B: Keruing, White Poplar, Beech, Cedar, Tola
C: Lauan, Ash, Elm, Fir, Maple, Padauk, Oak, Cherry
D: Basswood, Larch, Pine, Birch
PAPER MODE:
Cardboard, Carton, Paper
WALL MODE:
Sheetrock, Wall Board, Floor
