New Adjustable Temperature Electric Soldering Iron 220V 110V 60W 80W Welding Solder Rework Station Heat Tips Tool
- 0 reviews
- 8641 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Temperature Stability: 1'C
Is Smart Device: YES
Certification: CE
Output Power: 60W
Model Number: Soldering Iron
Dimensions: EU / US Plug
Input Voltagle: 110V or 220V
Output Temperature: 200'C-450'C

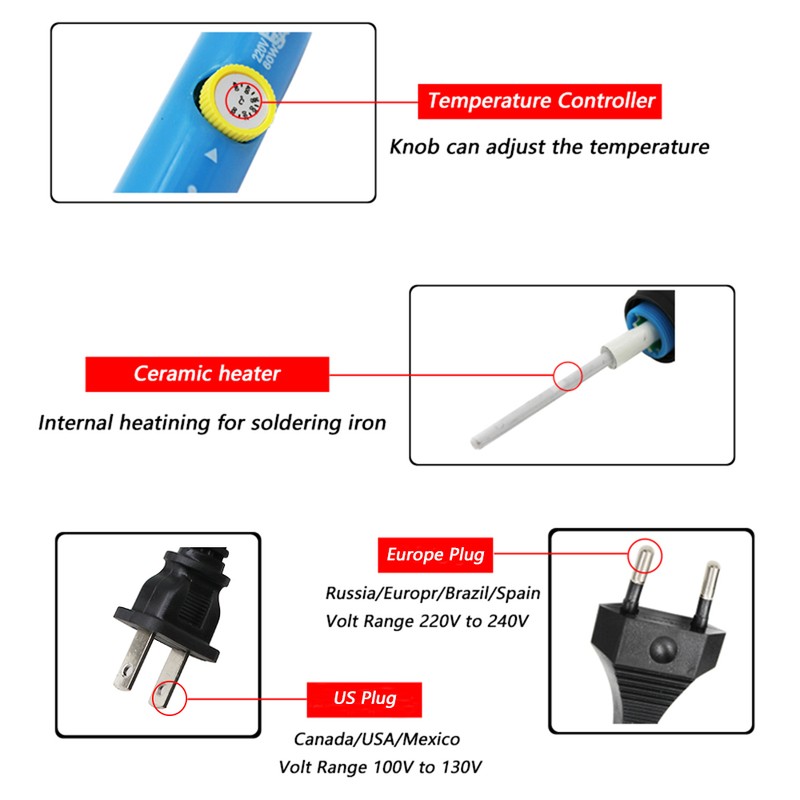

Temperature: Adjustable Temperature
Iron Tips: 900M-T Series
Heater: Ceramic heater
Features 1: Soldering iron 60w
Features 2: Soldering iron
Features 3: soldering iron adjustable
Features 4: soldering iron 220v
Features 5: adjustable soldering iron
Features 6: soldering iron station
Features 7: soldering iron 110v
Features 8: electric soldering iron
Features 9: solder soldering
Features 10: soldering tools
Features 11: iron solder
Features 12: electric soldering
Features 13: soldering iron tool
Features 14: welding tools
Features 15: solder soldering iron
Features 16: welding pencil
Features 17: 60W Iron
Features 18: soldering pencil
Features 19: adjustable temperature soldering iron
Features 20: soldering iron electric
Features 21: soldering iron solder
Features 22: pencil soldering iron
Features 23: 60w soldering iron
Features 24: welding solder
Features 25: soldering iron temperature
Features 26: welding soldering iron
Features 27: welding iron
Features 28: iron station
Features 29: iron soldering tool
Features 30: electric soldering iron solder tool
Features 31: electric welding tools
Features 32: heat solder
Features 33: tip soldering iron
Features 34: electric soldering station
Features 35: iron welding
Features 36: soldering station
Features 37: electric welding
Features 38: soldering rework station
Features 39: temperature soldering iron
Use: Soldering
Colour: Blue
Quality: Brand-New
Warranty: Six-Months
Place of origin: CN
Note: If you have any problem, I will help you solve the problem.

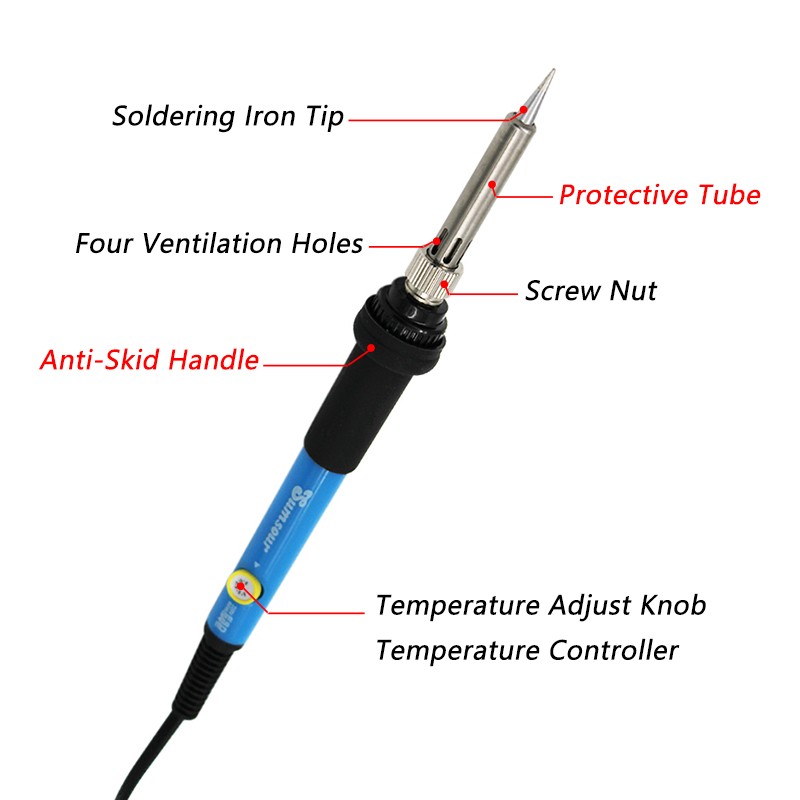

Adjustable temperature soldering iron

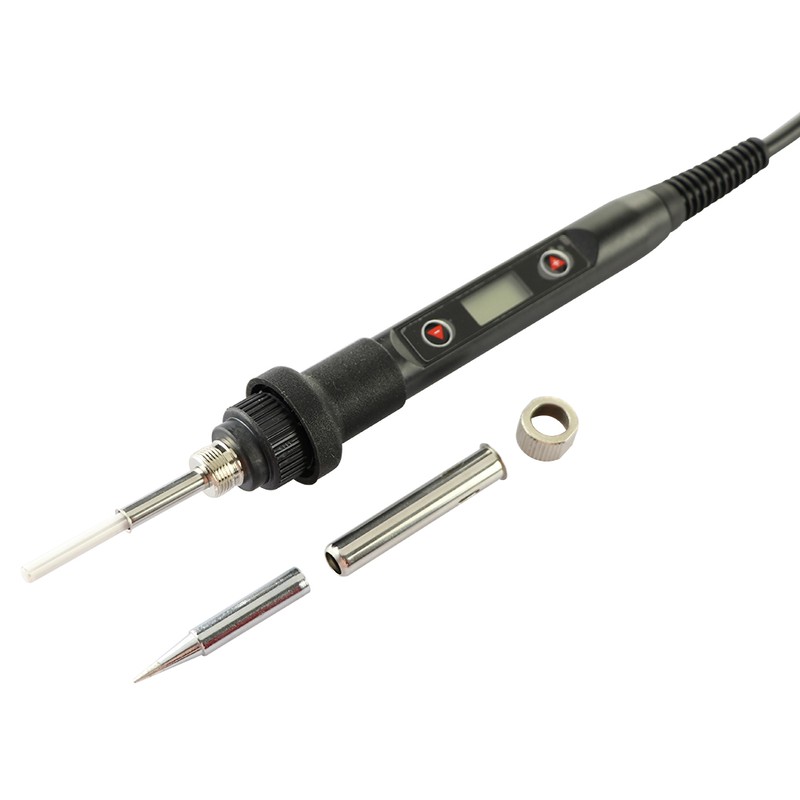

This compact desgined station is ideal for professional use. Soldering can be performed and adjusted from the control knob from 200°C - 450°C. Interchangeable iron plated tips are available to make the soldering station excellent for electronic and electric use.
This professional soldering tool is great for lead-free soldering semiconductors with adjustable temperature controlled soldering irons: 200-450 ° C.

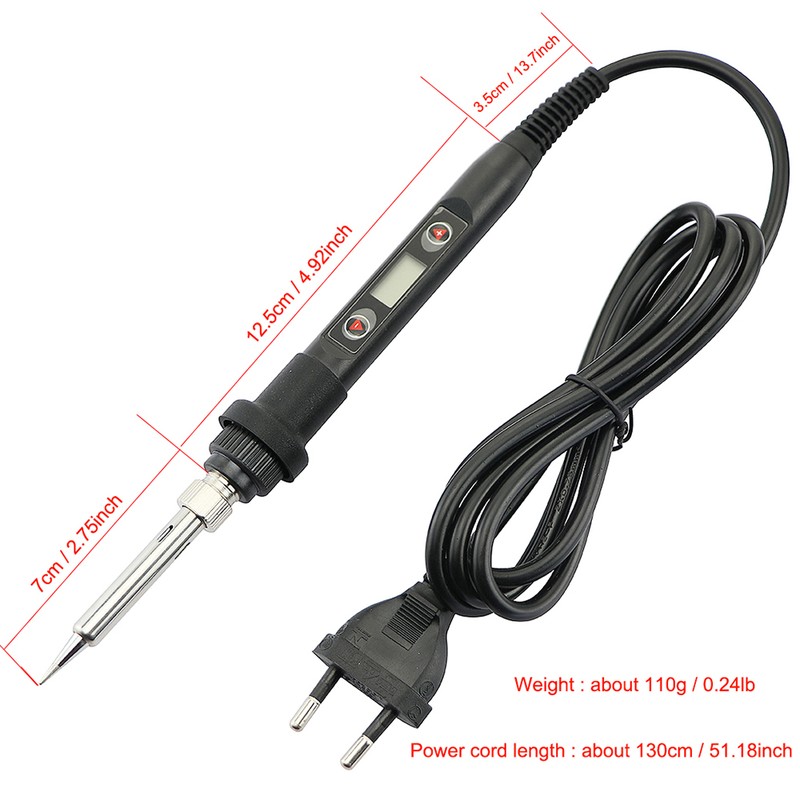

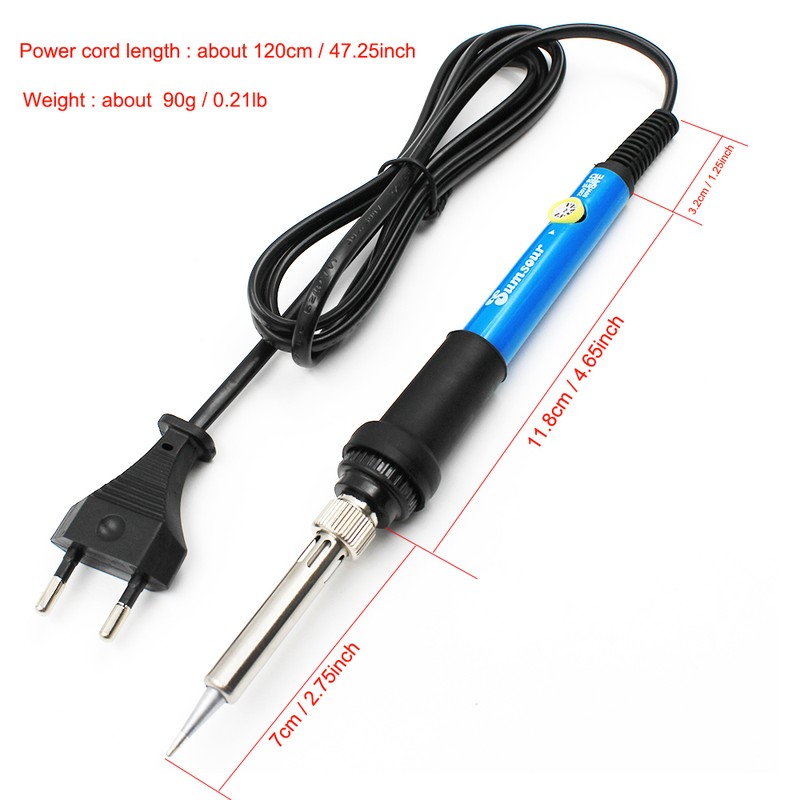

Soldering Iron Length: 18.5 cm
Cable Length: 143 cm
Working Voltage: 110V / 220V 60Hz / 50HZ
Power: 60W
Instruction:

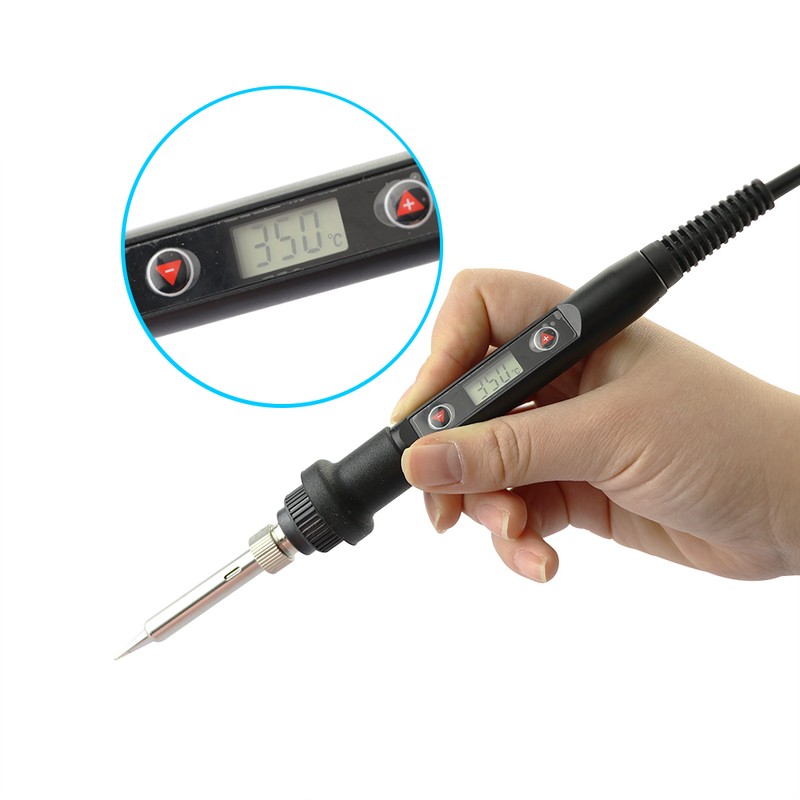

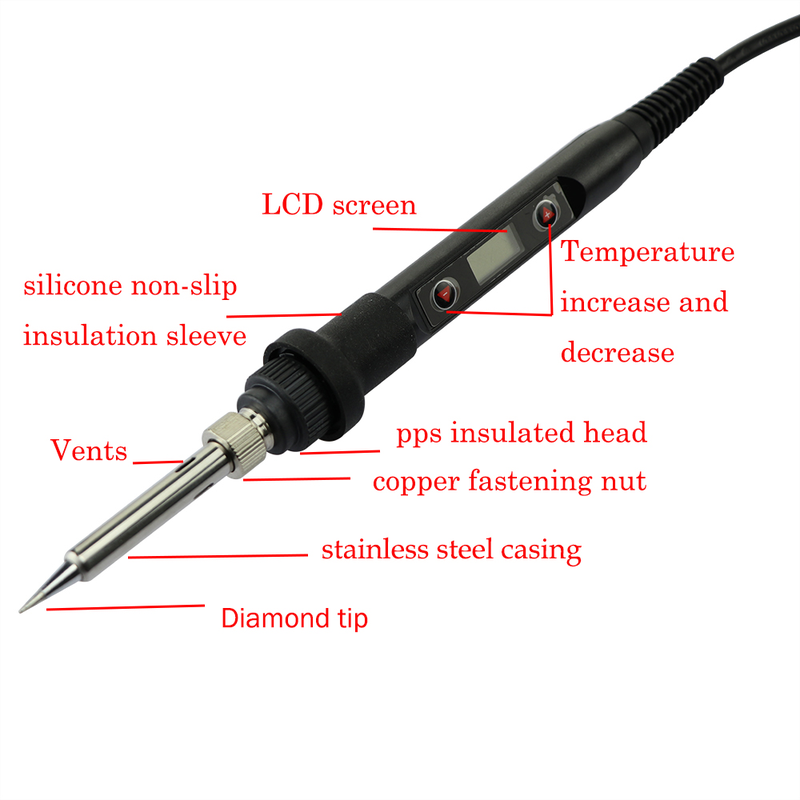

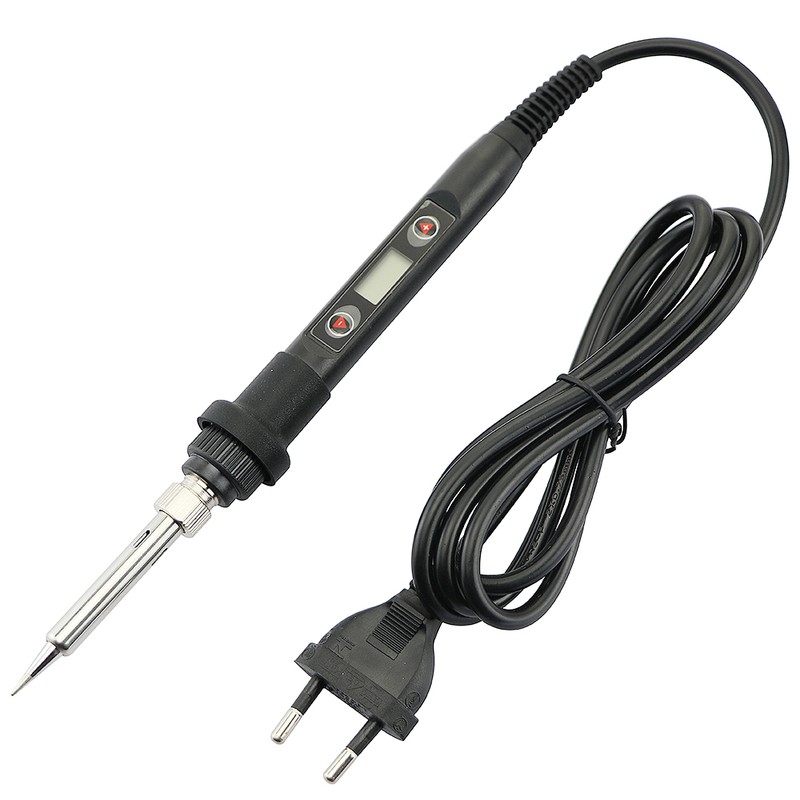

Press the (+) button once to increase 1℃; press and hold it to increase temperature continuously. Press the (-) button once to reduce 1℃; press and hold it to reduce temperature continuously. The newly set temperature will be saved after 3 seconds,and will keep the temperature for next time powering-on.When (℉) or (℃) symbol flashes, it means the heating core has not reached the set temperature.
Temperature Calibration:
1.After 60 seconds of power on, put the soldering tip on a thermometer, and a moderate amount of solder on the soldering tip; make the test point and the soldering tip have good touch.
2.When thermometer displays a stable temperature (about 2 seconds), write down the temperature.
3.Move soldering iron away from thermometer; press the (-) and (+) button at the same time to enter temperature Calibration.
4.Input adjustment quantity. Adjustment quantity=set temperature - measured temperature (see example)
5.Press the (-) and (+) at the same time to exit temperature interface, finished. Example 1, when setting temperature is 350℃ while measured temperature is 342℃, the correction steps are as follows: a.press the (-) and (+) at the same time to enter temperature correction interface. b.press the "+" button till the LCD displays 8℃ c.press the (-) and (+) at the same time to exit temperature correction interface Example 2, when setting temperature is 350℃ while measured temperature is 330℃,the correction steps are as follows: a.press the (-) and (+) at the same time to enter temperature correction interface. b.press the (-) button till the LCD displays -20℃ c.press the (-) and (+) at the same time to exit temperature correction interface
Parameter setting:
1.To press the red and white button both at the same time before it is power on, power on,after the LCD is working,stop to press the button, you will enter the setting menu.The LCD shows (F) or (C)
2.Press the white button to choose C(degree centigrade) or F(Fahrenheit).Press the Red button to choose Element U20(JCD01),U20(JC D02),U30(JCD03),U40(JCD04).
3.Pressing the (-) and (+) at the same time to save your setting operation and quit the setting menu(finished) To protect the user from scald, when on the setting menu, it will stop heating.
Failure warning indication
The LCD shows (OP): the heating element is open circuit.
Solution:
1.change the element.
2.To confirm that whether the pin of element is oxidized.
The LCD shows(E1):
The outlet is poor contact,or thebattery source interfering the soldering iron that it is power down.
Solution:
1.Unplug the soldering iron.
2.Close the interfering source.
3.To use it far away from the interfering source. Note: Please do not touch the soldering tip and tube when the power is turned on.
60W iron package list :

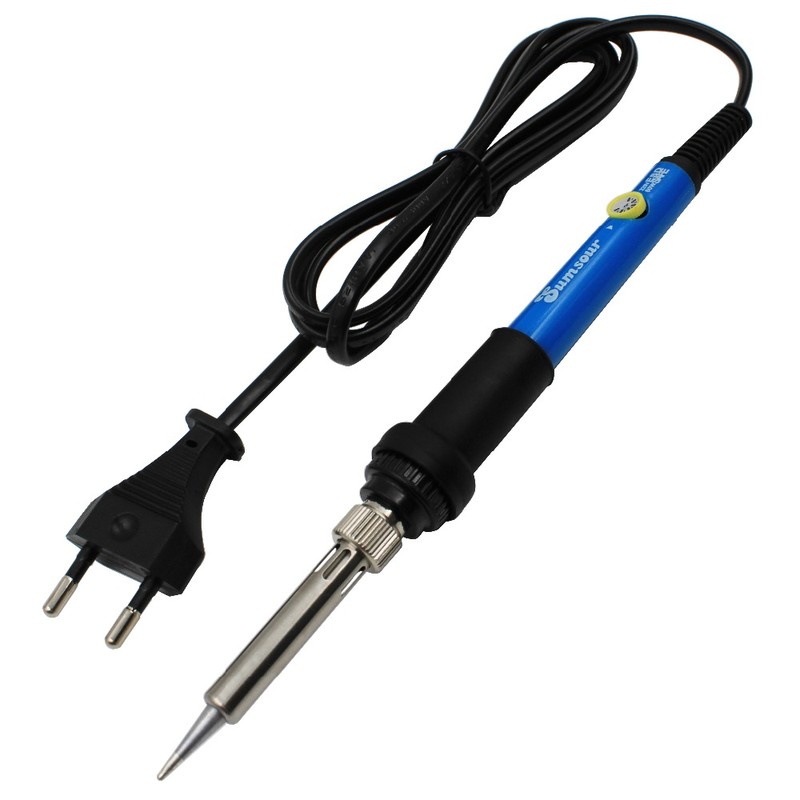

1 X 60w Soldering Iron ( 110V US Plug / 220V EU Plug )

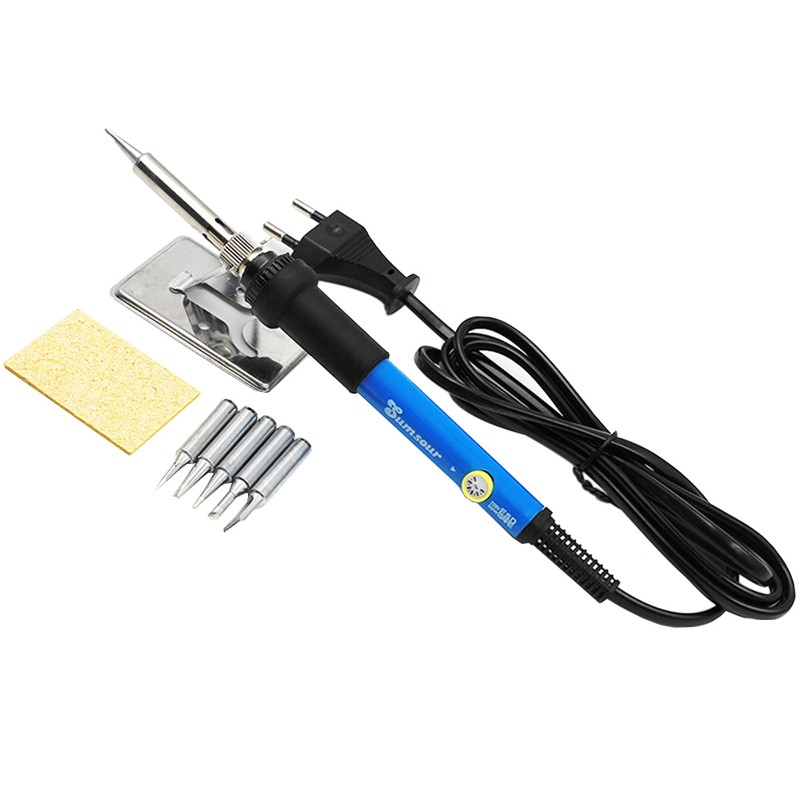

60W iron set package list :
1 X 60w Soldering Iron ( 110V US Plug / 220V EU Plug )
5PCS soldering iron tips (I / B / K /2.4D / 3C)
1pcs Stainlness steel soldering stand
1pcs sponge

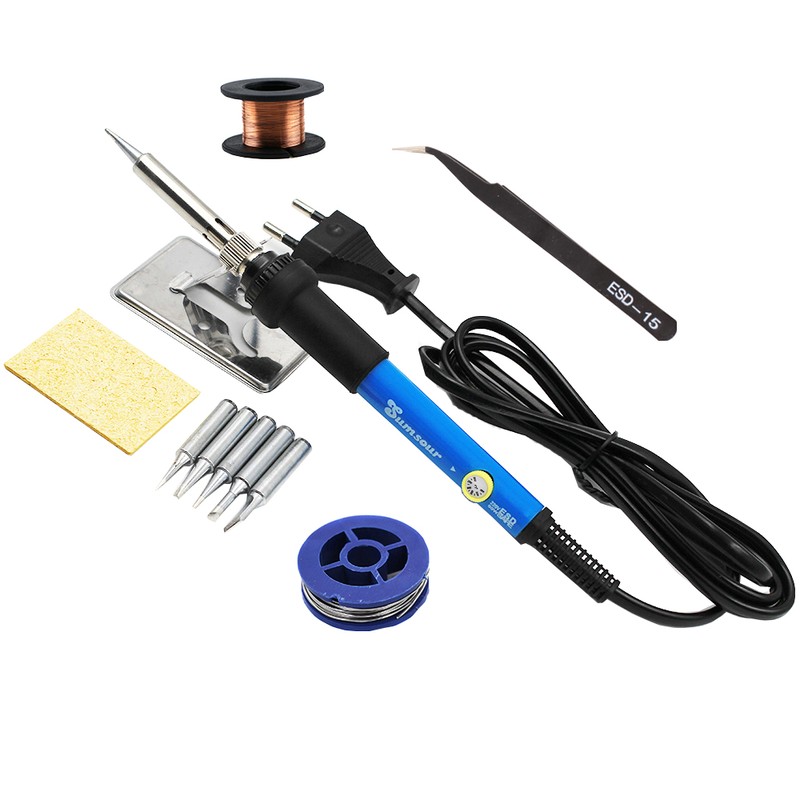

60W iron Kit package list :
1 X 60w Soldering Iron ( 110V US Plug / 220V EU Plug )
5PCS soldering iron tips (I / B / K /2.4D / 3C)
1pcs Stainlness steel soldering stand
1pcs sponge
1pcs solder wire
1pcs Copper wire
1pcs ESD-15 Tweezers
80W iron package list :
1 X 80w Soldering Iron ( 110V US Plug / 220V EU Plug )
80W iron Set package list :
1 X 80w Soldering Iron ( 110V US Plug / 220V EU Plug )
5PCS soldering iron tips (I / B / K /2.4D / 3C)
1pcs Stainlness steel soldering stand
1pcs sponge
80W iron kit package list :
1 X 80w Soldering Iron ( 110V US Plug / 220V EU Plug )
5pcs soldering iron tips (I / B / K /2.4D / 3C)
1pcs Stainlness steel soldering stand
1pcs Sponge
1pcs Solder wire
1pcs Tweezers
1pcs Copper Wire
