Multi-Purpose Transistor Meter Tester Bside02Pro Smart Diode Triode Capacitance Resistor Meter Lcd Lcr Meter
- 139 reviews
- 479 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Model Number: ESR02PRO
is_customized: Yes
Certification: RoHS
Type 1: lcr meter
Type 2: esr meter
Type 4: capacimetro digital
Type 5: transistor tester esr meter
Type 6: capacitor tester component tester
Type 7: testador componentes
Feature: Capacitance Resistor Meter LCD meter Lcr Meter

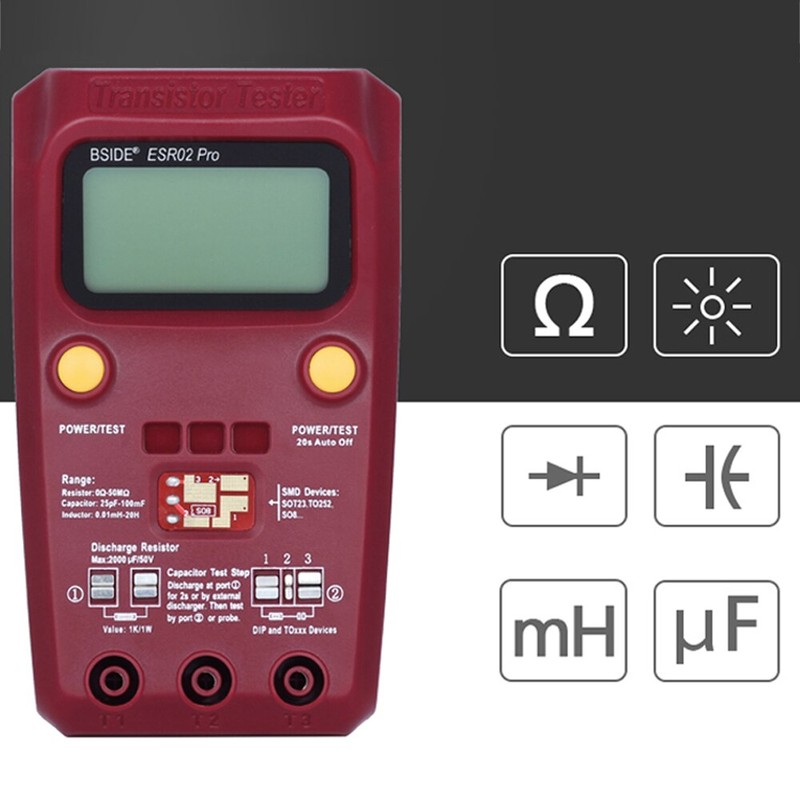

BSIDE ESR02PRO Digital transistor SMD Components tester Diode Triode Capacitance Inductance Multimeter ESR Meter.

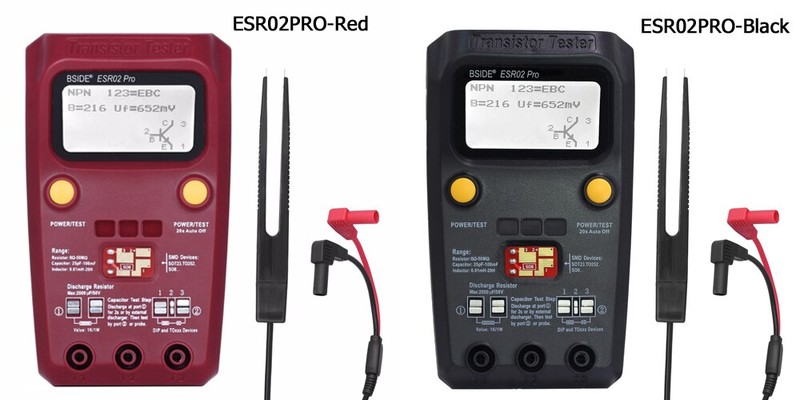

Choose the color you like! ( Red or Black )
Descriptions:
This instrument is an instrument developed for electronics engineers, developers, electronic repair, production plants and enthusiasts.

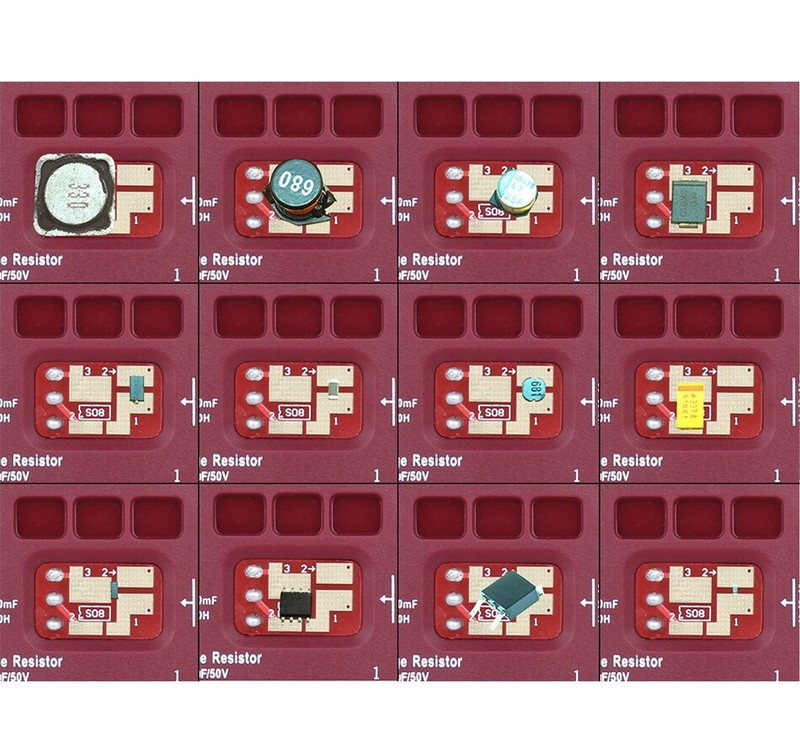

It is very easy to test plug-in and SMD devices, also can test different kinds of diodes,triodes, thyristors, MOSFET, enable to analysis the device type, the polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.
Parameters:
Resistance: 0Ω-50MΩ. Resolution: 0.01Ω.
Capacitance: 25pf-100mf. Resolution: 1pf.
Inductance: 0.01mH-20H. Resolution: 0.01mH.
Measuring capacitance ESR resolution: 0.01Ω.
Things to note:
Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit.

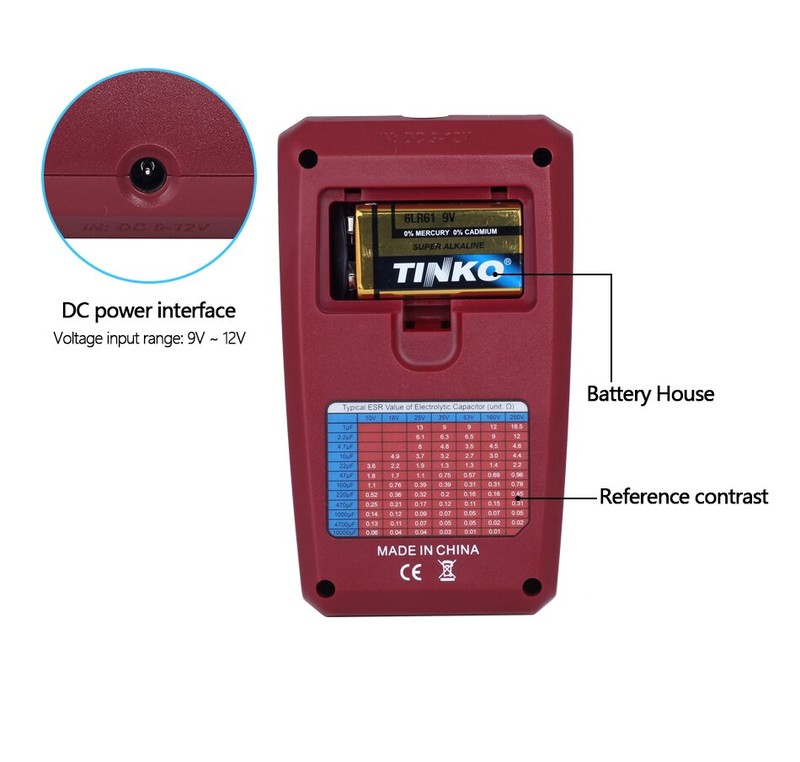

If using DC supply, please choose DC 9V - 12V adapter (including 9V and 12V).
Can be powered by a 9V 6LR61 battery, when the battery power is under 6V, please replace a new one.
How to use instructions:

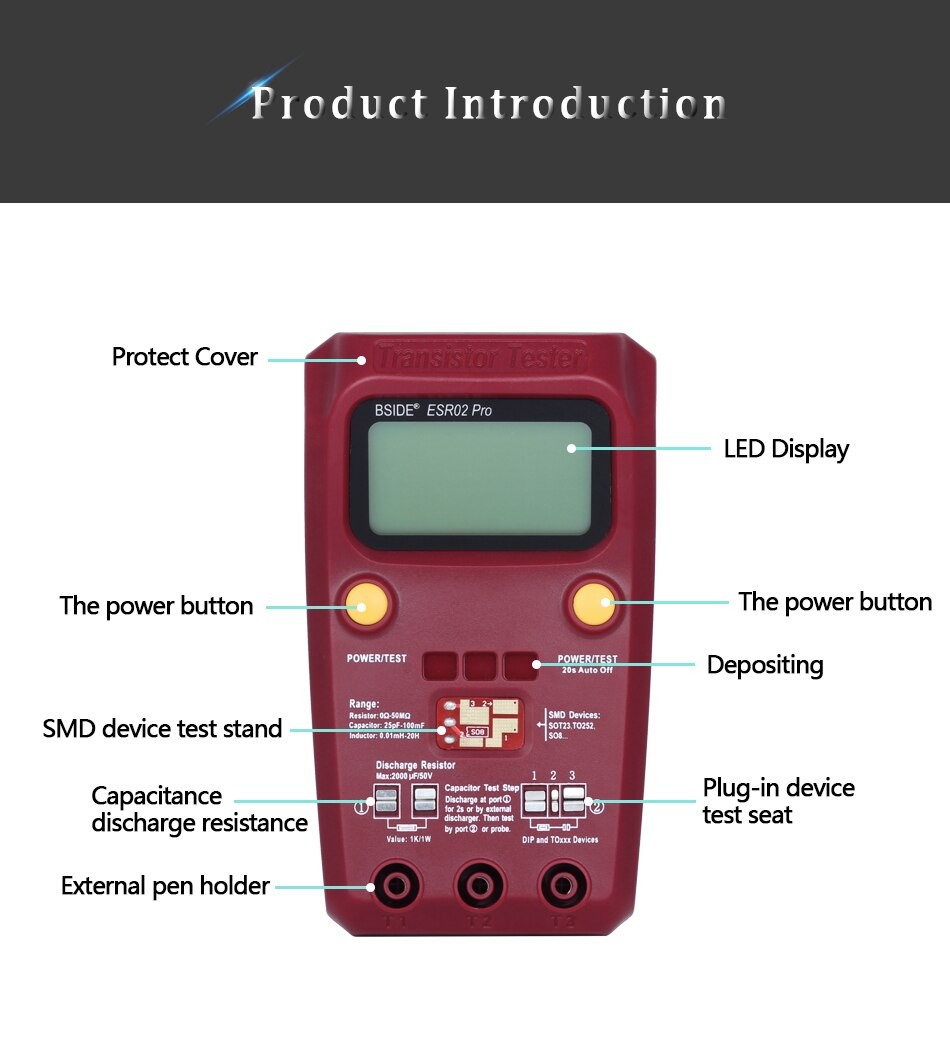

Push "POWER / TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement.

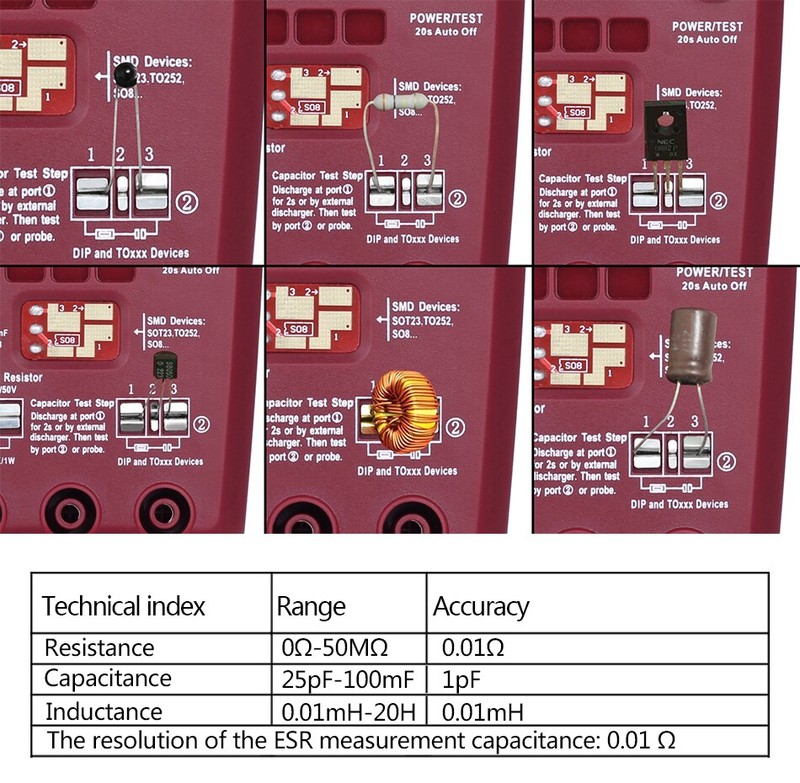

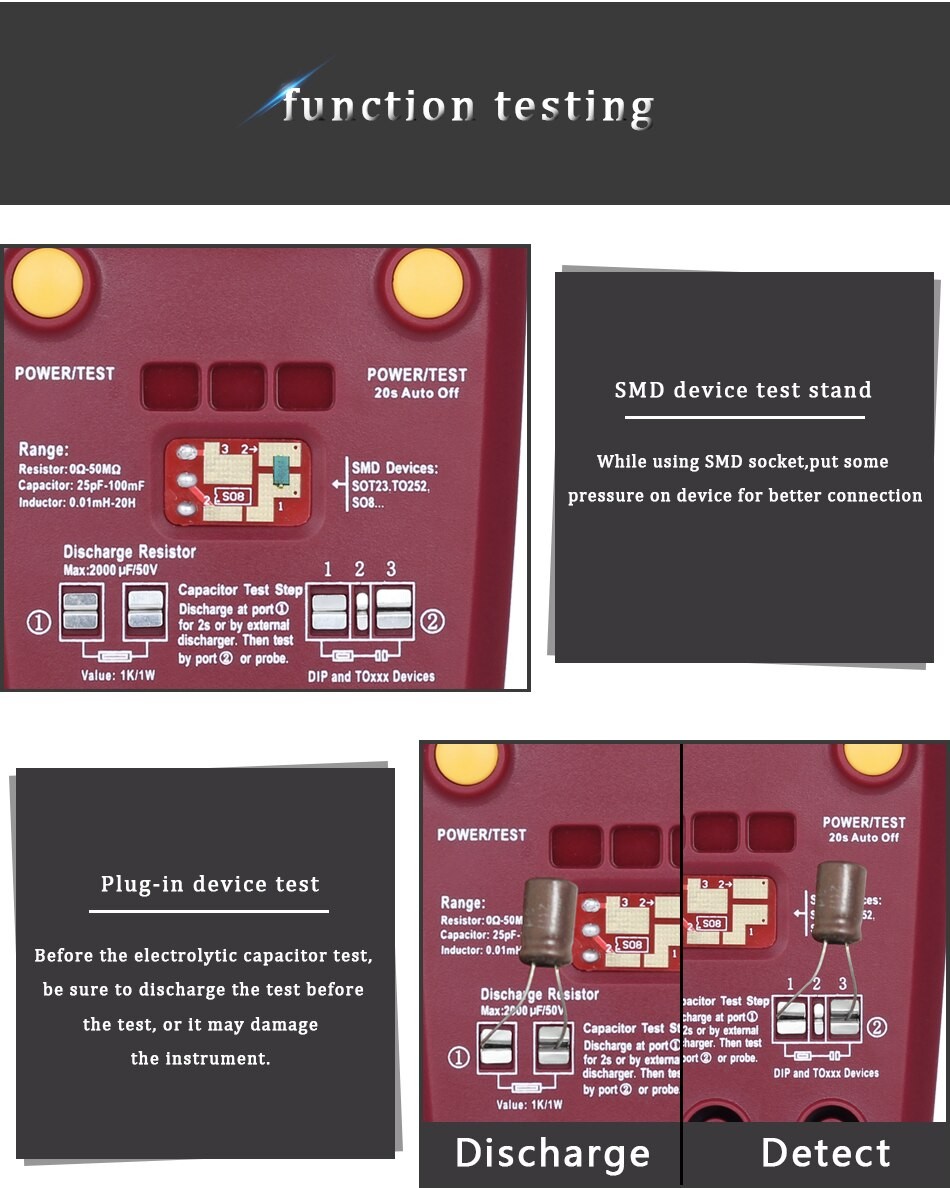

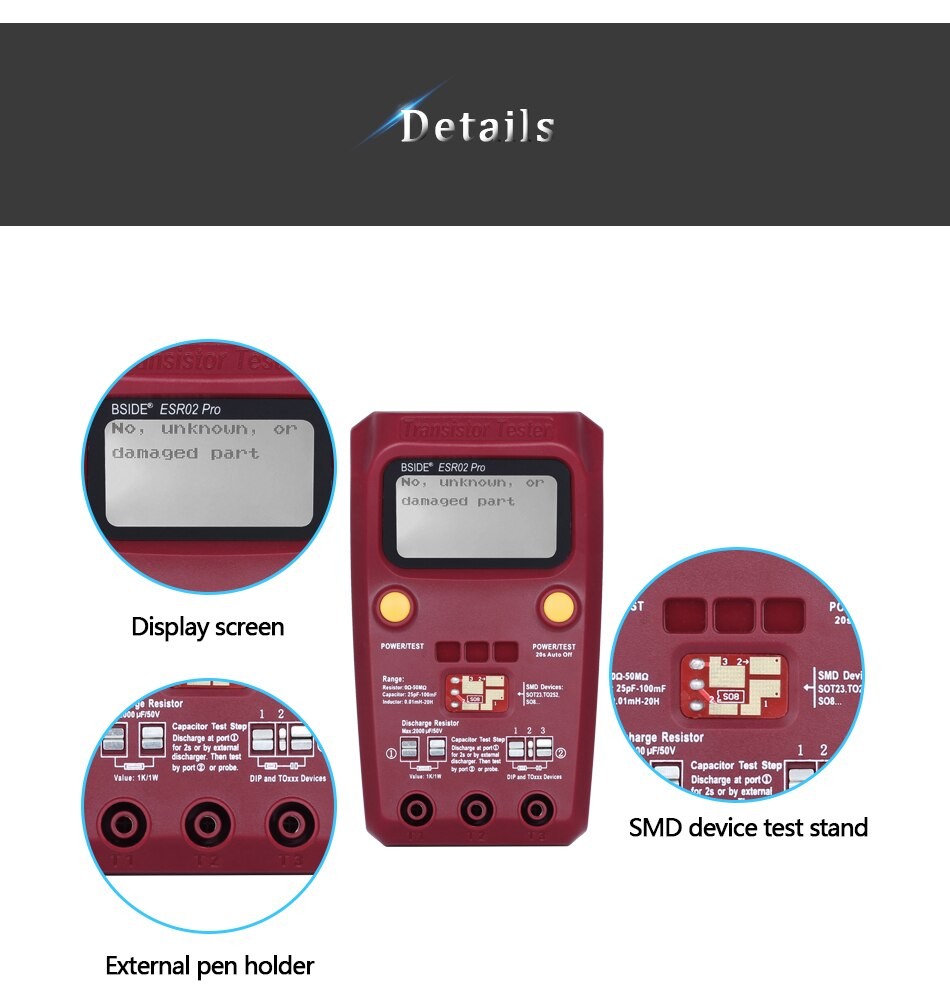

Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected.
There is a table "typical ESR value of electrolytic capacitor" at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature.
Calibration:
Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm.Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finis.
1 x ESR02 PRO Digital Transistor Tester

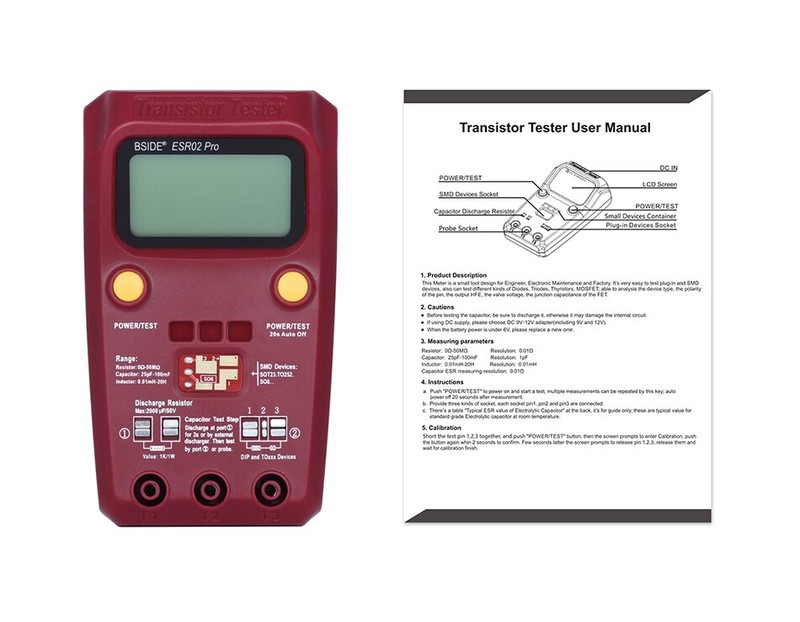

1 x English manual
1 x Color box
1 x ESR test clip(Additional cost required)
Package weight:0.25 kg

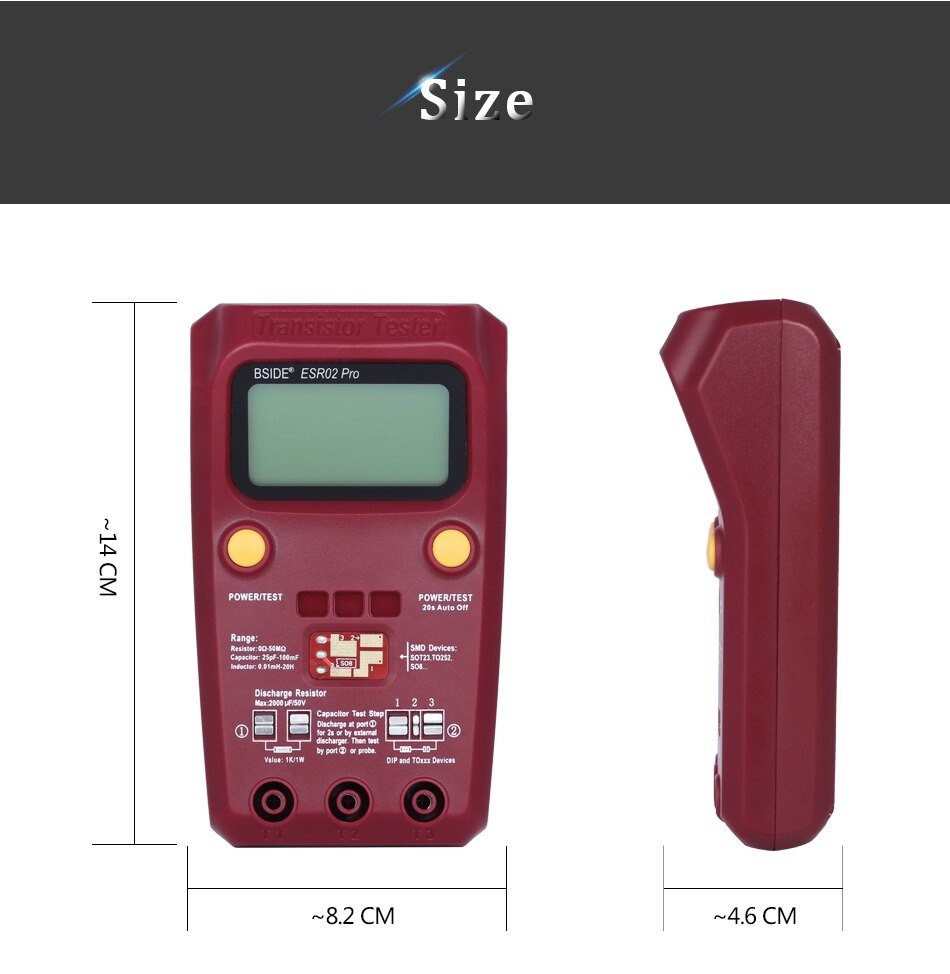

Package Size(L x W x H):17.50 x 10.00 x 6.00 cm / 6.89 x 3.94 x 2.36 inches.
Order notice:

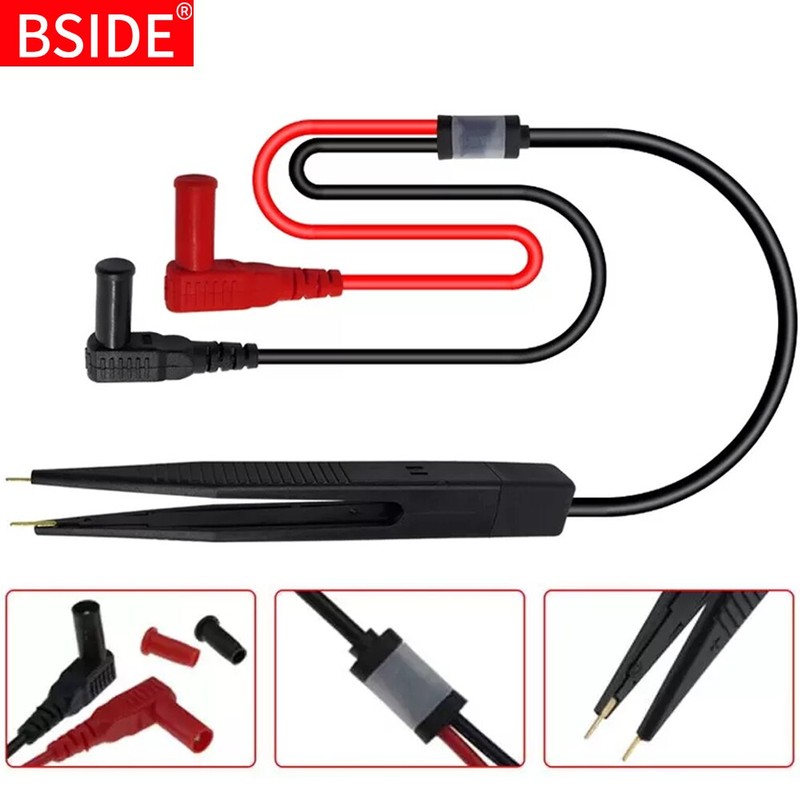

You only need to pay an extra $2 to get SMD Inductor Test Tweezers Clips worth $8. This is a limited time event, I hope you like it!
The batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
