Manual Hose Crimping Tool Auto A/C Hose Hydra-Crimper Air Condition Hose 71500 Free Shipping
- 126 reviews
- 177 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Certification: CE
Usage: Commercial Manufacture
Type: Hydraulic Crimping Tools
is_customized: Yes
Model Number: 71500
Features:

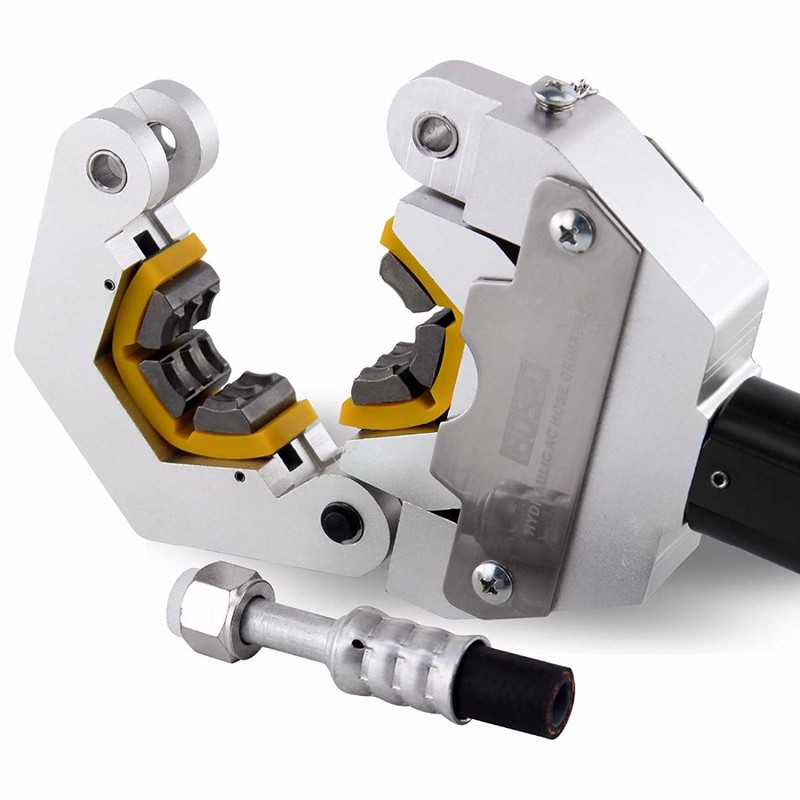

1.Hydra-Krimp for Barbed and Beaded Hose Fittings.

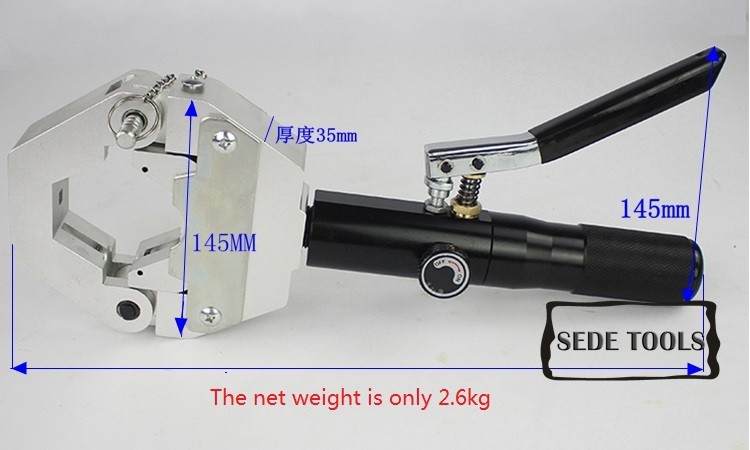

2.The new Patent pending "HYDRA-KRIMP" makes crimping barbed and beaded fittings as easy as1 - 2 - 3!3.The lightweight handheld hydraulic press is very portable and ideal for shop and field applications.
3.The Hydra- Krimp can be used on both beaded and barbed hose fittings.
4.The kit comes with a complete set ofdies covering hose sizes#8, #10, #12 and reducedbarrier #6, #8, #10 and #12.

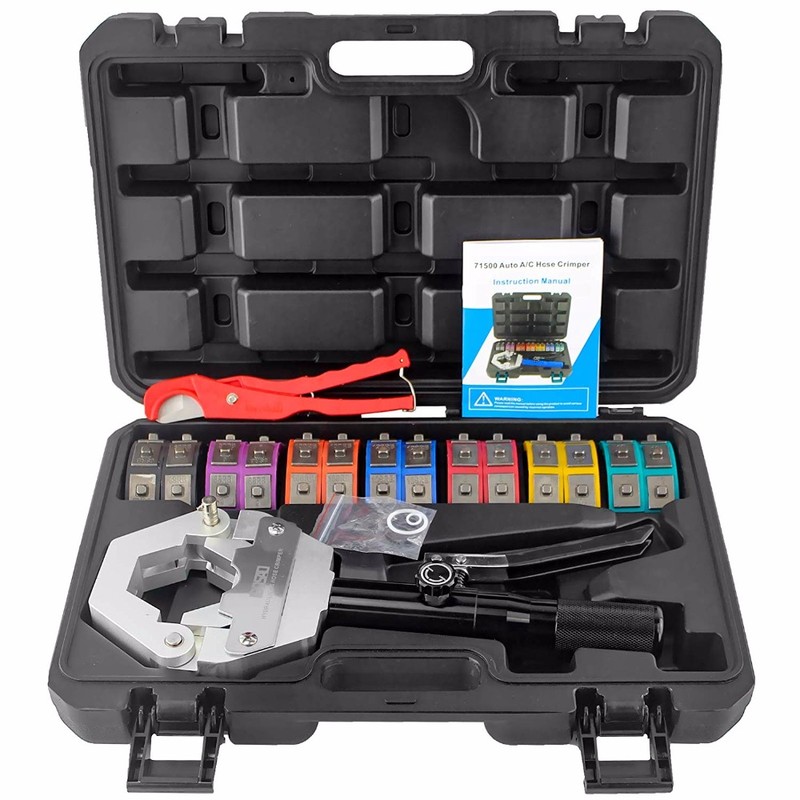

5.The dies snap quickly into the press fixture requiring no pins or screws. Kit comes in custom moldedcase and includes:

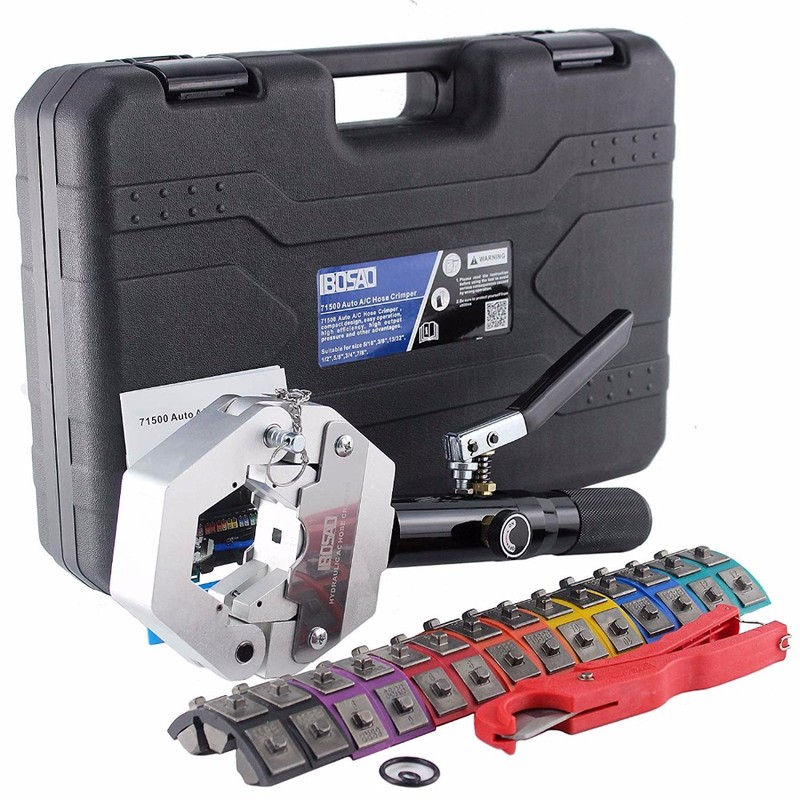

KIT INCLUDES

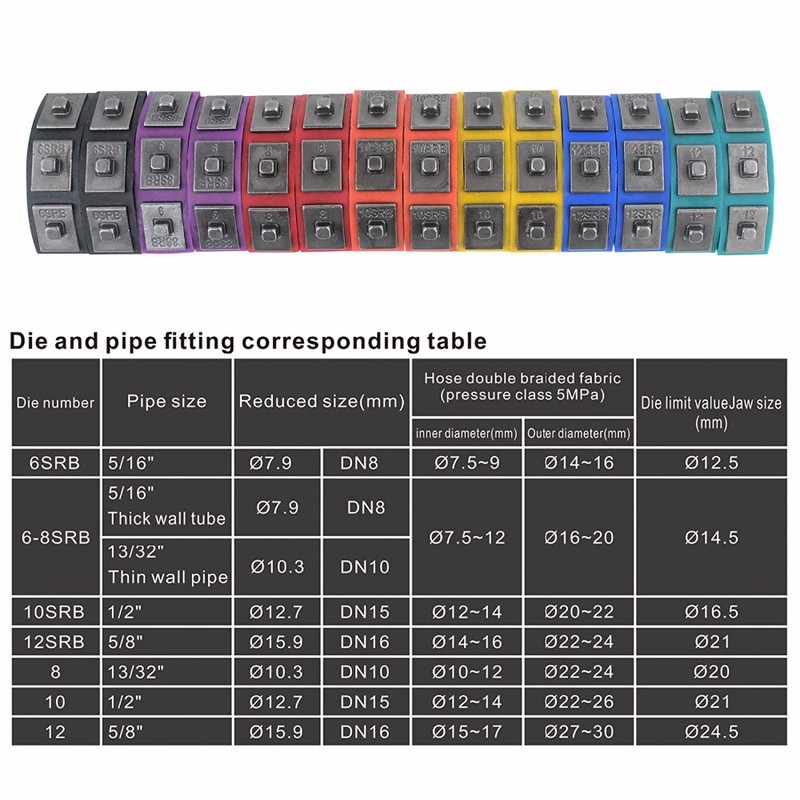

71500 - 001 | Hydra - flare assembly |
71500 - 8 | Die Set - #8 (13/32") |
M71500 - 10 | Die Set - #10 (1/2") |
M71500 - 12 | Die Set - #12 (5/8") |
71500 - 6SRB | Die Set - #6 (5/16" Reduced Barrier) |
71500 - 8SRB | Die Set - #8 Reduced Barrier (13/32) |
71500 - 10SRB | Die Set - #10 (1/2" Reduced Barrier) |
71500 - 12SRB | Die Set - #12 (5/8" Reduced Barrier) |
71500 - PB | Die Set Plastic Box |

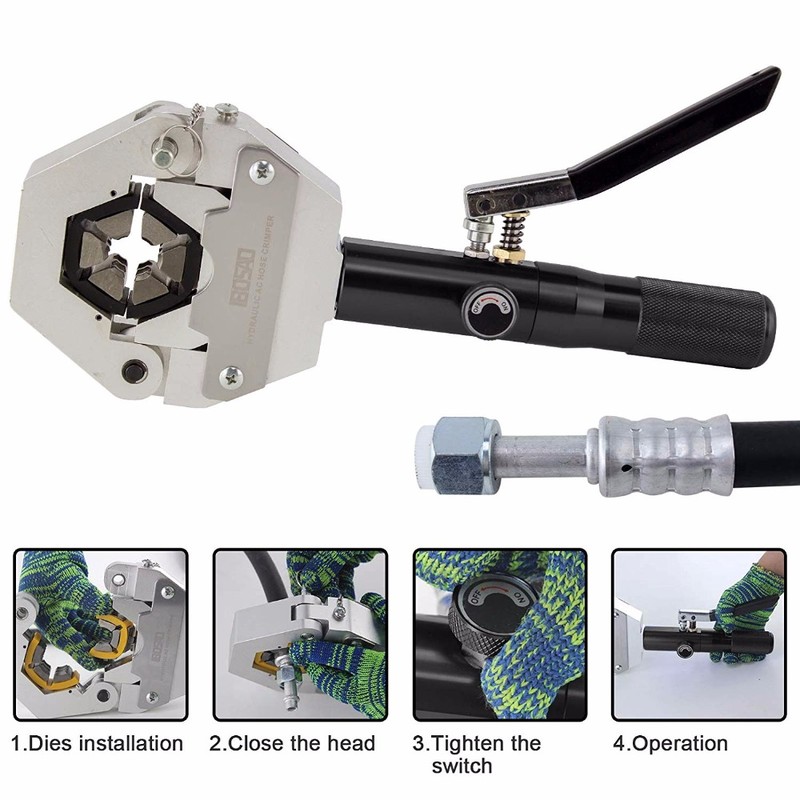

How to use ?
Very easy for using :
1.Remove pin and "Open" top yoke.
2.select correct die set (refer to back page for description )
3.insert the die into joke
4.position fitting and hose in the crimper and close the yoke.
5.insert pin securely .
6.Turn Body of tool clock wise until dies are snug against hose fitting .
7.Turn hydraulic valve to "closed "position .
8.Pump handle to crimp fitting onto hose .continue pumping until handle comes to a stop .
9.Once crimp is complete,turn hydraulic valve to OPEN position.
