Level Water Tank Pressure Fuel Pressure Sensor Level Sensor Qdy30A
- 23 reviews
- 76 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Max Measuring Range: 400 Bar & Above
Model Number: QDY30A
Certification: RoHS
Power supply: DC24V

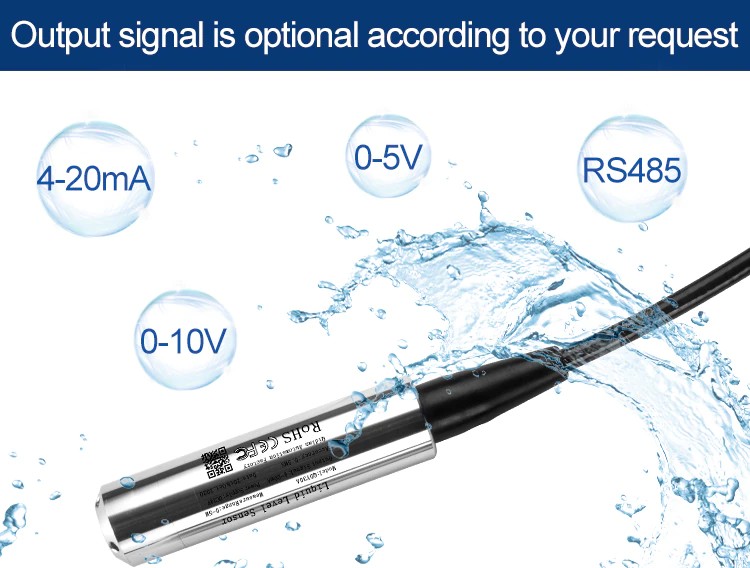

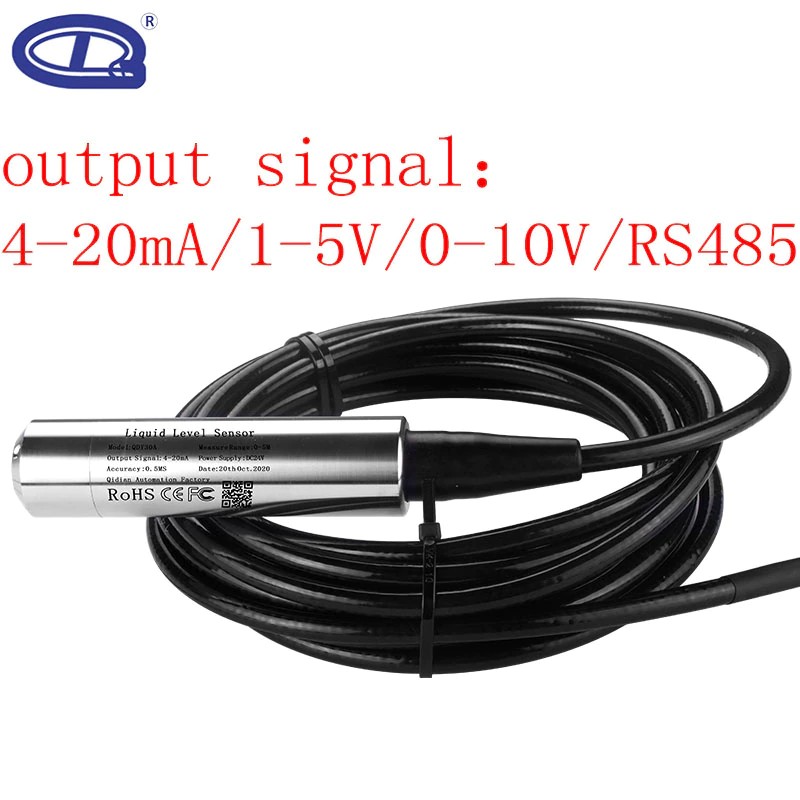

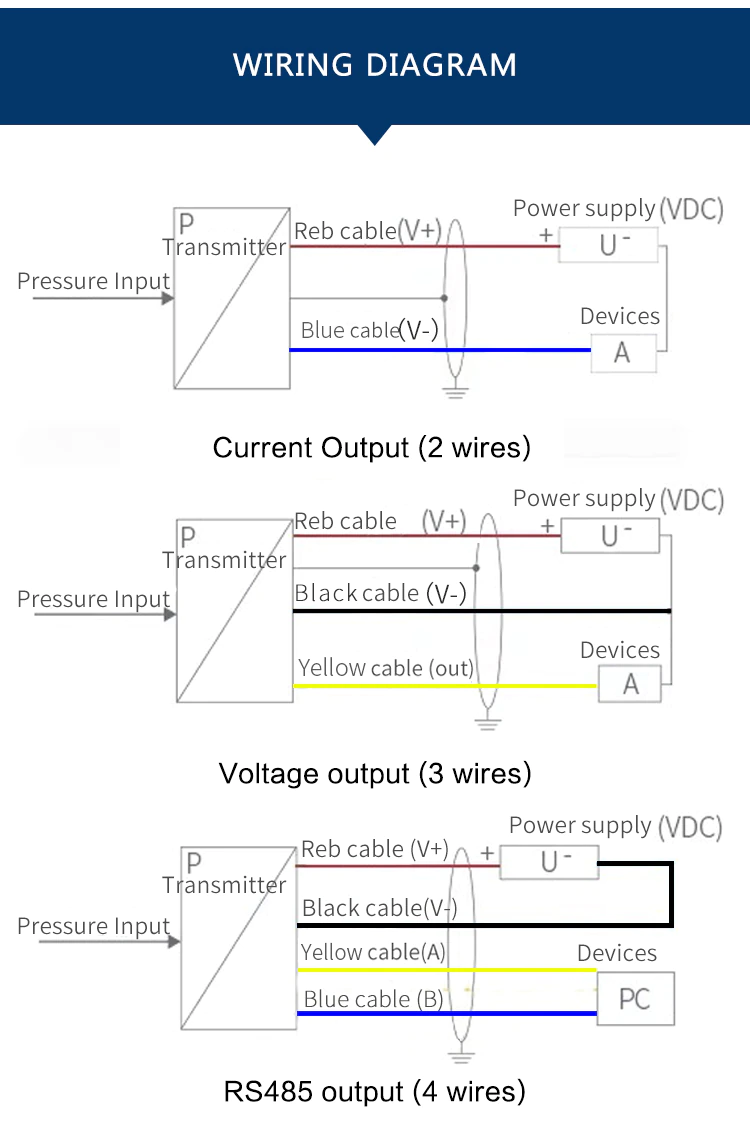

Output signal: 4-20mA 1-5V 0-10V 0-5V RS485
Accuracy: 0.5%FS,0.2%FS
Working Temperature: -20~+70℃
Overload Capacity: 300%F.S
Protection: IP68

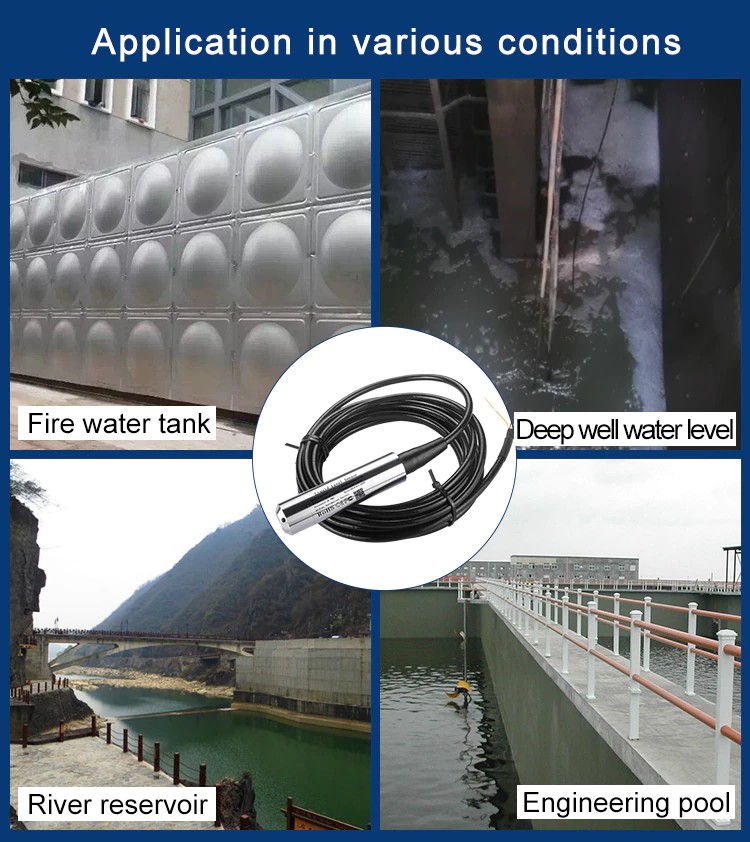

Application: Static liquid level, Liquid tank, Sewage water, Well, Lake,etc.
We are Factory direct sale, bulk orders please contact email : sales009@qd-zdk.com
NOTES!!
ThislevelsensorisDC24V powersupply.
Otherpowersupplycanbe customized,pleaseletmeknowifyou want to have a customization,thankyou！
Default cable lengh is 5m,$2permeterifcablelengthexceeds5meters.
Letmeknowthemeasuringrange,cablelength,outputsignalandpowersupplyif youwanttohavethecustomization.
ProductDescription

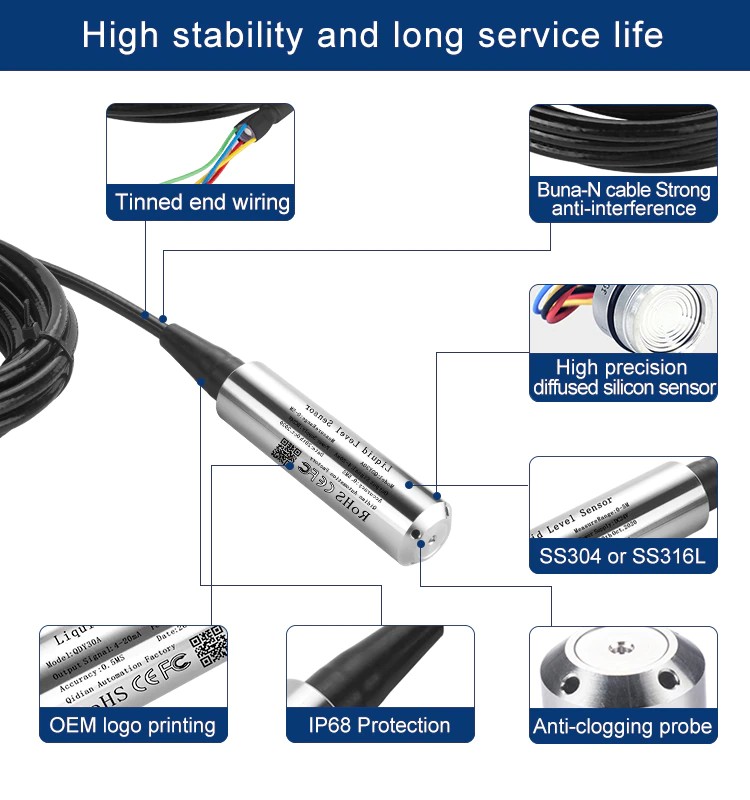

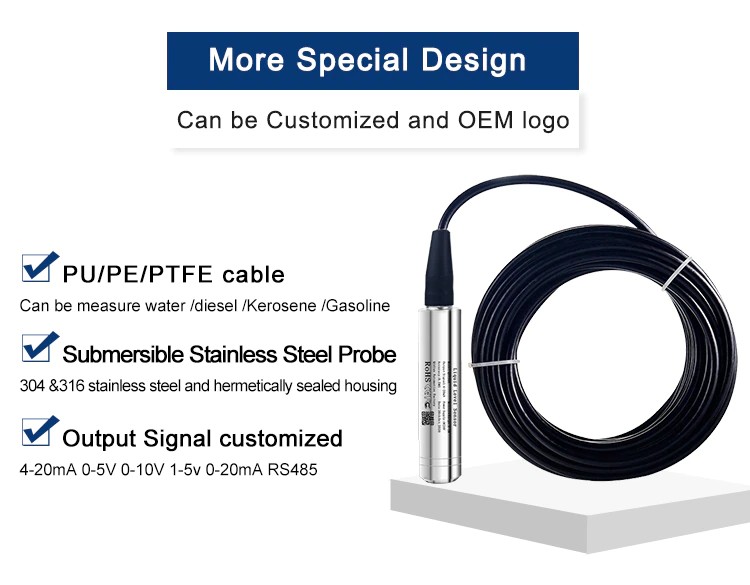

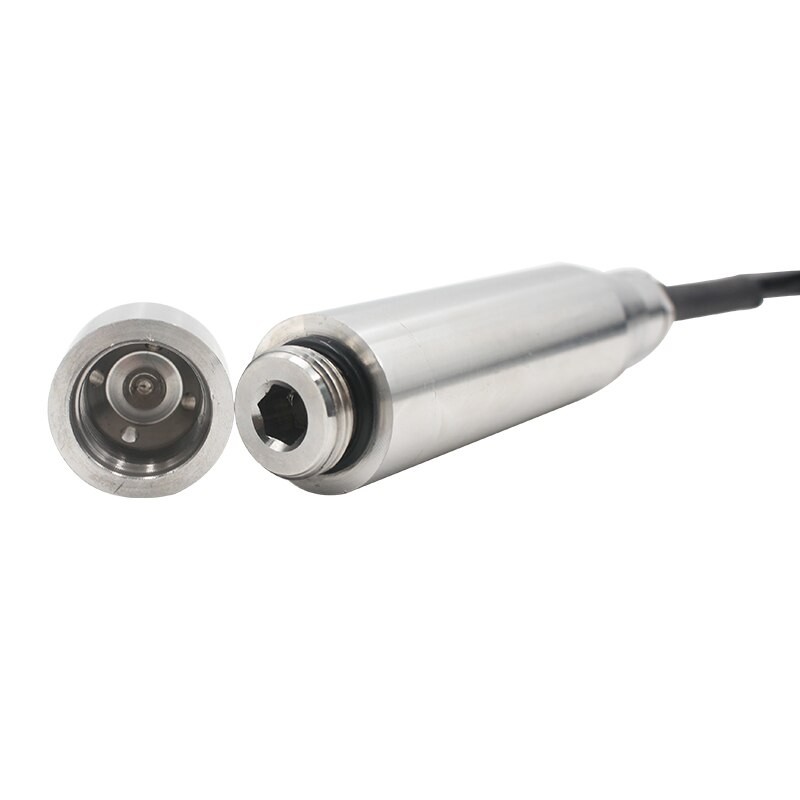

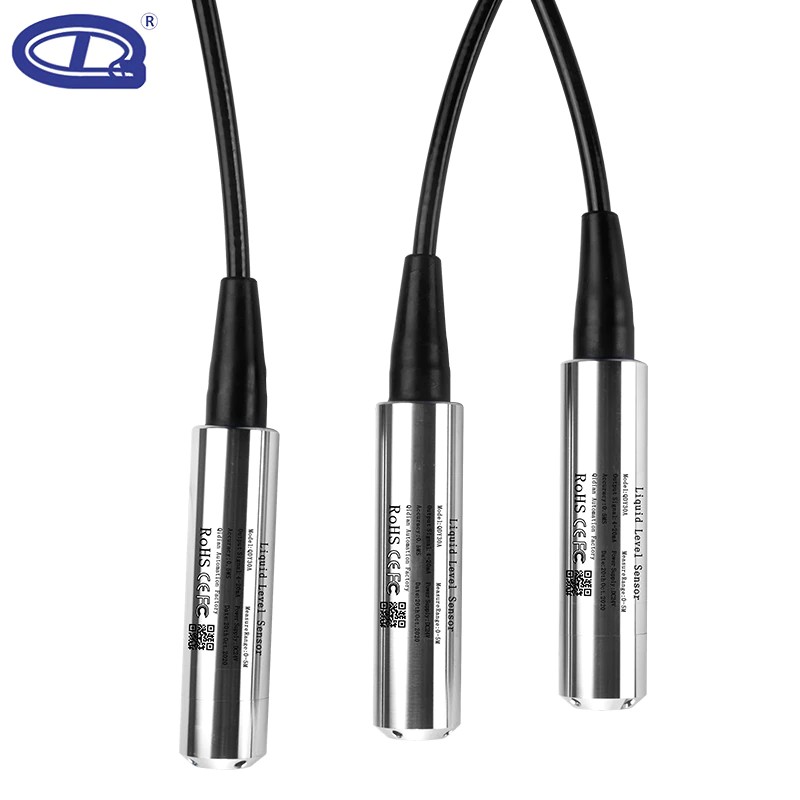

<1>.QDY30AsubmersibleWaterLevelSensor,its304&316stainlesssteelandhermeticallysealedhousingmakeitsuitableformostindustrialliquids.
<2>.Theweldedhousingistestedin-houseviaaheliumleaktestertoensureproperprotection.Ventilationtubeinthecableautomaticallycompensatesforchangesinatmosphericpressureabovethetank.
<3>.Theconductorsofthecablearealsoisolatedfromtheoutsideenvironmenttokeepthelevelsensoroperationalforlong-termuse.
TechnicalSpecifications
Model | QDY30Aliquidleveltransmitter |
MeasuringRange | 0~0.5~500mH2O(Optional) |
Powersupply | 24VDC |
OutputSignal | 4~20mA |
Accuracy | 0.5%FS,0.2%FS |
ResponseTime | ≤1ms(upto90%FS) |
Long-termStability | ±2F.S/Year |
MediumTemperature | -20~85℃ |
WorkingTemperature | -40~80℃ |
OverloadCapacity | 200%F.S |
InsulationResistance | 100MΩ/250VDC |
SensitivityDrift | ±2%F.S |
ZeroDrift | ±2%F.S |
Protection | IP68 |
MeasuringMedium | VariousmediumwhichiscompatiblewithSS304 |
MechanicalVibration | 20g(20~5000Hz) |
Impact | 100g(11MS) |
Material | Junctionbox:LowcontentCu-Alalloy Probe:Stainlesssteel Cable:Polyurethanecable |
ApplicationApplication | Staticliquidlevel,Liquidtank,Sewagewater,Well,Lake,etc. |
