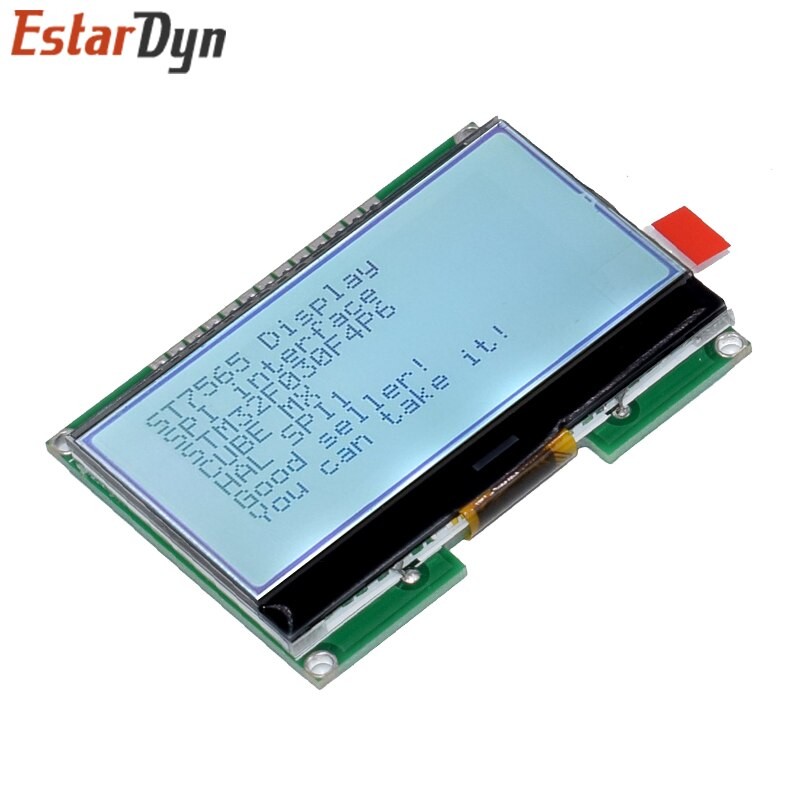

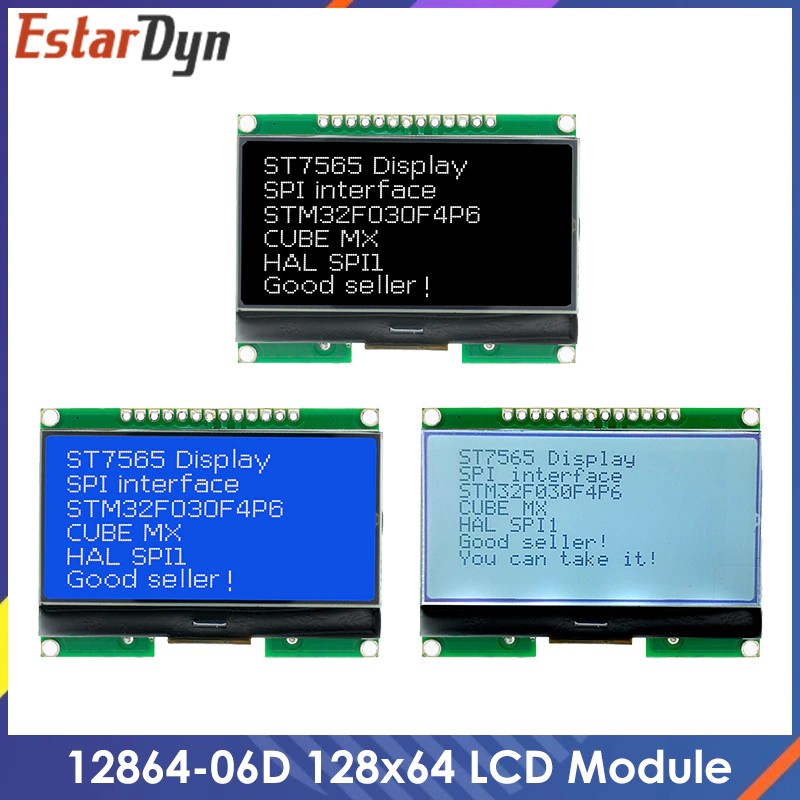

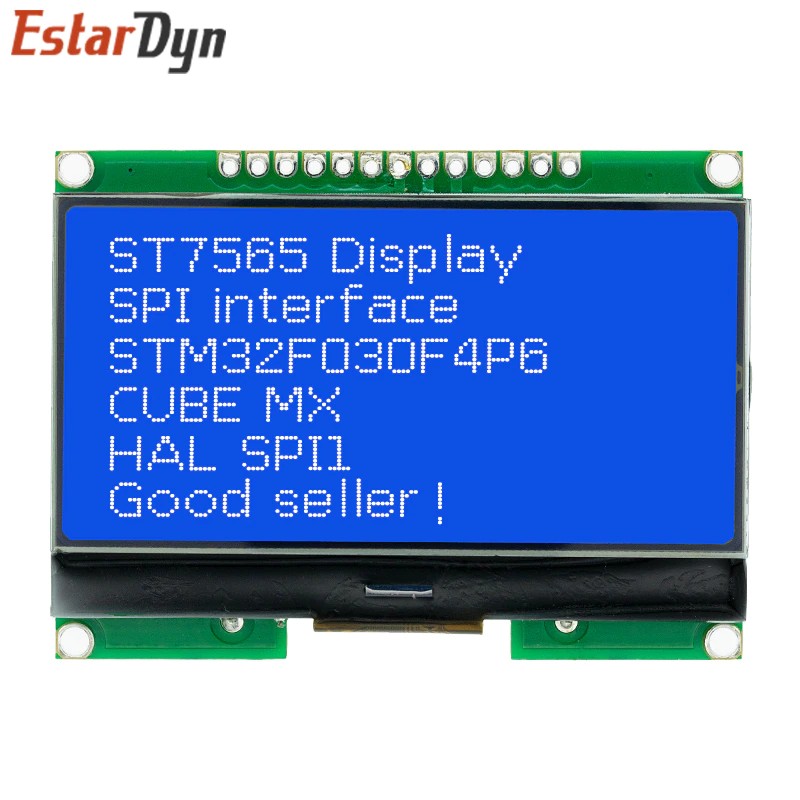

• Lcd12864 12864-06D, 12864, Lcd Module Cog With Chinese Font Dot Matrix Screen, Spi Interface


    USD $3.78VAT Included50% OFFFree Shipping
    Just for Dropshipping and Wholesale



    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    N***s Verified Buyer

    Ordered 3 displays, came in a national parcel with another lamb. Come on time. Connected to nodemcu V.3. Works with the u8g4 Library. While launched at the software SPI at such peaks: U8g2 _ st7565 _ erc12864 _ alt_f _ 4W _ SW _ SPI u8g2 (u8g2)/* CS = */ 15, /* DC = */ 4, /* reset = */ 5); The display can be started on 4 wires (not including power): CS can not connect, but there will be interference on the display. To avoid interference, you need to pin the CS display to tighten to the Power Plus through a 5.6 k resistor. In the photo, the resistor is not soldered, but it is visible that so on 4 wires works. The contrast with this library should be between 60 and 80. With hardware SPI immediately did not work-it is necessary to understand the pins. I think it will. Displays took black. Viewing angles are good-better than displays on uc1609c (192x64). Well, the main plus of these displays-they are big!

    5
    O***f Verified Buyer

    Good display, enough large view angle. Speed draw a typical for STN displays. Controller powered by 3.3в, but the board there is a place for LDO-stabilizer in case SOT23 (xc6206p332mr for example). Control line controller толерантны to 5C, so when you install stabilizer display can be use with devices with 5C power. Huge advantage "white" version of the display is that it can be used at all without backlight or with its minimum level. The photo display without backlight and with current 1.5 Ma. Jumper J1 designed for tightening cathode backlight to ground (GND). As a similar type displays (with big side border) involves the use of metal frame, it is recommended that further fix glass display relatively board, or at the wrong time glass off (it's secured is a thin strip of adhesive tape) and train оборвётся.

    5
    C***l Verified Buyer

    Display works. Don't expect great image quality from low resolution LCD. I will not be using this and need to find higher resolution one. Used g8u2 library with software SPI on Pinguino-Micro board with ChipKit lib. Because "yield();" is not implemented in Chipkit, I comment those lines. Hardware Definition: U8X8_ST7565_ERC12864_ALT_4W_SW_SPI u8x8(/* clock=*/ 9, /* data=*/ 10, /* cs=*/ 6, /* dc=*/ 8, /* reset=*/ 7); void setup(void) { u8x8.begin(); u8x8.setContrast (70); }

    5
    L***v Verified Buyer

    The order arrived in 25 days as part of the national parcel. The quantity is correct, the quality is good. The only small minus built-in Chinese language, if they stitched Russian-it would be great! Thank you very much! The order arrived 25 days in advance as part of a combined parcel. The quantity is correct, the quality is good. The only small minus is the built-in Chinese language, if they flashed Russian - it would be great! Thank you very much!

    5
    I***s Verified Buyer

    U8g2 Library. The screen connected to node MCU V2. Works with these settings U8g2 _ st7565 _ zolen_128x64 _ F _ 4W _ SW _ SPI u8g2 (u8g2 */Mirror)/* CS = */ D3, /* DC = */ D4, /* reset = */D7); Pinout for connection (Clock = SCL; data = SI; CS = CS; DC = RS; reset = rst) a and VDD = "+"; K and SS = CS = "=

    4
    D***o Verified Buyer

    Cheerful display, gray version is well read and without illumination. Frames are horse, but you can live). Initialized for Mega as # Include U8g2 _ st7565 _ erc12864 _ alt_f _ 4W _ SW _ SPI u8g2 (u8g2)/* CS = */ 48, /* DC = */ 49, /* reset = */ 52); U8g2. setcontrast (70);

    5
    G***z Verified Buyer

    Cute kineskopchik. True without the I2C to SPI module. On the one hand-uncritical, with the другоi2c is more convenient in terms of connection. Checked the display by connecting the power. Current consumption in this mode-in the photo

    4
    F***f Verified Buyer

    Ordered 2 displays. The packaging of course caused doubts-no boxes, only the pupyrka and all this in the envelope. But no matter what the displays are working, there are no dead pixels.

    4
    H***g Verified Buyer

    Interesting display. Of course I would like a smaller frame from the edges, but in principle it is normal. I'll see how it works.

    5
    R***t Verified Buyer

    Everything is perfect, fast, faster than stated. Is can't, need to understand. Thanks to the recommended.

    5
    Y***n Verified Buyer

    The parcel received, at first glance everything is fine. Later I will try to complement the review.

    5
    X***x Verified Buyer

    Just like in the description. Delivery fast. It is not damaged, performance is not tested.

    5
    U***l Verified Buyer

    Three weeks delivery to UK. Well packed, all screens arrived intact. Not tested yet.

    5
    J***n Verified Buyer

    It came quickly enough, it was packed well, the description is quite accurate.

    5
    W***c Verified Buyer

    It came in 2 weeks, everything is fine! But I did not try it in work.

    5
    X***d Verified Buyer

    Comes very fast (with combined delivery) well packed, good quality.

    5
    E***f Verified Buyer

    Excellent screens! Perfectly work, collected soundly, comfortable.

    5
    E***y Verified Buyer

    The display came, wrapped with a faraway film. Haven't checked yet

    5
    N***b Verified Buyer

    Not yet connected, only-just received. Small display

    5
    D***g Verified Buyer

    Excellent seller, fast office and excellent product

    5
    C***q Verified Buyer

    Display working. Came well packed, without damage.

    5
    J***p Verified Buyer

    Unfortunately the screen is crushed.

    5
    T***f Verified Buyer

    Got intact... Not yet connected

    5
    V***j Verified Buyer

    Looks good from thank seller

    5
    P***w Verified Buyer

    Nice lcd module, recommanded

    5
    O***p Verified Buyer

    Cool display, not small.

    4
    J***c Verified Buyer

    good state . thank you

    5
    V***v Verified Buyer

    It's okay.

    5

    Display Mode: 128*64
    Model Number: 12864-06D
    is_customized: Yes
    Type: Standard
    Resolution: 128*64


    product information
    Name: LCD module
    Model: GMG12864-06D
    Dot matrix: 12864

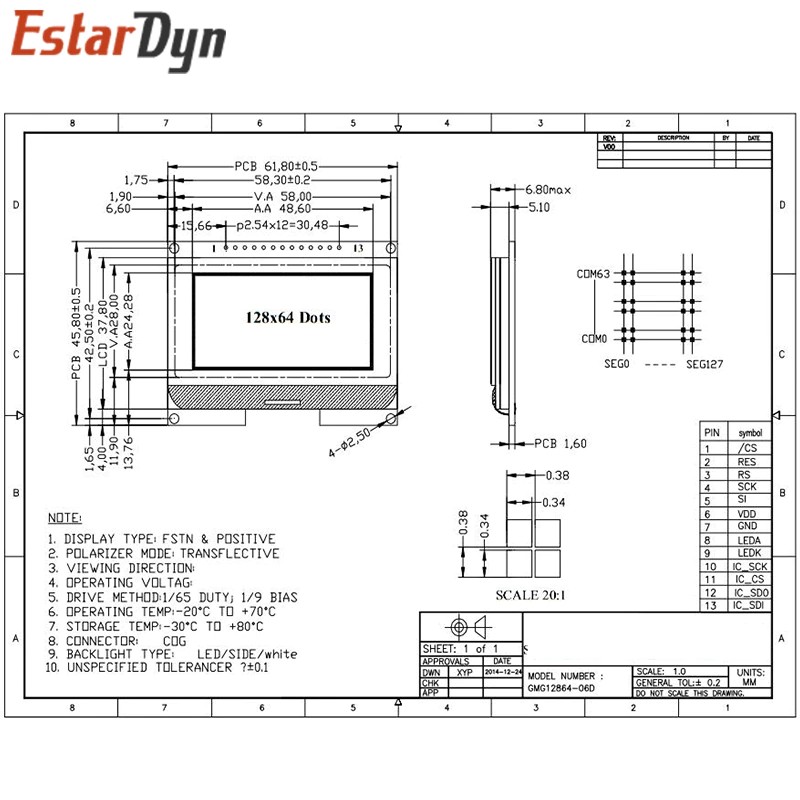

    Dimensions: 61.8 * 45.8 * 6.8
    Window size: 58 * 28
    Driver IC: ST7565R
    IC: 20L16S1Y Simplified Chinese
    Temperature: -20 degrees +70 degrees
    Voltage: 3.3V
    Interface mode: SPI interface
