Jooan 8Ch Hd 3Mp Wireless Cctv Camera System Audio Record P2P Wifi Ip Security Camera Set Video Kit
- 140 reviews
- 1009 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Certification: CE
Smart home platform: None
Model Number: wireless camera
PCS of Camera: 8pcs
TV System: PAL
Cable Length: None
Resolution: 1440P
Video Input: 8 Channel
Color: White
Video Compression: H.265+ Video Surveillance
Power Supply: 12V
Waterproof Camera: IP66 Waterproof IP Camera

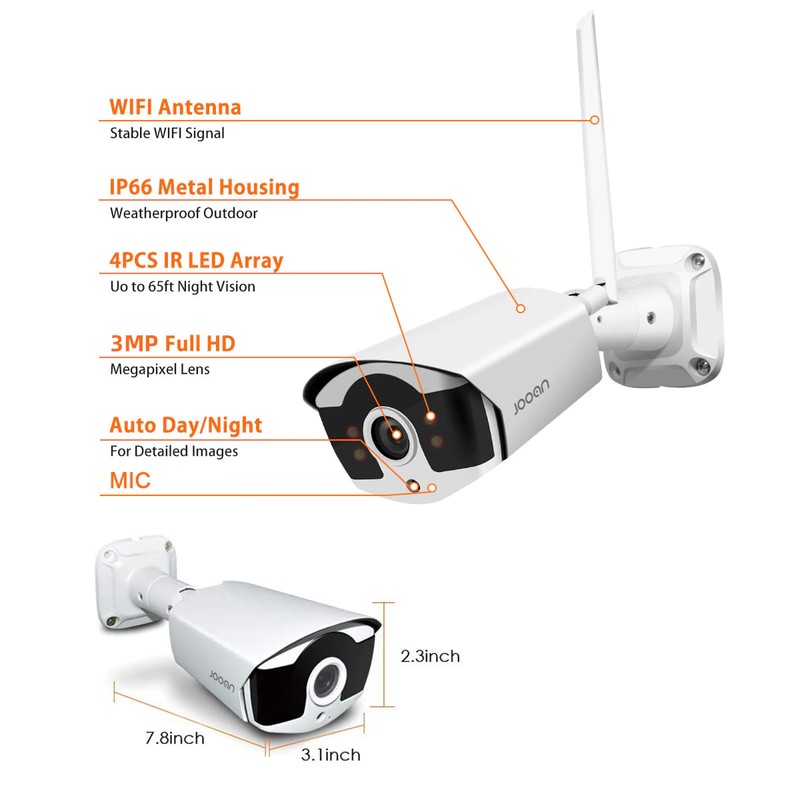

Camera Feature: 3.0MP,Wireless,Metal Shell ,Indoor/Outdoor; Day & Night
Hard Disk: None 1T 2T for Select

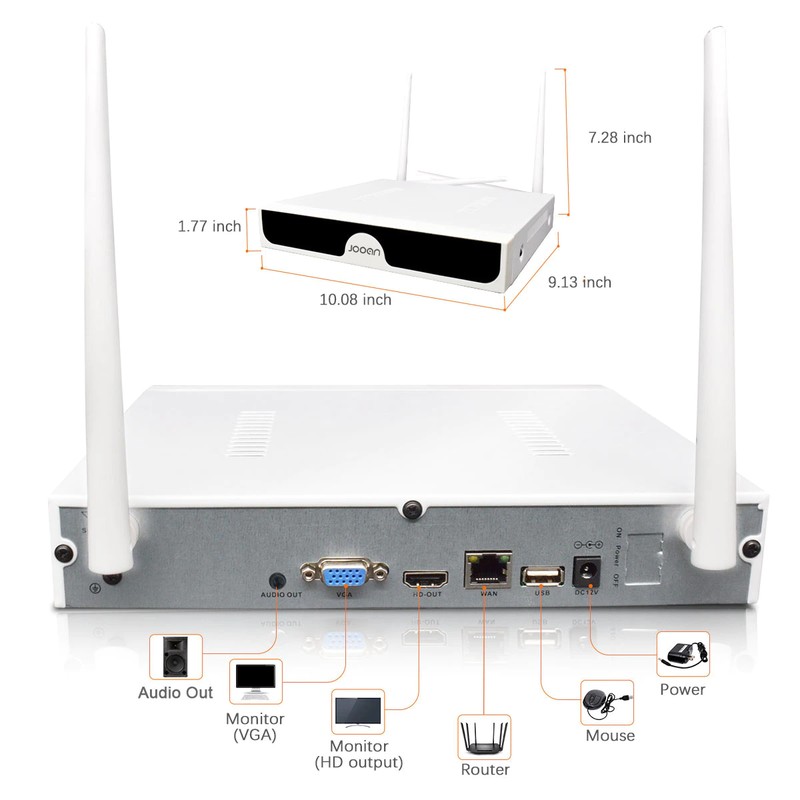

NVR: 8CH NVR
HDD Interface: 3.5SATA, Support 500GB up to 4TB
Camera builts microphone: IP Camera Audio In
Type: Wireless CCTV System
Security Type: Security Camera System
WIFI Camera: video surveillance wifi
Wireless CCTV Kit: CCTV Camera Security System
Material: Metal Shell
Waterproof Rate: IP66

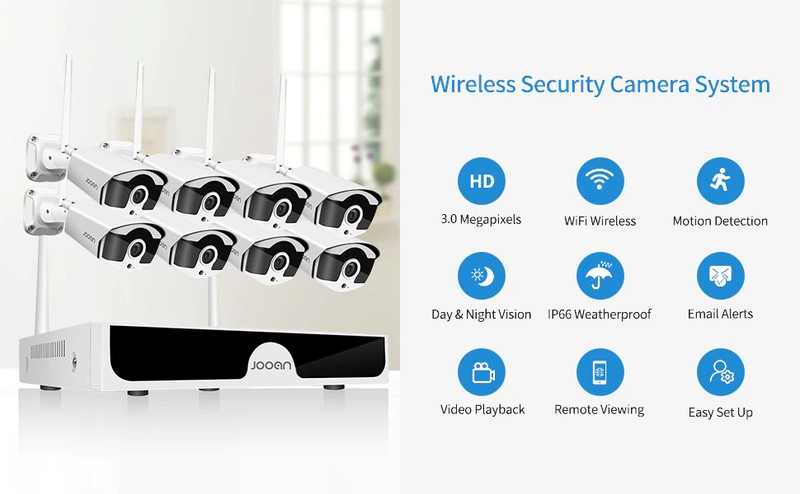

Jooan 3MP Security Camera System Audio Recording
1. HD 3MP Resolution;
2. Audio record sound IP Camera;
3. 8 Channel NVR, support up to 8 cameras;
4. Wireless WiFi connection between NVR and IP Cameras;
5. Metal shell housing waterproof ip camera can be used for indoor/outdoor;
6. Plug and play,remotely view by Android & iOS System (Smartphone,Pad,Tablet,PC);
7. IR-Cut Array LED Lights: up to 30m Night Vision Distance;
8. Motion Detection,instant e-mail alert;
9. NVR upgrates to H.265+ encode: save your HDD storage space;
10. Support multi-languages: English,Russian,French,Spanish.,etc;
11. Free gifts: 1pcs Antenna Booster and 1pcs Warning Stickers .
New Function
Compatiable with ONVIF function, connect Jooan PTZ Camera(just for 3MP PTZ camera) to use it PTZ function
Choose the newest version:8CH monitor 4 camera
If you choose 8CH monitor 4 camera,no need buy extra monitor.

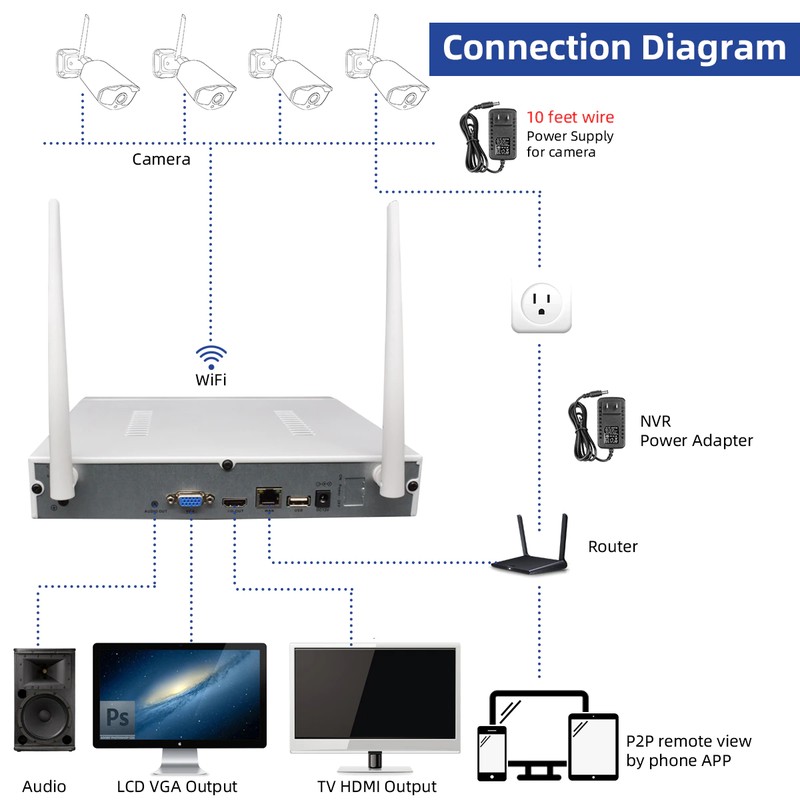

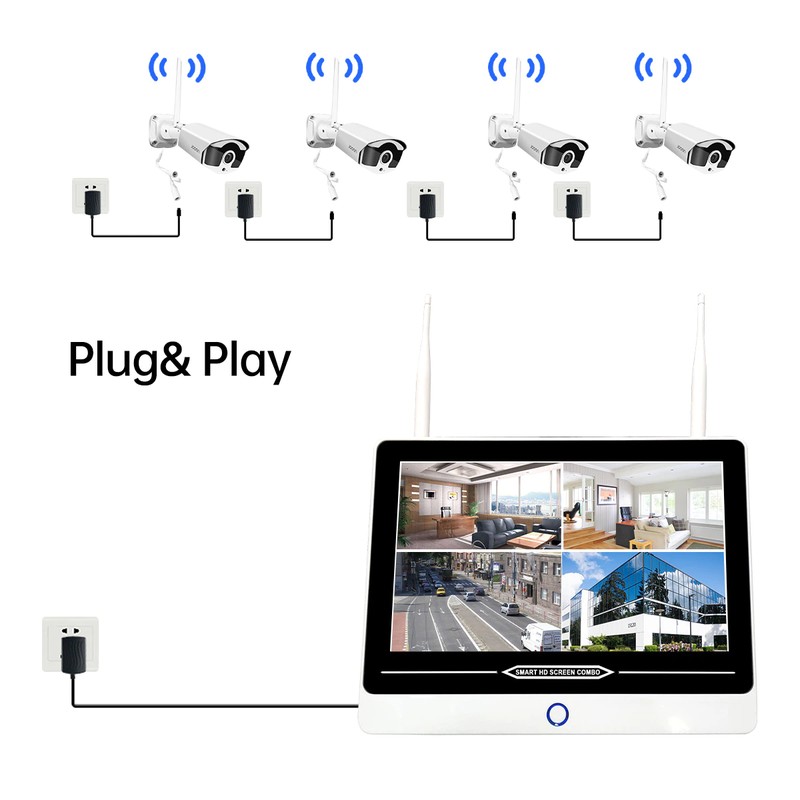

Easy To Install,True Plug and Play
It can be quickly and easily setup Instantly see live video using your computer, tablet, or phone from anywhere.
Don't need extra power cables or adapters or switch.

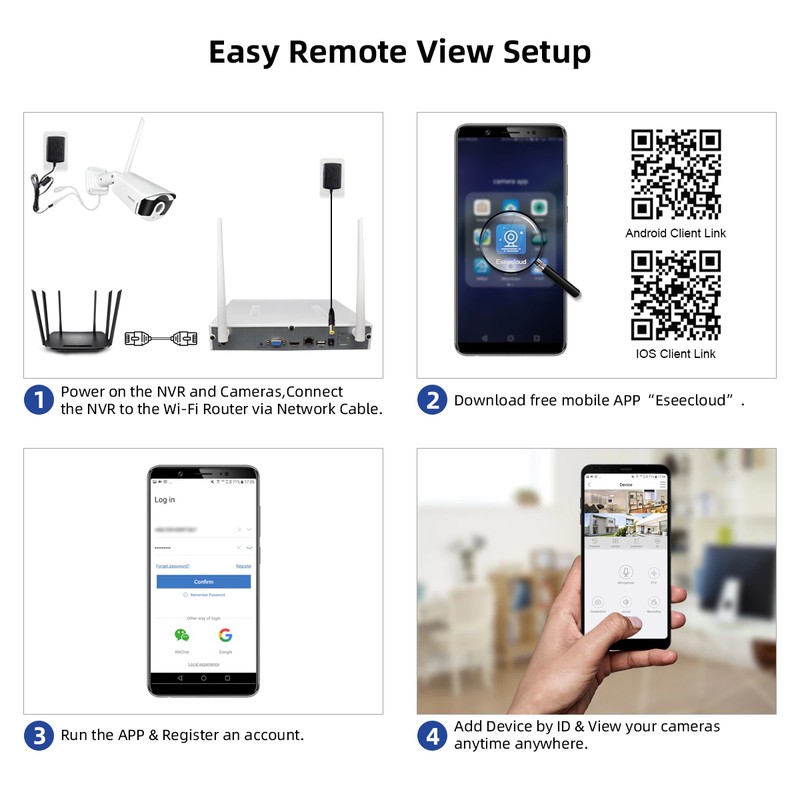

Easy Access Via Free Mobile APP & PC Software
1.Connect the WIfi NVR to your router by network cable.
2.Download the free App " EseeCloud " from Google Play / APP Store
3.Run the App and register an account (for first time using).
4.Login App and click the button '+' to add devices.
5.You can add the devices by auto search or scan the NVR device ID.
6.You can view the cameras video on your phone
PC/Laptop View: Windows/ MAC System: CMS Software. You can also view the live view from computer via IE.

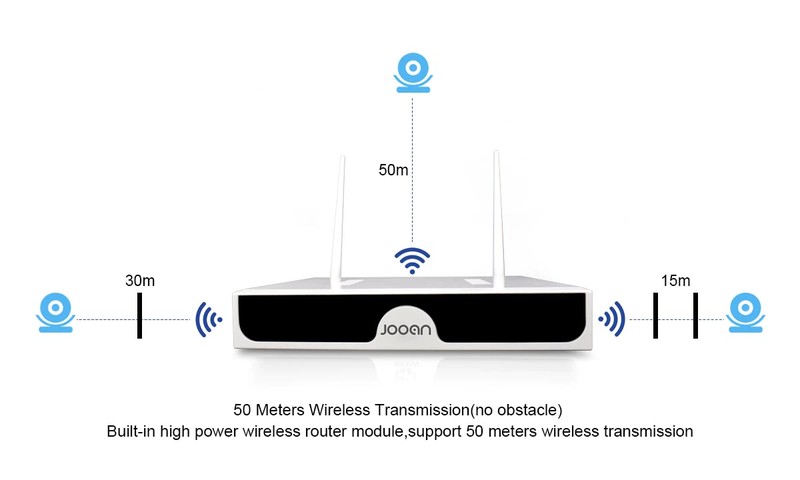

Strong Wifi Signal
Theoretically, it's maximum wireless distance is 500 M if no any baffle in the open air.

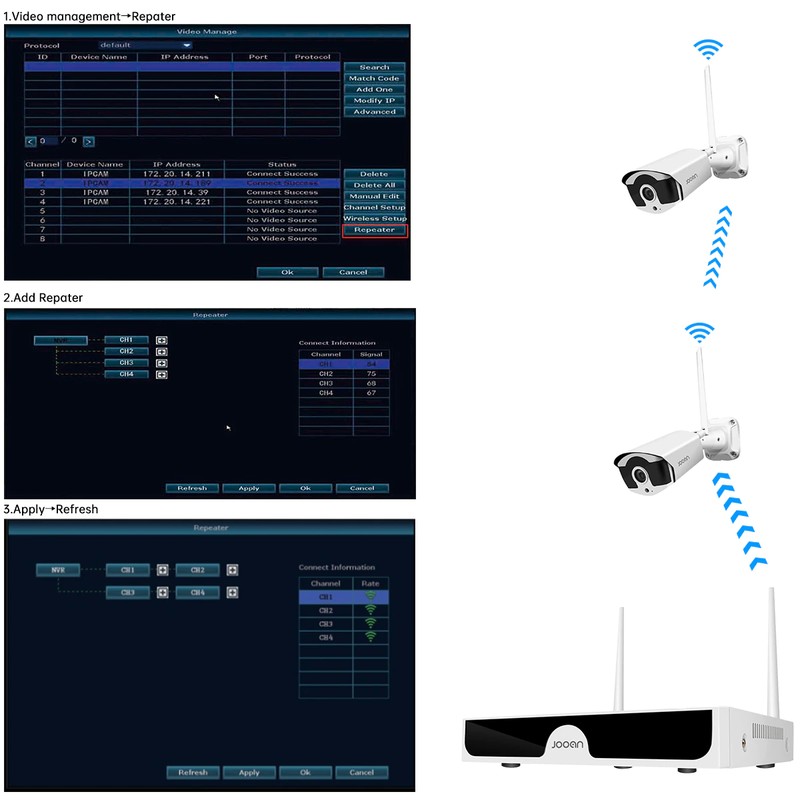

Set a camera as repearter
IF there are too many obstacles ,you can try to set camera as a repeater to strengthen signal
Audio Record Sound IP Camera
Built-in a integrated microphone let you hear the sound around the camera,records what people say, make it authentic with sound video recording.
Motion Detection and Email Alerts
The security system allows you to customize motion detection parameters exactly to your needs.
The motion sensor sensitivity can also be customized to prevent false alarms such as plants moving in a breeze.

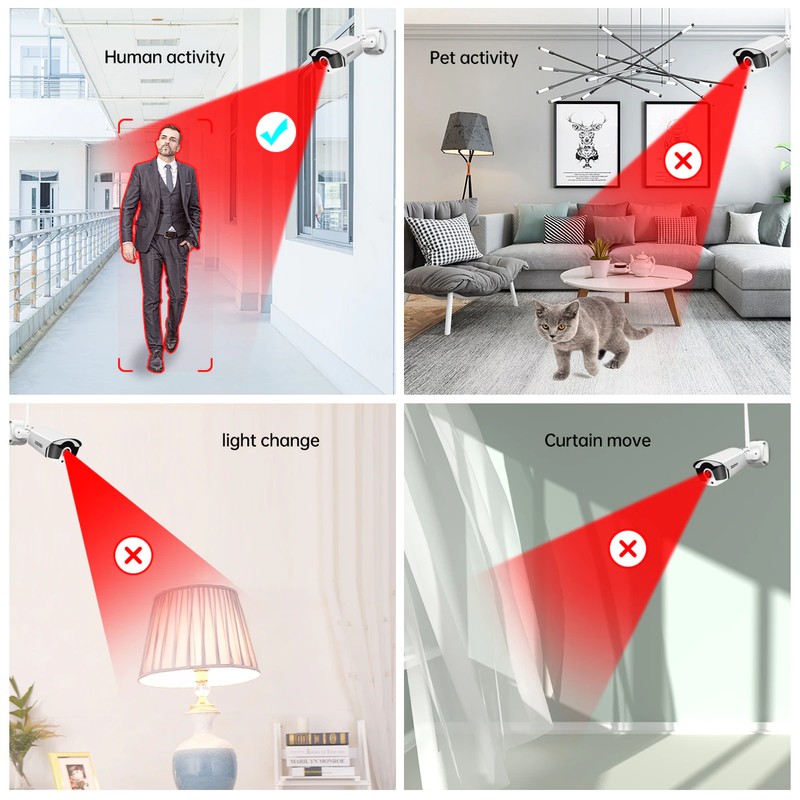

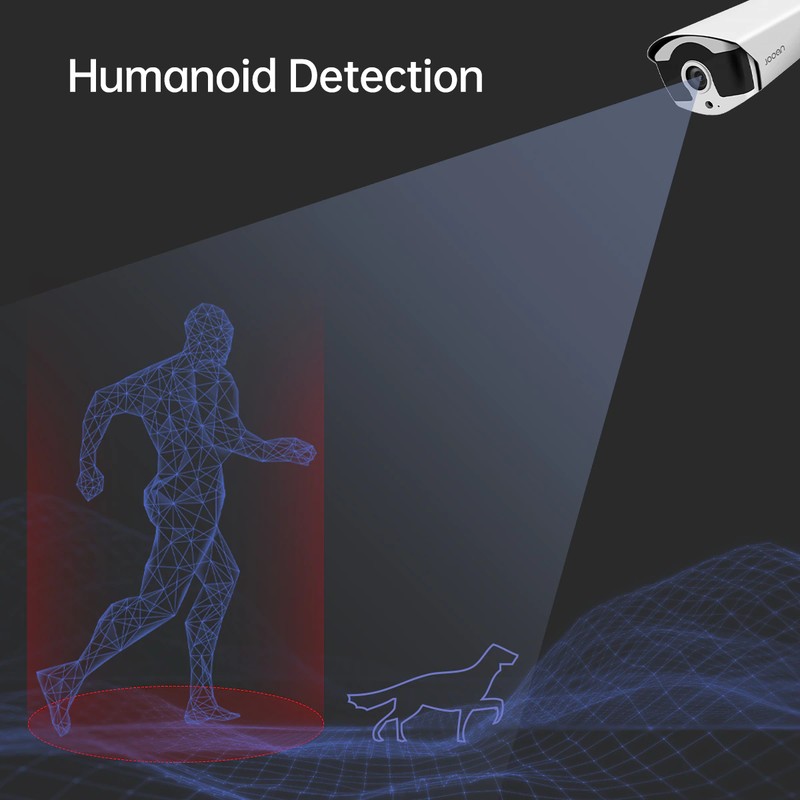

Humanoid Detection
Open the humanoid detection, Only when human aactivity is detected will you receive an alarm message. Reduce false alarms and improve detection accuracy

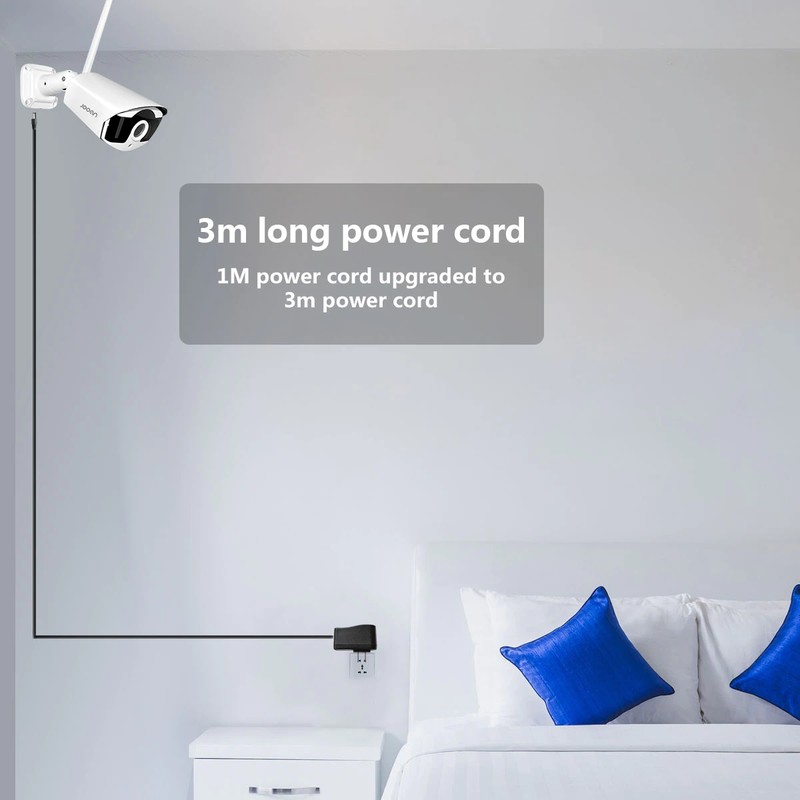

3m/9.8ft long Power Cable for the CCTV Camera

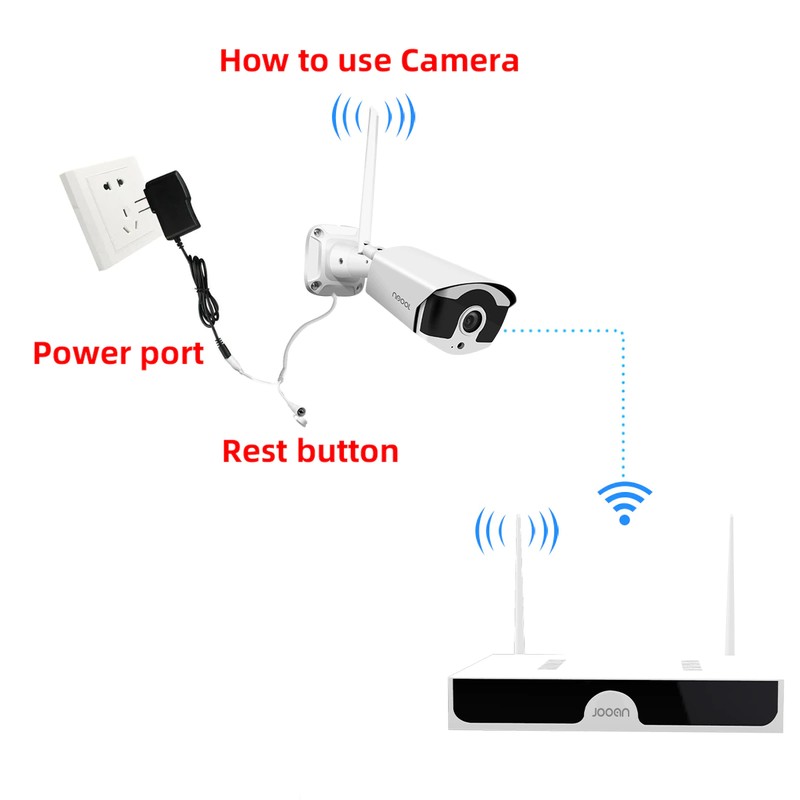

Auto Pairing
Auto pairing,wireless connections between the cameras and NVR,Free from complex cables

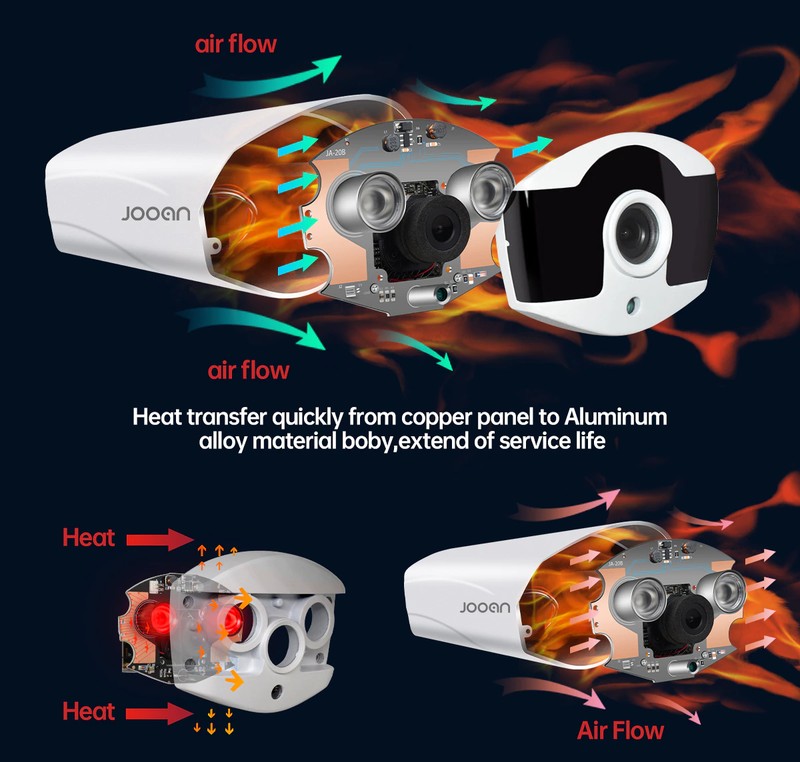

Unique Heat Dissipation Design
Heat transfer quickly from copper panel to aluminum alloy material body,extend of camera life

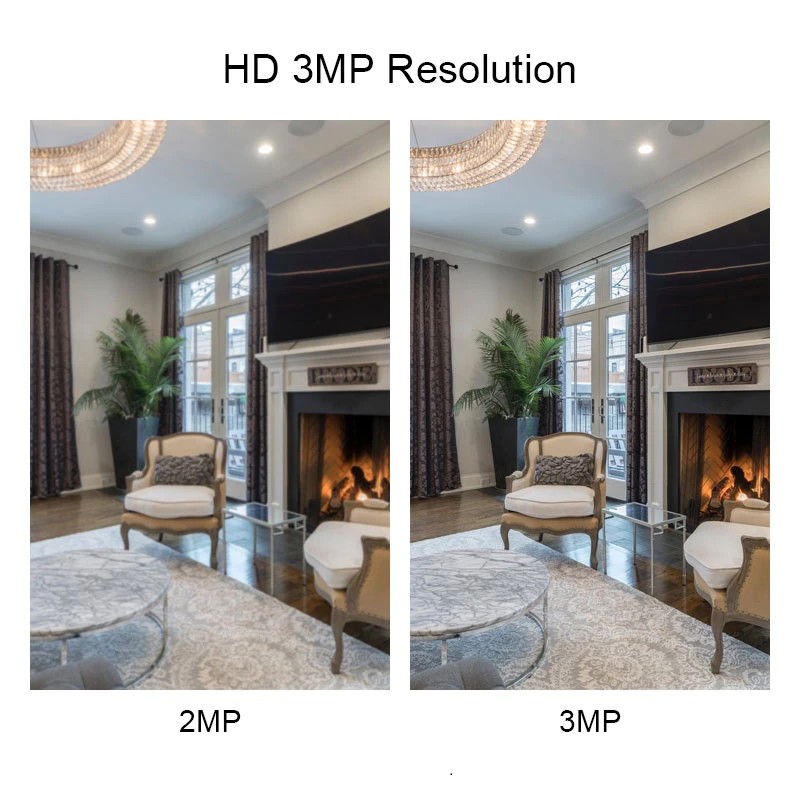

3MP Super Clear Images
We update our wireless camera system, Its resolution is 3MP while other brands are 2MP
Support Multi-Language
English,Russian,French,Italian,Spanish,Germany,Korean,Japanese.,etc

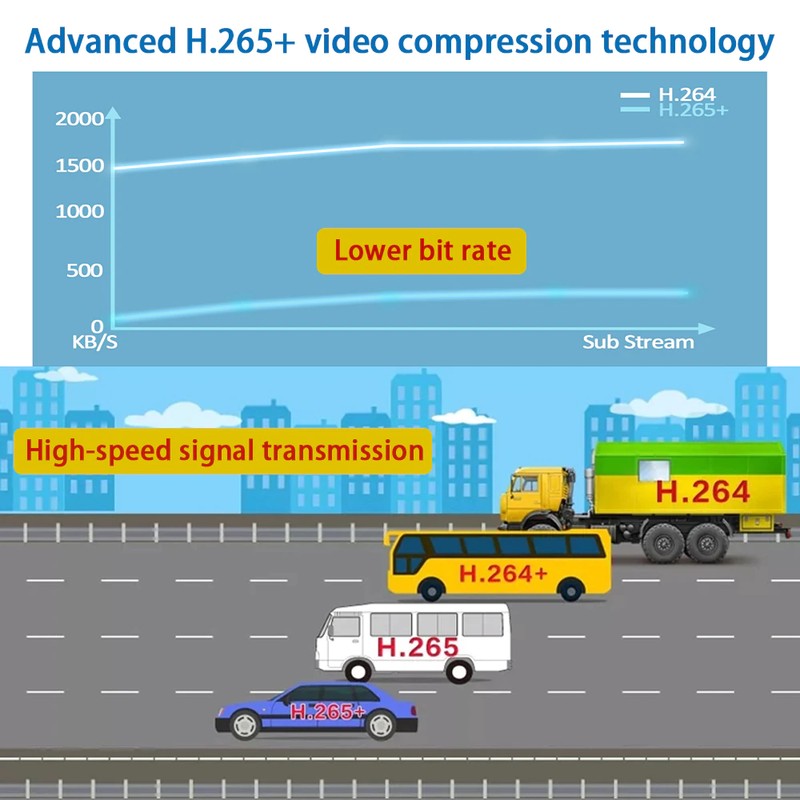

H.265+ Video Compression
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate, save storage space.

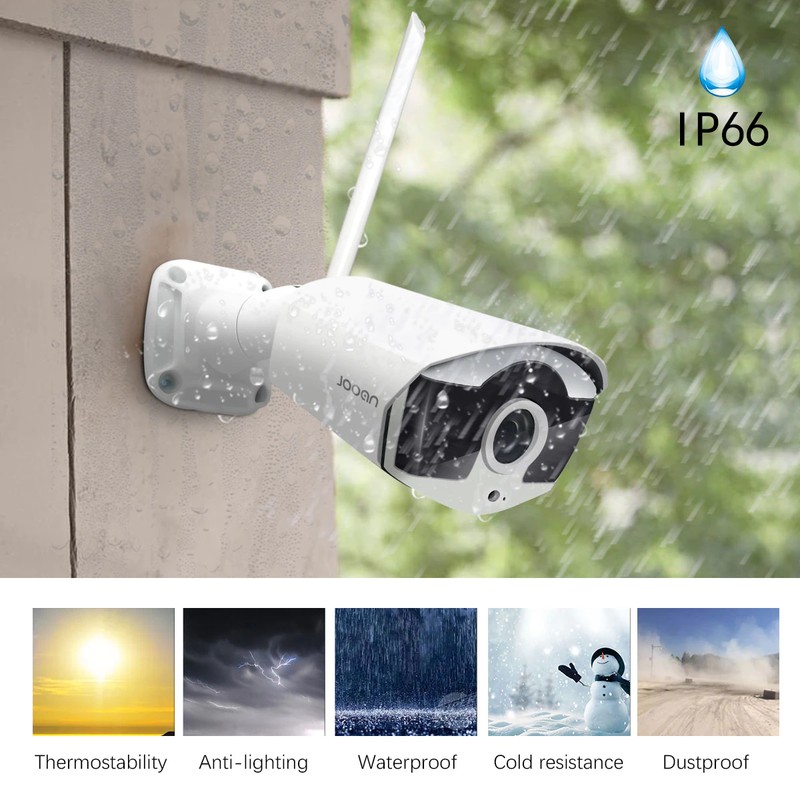

IP66 Weatherproof Outdoor IP Camera
Metal housing shell IP66 weatherproof security cameras, widely used for indoor & outdoor.
Camera Working Temperature: -25℃ ~ 50℃ ( - 13 ℉ ~ 122 ℉ )

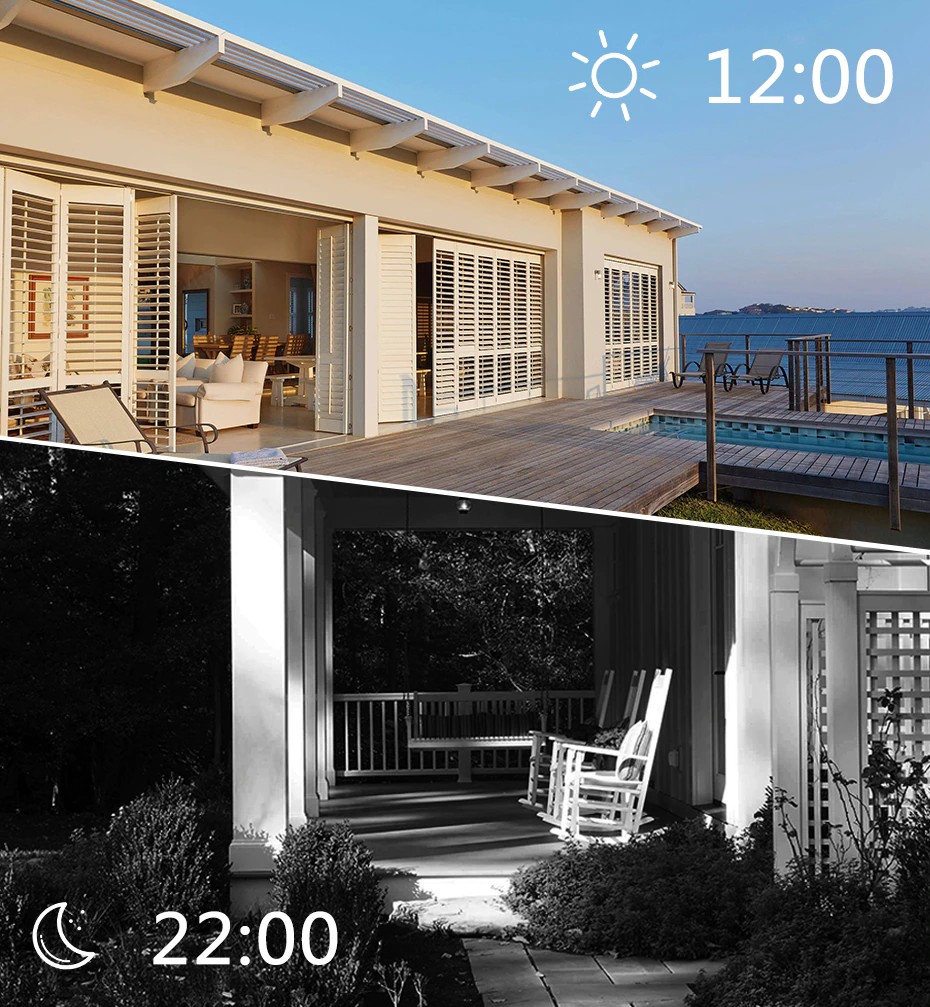

Day Night Monitoring
Day: Color
Night: Black and White

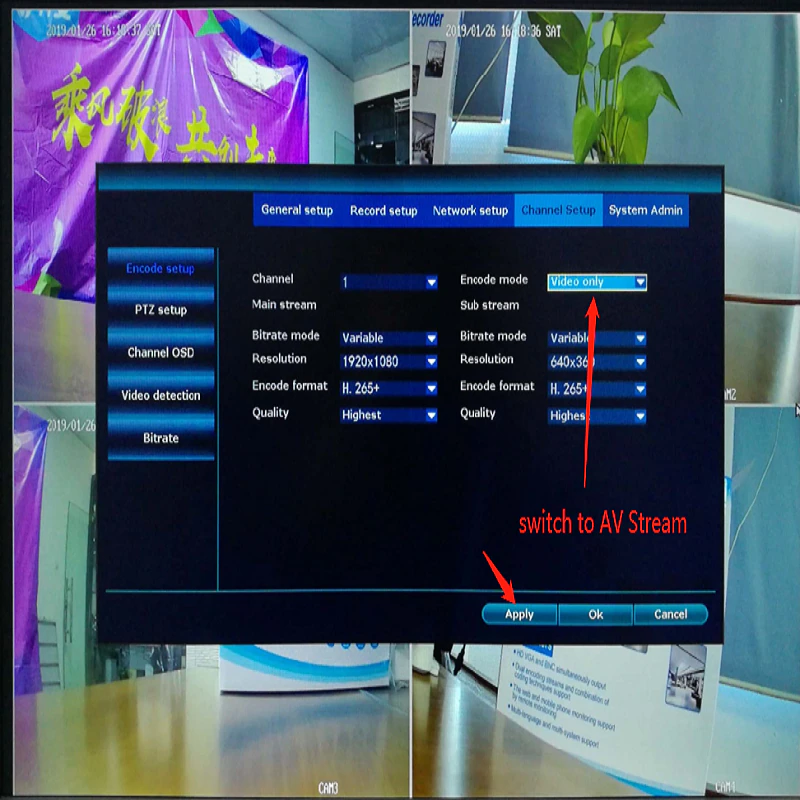

Audio record setting
please select " AV Steam" to start Audio recording function.

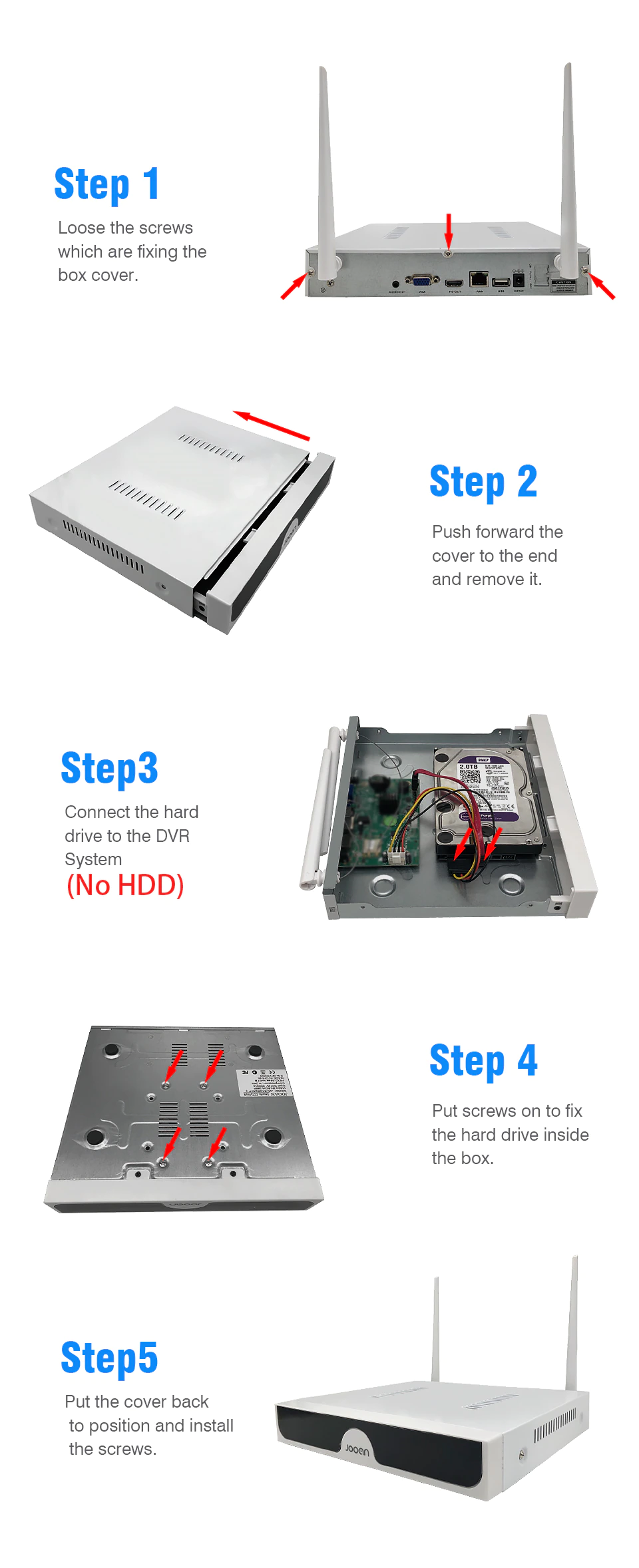

How to install hard drive
1.Loose the screws which are fixing the box cover;
2.Push forward cover to the end and remove it;
3.Connect the hard drive to the DVR System;
4.Put screw to fix the hard drive;
5.Put the cover back and install the screw;

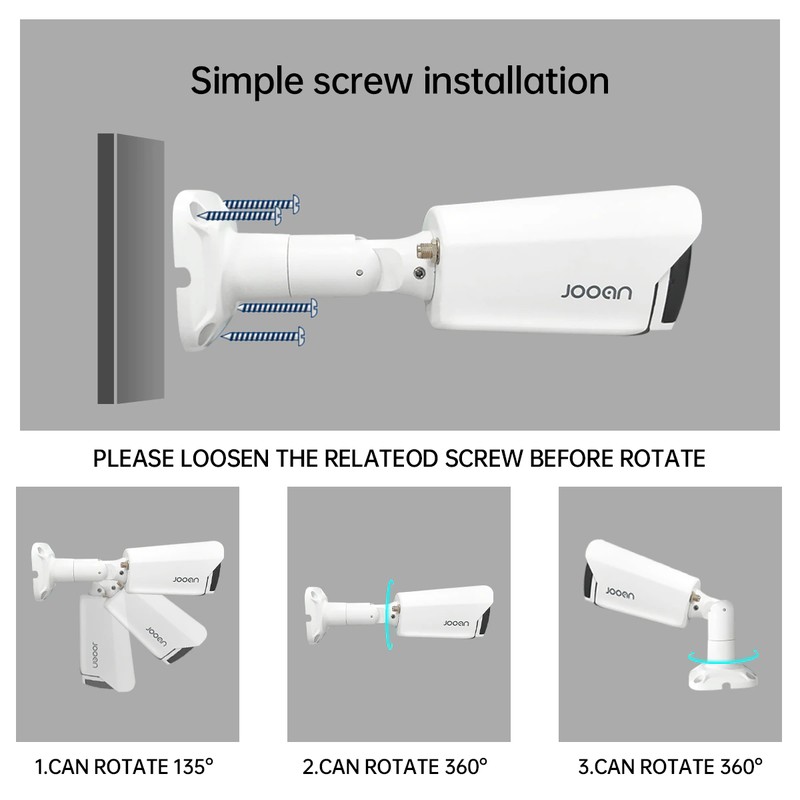

Easy installation
1.Screw the bracket base to the ceiling or the wall;
2.Loosen the nut;
3.Adjust the angel of the camera;
4.Tighten the nut to fix the angel.
Antenna Extender
We offer Antenna Extender for gift to improve signal strength and signal quality

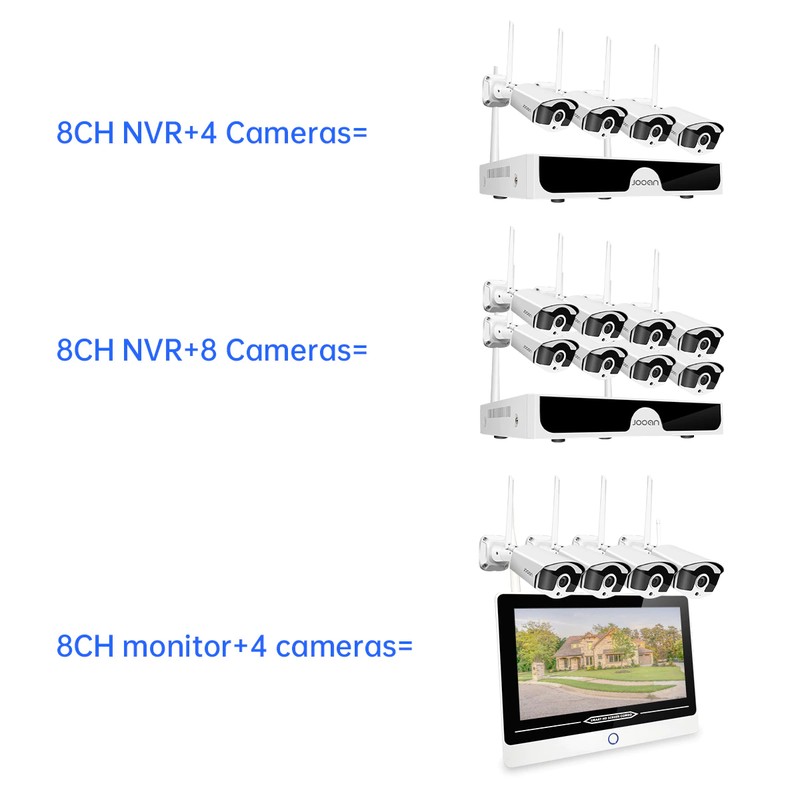

Tailored for you
8CH NVR+4 Cameras
8CH NVR+8 Cameras
8CH monitor+4camera
8CH NVR 4/8 Cameras including

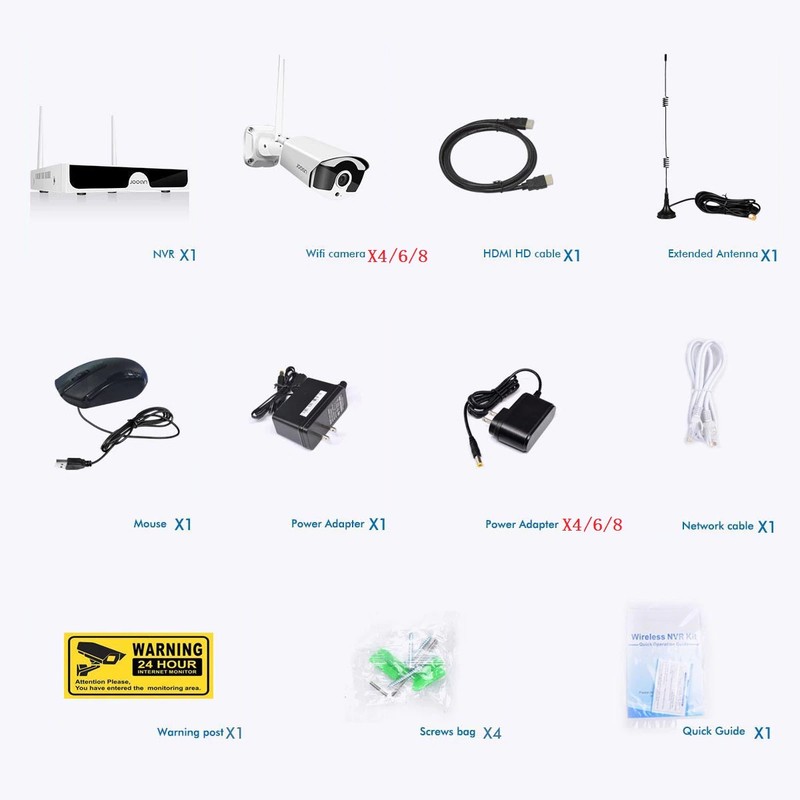

Package Including
8CH NVR*1
3MP Camera*4/8
NVR Power Supply*1
Camera Power Supply*4/8
Mouse*1
Network Cable*1
Screw Bag*4
Antenna*1
Warning Card*1
HDMI cable*1
Manual*1
Hard Drive: None/1T/2T for Select
JOOAN IPC Router(Not in the package, need to purchase separately)
Repeater Extend WiFi Range for Home Security Camera System Wireless (Not in the package, need to purchase separately)
FAQ
1. Q: How many cameras it support
A: This NVR is 8CH NVR, it means you can connect up to 8 cameras. You can buy additional cameras in our store
2. Q: Can this NVR work with other ptz camera?
A: This NVR only work with Jooan camera in the set and jooan 3MP PTZ camera. more details, pls contact us.
3. Q: Can I monitor this system from the cell phone?
A: Just install Eseecloud on your phone, make your NVR connect to network via network cable. Add NVR to Eseecloud. Then you can remote monitoring on your phone
4. Q: What’s the first admin Password
A: The default user name is "admin",the default password is null,that's mean empty.
If you set a private password but forget it, pelase kindly contact us to get the reset method
5. Q: When the HDD is full,what should I do
A: If HDD is full, the new recordings will automatically overwrite the prior recordings. If you need the prior recordings, pls backup it to U disk
6. Q: What’s the format of HDD
A: Dear, we suggest a professional monitoring HDD. Please choose an internal SATA III 3.5" hard drive. You may refer to the Western Digital AV-GP line of hard drive, the Seagate pipeline of hard drive, as well as Western Digital Purple series. Our DVR supports 500GB to 6TB. We recommend 1TB to 2TB.
7. Q:The cameras are wireless?What is the power supply method
A:This camera connect to NVR via WIFI. but they need to power supply by DC. so it need the power supply
8. Q: I want to buy this system. What's plug I will get?
A: If you choose from China, we will ship it according to your country. If you choose ship it from CZ or RU. it is EU plug. if you need other plug. pls contact us after you place the order.
9. Q: Connected according to the scheme to TV via HDMI cable. Turned on the TV, the picture is not displayed. what should I do
A: Dear. pls check if your tv have changed to HDMI model. then check the your screen size.we suggest that 19-40inch
10. Q: Can I connect this nvr to network via WIFI?
A: This nvr only work with network via network cable. it cannot support work with WIFI at present
