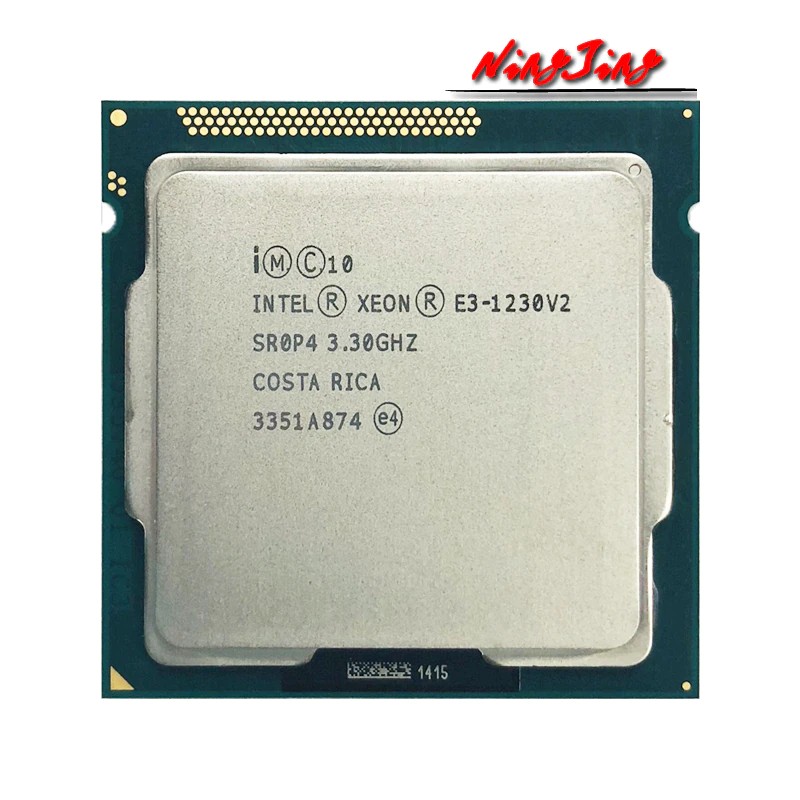

Intel Xeon E3-1230 V2 E3 1230V2 E3 1230 V2 3.3 Ghz Quad-Core Cpu Processor 8M 69W Lga 1155
- 140 reviews
- 1790 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Intel Model: Intel Xeon E3-1230 v2
Support Memory Channels: 2
PCIe VERSION: PCIe 2.0
Application: Desktop
Number OF Therads: 8
Usage Scenario: others
Support Memory Type: DDR3
Support Chipset Models: Intel B75
Processor Type: Intel Xeon
Chip Process: 22 nanometers
Default TDP / TDP: 69W
Unlocked: YES
Socket Type: LGA 1155
Type: Quad-Core
GPU-built: NO
Launch Date: 2004
L3 Cache Capacity: 8 MBMB
Number of Cores: Quad-Core
Package: No
L2 Cache Capacity: 1 MBMB
Model Number: Intel Xeon E3-1230 v2
Warranty: One year warranty
Intel Xeon E3-1230 v2 specifications
General information | |||||||||||||
Type | |||||||||||||
Market segment | Server | ||||||||||||
Family | |||||||||||||
Model number | E3-1230 v2 | ||||||||||||
CPU part numbers |
| ||||||||||||
Frequency | 3300 MHz | ||||||||||||
Maximum turbo frequency | 3700 MHz (1 or 2 cores) | ||||||||||||
Bus speed | 5 GT/s DMI | ||||||||||||
Clock multiplier | 33 | ||||||||||||
Package | 1155-land Flip-Chip Land Grid Array (FCLGA 1155) | ||||||||||||
Socket | Socket 1155 / H2 / LGA1155 | ||||||||||||
Size | 1.48" x 1.48" / 3.75cm x 3.75cm | ||||||||||||
Introduction date | |||||||||||||
End-of-Life date | Last order date is January 23, 2015 | ||||||||||||
Price at introduction | $215 (OEM) | ||||||||||||
S-spec numbers | |||||||||||||
| |||||||||||||
Architecture / Microarchitecture | |||||||||||||
Microarchitecture | Ivy Bridge | ||||||||||||
Platform | Carlow | ||||||||||||
Processor core | Ivy Bridge-H2 | ||||||||||||
Core stepping | E1 (QBZD, SR0P4) | ||||||||||||
CPUID | 306A9 (SR0P4) | ||||||||||||
Manufacturing process | 0.022 micron High-K metal gate process | ||||||||||||
Data width | 64 bit | ||||||||||||
The number of CPU cores | 4 | ||||||||||||
The number of threads | 8 | ||||||||||||
Floating Point Unit | Integrated | ||||||||||||
Level 1 cache size | 4 x 32 KB 8-way set associative instruction caches | ||||||||||||
Level 2 cache size | 4 x 256 KB 8-way set associative caches | ||||||||||||
Level 3 cache size | 8 MB 16-way set associative shared cache | ||||||||||||
Physical memory | 32 GB | ||||||||||||
Multiprocessing | Uniprocessor | ||||||||||||
Features |
| ||||||||||||
Low power features | Enhanced SpeedStep technology | ||||||||||||
Integrated peripherals / components | |||||||||||||
Integrated graphics | None | ||||||||||||
Memory controller | The number of controllers: 1 | ||||||||||||
Other peripherals |
| ||||||||||||
Electrical / Thermal parameters | |||||||||||||
Maximum operating temperature | 65.8°C | ||||||||||||
Thermal Design Power | 69 Watt |
