• Gate Door Lock Rfid Metal Access Control Scanner Mini Metal Ip66 Waterproof Embedded Reader


    USD $9.74VAT Included50% OFFFree Shipping
    Just for Dropshipping and Wholesale



    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    L***x Verified Buyer

    Just super! Installed additional to the intercom. I hope that in winter Frosts will work properly. A neighbor who's always losing his keys is just happy. The seller is upset, to all questions about programming (how to reset all settings and clear memory, and how to change the timing of the relay), the instruction is not in the box.

    5
    Y***m Verified Buyer

    Everything corresponds to the description, but there is no possibility to try it yet. We'll set it up later. The only thing that is unhappy is the delivery: 09.12.2021 came to the Vnukovo customs and from there only went 31.12.2021

    5
    Q***y Verified Buyer

    Quickly delivered! Without external damage. Until I checked in action. Seller Thank you! I recommend this store and seller.

    5
    J***t Verified Buyer

    Everything works and is programmed well. No complaints. Excellent reader with built-in controller.

    5
    L***v Verified Buyer

    Looks compact and well don product, recommend. Fast delivery.

    4
    X***n Verified Buyer

    Very good will still test, arrived well packed.

    5
    K***d Verified Buyer

    It's all normal. We'll figure it out.

    5
    Z***z Verified Buyer

    Excellent product, like. Recommend.

    5
    O***c Verified Buyer

    Great conforms to the description

    5
    L***s Verified Buyer

    Thank you

    5
    U***s Verified Buyer

    Perfect!

    5
    V***e Verified Buyer

    OK OK

    5
    U***e Verified Buyer

    ok

    5

    Certification: CE
    Smart home platform: None

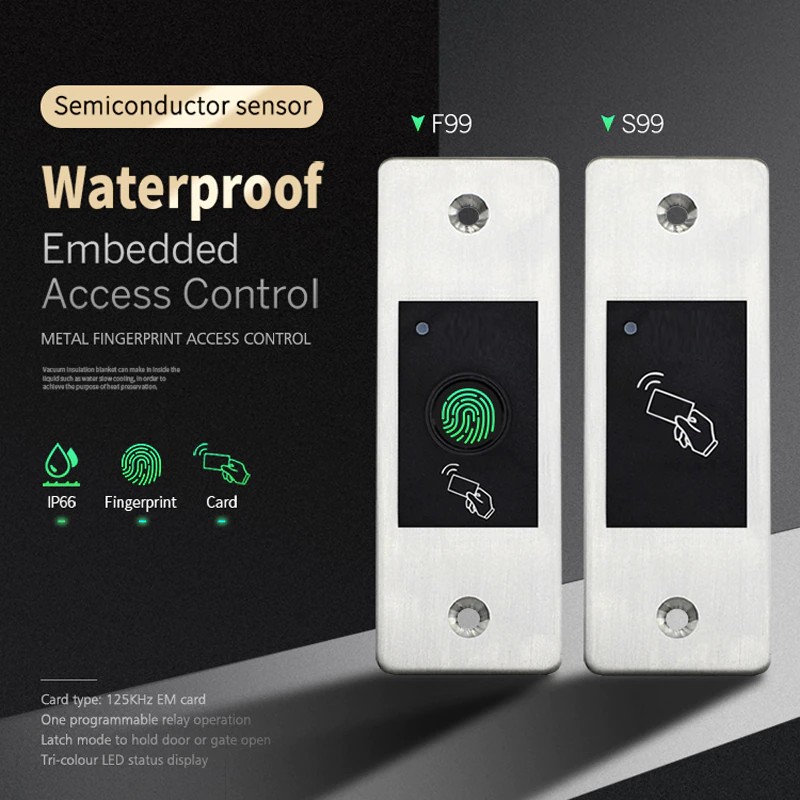

    Model Number: S99 F99



    F99 (=EF1)is fingerprint RFID controller with 100 fingerprint capacity;

    S99(=E1) is RFID controller, no fingerprint;

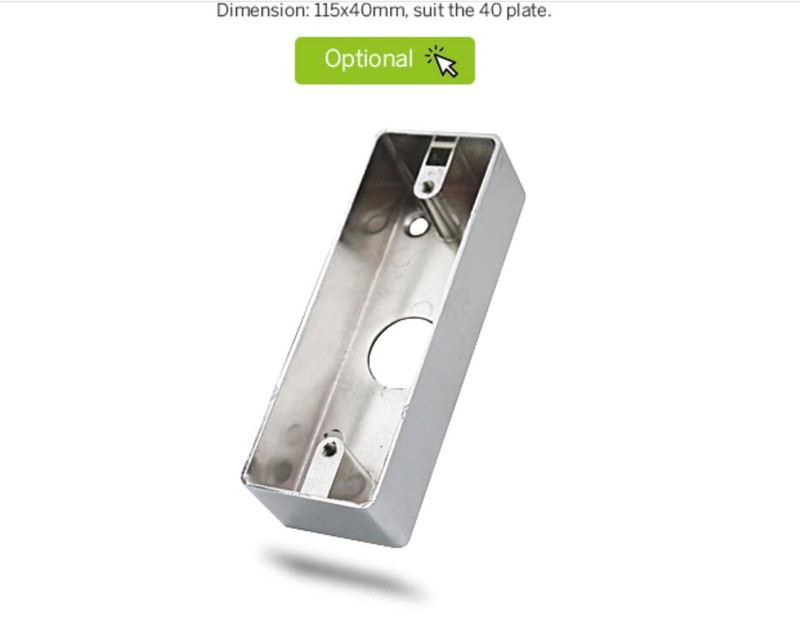

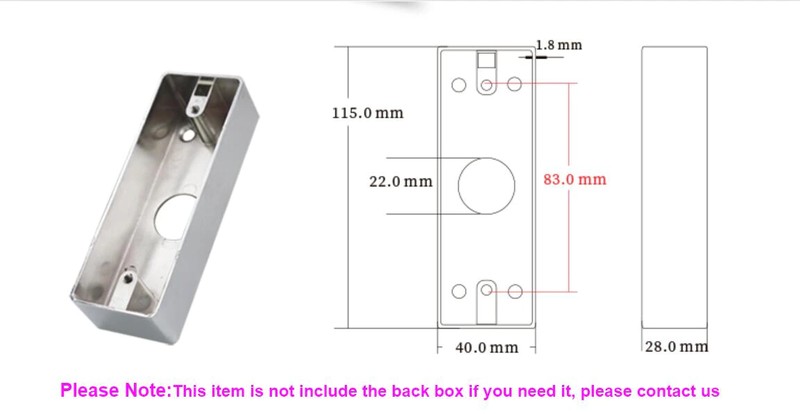

    Choose it carefully! mounting Base is optional!!!!!!

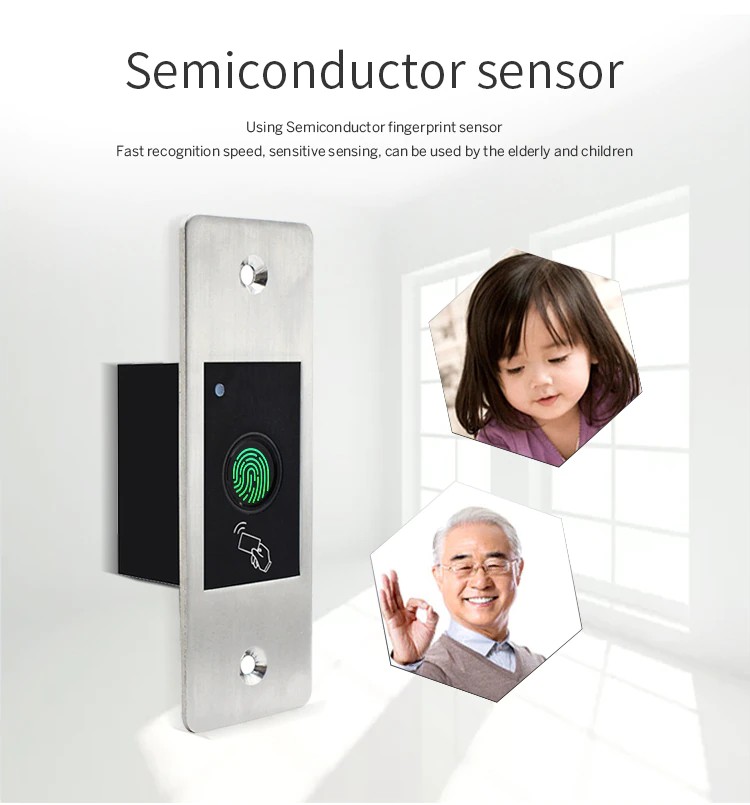

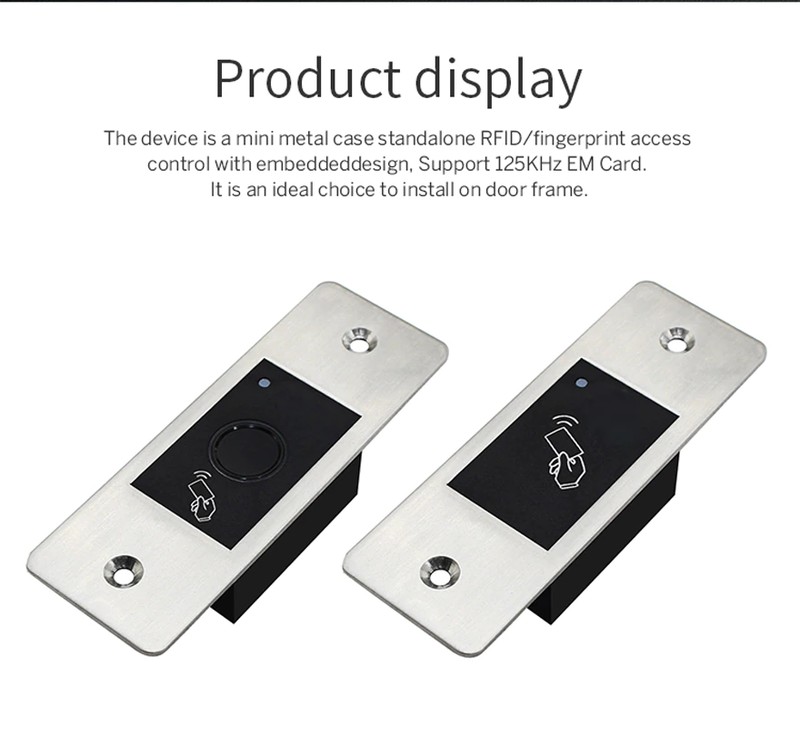

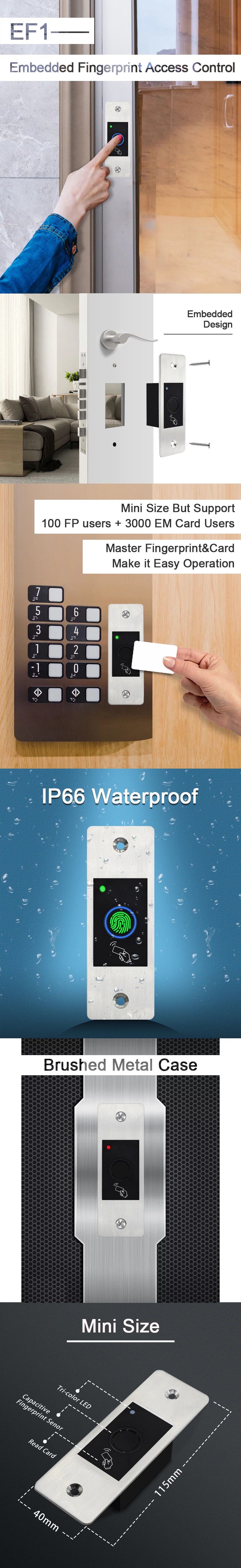

    F99this is Mini Metal Case Standalone RFID/Fingerprint Access Control with Embedded Design.

    Support Fingerprint and 125KHz EM Cards.

    It is an ideal choice to install on door frame.

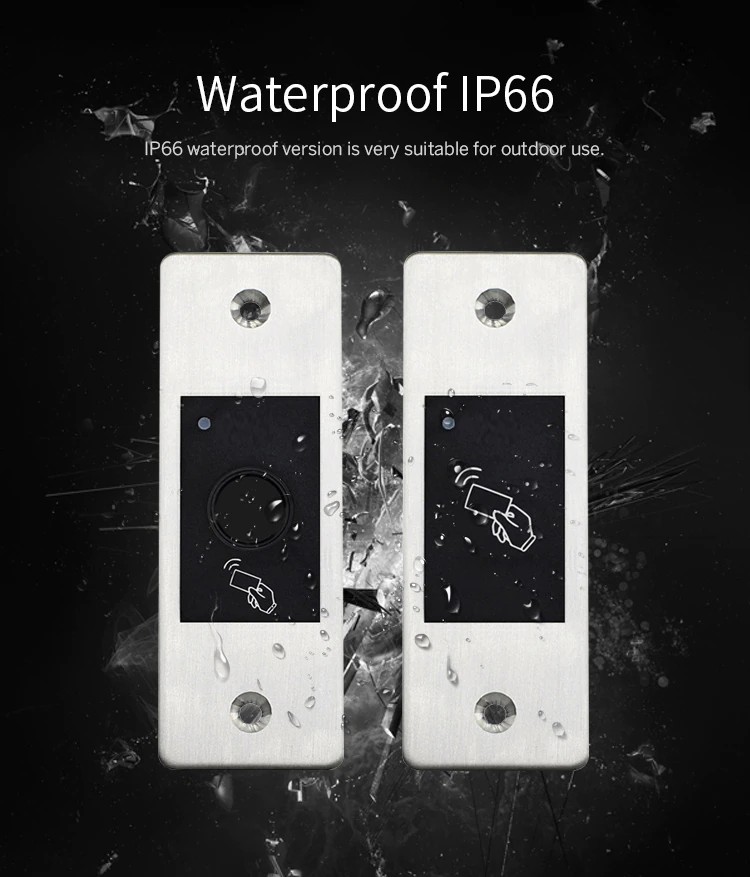

    IP66 Waterproof is very sitable for outdoor use.

    It support Master card and Master fingerprint for easy opeation.

    Feature:

    > Embedded Design with Mini size

    > Metal case and IP66 Waterproof

    > User capacity:800 Fingerprint and 3000 Cards

    > One programmable relay operation

    > Latch mode to hold door and gate open

    > Tri-colour LED status display

    Product Name

    Mini Metal IP66 Waterproof Fingerprint Standalone Controller support 100 Finger and 3000 Cards

    User Capacity

    100 Fingerprints and 3000 Cards

    Operating Voltage

    DC9~24V

    Idle Current

    ≤25mA

    Active Current

    ≤100

    Proximity Card Reader

    EM

    Radio Technology

    125KHz Proximity Card

    Read Range

    50px

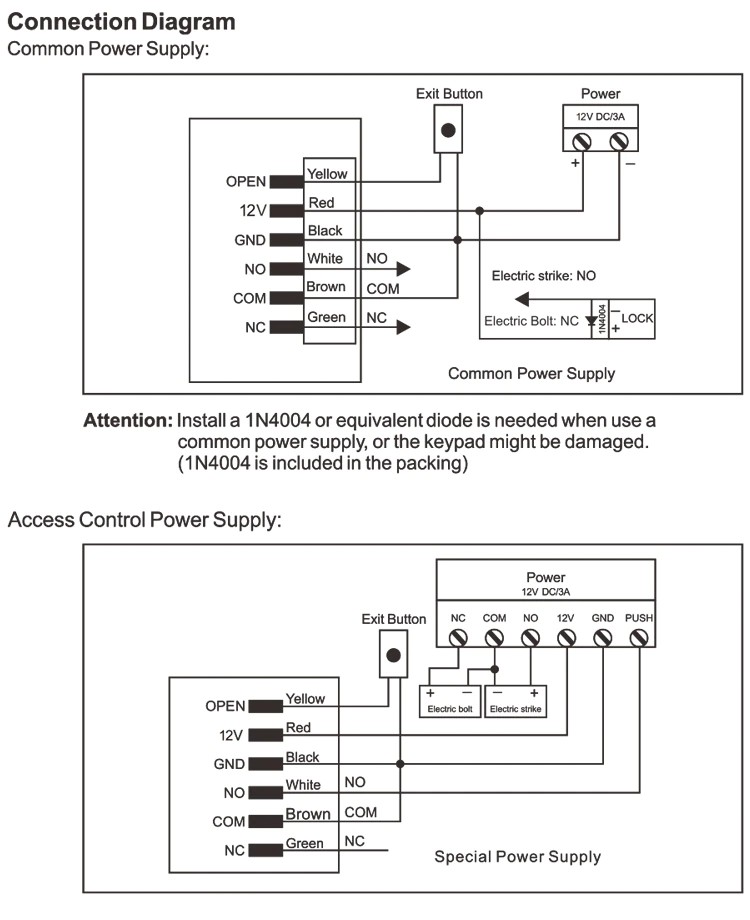

    Wiring Connections

    Relay Output, Exit Button

    Relay

    One (NO, NC, Common)

    Adjustable Relay Output Time

    o-99 seconds (5 seconds default)

    Lock Output Load

    2 Amp Maximum

    Environment

    Meets lP66

    Operating Temperature

    -25℃~60℃(-13°F ~140°F)

    Operating Humidity

    20%RH-98%RH

    Physical

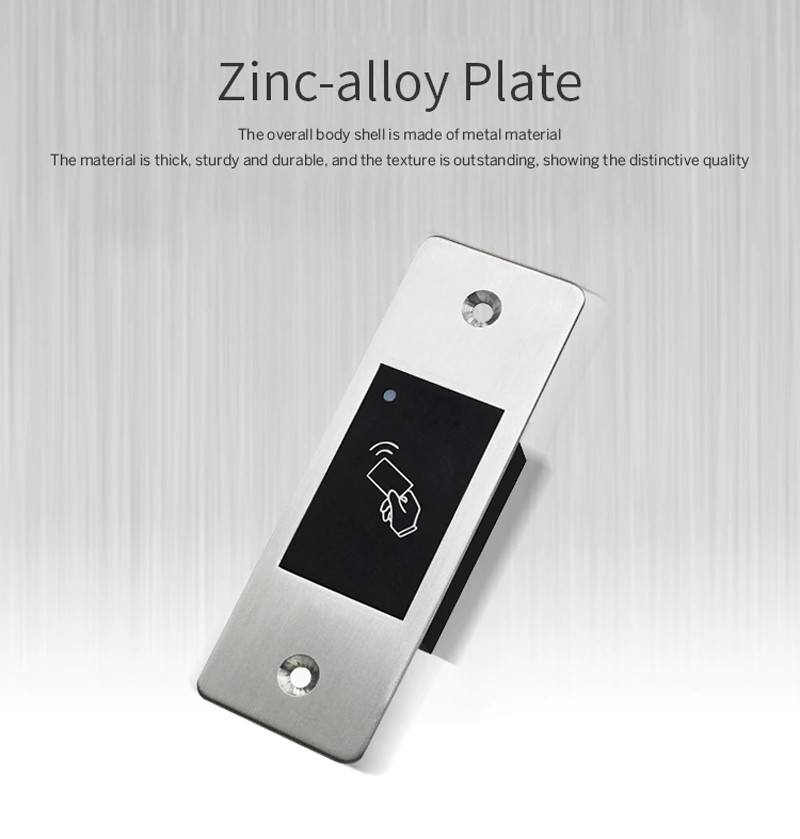

    Zinc-alloy plate

    Colour

    Silver

    Dimensions

    L115xW40xH30mm

    S99this is Mini Metal Case Standalone RFID Access Control with Embedded Design.

    Support 125KHz EM Cards.

    It is an ideal choice to install on door frame.

    IP66 Waterproof is very sitable for outdoor use.

    It support Master card for easy opeation.

    Feature:

    > Embedded Design with Mini size

    > Metal case and IP66 Waterproof

    > User capacity:support 3000 Cards

    > One programmable relay operation

    > Latch mode to hold door and gate open

    > Tri-colour LED status display

    User Capacity

    3000 Cards

    Operating Voltage

    DC9~24V

    Idle Current

    ≤25mA

    Active Current

    ≤100

    Proximity Card Reader

    EM

    Radio Technology

    125KHz Proximity Card

    Read Range

    50px

    Wiring Connections

    Relay Output, Exit Button

    Relay

    One (NO, NC, Common)

    Adjustable Relay Output Time

    o-99 seconds (5 seconds default)

    Lock Output Load

    2 Amp Maximum

    Environment

    Meets lP66

    Operating Temperature

    -25℃~60℃(-13°F ~140°F)

    Operating Humidity

    20%RH-98%RH

    Physical

    Zinc-alloy plate

    Colour

    Silver

    Dimensions

    L115xW40xH30mm

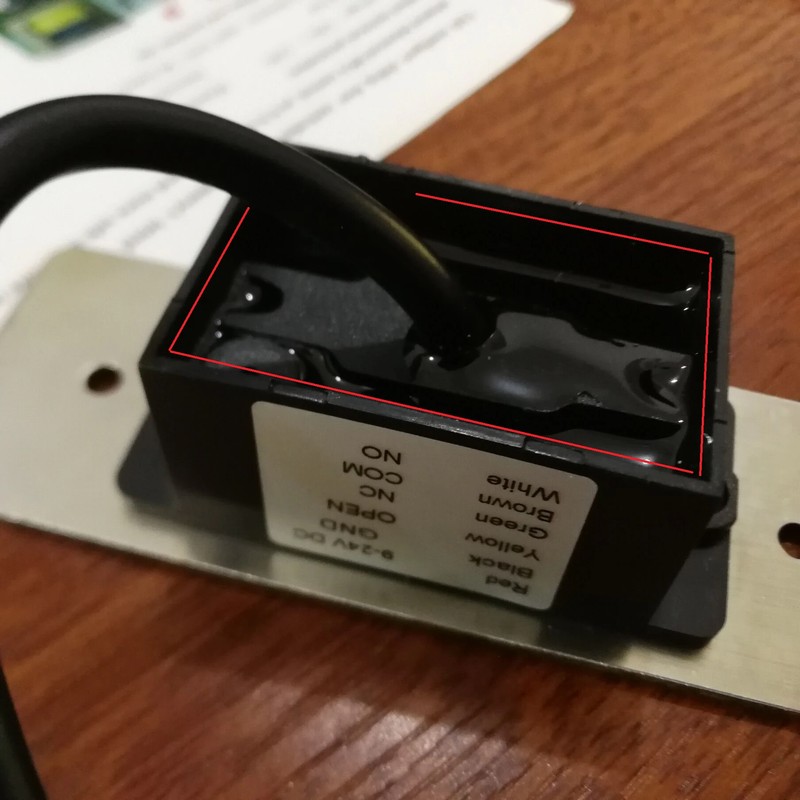

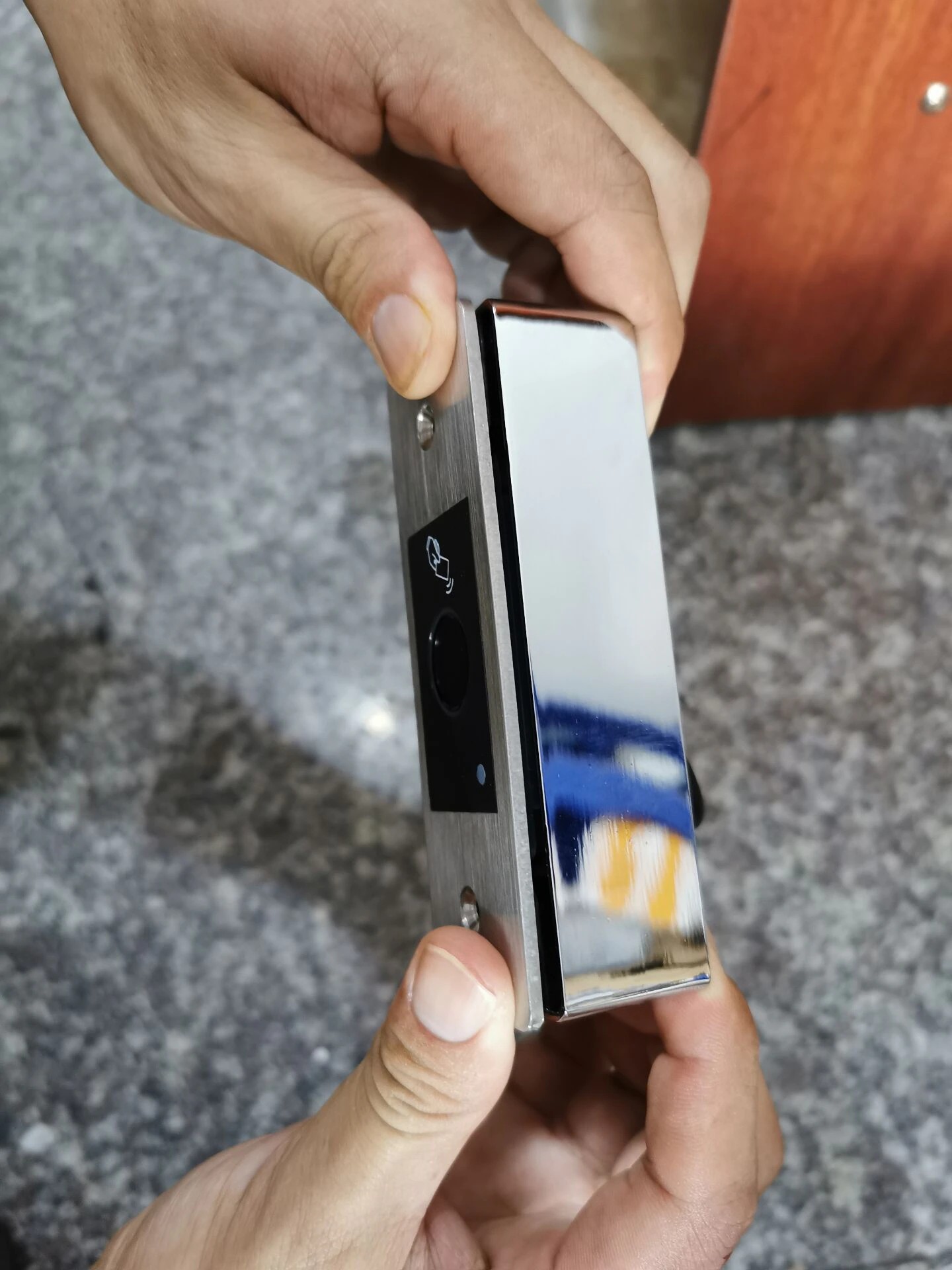

    Explanation: some buyer may choose the reader with base,in some cases, there is a smaller gap from the base to the reader; the buyer needs to cut the redundant plastic part to fit the base;showing as the following pictures:
