3 S 40A Cargador De Batería Li-Ion De Litio Bms Protección Pcb Junta Para Motor De Taladro 11.1 V 12.6 V Lipo Celular Módulo Con Equilibrio
- 135 comentarios
- 158 Vendidos
USD $3.14IVA Incluido50% DESCUENTOEnvío Gratis
solo para Dropshipping y venta al por mayor
Valoración de Los Clientes
*Nota: Google Translate ha procesado algunas reseñas.IS_Customized: Sí
Número de modelo: 3S 40A Li-ion Lithium Battery Carger PCB BMS Protection Board
Voltaje de carga: 12.6V - 13.6V
Corriente de carga continua (límite superior): 20a
Corriente de descarga continua: 40a
Description:

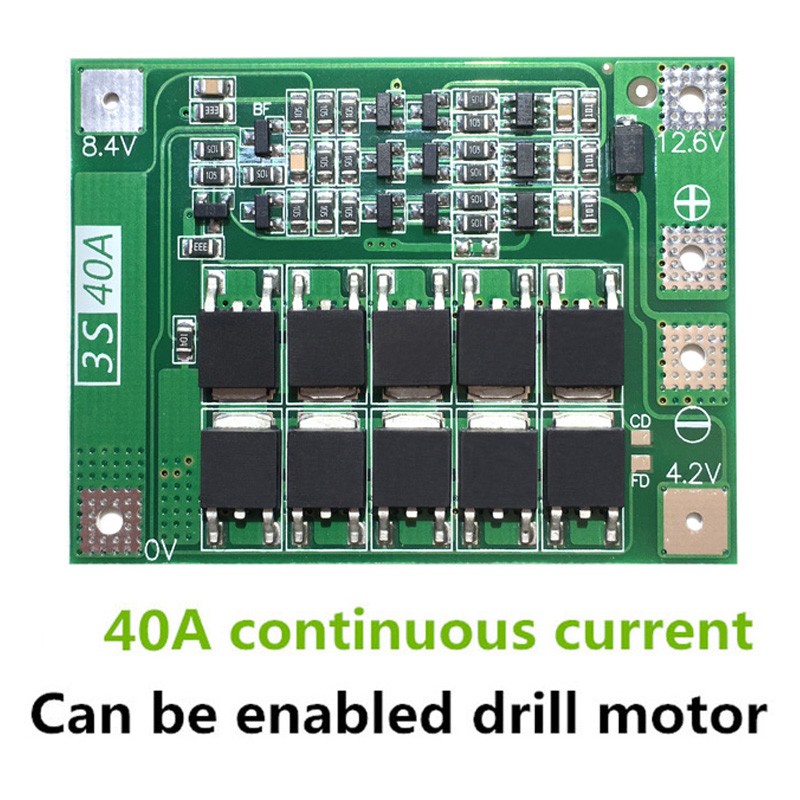

3S 12.6V 40A lithium battery protection board (comes with recovery function-AUTO Recovery)
Scope: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, polymer lithium battery)
Product Size: 42 * 55 * 3.4mm (Standard Version / Enhanced Version), 42 * 60 * 3.4mm (Balanced version)
Product weight: 8.8g (standard / enhanced version), 9.8g (balanced version)
Charging voltage: 12.6V - 13.6V
Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)
Continuous charge current (upper limit): 20A

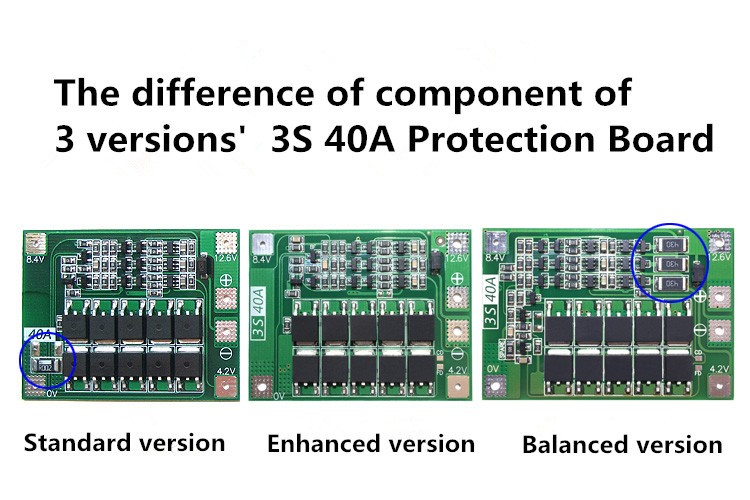

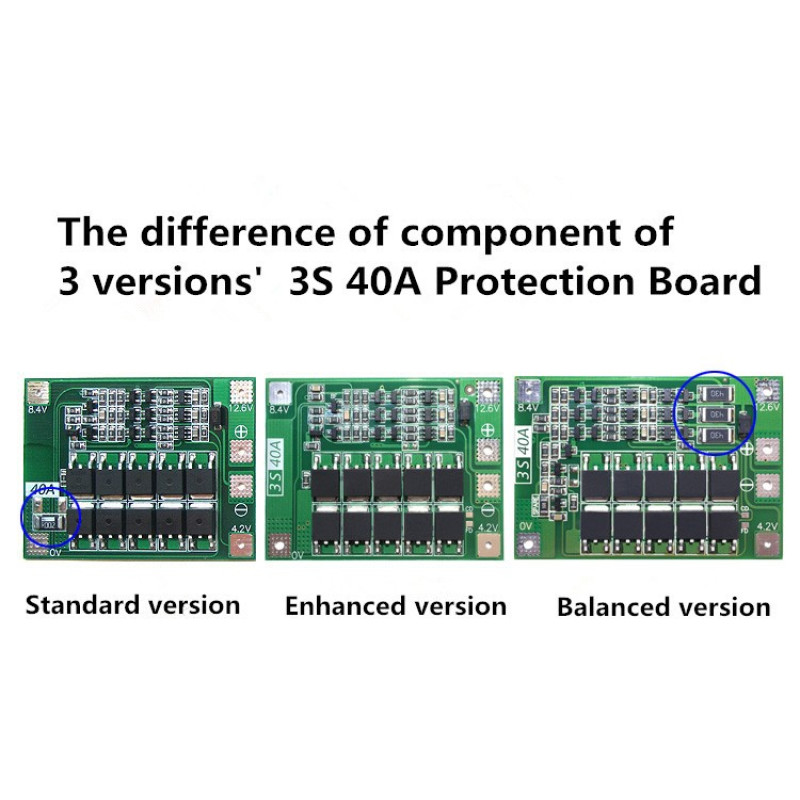

Standardversion: suitable for starting current below 60A, power 100W below the drill.(Not balanced function)
Enhanced version: for starting current below 80A, power 135W below the drill.(Not balanced function)

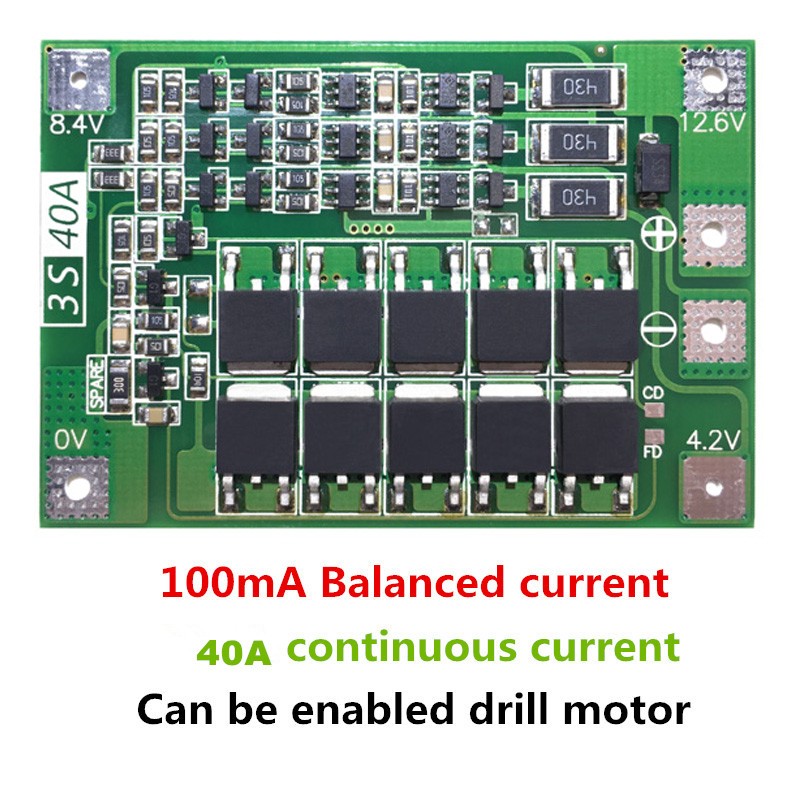

Balancedversion: suitable for starting current below 80A, power 135W below the drill.(with balance)
Note 1: The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill!!).

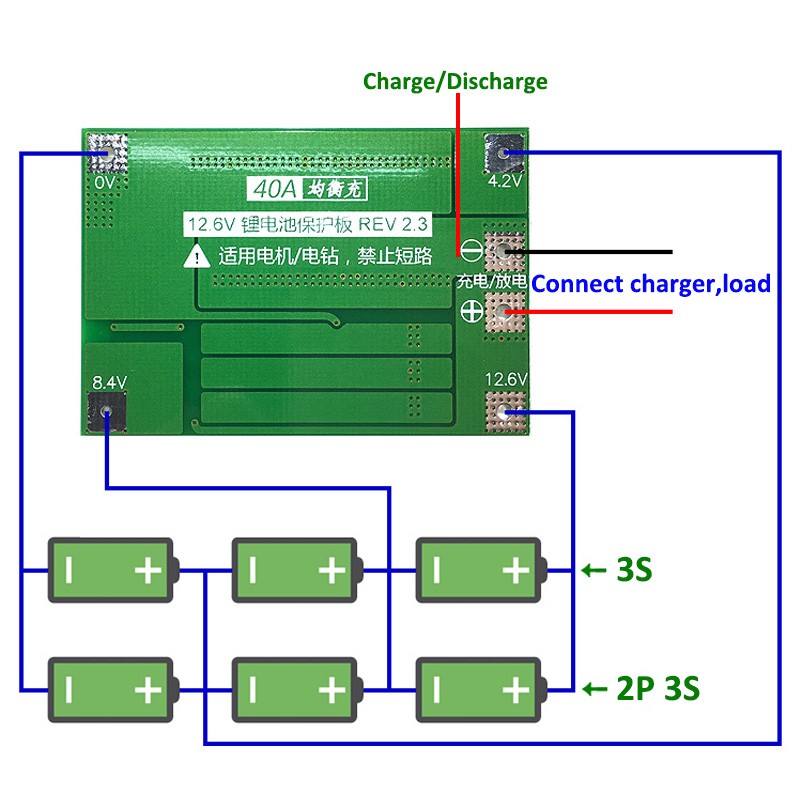

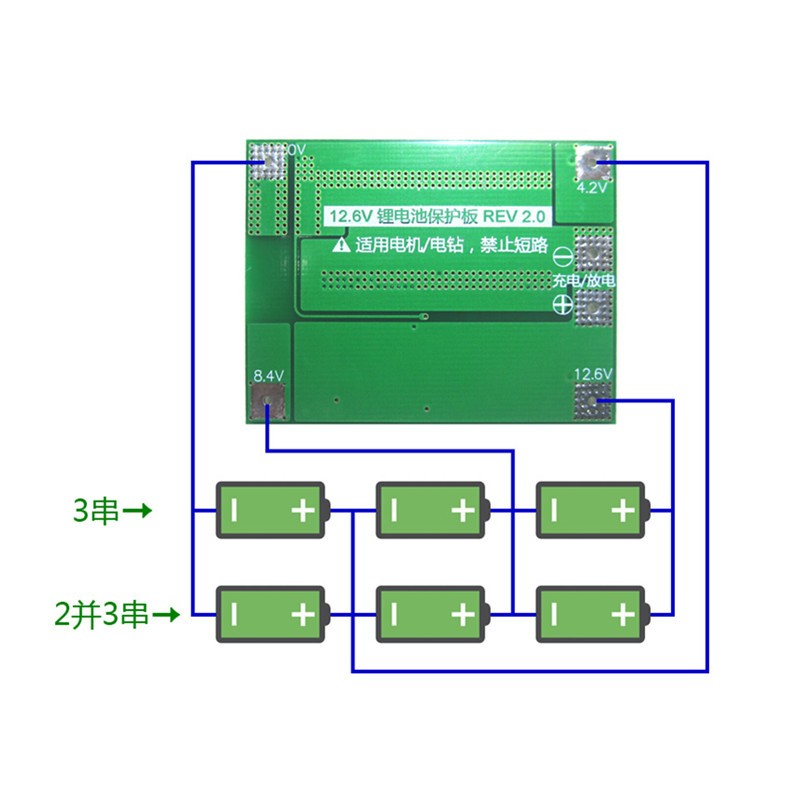

Note 2: strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.
Note 3: When the load of the brush motor is used, try to connect a non-polar capacitor (withstand voltage above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse spike from the motor. Break the MOS tube.
Note 4: 3 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster battery that group is poor battery.
For some of the poor basis of electronic customers to explain: balanced charge is only auxiliary functions, try not to put a good battery and poor battery mixed together! 3 sets of battery capacity / resistance closer to the better! (2 good battery +1 Poor battery use effect = 3 poor battery use effect).
