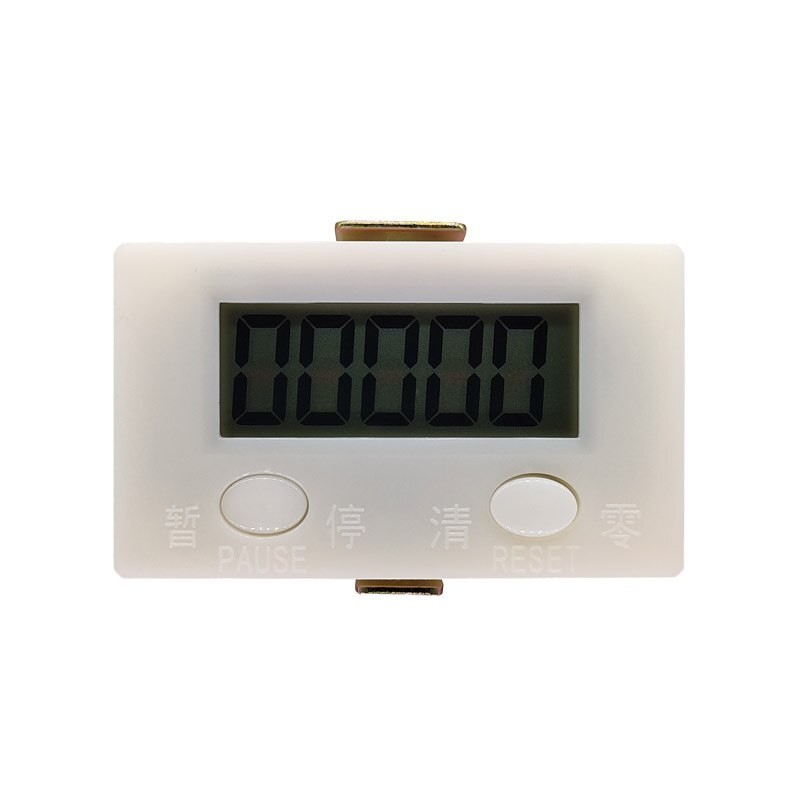

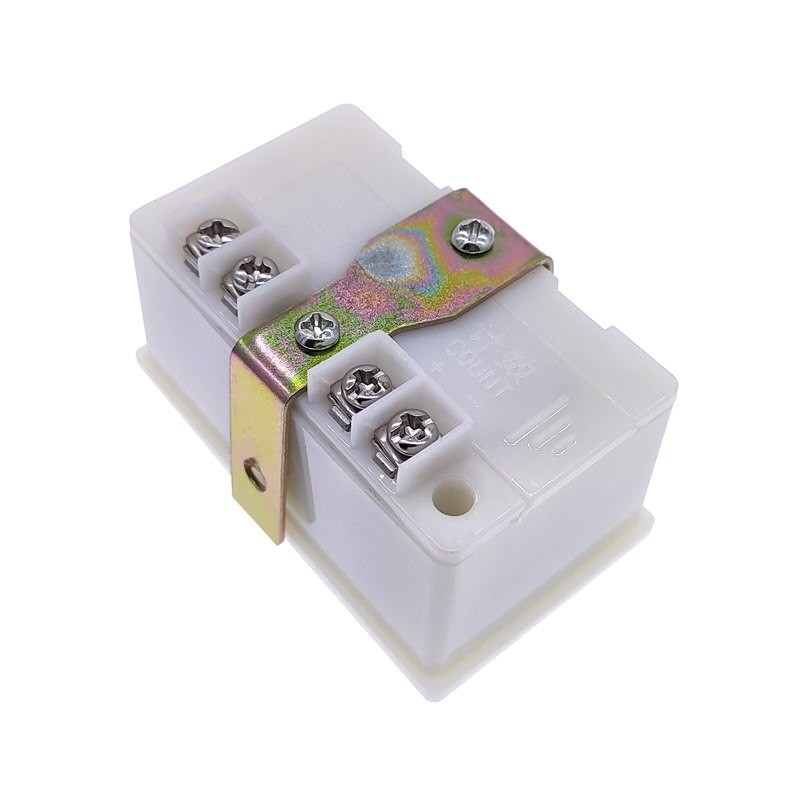

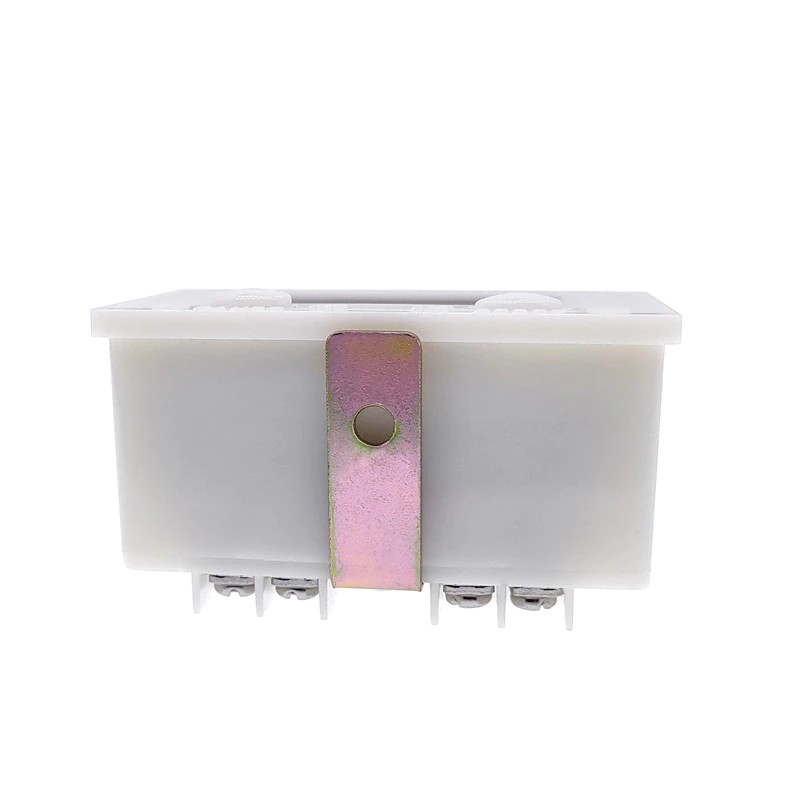

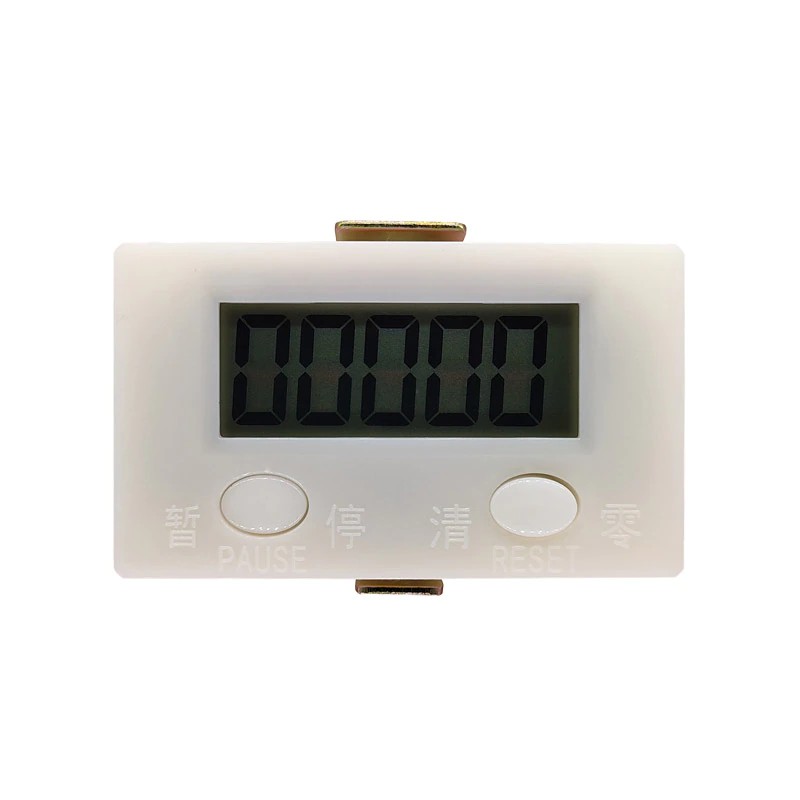

Electronic Digital 5 Display Counter Proximity Magnetic Sensor Switch Punch Counter Automatic Induction Counter Meter
- 140 reviews
- 384 Sold
USD $3.68VAT Included50% OFFFree Shipping
Just for Dropshipping and Wholesale
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Certification: NONE
DIY Supplies: ELECTRICAL
Model Number: ZX-5A
Type: 5-digit Counters

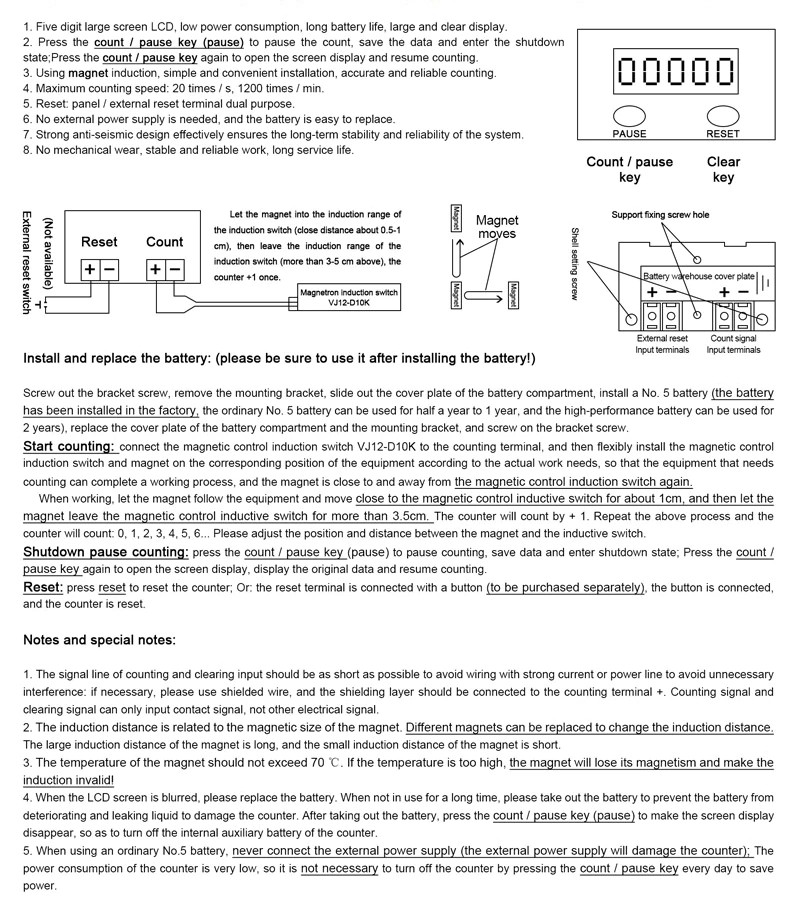

Technical parameters:

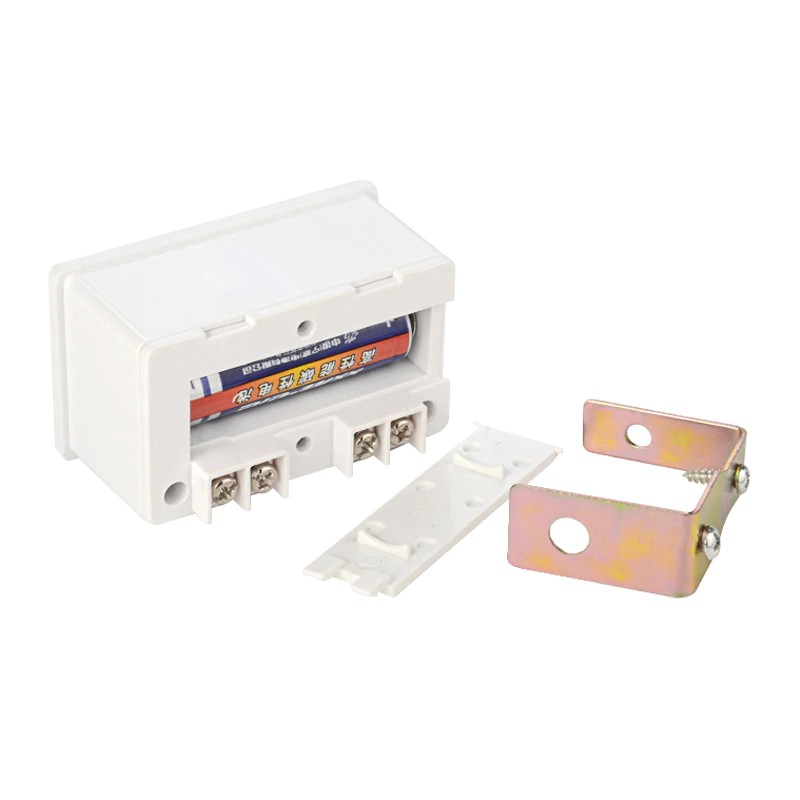

Power supply: 1.5V -- AA No.5 battery
Counting range: 00000-99999 cycles
Maximum counting frequency: 20Hz
Minimum counting pulse width: 2ms

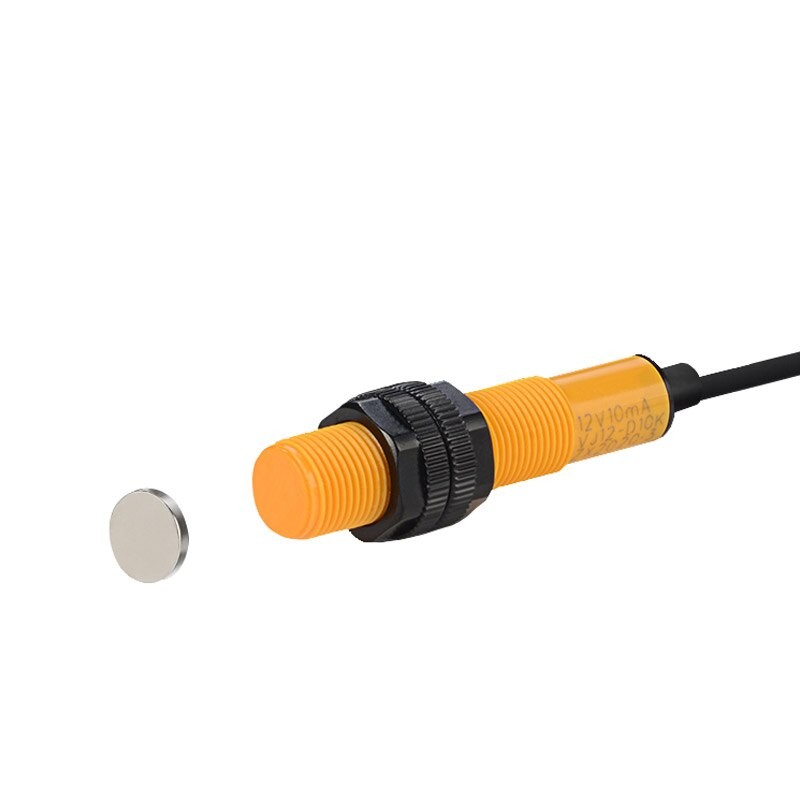

Magnet induction approach distance: ≈ 5-15mm
Magnet induction distance: ≥ 35mm

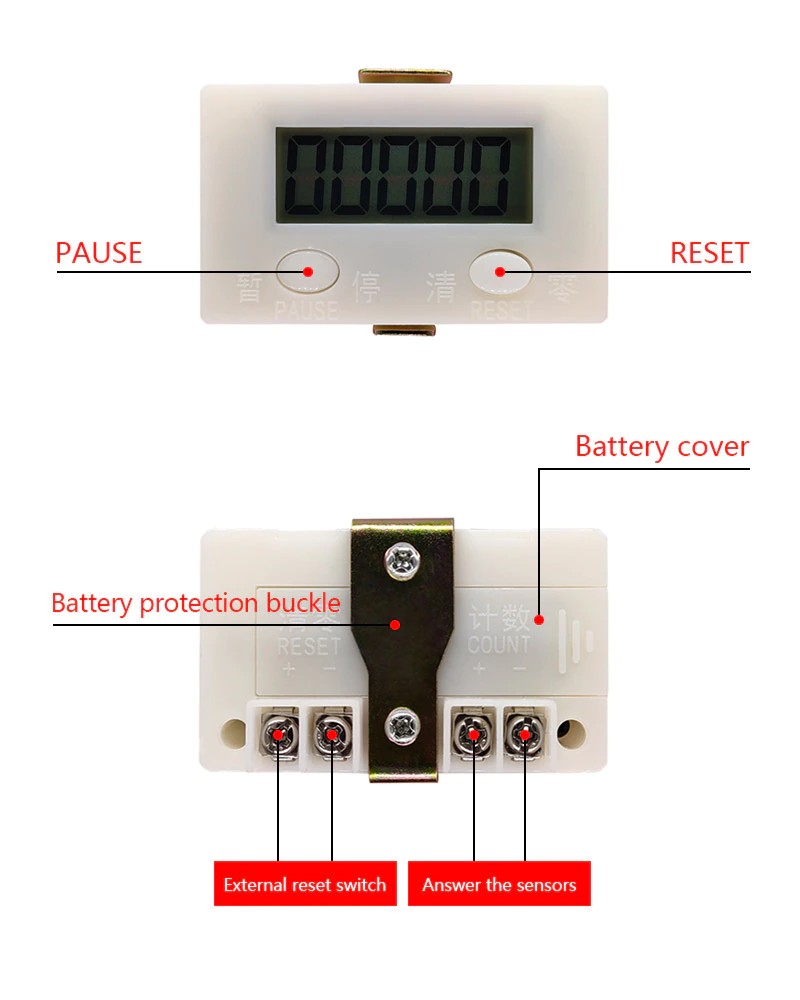

Reset mode: panel R / external terminal
Minimum clear pulse width: 0.1 second
Ambient temperature: - 5-40 ℃

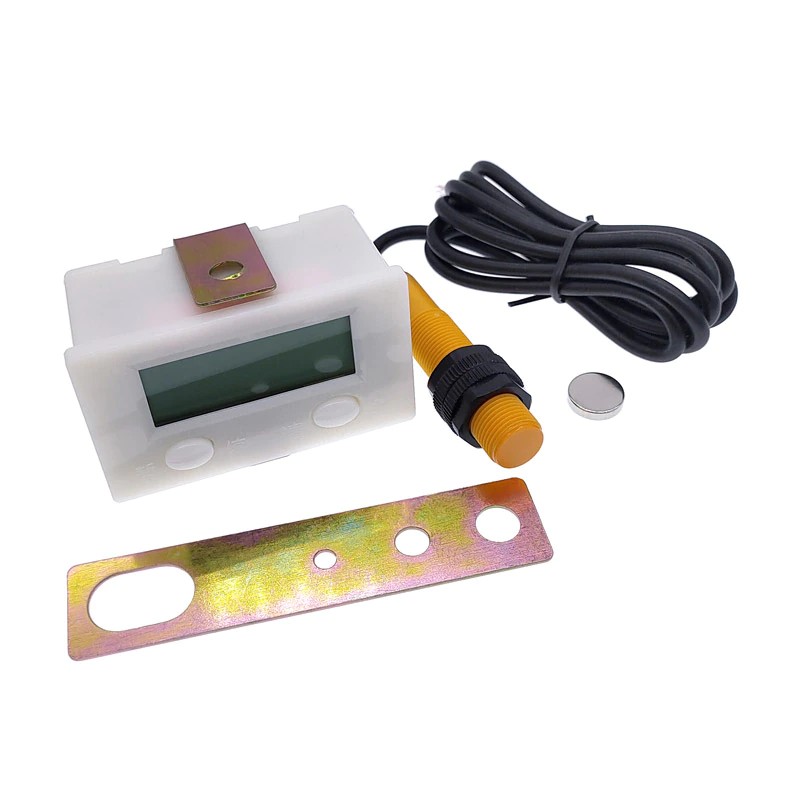

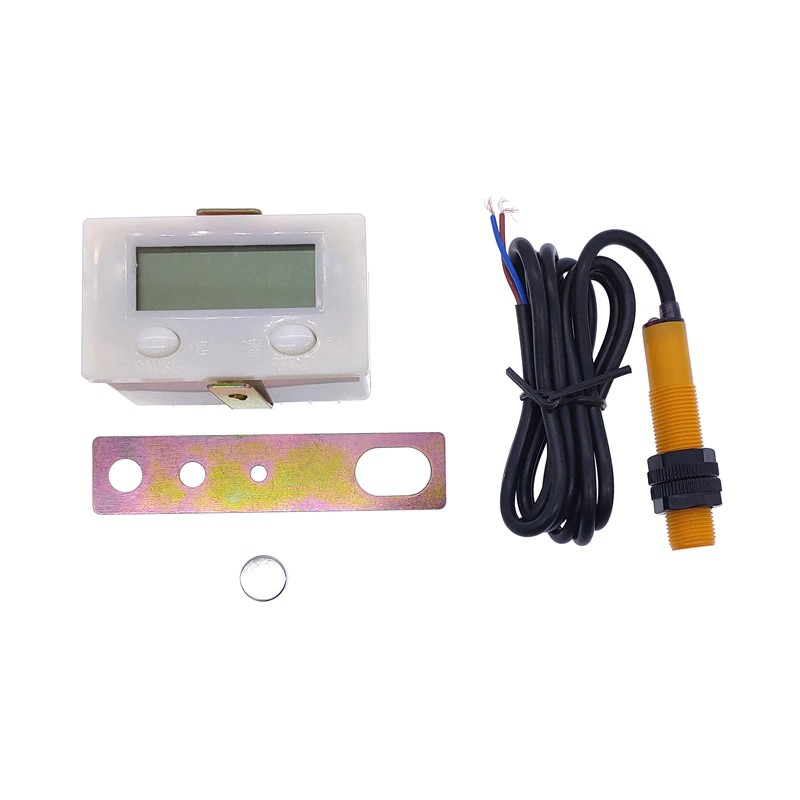

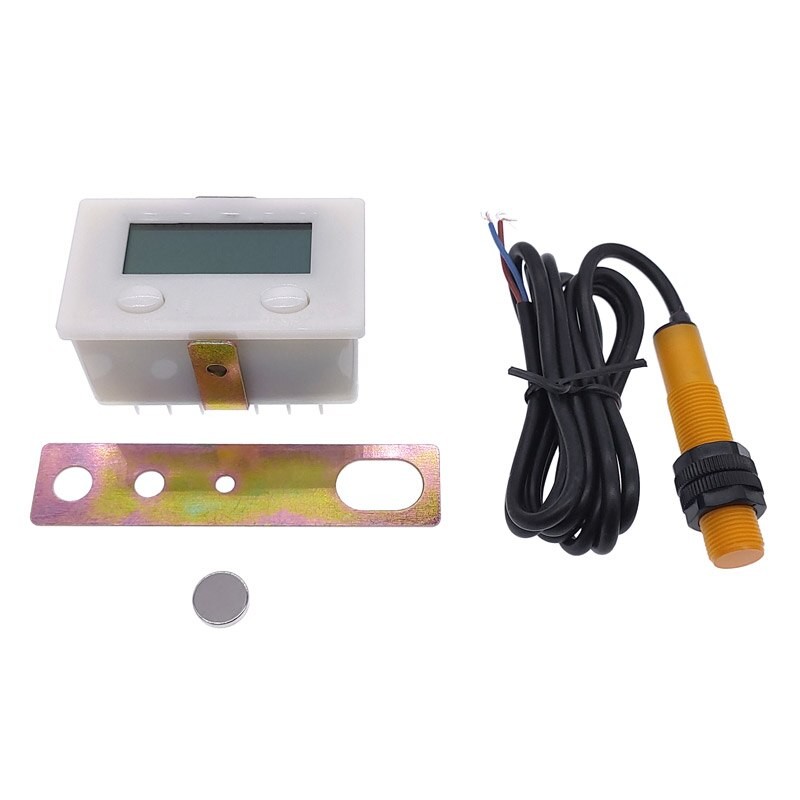

Configuration list:one ZX-5 electronic digital display counter,one strong magnet,one VJ12-D10K-J magnetron induction switch,one bracket.
