    • Cnc Igbt Non-Hf Arc Cut55I Cut55X Digital Control Plasma Cutter Dual Voltage 110V/220V, Cutting Machine Work With Cnc Table

    USD $555.45VAT Included50% OFFFree Shipping
    Just for Dropshipping and Wholesale
    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    P***l Verified Buyer

    I was surprised when instead of five spare nozzles found only 2 pcs, once wrote, it is not less than me surprised and offer the following items, me is not satisfied! In general, the moment even communicate with dealer hope it will solve this situation, плазморез came quickly in the coastal region, back in the box be sure to add and tell you how prodovets will solve the shortcomings with nozzles.

    5
    L***s Verified Buyer

    Got on the 3rd day. SDEC. The device is kind of a quality assembly. Not yet tested in the kit 2 nozzles and 2 electrodes. Although in the book the equipment is registered for 5 pieces. But we will buy it ourselves!!! In general, I liked it! Later I'll add a review when I cut something

    5
    B***c Verified Buyer

    Picky about the quality of power line, at the first thought that marriage-duty arc зажигалась and immediately died, then start up after the compressor pumped tank, began to cut arc disappeared, unit went into the protection at a low voltage, so keep that in mind

    4
    H***b Verified Buyer

    I checked the device-it works fine, for my money a good choice. Pneumatic ignition is a thing, the res is clean. Appearance and assembly produce good impressions. Delivered by sdecom, from Moscow, the customs fee does not need to be paid.

    5
    I***k Verified Buyer

    All very good! Pay 8.05, delivered 13.05! The PPL..! Packaging excellent! Quality of materials and controls are decent! After test will add a review.

    4
    N***p Verified Buyer

    Got it relatively fast. To the door by courier. Packed well. Looks good. I did not try the work. After I add feedback

    5
    W***e Verified Buyer

    Arrived very fast, excellent seller

    5
    M***m Verified Buyer

    Perfect I'll try it in the week.

    5

    Model Number: CUT55i & CUT55X
    Certification: CE
    Is Smart Device: NO
    Usage: Plasma cutting machine
    Input Voltage: 110V/220V
    Rated Current: 55A

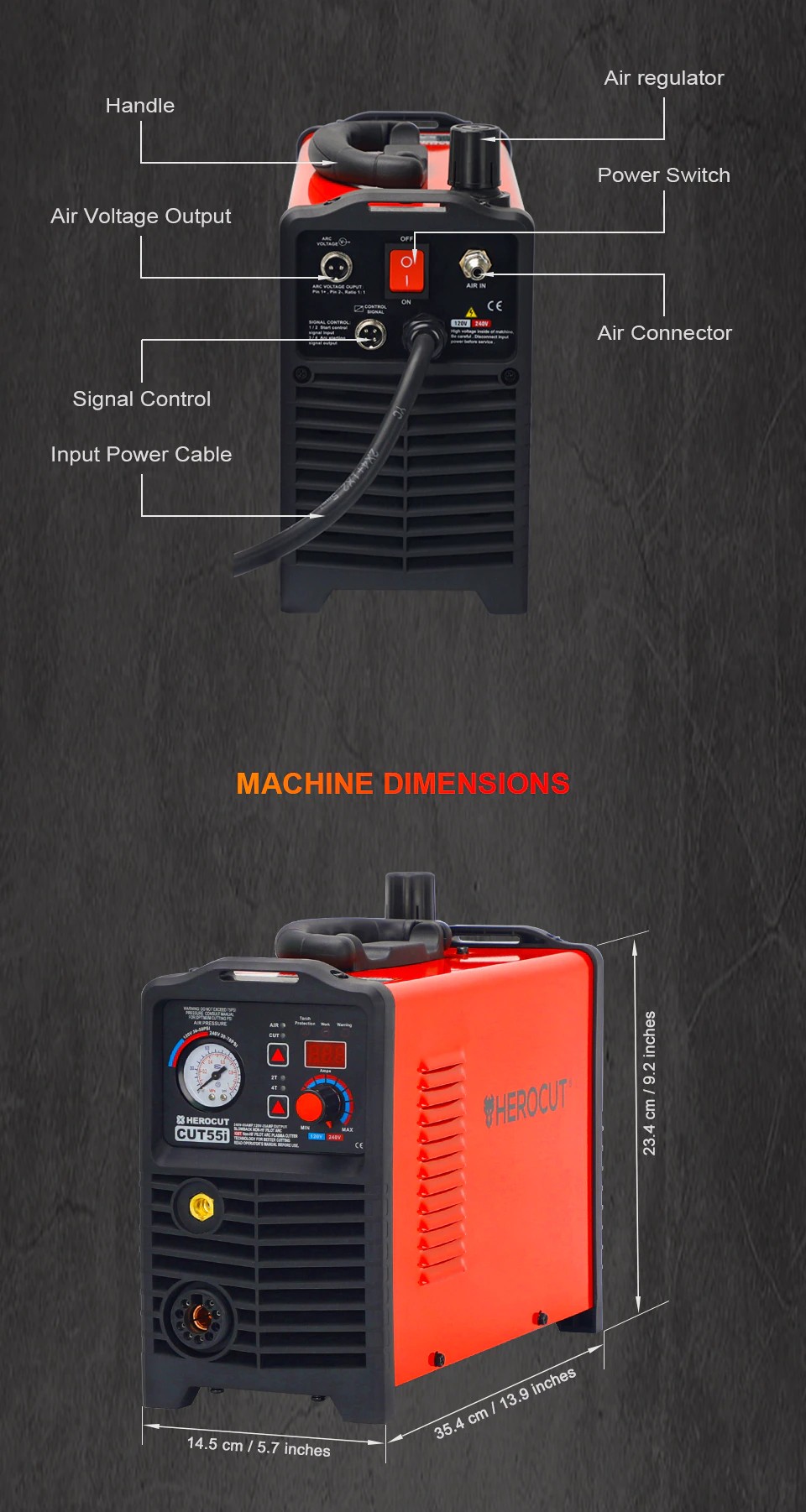

    Dimensions: 352*155*279 mm
    Arc starting: Non HF Pilot arc

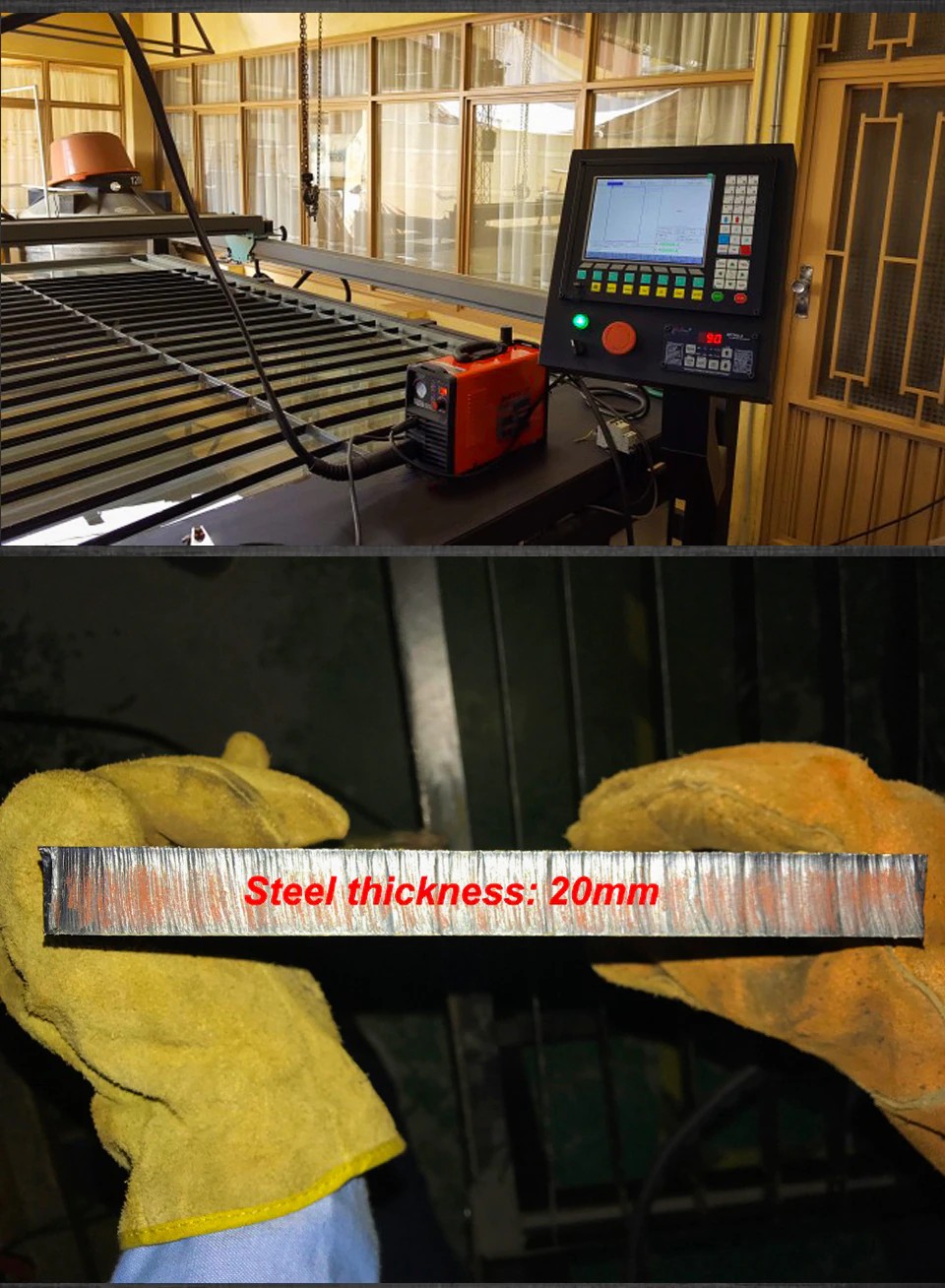

    Clean Cutting Thickness: 20 mm @70PSI 220V
    Air Pressure Range: 30-70 PSI
    Cutting Thickness Severance: 25 mm @70PSI 220V

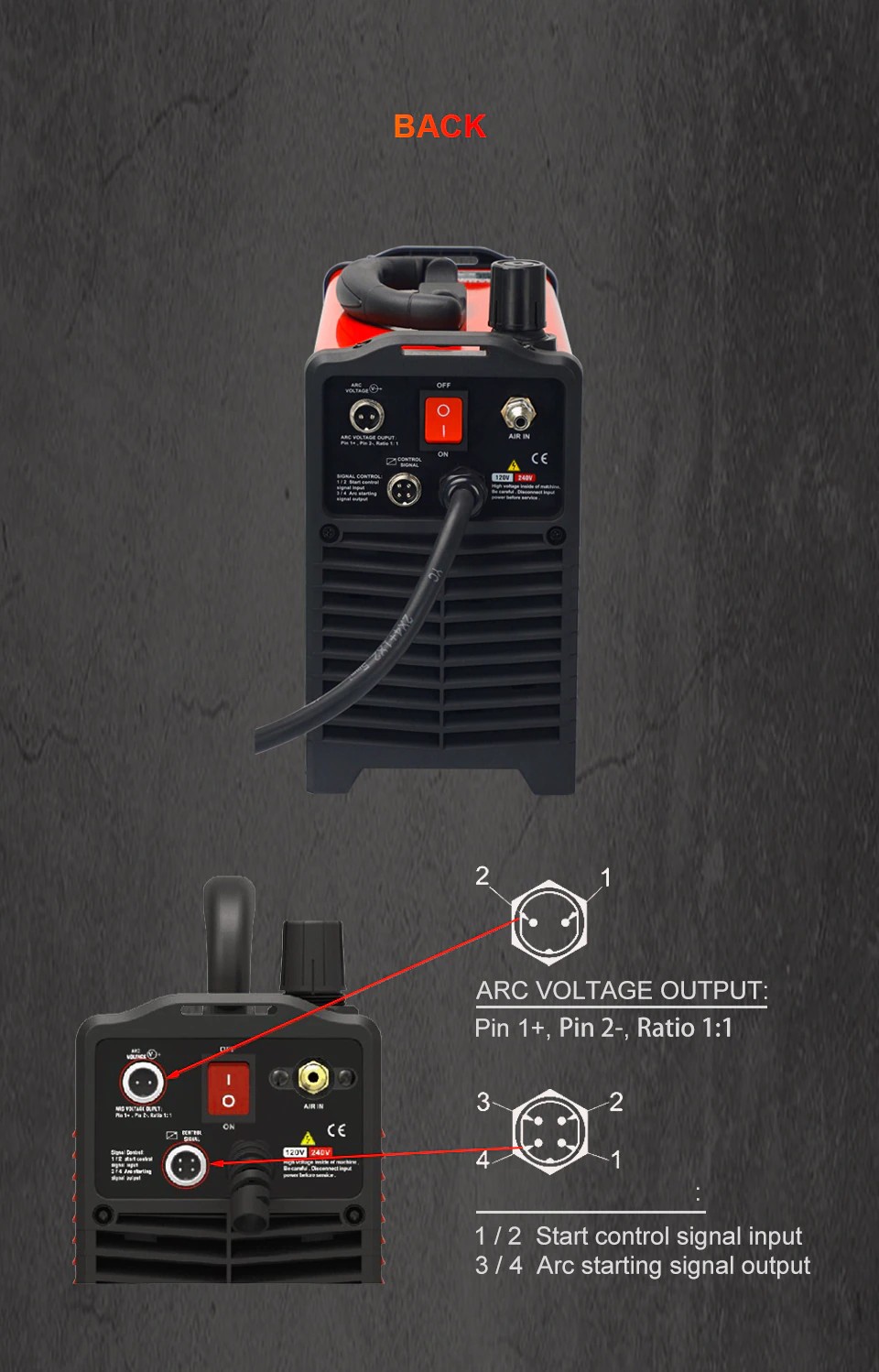

    CNC port: Yes
    Duty cycle: 40% @ 104 F
    Pulse Frequency: 100Hz
    Rated Duty Cycle: 60%
    Pilot Arc Current: 14A
    Cutting Speed ( 20mm metal ): 120mm/min
    Torch: IPT60



    Note:

    1. The price for this machine is not include customer's local tax
    2. Please read the wordsfor the accessories and parameters before you place an order, Make sure it iswhat you want
    3. Pleasecontact us before you open a dispute or leave a negative feedback if you have any problem, We will try our best tohelp you.

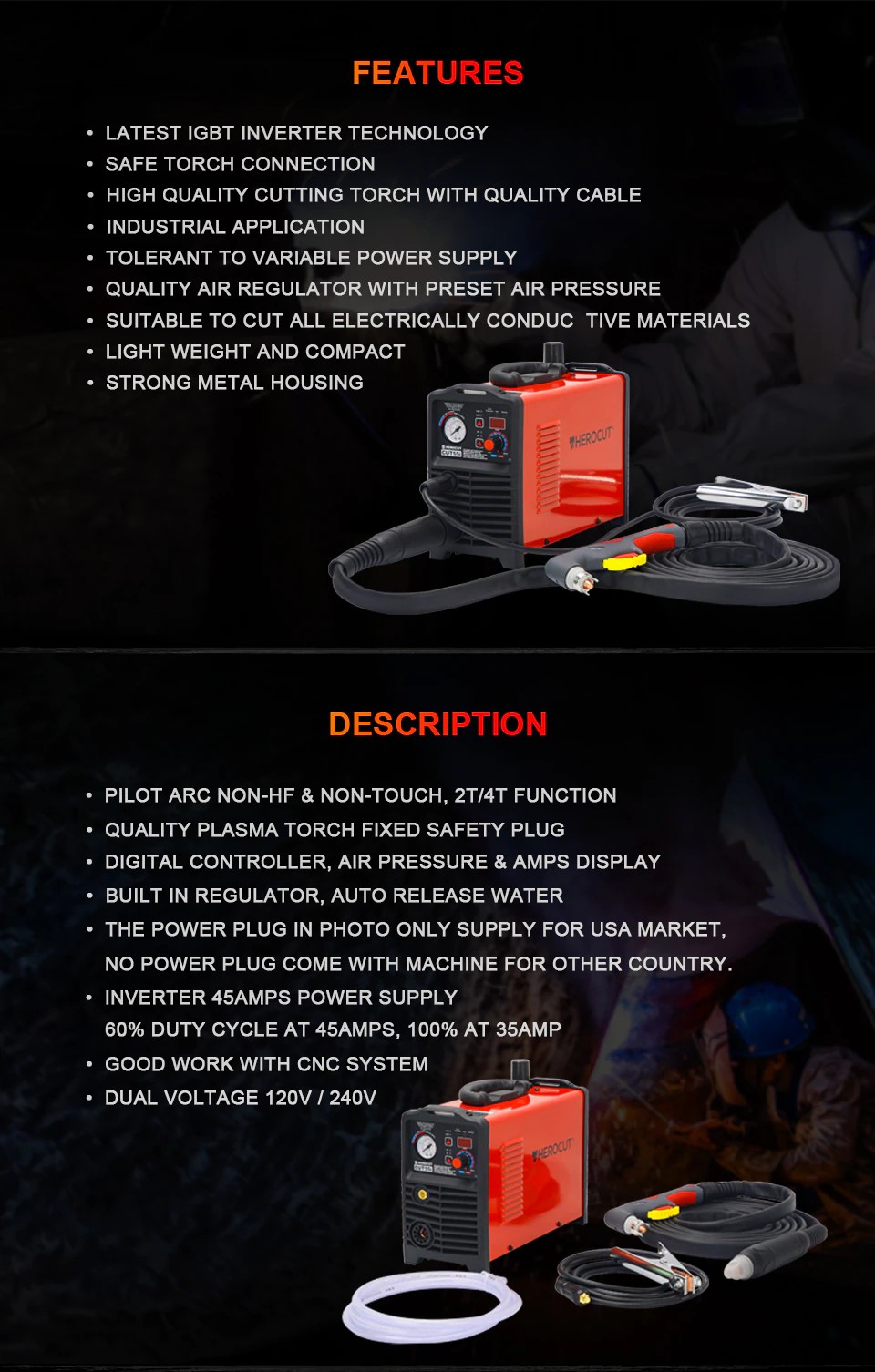

    Description:

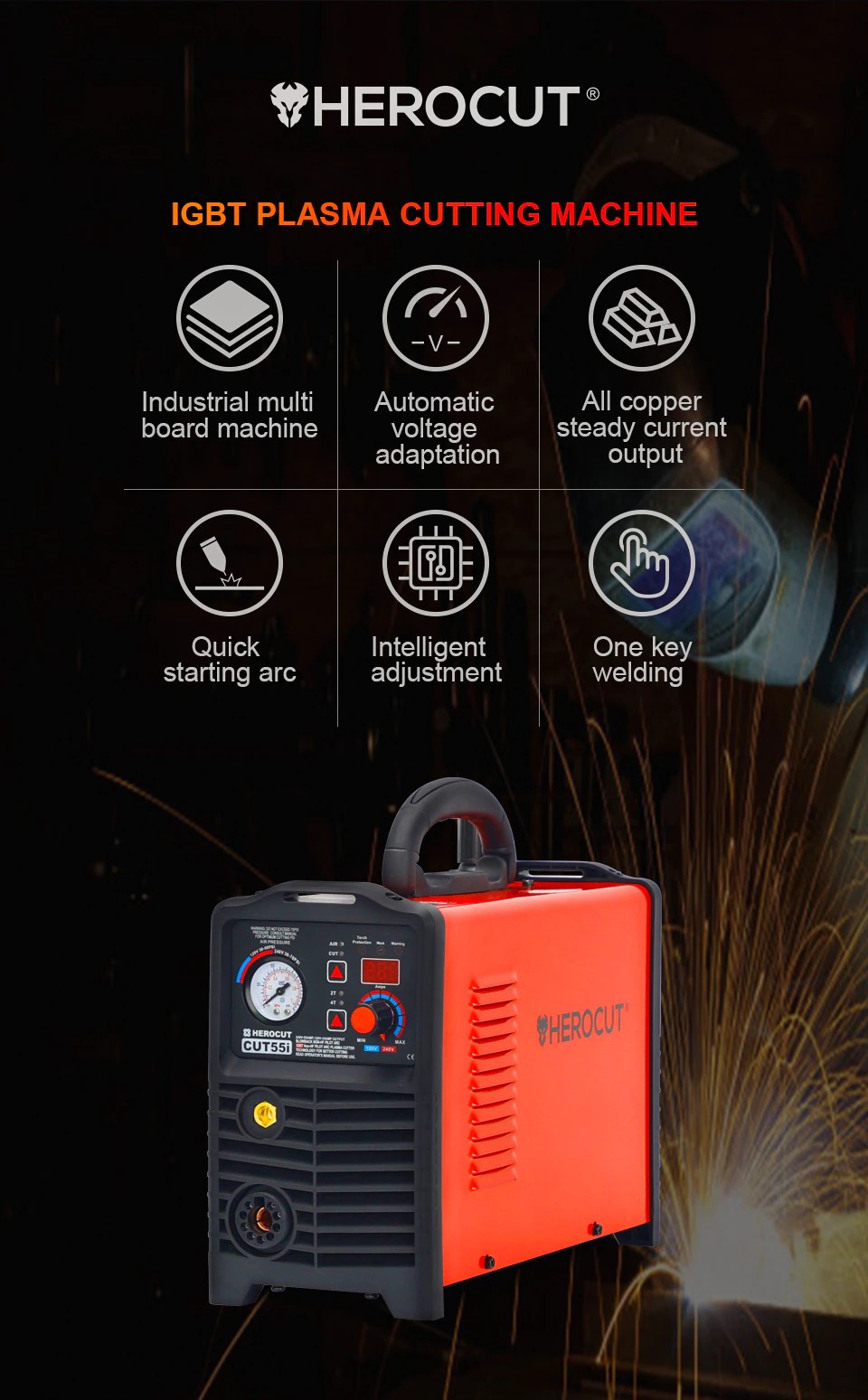

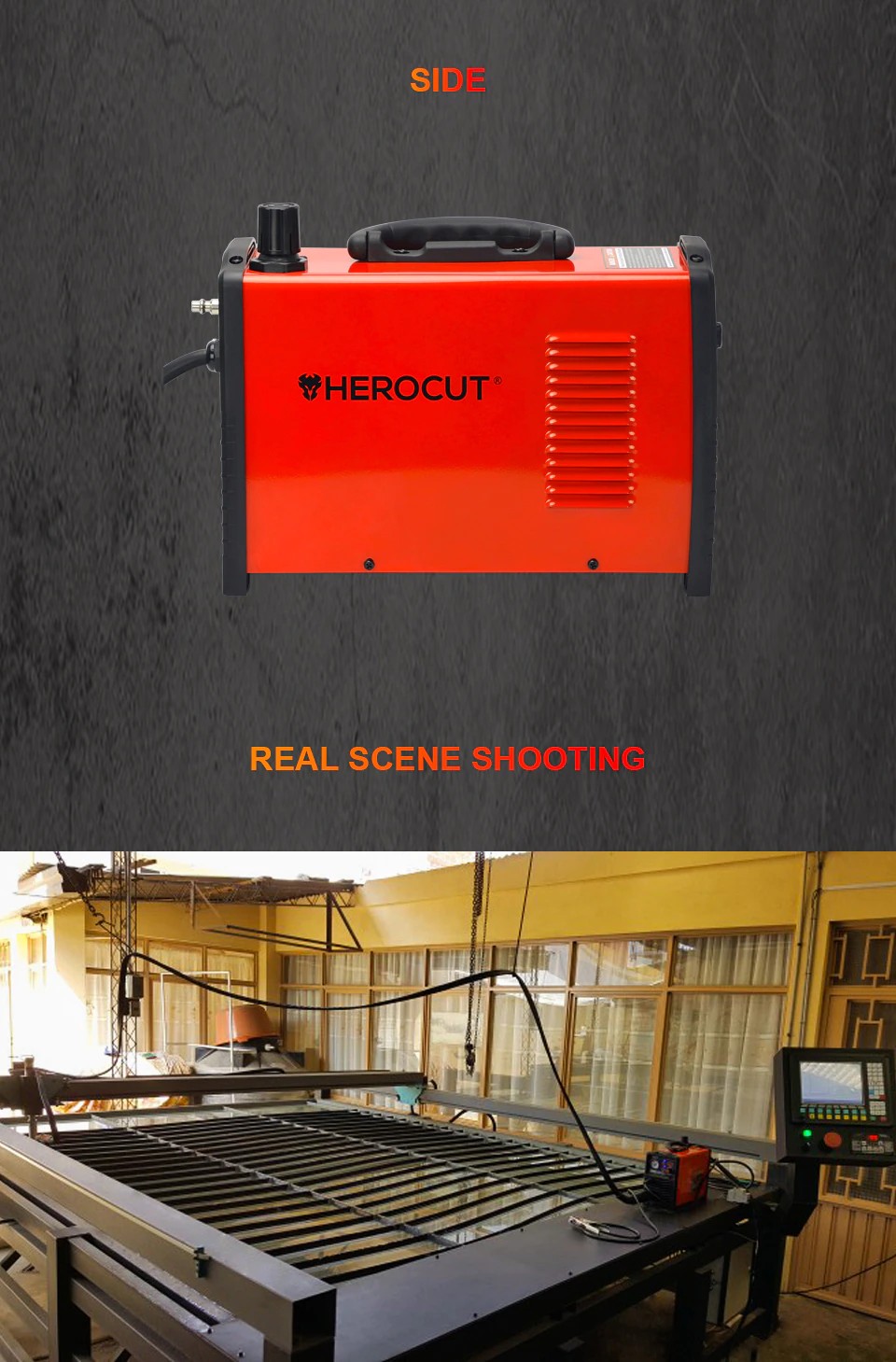

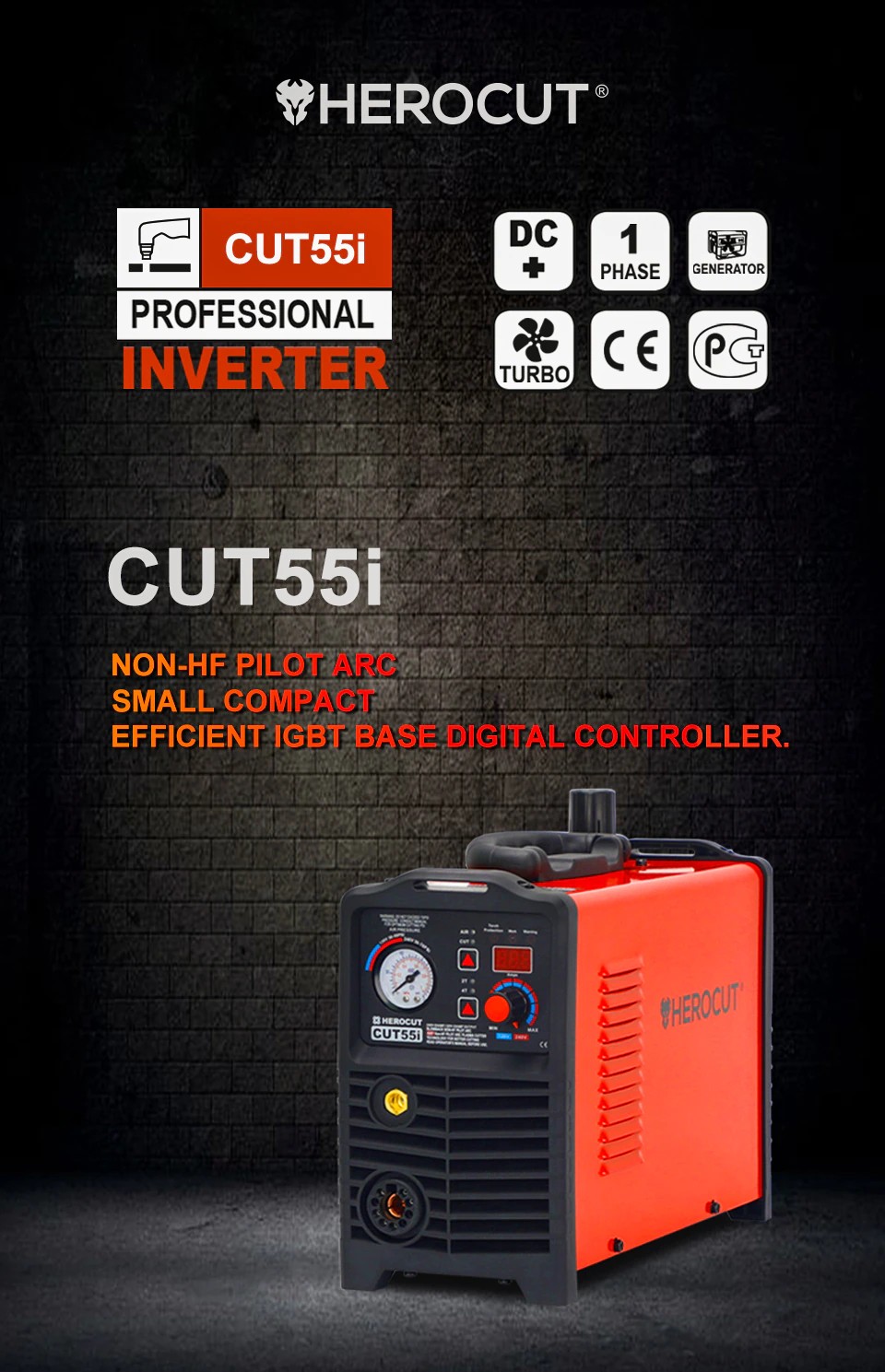

    IGBTplasma cutting machine CUT55i/CUT55X is developed by HeroCut. Non-HF pilot arc, Small compact efficient IGBT base Digital controller. This machine is one of the most portable single phase inverter cutting machines on the market. With quality torch fixed safety plasma central plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Machine comes with 2T/4T function, Air checks, Display show cutting amps help user adjust the current to cut different metal. Air pressure gauge can show air press help user adjust different air cut different thick metal. Cutting thickness for this machine is 3/4'' at 75 psi in good performance, Max cutting thickness can reach at 1'' if needed for a short run. Torch standoff and 2 set of consumables included.

    • Pilot Arc Non-HF & Non-Touch, 2T/4T function

    • Quality plasma torch fixed safety plug

    • Digital controller, Air pressure & Amps display

    • Dual voltage 110v / 220v;

    • Built in Regulator, Auto release water

    • Inverter 55Amps power supply, 60% Duty cycle at 55amps, 100% at 40amp

    • Good work with CNC system

    • The power plug in photo only supply forUSA market, No power plug come with machine for other country.

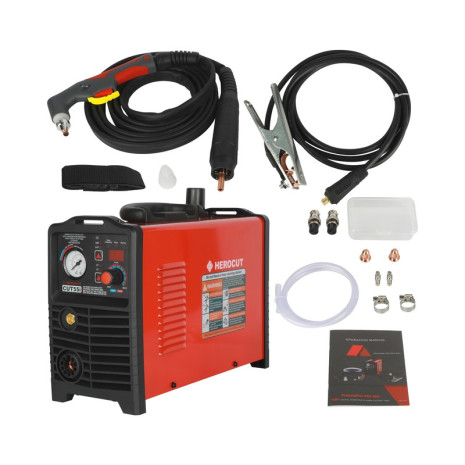

    Accessories:

    • IPT60 Non HF Pilot Arc torch with 5meters cable.

    • Earth clamp with 3 meters cable

    • 3 meters air hose

    • 2 tips & 2 electrode come with machine

    • 2 pcs hose clamp

    • Manual

    Product information

    Technical Details

    Input power

    110V / 220V +/- 10% 50/60 Hz

    Package Dimensions

    420* 295 * 330 mm

    Current

    55Amps

    Cutting Thickness - clean cut

    20mm @70 PSI

    Max Cutting Thickness severance cut

    25mm @ 70PSI

    Cutting Speed ( 20mm metal )

    120mm/min

    Machine size

    352*144*279mm

    Duty cycle

    100% @ 40Amps, 60% @55Amps

    Additional Information

    Cutting torch

    IPT60 non HF plilot arc

    Working

    Non HF Pilot arc

    Shipping Weight

    9.5 kgs

    CNC system port

    support
