Cctv 9Ch 4K H.265++ Network Video Recorder 9 Channel 4K/8Mp Hd Output Support Cloud Xmeye App Monitoring
- 140 reviews
- 1084 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Smart home platform: Other
Certification: None
Technology: Network
Supported Operating Systems: Microsoft Windows 7
e-Cloud(P2P): YES
Video Output: 1CH HDMI-compatible 1920X1080 60Hz
IP Mode: Static IP address
Video Standard: PAL
Hard Drive Size: 3.5''
Network Protocol: PPPoE
Network Interface: RJ45 10/100M
Backup Type: Hard Drive
Audio Output: None
Video Input Interface: RJ45
Supported Mobile Systems: Android
Two-way Audio: YES
Compression Format: H.265
Wireless Security: WPA2
Audio Compression Format: G711A
Hard drive Interface Type: SATA
Communication Interface: None
Model Number: USA-NBD8009-KL
Alarm Action: Local Alarm
POE: None
Audio Input: 1 Channel
Main processor: XM
Video compression: H.265/H.264
Display quality: Max 1920x1080P
Playback quality: 4K
HDD: 1* SATA(Up to 8TB for each disk)
1/4/8/9 CH: 4K
Face Detection: Support
3G/WIFI: Not support
Power: Support 12V2A(Adapter not include)
1. HDD question:
We recommend use the Newest HDD.
Use the security HDD will work more better.
PC HDD most can not work.
2.IP Camera 264 and 265 question:
This one only support the xmeye IP camera H.265,
if you use the dahua or hik camera, nvr will not match all of their cameras and not support h.265

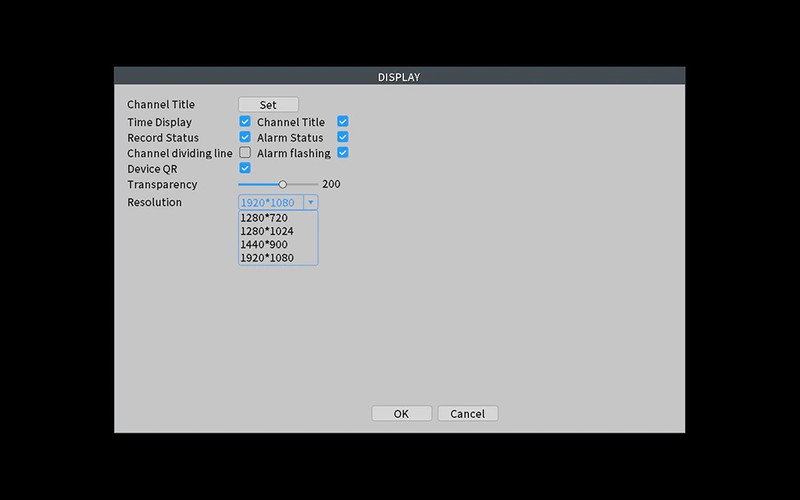

3. VGA and HDMI question:
NVR have a defult display resolution,Your monitor must use the same resolution then will work first time. The second you can change the nvr output resolution as you need.

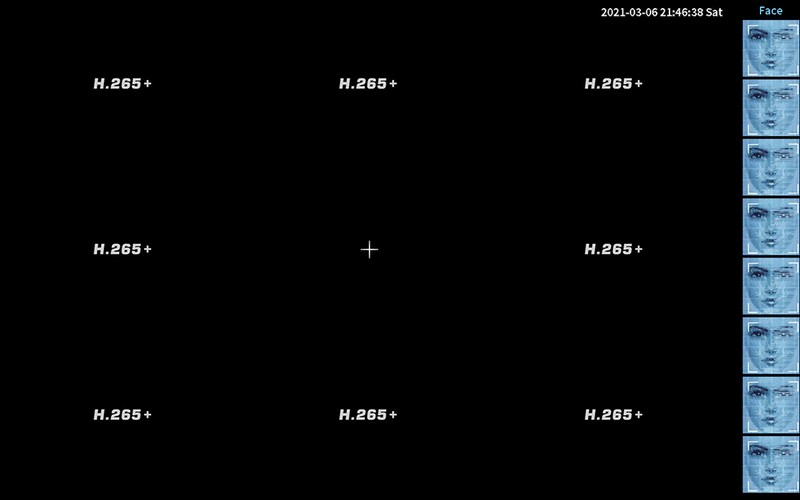

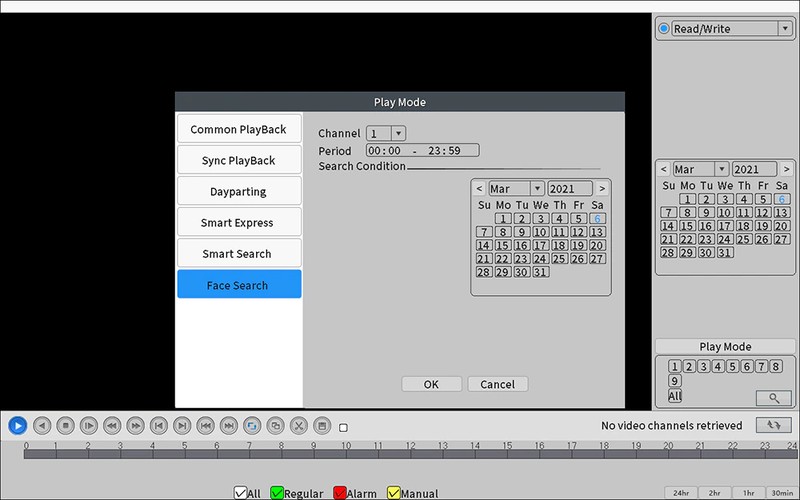

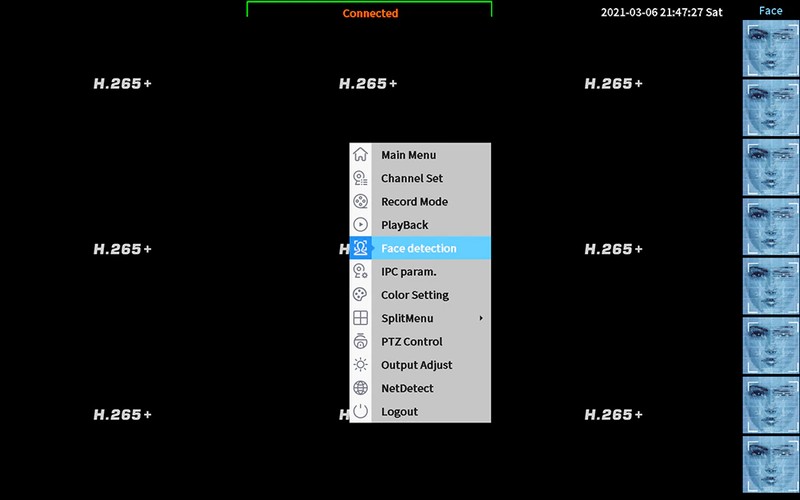

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera

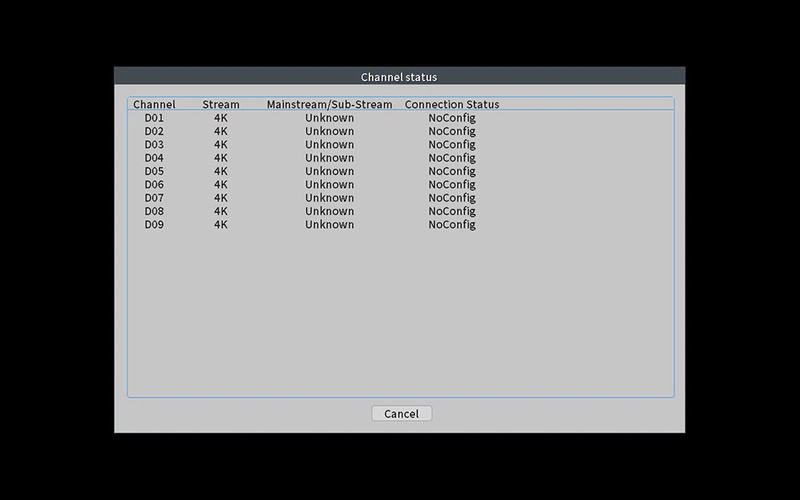

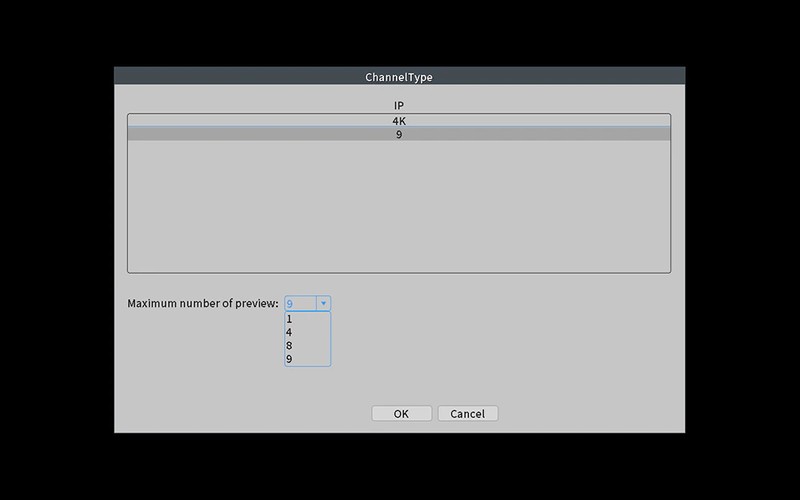

Support 9CH 4K IP Camera

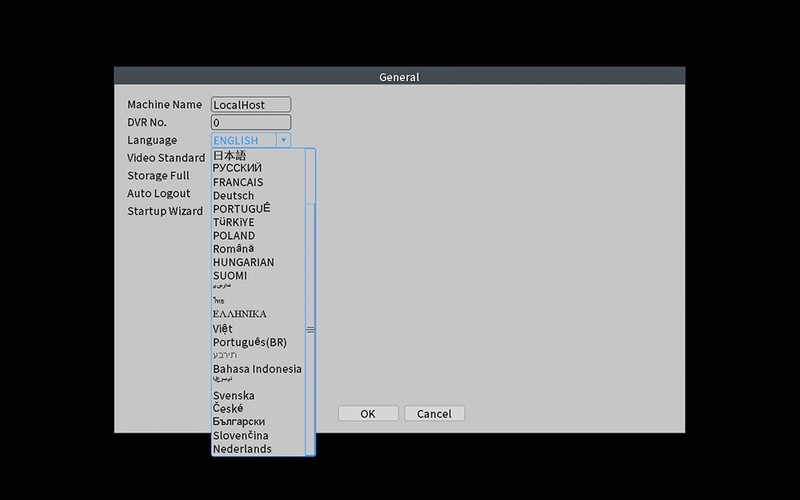

Langauages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Total 28 languages

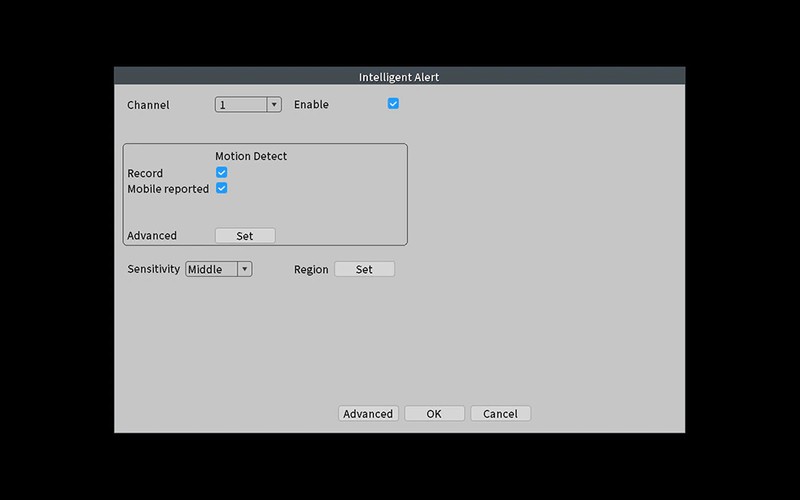

Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
Max Support the 1080P Display

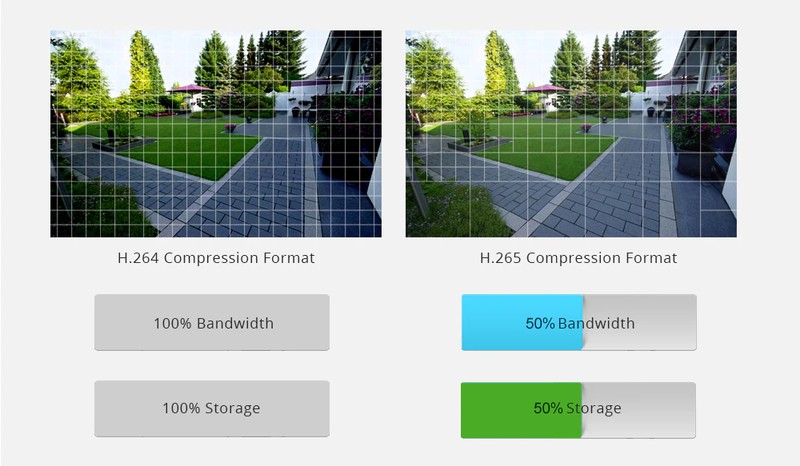

Advanced H.265+ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265+ video saves around 70% of the bit rate at the same quality of coding.

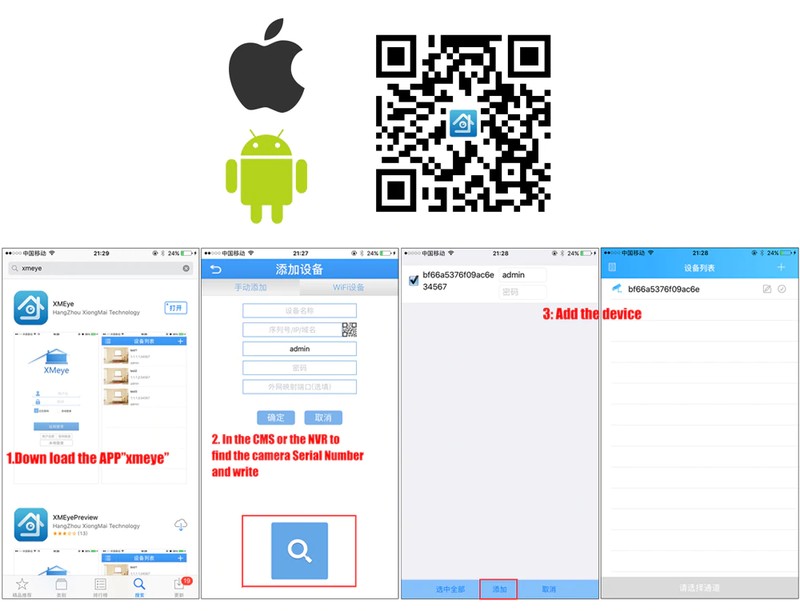

Easy remote access Anytime anywhere
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.

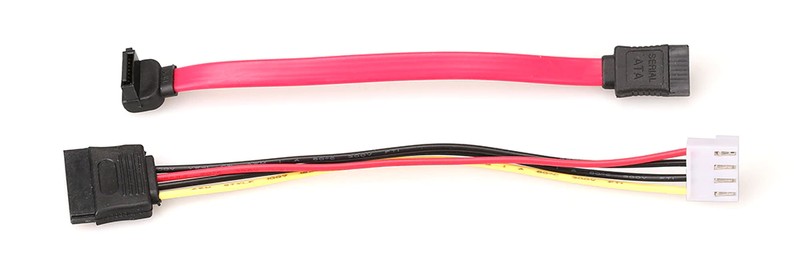

Gift SATA Data and Power cable

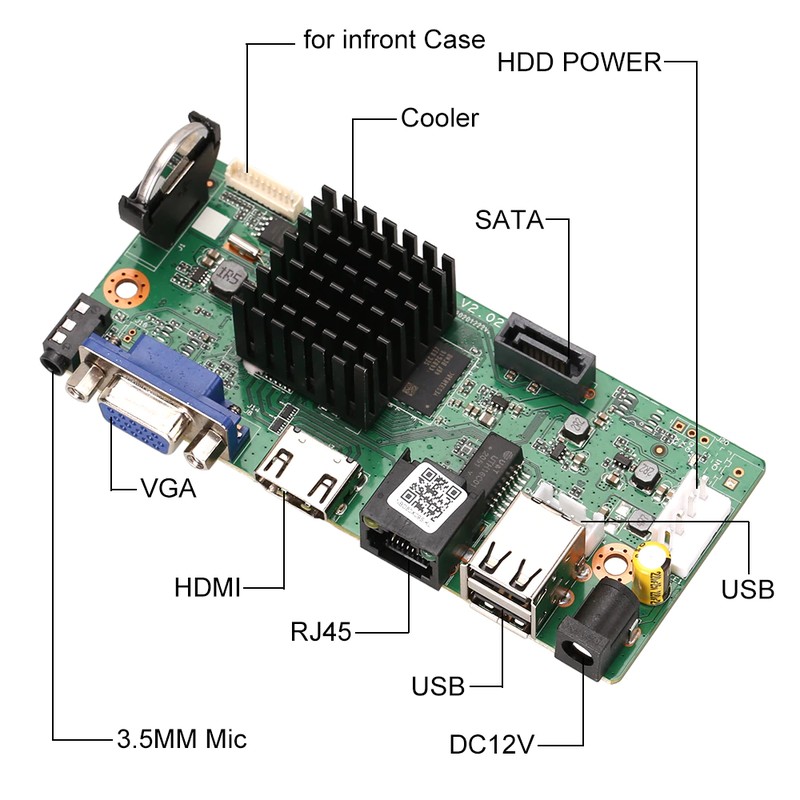

Interface Definition
Model | NBD80X09S-KL | |
System | Main processor | XM8536D |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/6/8/9 | |
Video | Video input (IP) | 9*4K Unreal-time(Access bandwidth 60Mbps) |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:1920*1080 | |
Playback quality | 4K/5M/4M/3M/1080P | |
Decode | 1ch4k/1ch5M/1ch4M/2ch3M/3ch1080P | |
VR | support | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record&playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 1ch4k/1ch5M/1ch4M/2ch3M/3ch1080P | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA,1ch HDMI HD output |
Audio I/O | 1/1(3.5mm) | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ4510M/100MAdaptiveEthernetport | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1* SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ||
Power supply | 12V/2A(Adapter not include) | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ -55℃, Humidity:10%-90%RH , Atm:86kpa-106kp | |
Dimension | 118mm*46mm | |
Weight | A total of about 63g |

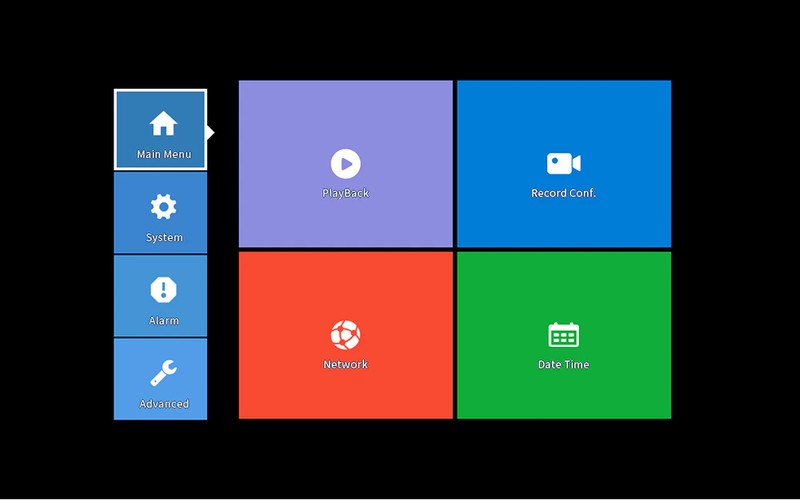

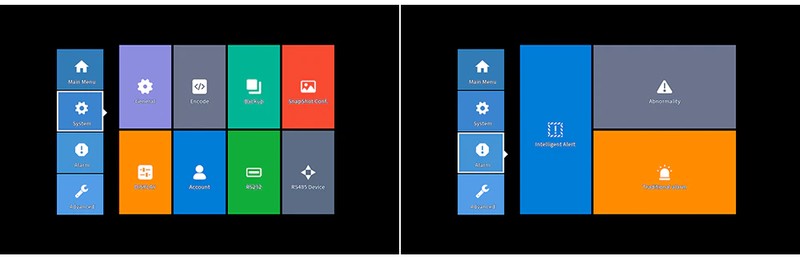

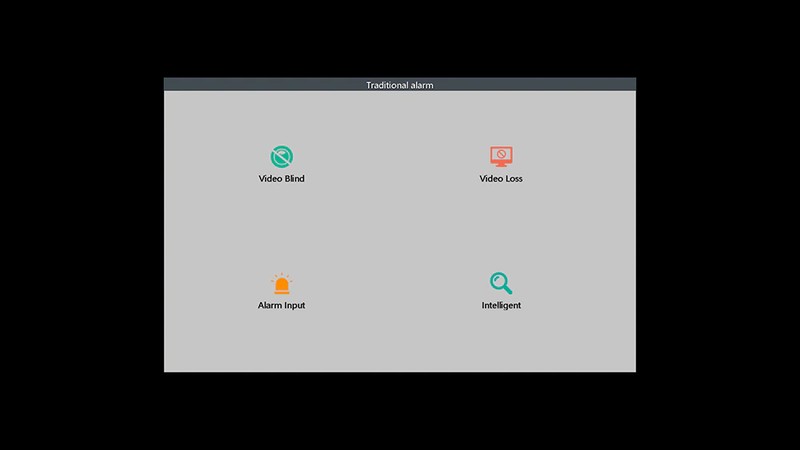

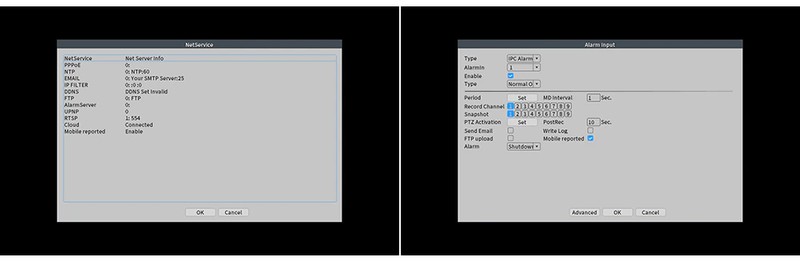

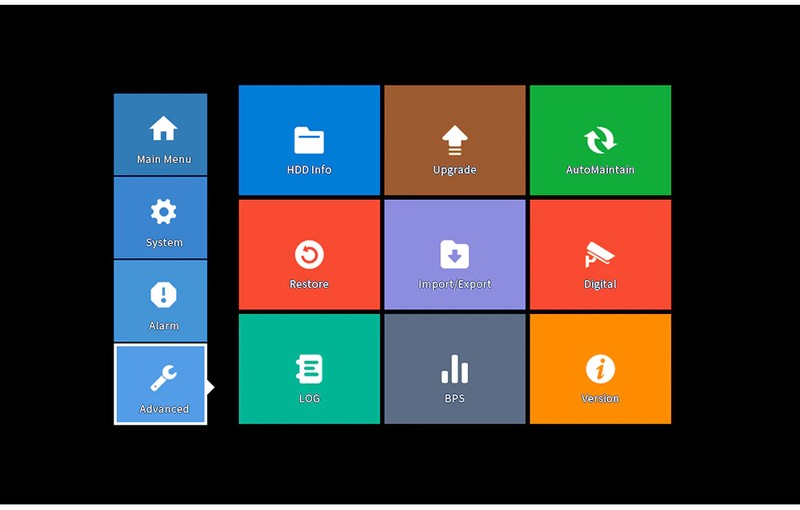

New Style Win10 Menu
