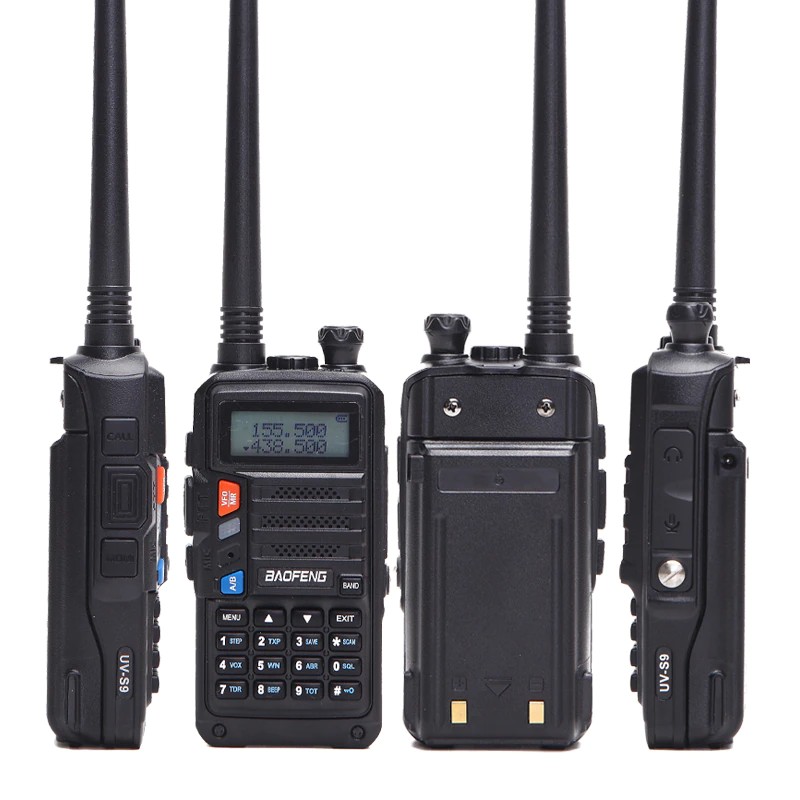

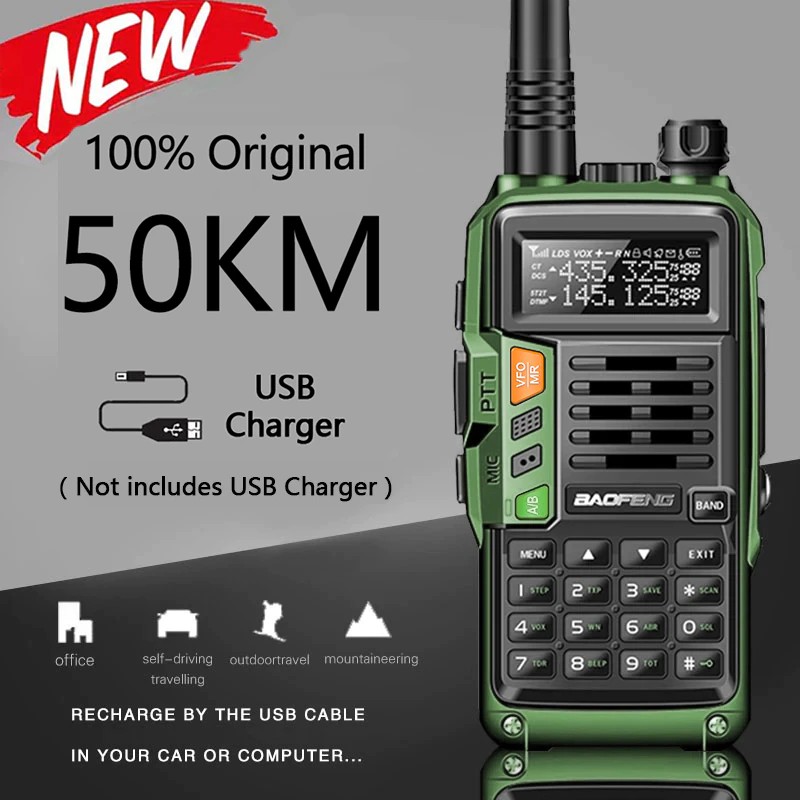

Baofeng Uv-S9 Uv-S9 Plus Powerful Transceiver With Uhf Vhf Dual Band Walkie Talkie Ham Uv-5R Two Way Radio
- 138 reviews
- 2277 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Battery Capacity(mAh): 2800
Is_Display: Yes
Waterproof / Water-Resistant: No
Walkie Talkie Type: Portable
Maximum Range: 5km-10km
Output Power(w): 5w-10w
Certification: FCC
Model Number: Baofeng BF-UVS9 Plus
Frequency Range: VHF 136-174 MHz UHF 400-520MHz
Dimensions: 112*60*35mm (not include antenna )
Storage Channel: 128
Material: plastic
Type: Long Range Walkie Talkie
Walkie FM radio function: 65-108MHz
Output power: 10W
Battery: 2800mAh Li-ion Battery

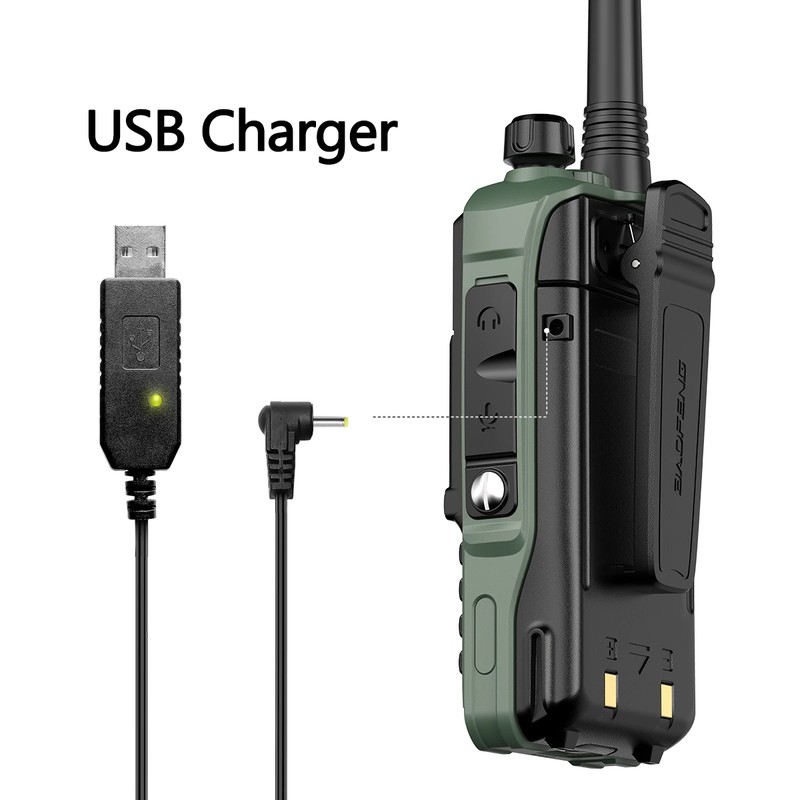

feature 1: usb cable charger
Charger: Multiple Charging Mode
feature 2: car charger cable

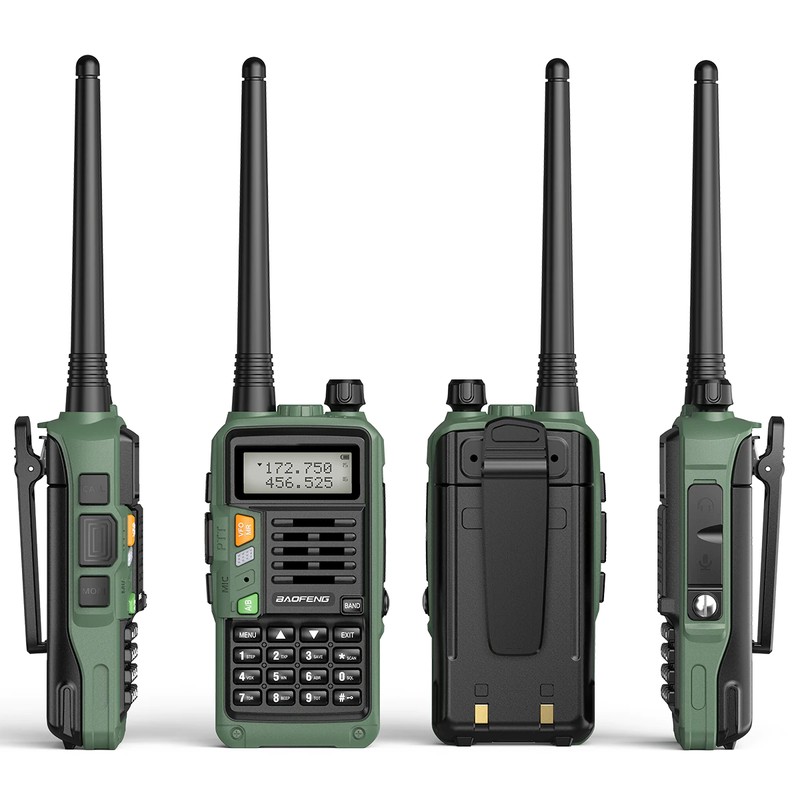

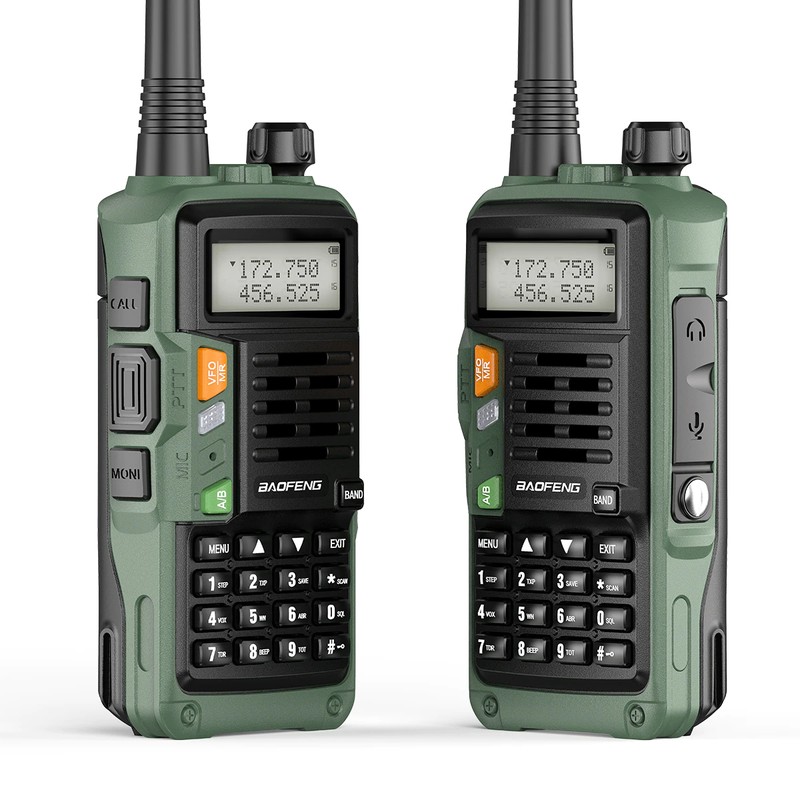

Color: green
Version: Upgrade of baofeng BF UV-S9
All the following products are compatible with Baofeng UV-S9 PLUS

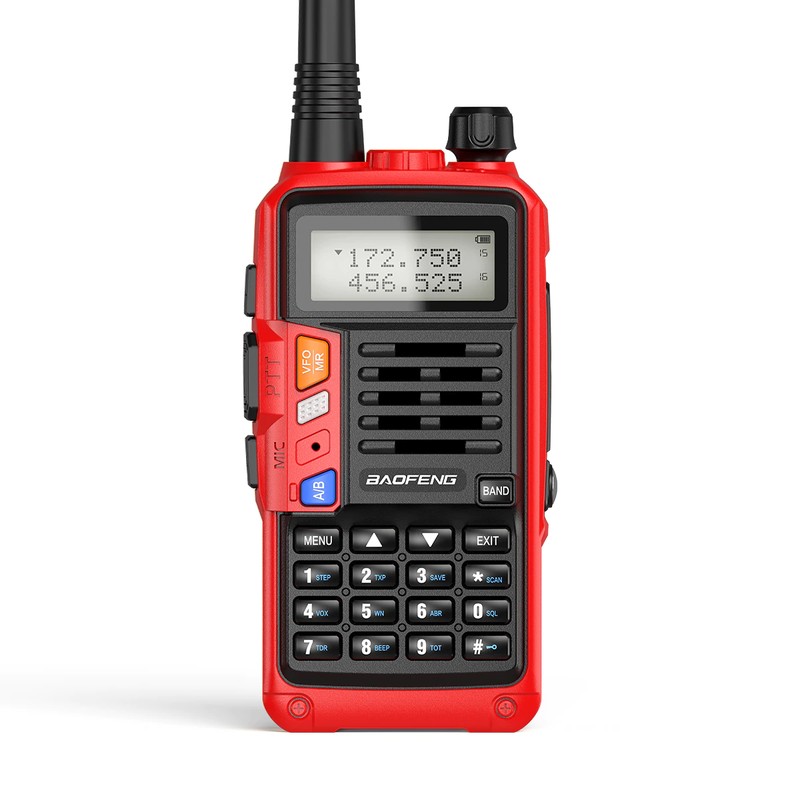

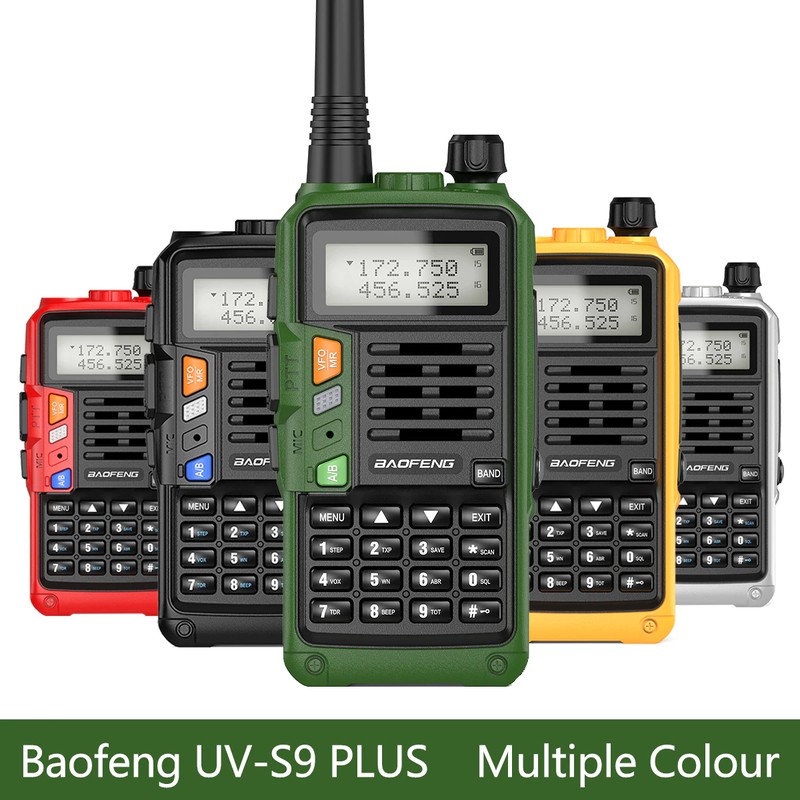

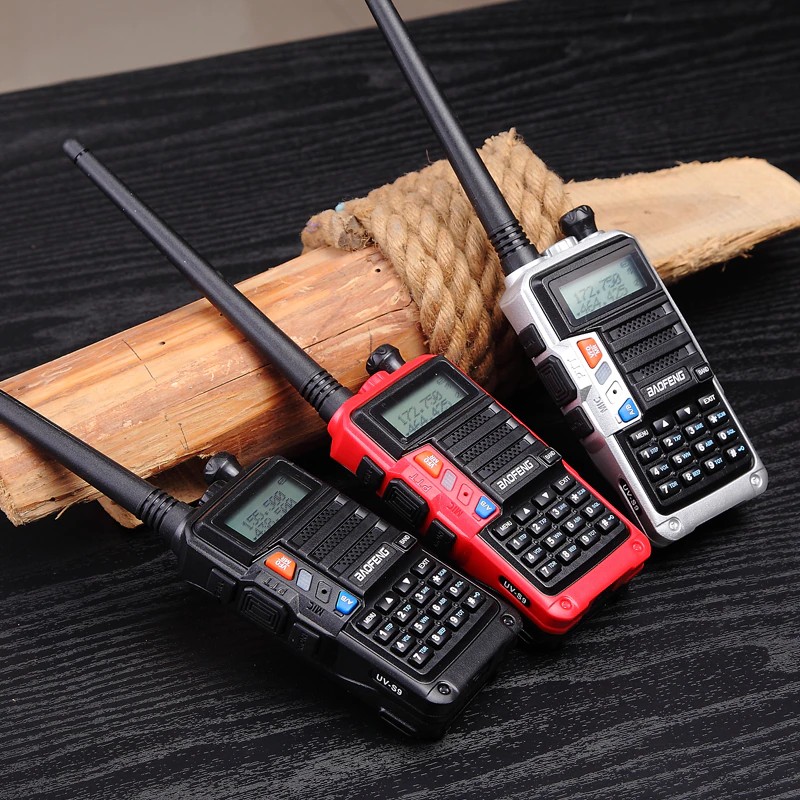

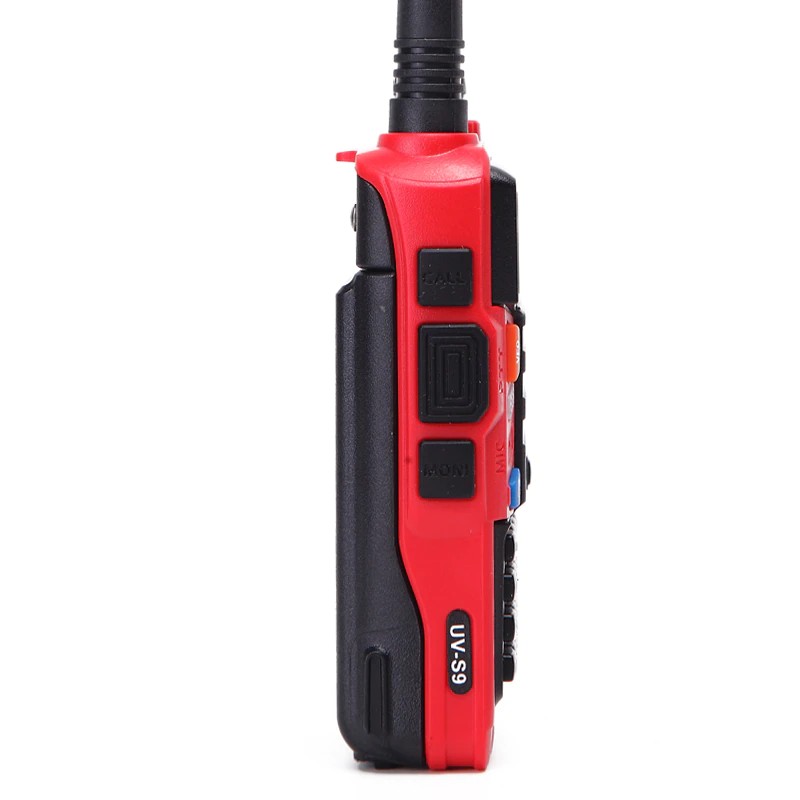

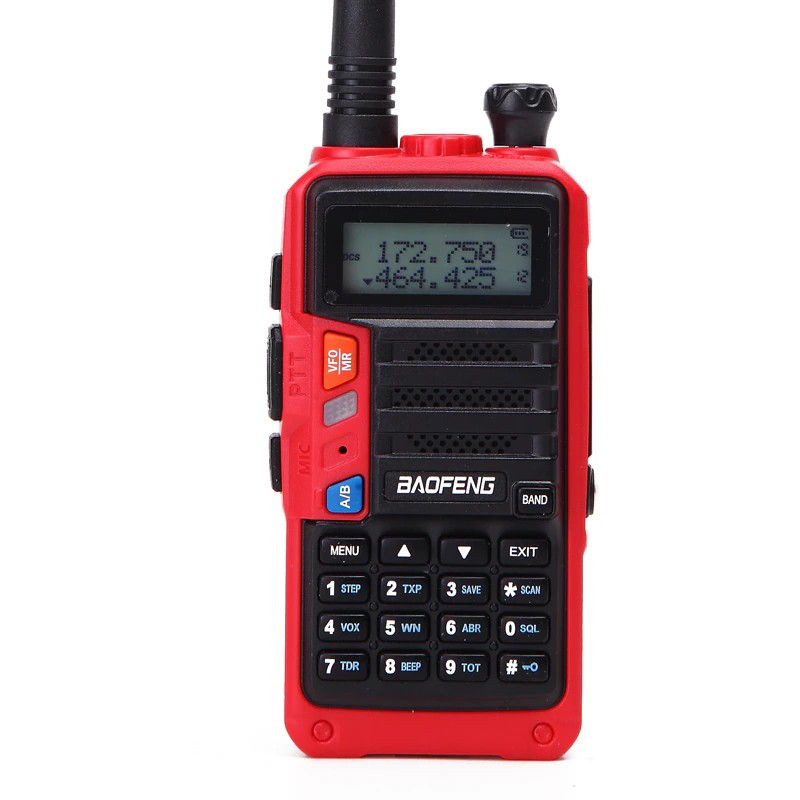

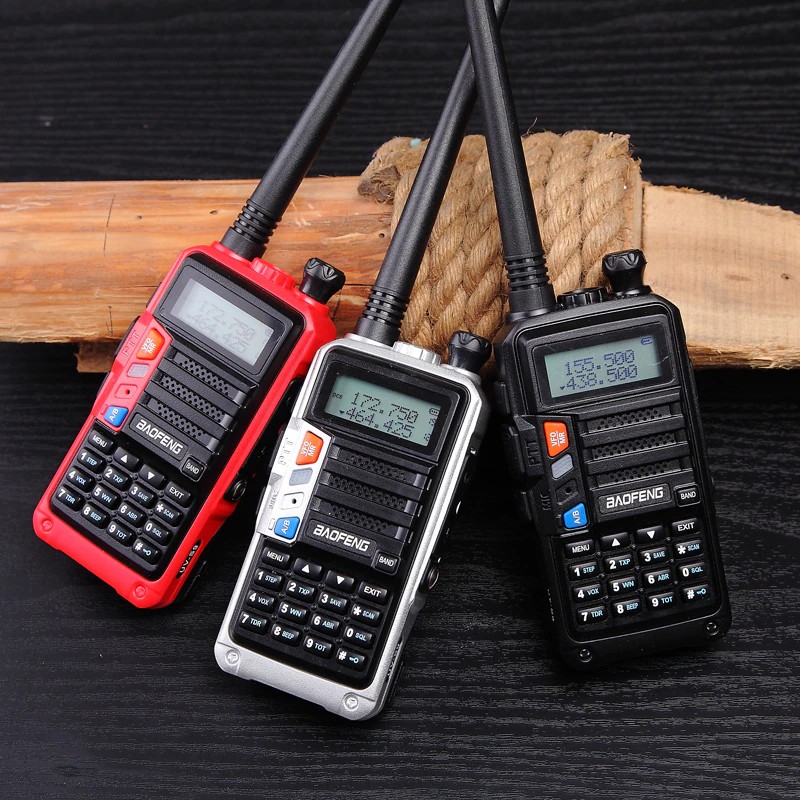

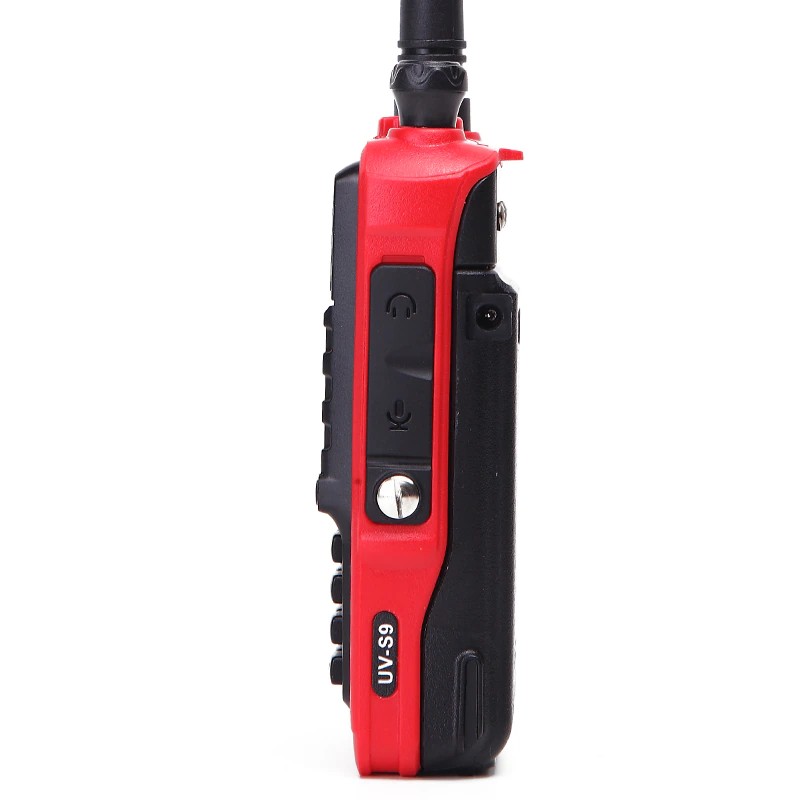

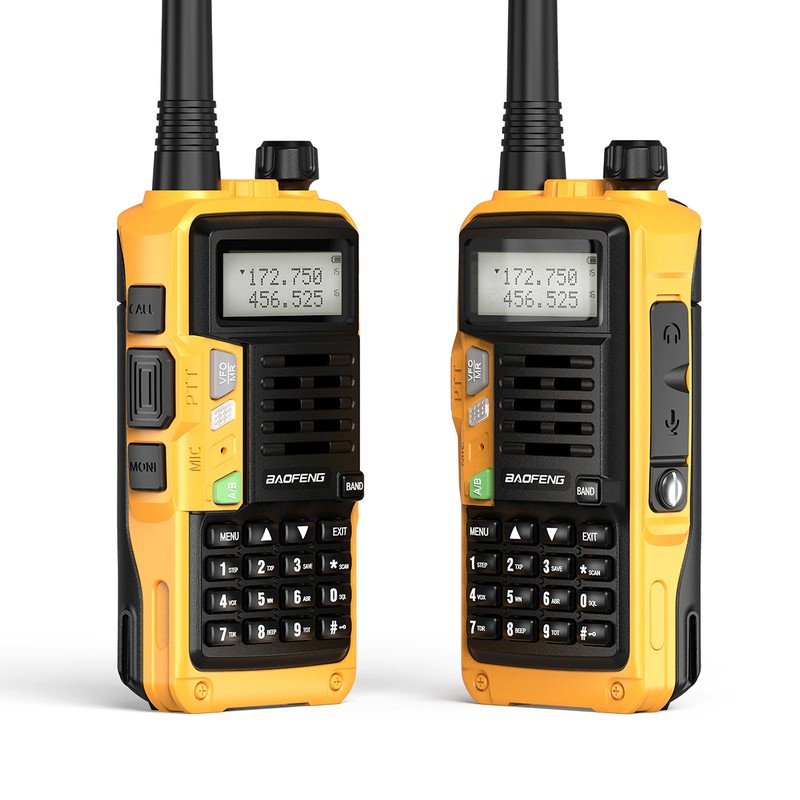

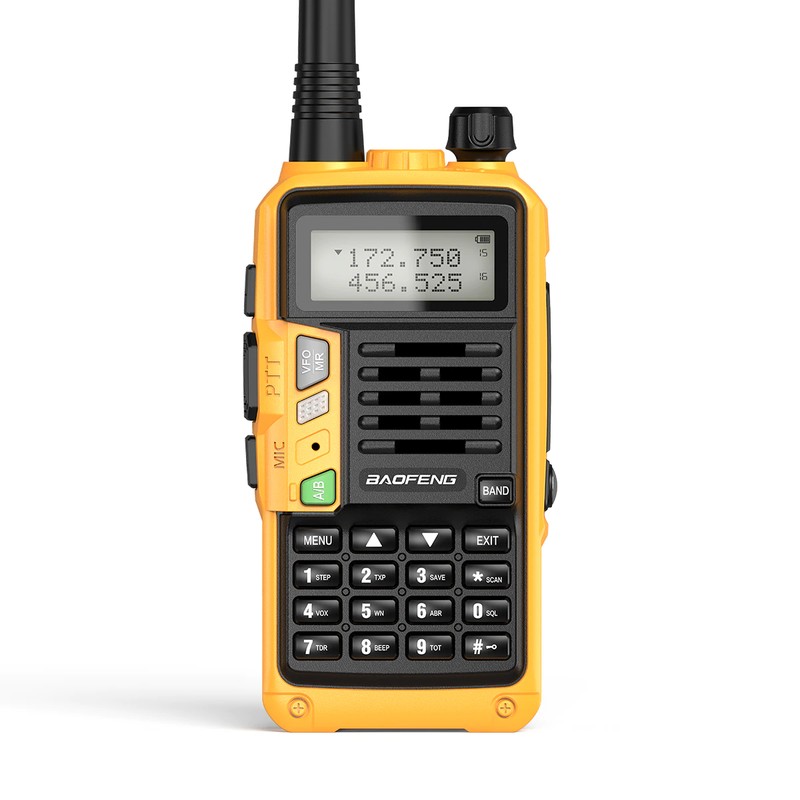

We have UV-S9 PLUS radios in other colors , if you are interested,please click on the picture to place an order or contact us.

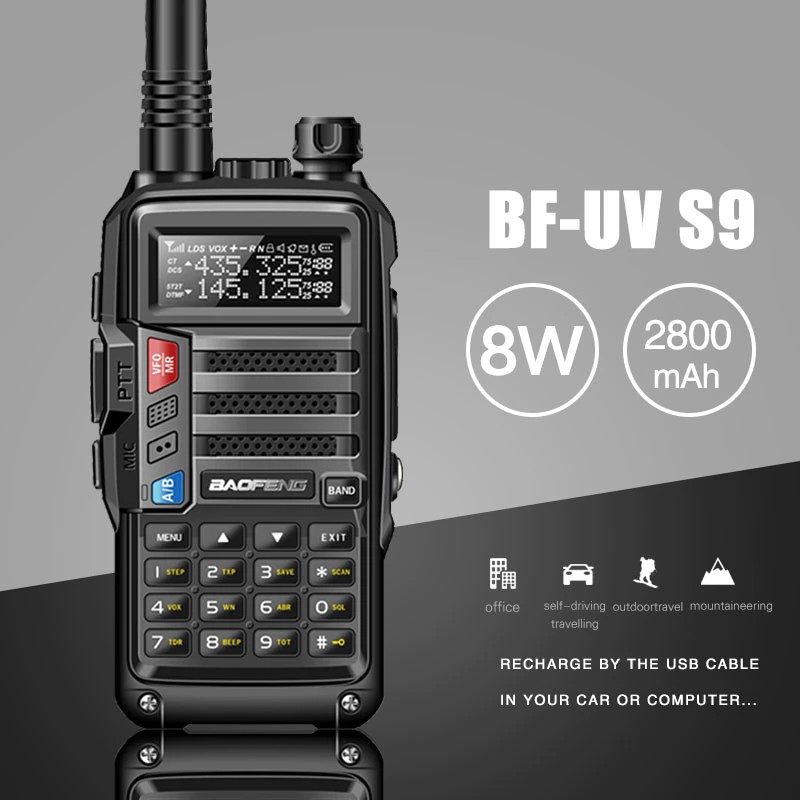

1.BaoFeng UV-S9 Plus is upgrade of UV-9S. HighPower .Dual band / dual display/ dual standby,AUTO Keypad Lock.FCC ID: 2AU74UV-S9

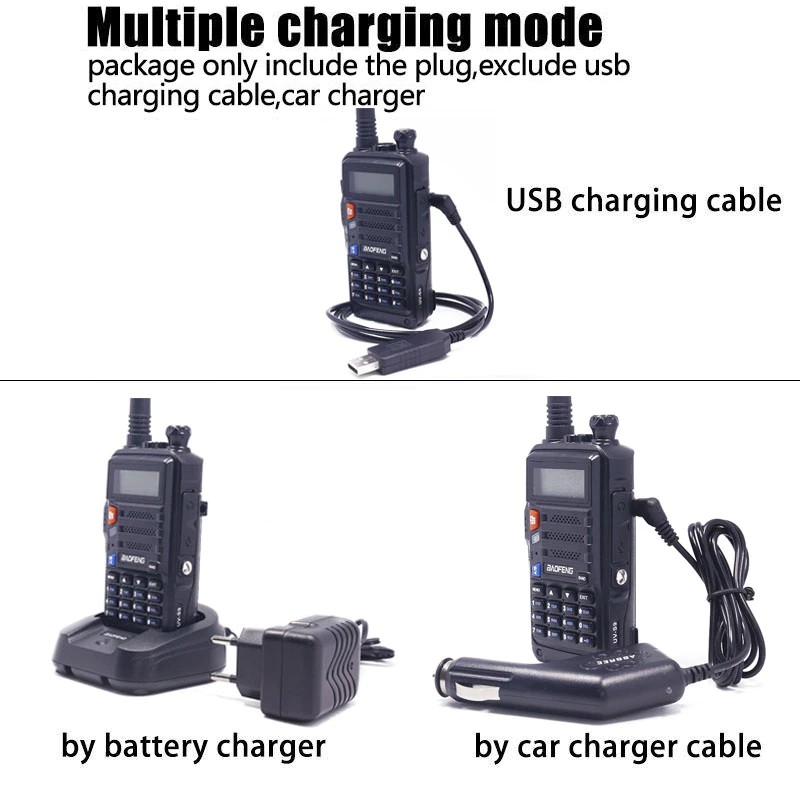

2.With optional methods to charge the battery.Multiple charging mode.
3.Frequency Range: VHF: 136-174MHz (RX/TX), UHF: 400-520MHz (RX/TX), 65-108MHz (Only commercial FM radio reception). Channels:128 groups of storagechannels,Broadband (Wide) 25khz / Narrowband (Narrow) 12.5khz Selectable.

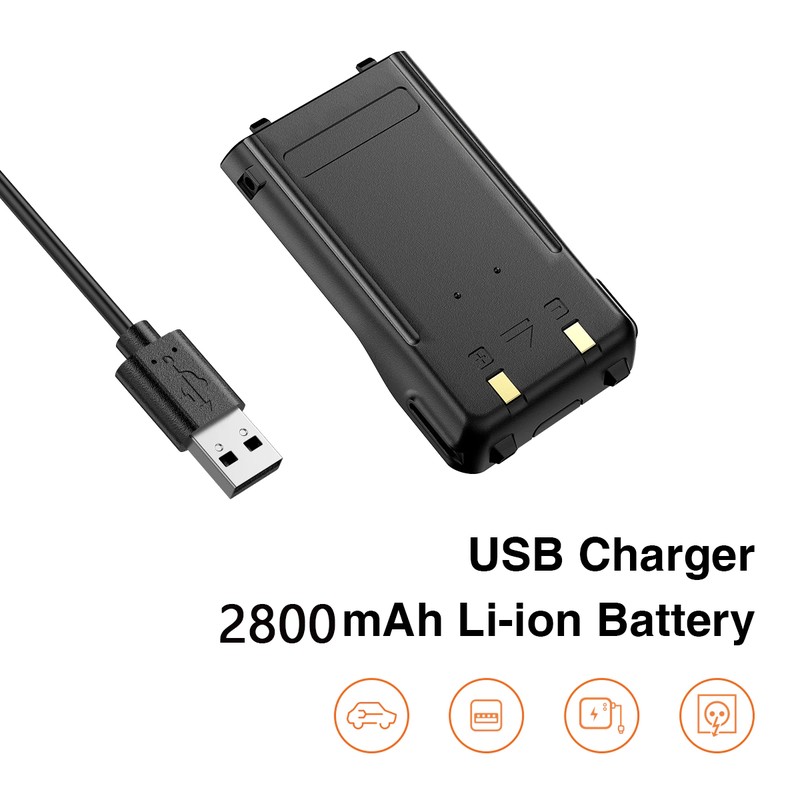

4.Larger Capacity Li-ion Battery Equipped with a 2800mAh Li-ion battery. UV-S9 Plus is light weight and handy.Simply press PTT key to talk: even at night by switching on the built-in LED flashlight and built-in VOX Function hands-free communication.
5.Special service:A link to the special Baofeng UV-S9 Plus programming software and firmware can be provided free of charge according to your requirements.

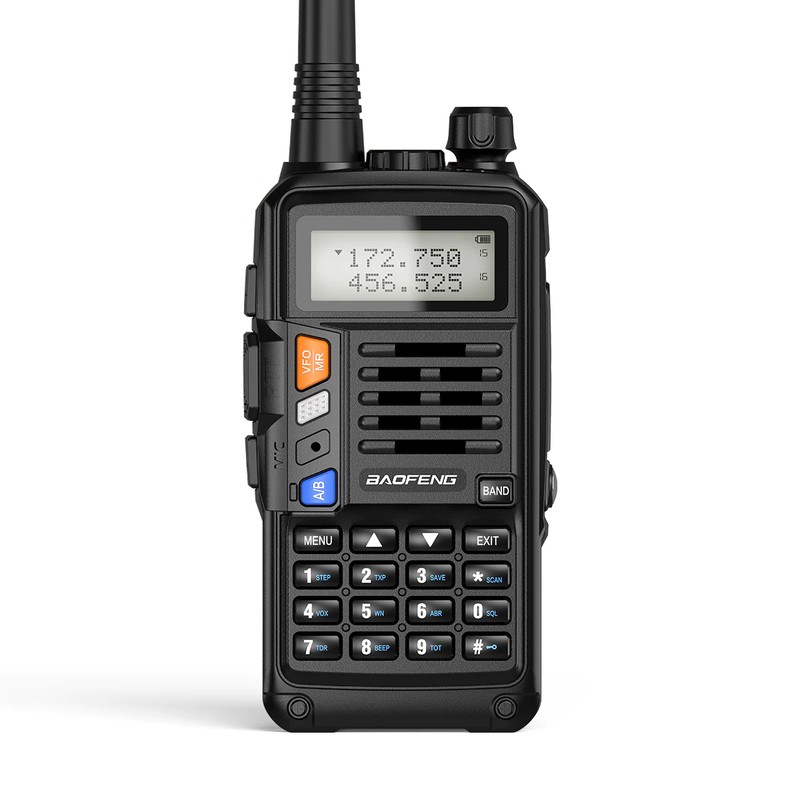

Model:Baofeng UV-S9 Plus
Dual band / dual display / dual standby
Frequency Range:136-174 / 400-480MHz
Nominal voltage:7.4V DC
Battery Type:Li-ion battery
Battery capacity:2800 mAh
Antenna impedance:50 OHMS
Independent operation of the A / B band (UV UU VV)
128 groups of storage channels
Context menu operating mode
VFO and scan memory channels
Emergency alarm
Timer timer (TOT)
0 ~ 9 VOX grades selectable
PTT & ANI ID
FM radio and 25 storage stations
Compression-extension voice
50 CTCSS / 104 DCS
High / low power TX selectable
Busy channel lockout (BCLO)
DTMF function
OFFSET function
Wide / narrow band (25 kHz / 12.5 kHz)
VOX function
Busy lock function
Scan function
Monitor function
Timer timer function (TOT)
LCD SCREEN
Double display
Display of battery voltage function
Display and edit functions of the channel name
Signal Strength Indicator
Keyboard lock function
Integrated LED torch
Clone function wire
Emergency alarm function
Low battery alarm
Energy saving function
High / medium / low power TX selectable
Chinese and English voice prompt
Weight:275g
Dimensio (LXPXH):58x32x150mm (no antenna)

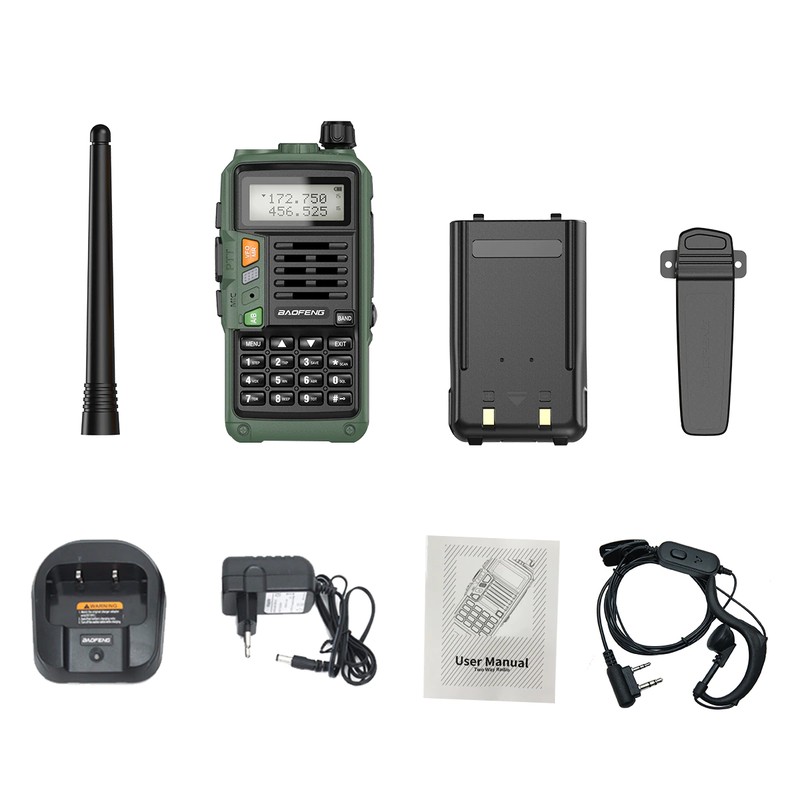

Package
Includes:
1 X Portable radio
1 X Antenna
1 X Li-ion battery
1 X Charger
1 X Belt clip
1 X The slingshot
1X User manual
1 X Earpiecex1cAnd other accessory depend on your choice in the link
Feature:
1. 100% Brand New & Never Used
2. Dual-band handheld transceiver with display function menu on the display “LCD”
3. DTMF encoded
4. Lithium-ion battery with high capacity
5. Commercial FM radio receiver (65MHz~108MHz)
6. Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable
7. Function “VOX”(voice operated transmission)
8. Alarm function
9. Up to 128 memory channels
10. Broadband (Wide)/Narrowband (Narrow), selectable
11. High/low power selectable
12. Display illumination and programmable keyboard
13. Function “beep” on the keyboard
14. Dual Watch/dual reception
15. Selectable Frequency Step
16. Function “OFFSET” (frequency offset for repeater access)
17. Battery saving function
18. Timer transmission “TOT” programmable
19. Selecting the Scan Mode
20. Busy Channel Lock
21. Built-in RX CTCSS/DCS scan
22. Built-in LED flashlight
23. Programmable by PC
Specification:
GeneralFrequency range
VHF:136MHz-174MHz(Rx/Tx)
UHF:400MHz-520MHz(Rx/Tx)
65MHz-108MHz(Qnly commercial FM radio reception)Memory channels
Up to 128 channels
Frequency stability
2.5ppm
Frequency step
2.5/5/6.25/10/12.5/25KHz
Antenna impedance
50OHM
Operating temperature
-20°C-60°C
Supply voltage
Rechargeable Lithium-Ion 7.4V
Battery Capacity
2800mAh
Consumption in standby
<=75mA
Transmitter
RF power
8W/1W
Modulation type
FM
Emission class
16KøF3E/11KøF3E(W/N)
Maximum deviation
<=±5KHz/<=±2.5KHz(W/N)
Spurious emission
<-60dB
Package include:
· 1 X Portable radio
· 1 X Inductively loaded antenna
· 1 X 2800mAh Li-ion battery pack
· 1 X LI-ion charger
· 1 X Belt clip
· 1 X The Sling
· 1 X User's manual
not include usb charging
