Oscilloscope Parts & Accessories Type: Oscilloscope Probe & Accessories
Certification: CE
Ships From: China

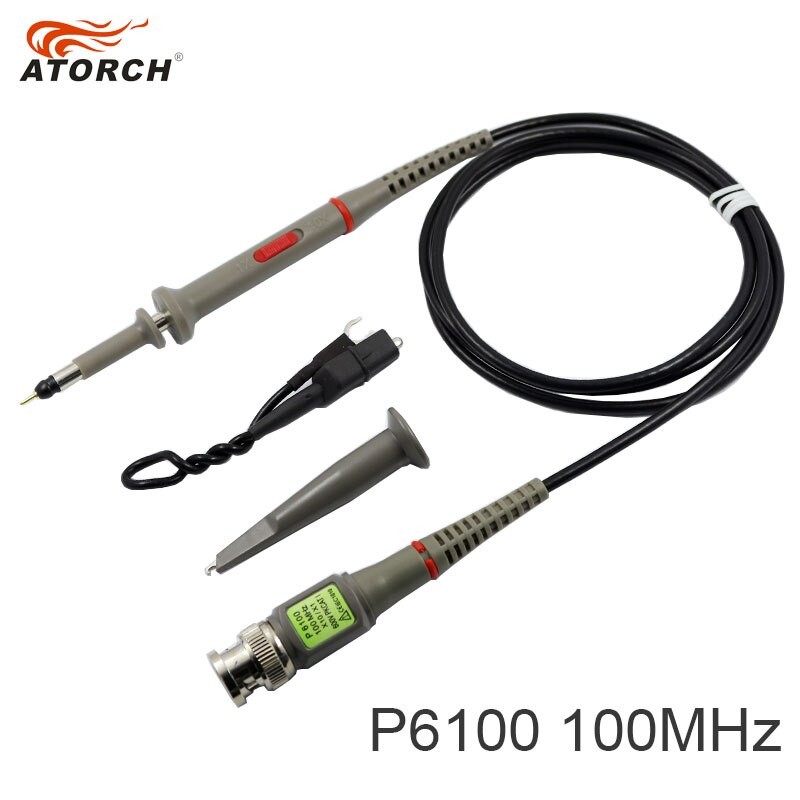

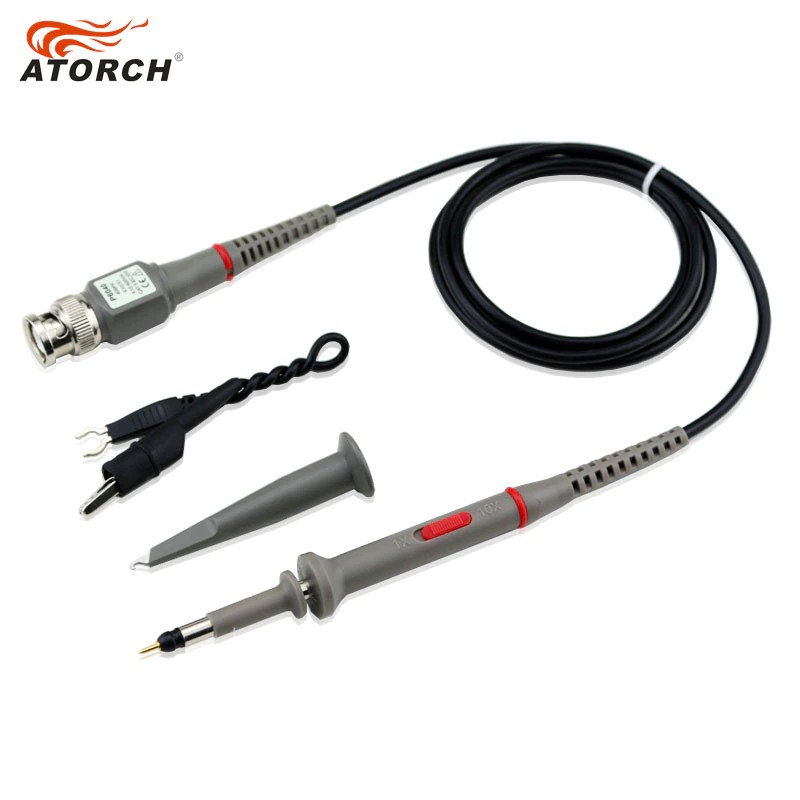

P6100 100 MHz Oscilloscope Probe for Rigol Atten Owon Siglent

Designed to make probing and measurements a simple task Rest Operating Temperature Range:-20°~+60°; Operating Temperature Range:-15°~+75° Used with oscilloscopes from all manufacturers; Use the slide switch to set probe attenuation ratio. Use the alligator clip to attach the probe to a ground reference. Use the adjustment tool for probe compensation adjustments. Use locating sleeve could ensure the stability and reliability of the tip exposed to the test point. Spare maker rings attach the matched color rings onto the probe cable and shaft to identify different channels. Considerate design and efficient assist tools. Designed to make probing and measurements a simple task
Rest Operating Temperature Range:-20°~+60°; Operating Temperature Range:-15°~+75°

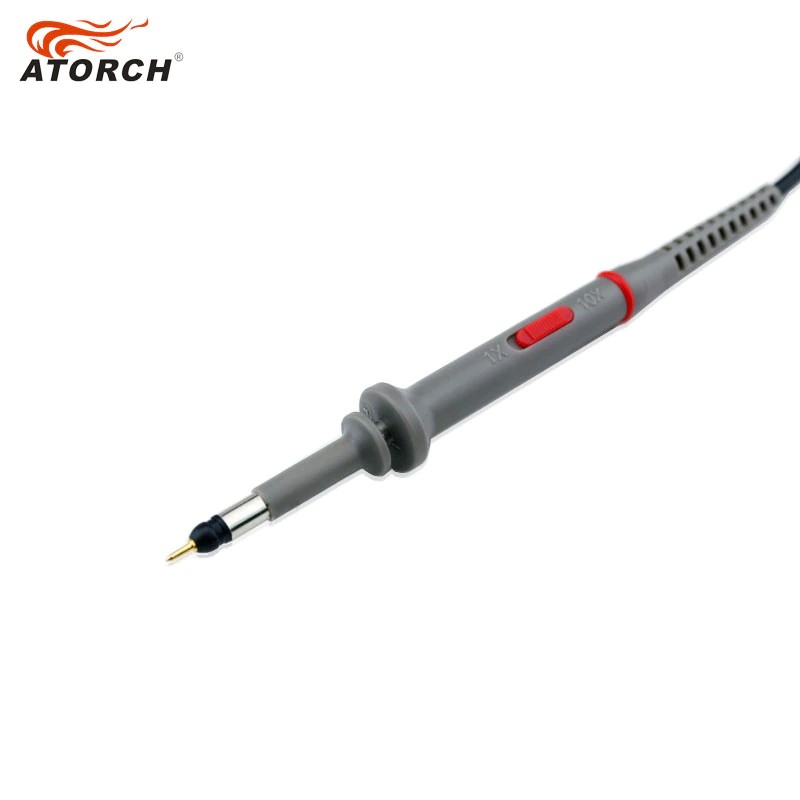

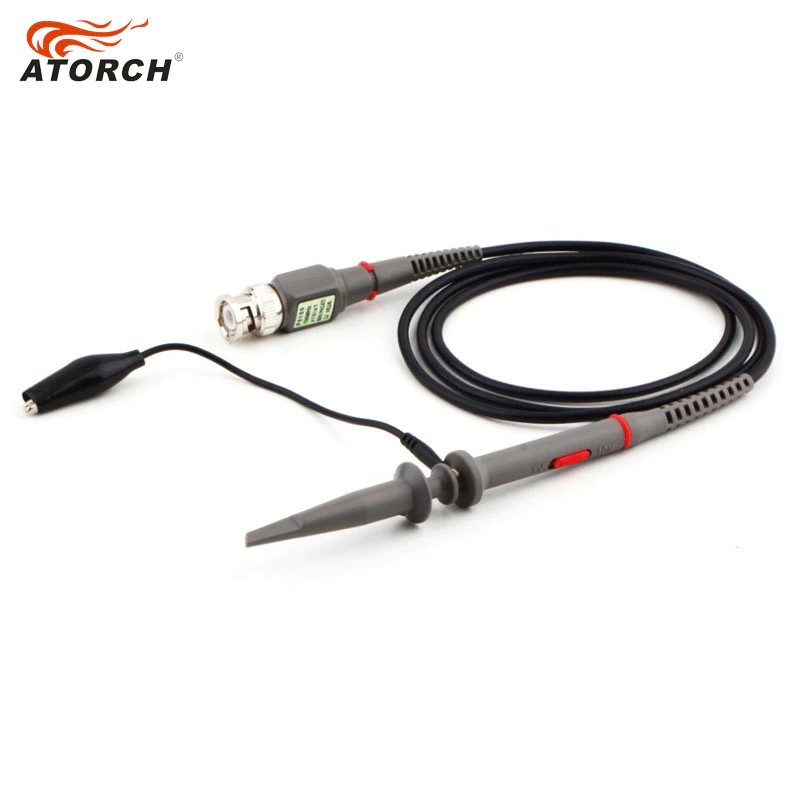

Used with oscilloscopes from all manufacturers; Use the slide switch to set probe attenuation ratio. Use the alligator clip to attach the probe to a ground reference.
Use the adjustment tool for probe compensation adjustments. Use locating sleeve could ensure the stability and reliability of the tip exposed to the test point.
Spare maker rings attach the matched color rings onto the probe cable and shaft to identify different channels. Considerate design and efficient assist tools.
Color: As shown
Attenuation 10:1 and 1: 1 switchable (slide switch on the handle)
1 KHZ Square Wave Distortion: less than equal 1%
Input resistance: 10
Input capacitance 10×(18.5-22.5 P), 1×(120P)
Compensation range : 8-35P
System Bandwidth:0-100MHz (10:1)
Bandwidth: 40 MHz (10:1)
Rise Time: 8.75ns (10:1)
Maximum operating voltage : greater than equal 600V
Package Content:
1 x Probe
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed

rror is +/-1-3 cm.

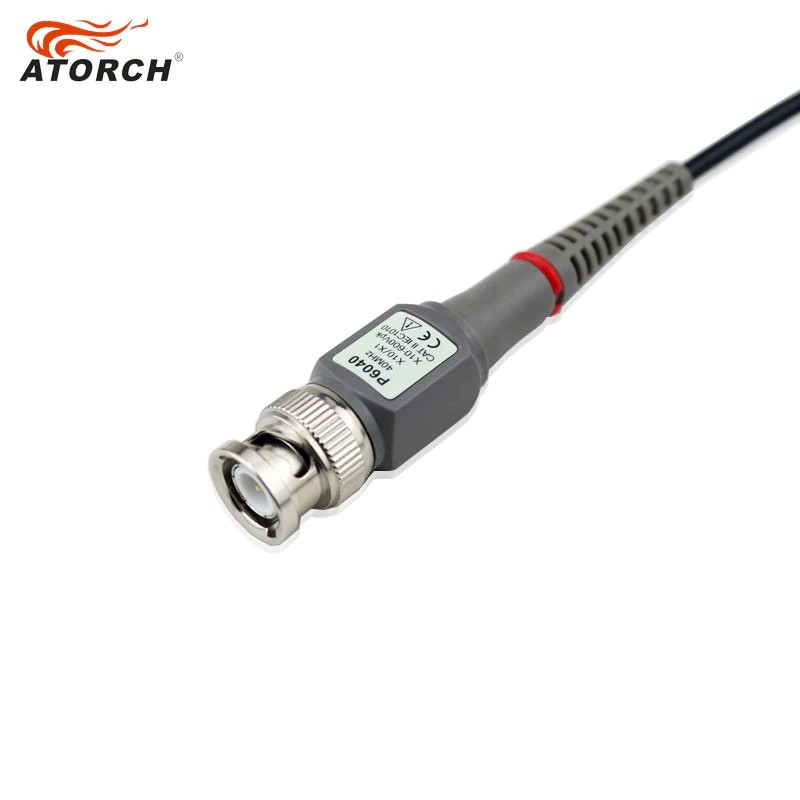

P6040 40MHz

P6100100MHz
