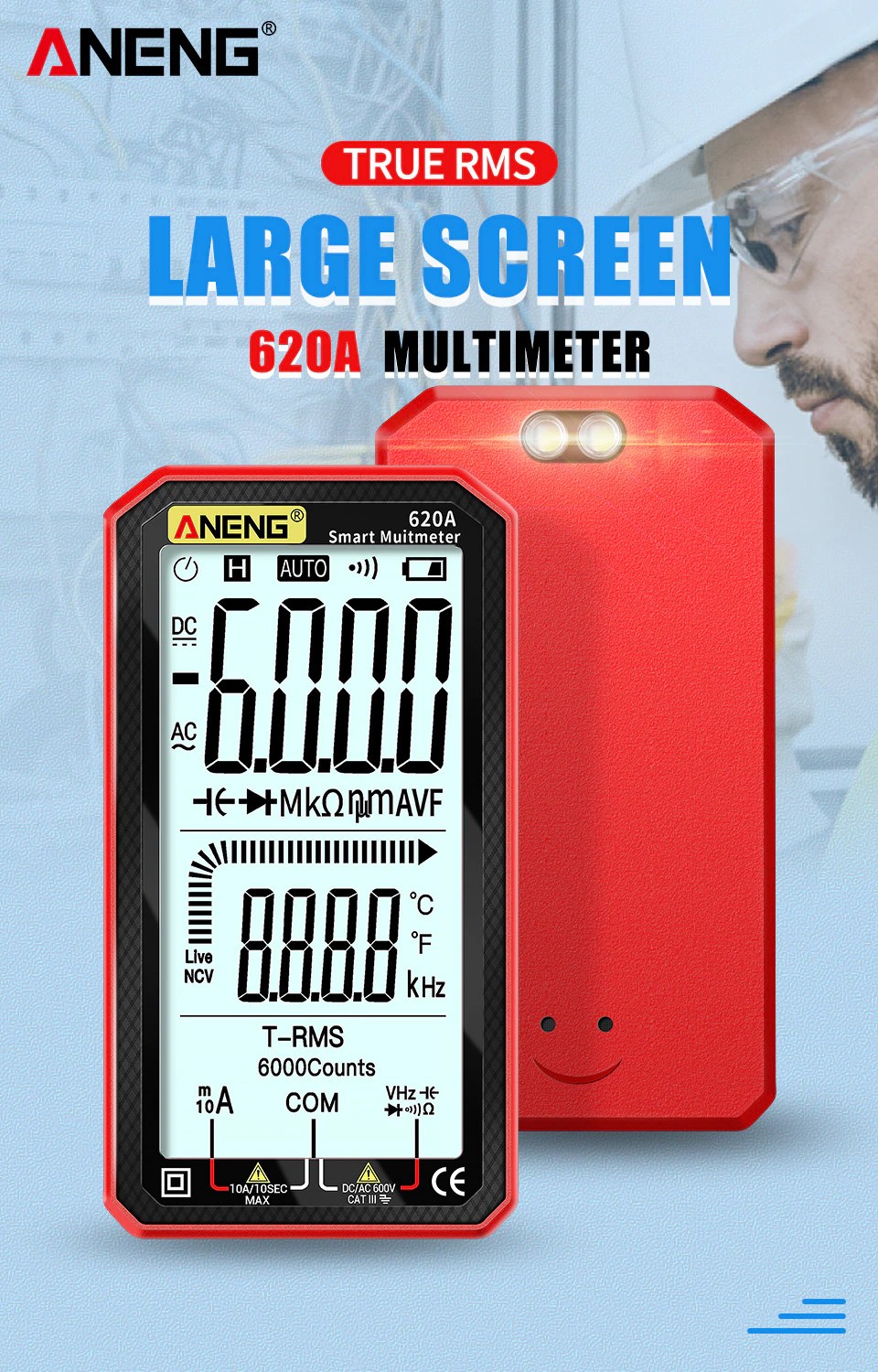

Aneng 620A Digital Smart Multimeter Transistor Testers 6000 Counts True Rms Auto Electrical Capacitance Meter Temp Resistance
- 140 reviews
- 2344 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
AC Voltage: 6V/60V/600V
Display Type: Digital display
DC Voltage: 6V/60V/600V
AC Current: 6000mA/10A
Measuring Resistance Range: 600/6k/60k/600k/6M/60M
Certification: NONE
DC Current: 6000mA/10A
Measuring Capacitance Range: 6nF/60nF/6uF/60uF/600uF/6mF/60mF
Operating Mode: automatic
Model Number: 620A Multimeter
Is Smart Device: NO
Measuring Inductance Range: 100Hz/1000Hz

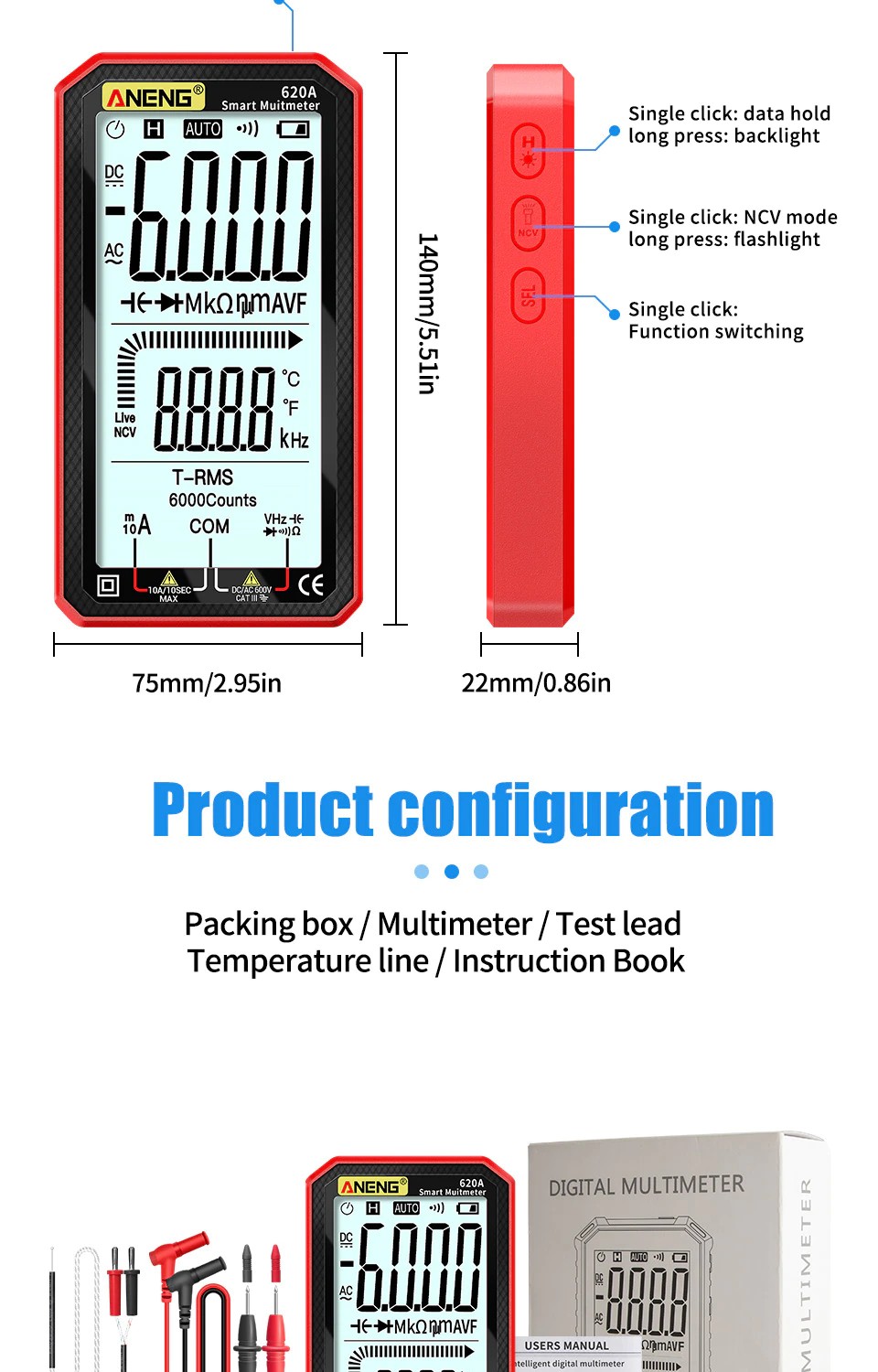

Dimensions: --
Operating Temperature: 0 - 40 ℃
NCV: Yes

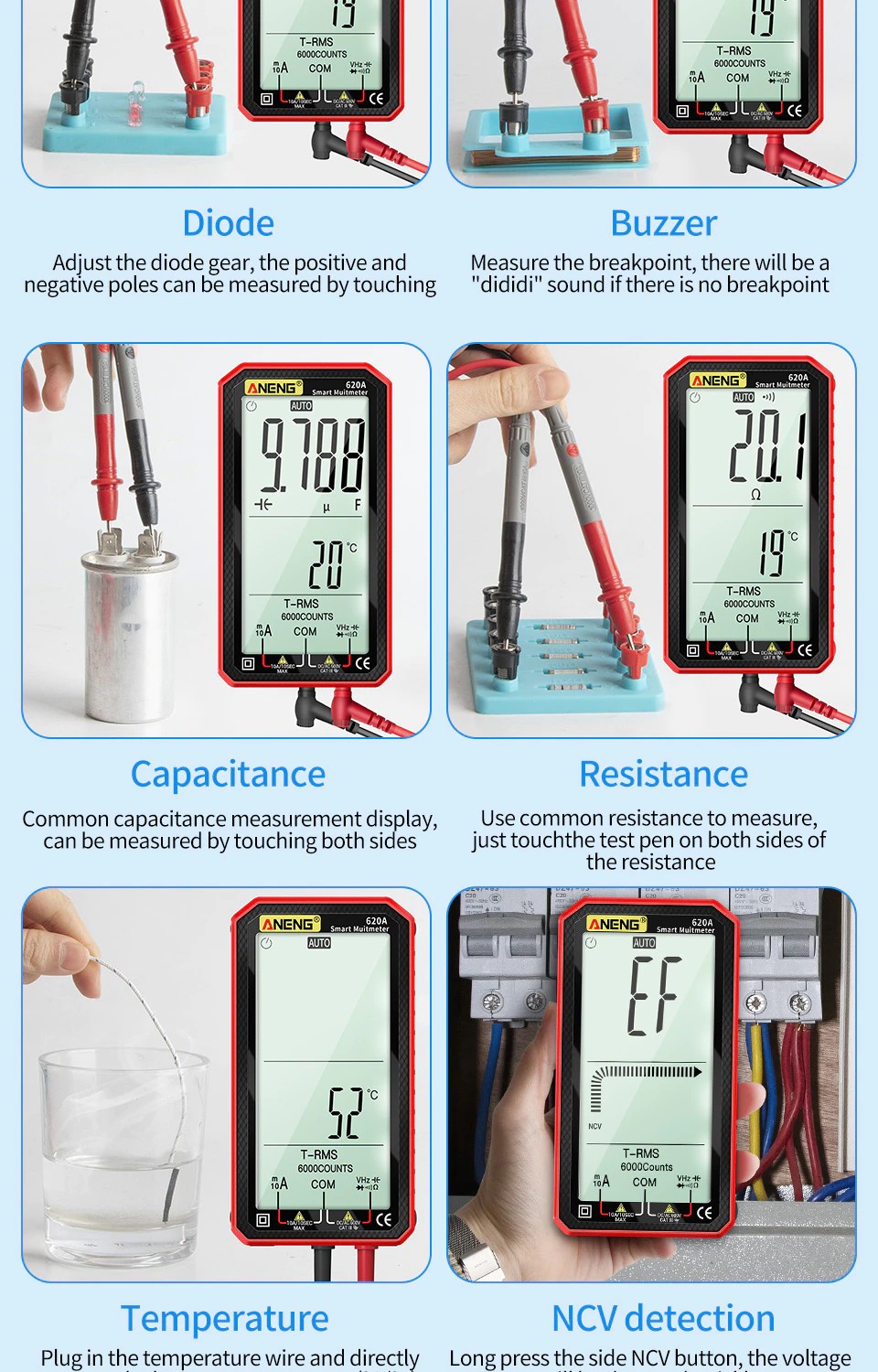

AC/DC Voltage: Yes
AC/DC Current: Yes
Resistance: Yes
diode: Yes
Temperature: Yes
Hz: Yes

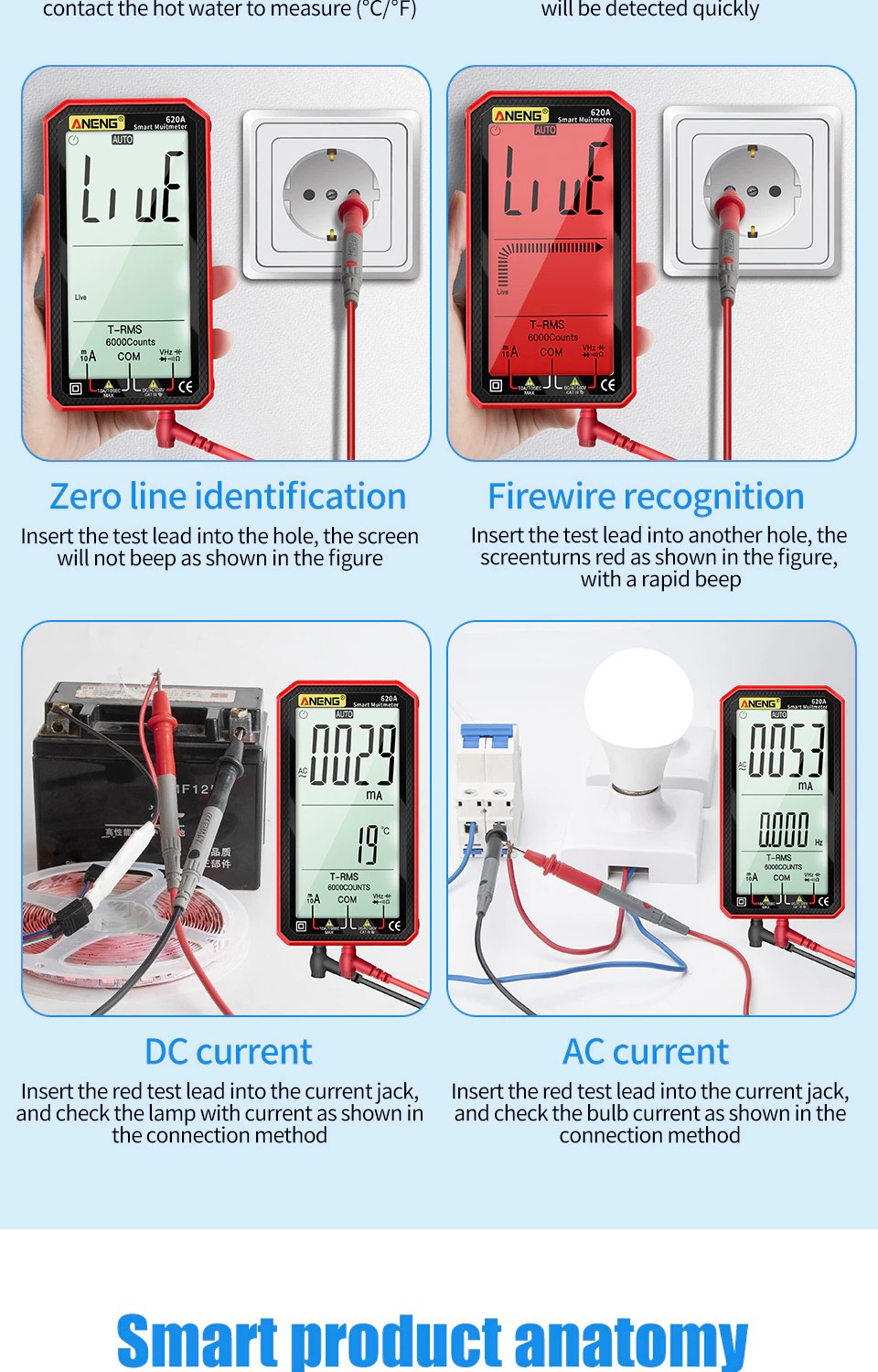

Zero fire line: Yes
data retention: Yes

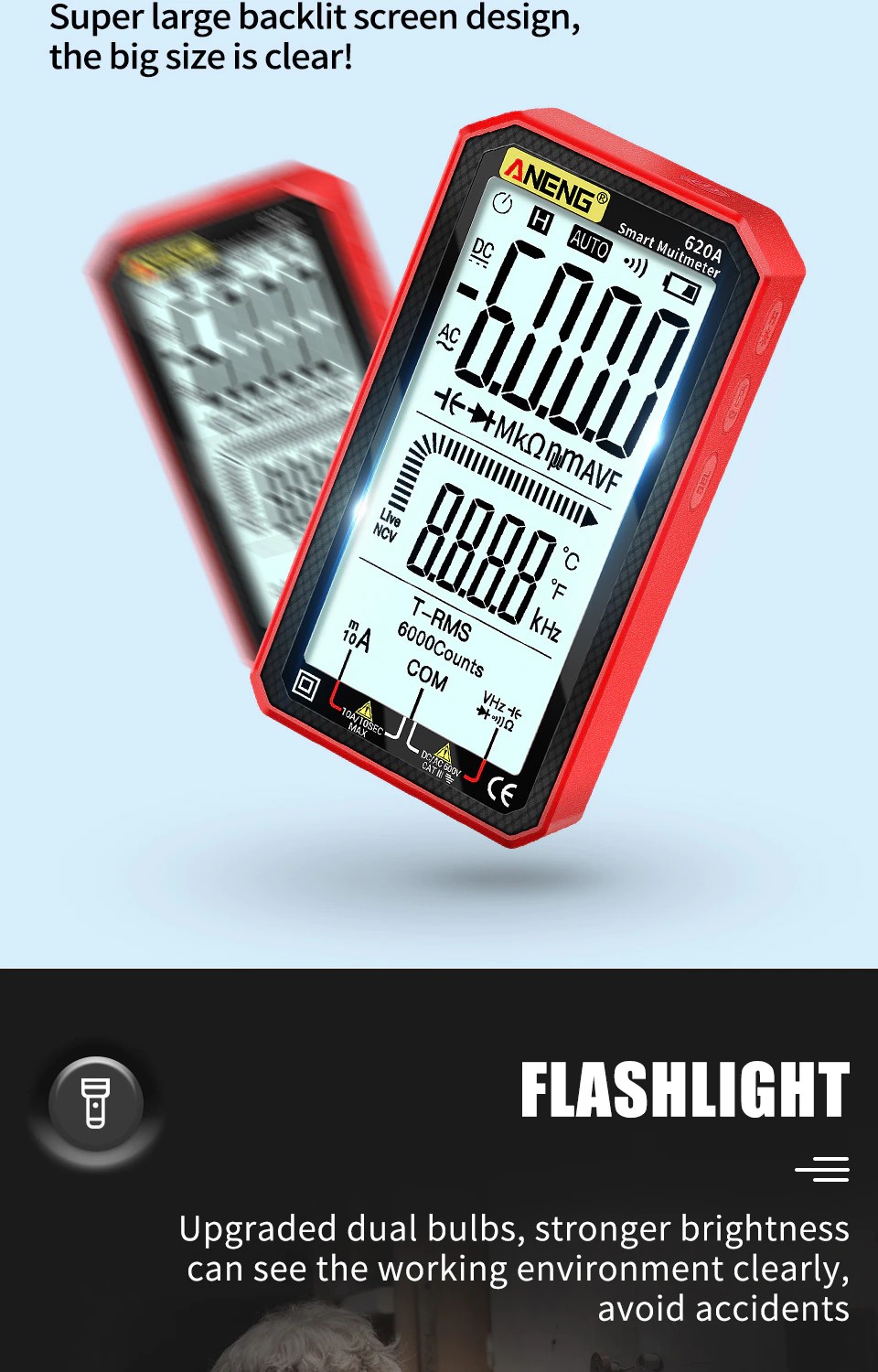

Display(LCD): 6000 Counts

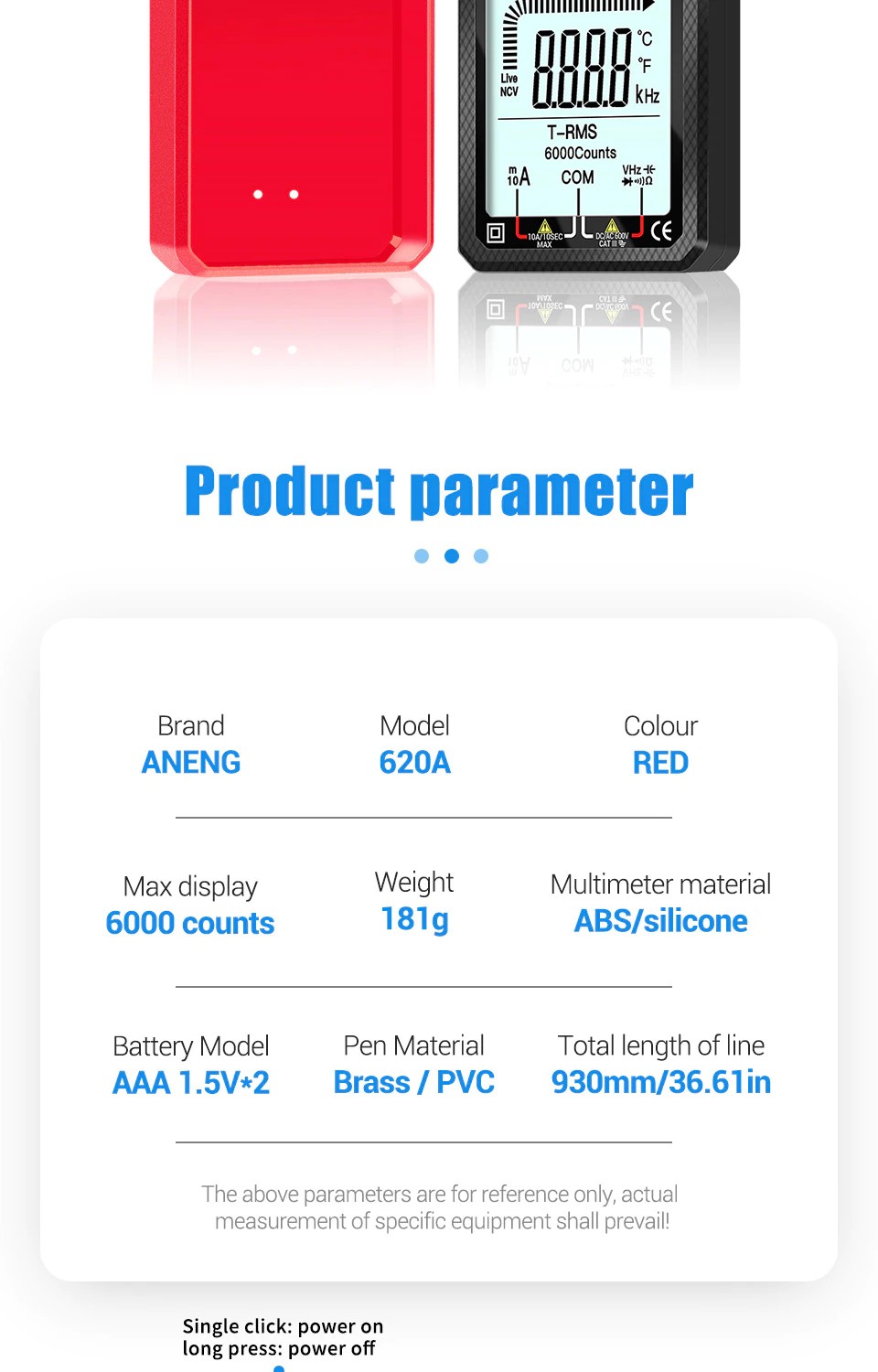

A.Overview:
Dispaly: LCD
Max. display value:6000 digit
Automatic shut down time:15 minutes
power supply:2*1.5V AAA Battery(Without)
The instrument specifies one year as a cycle,and shall be re-calibrated under 18℃~28℃,with relative humidity less than 75%.
B.Specification:
Function | Range | Accuracy |

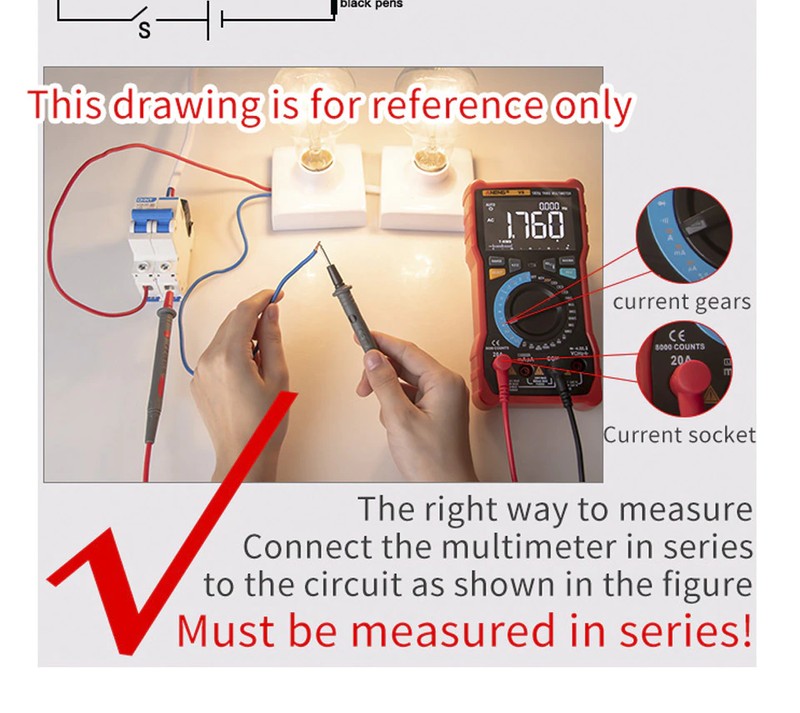

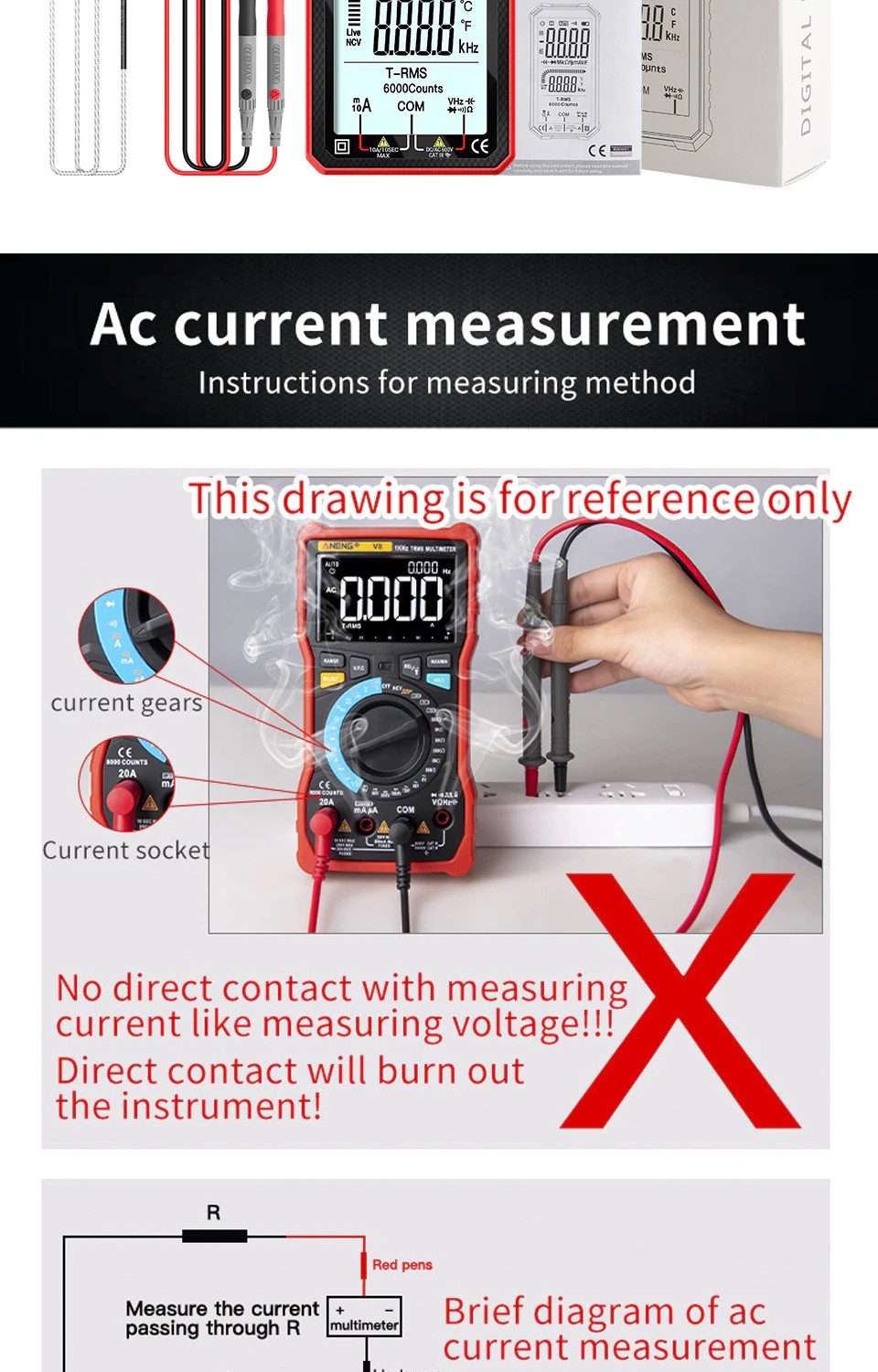

AC Current | 6000mA/10A | +-(1.0%reading+8 digits) |
DC Current | 6000mA/10A | +-(1.0%reading+5 digits) |
DC Voltage | 6V/60V/600V | +-(0.5%reading+3 digits) |

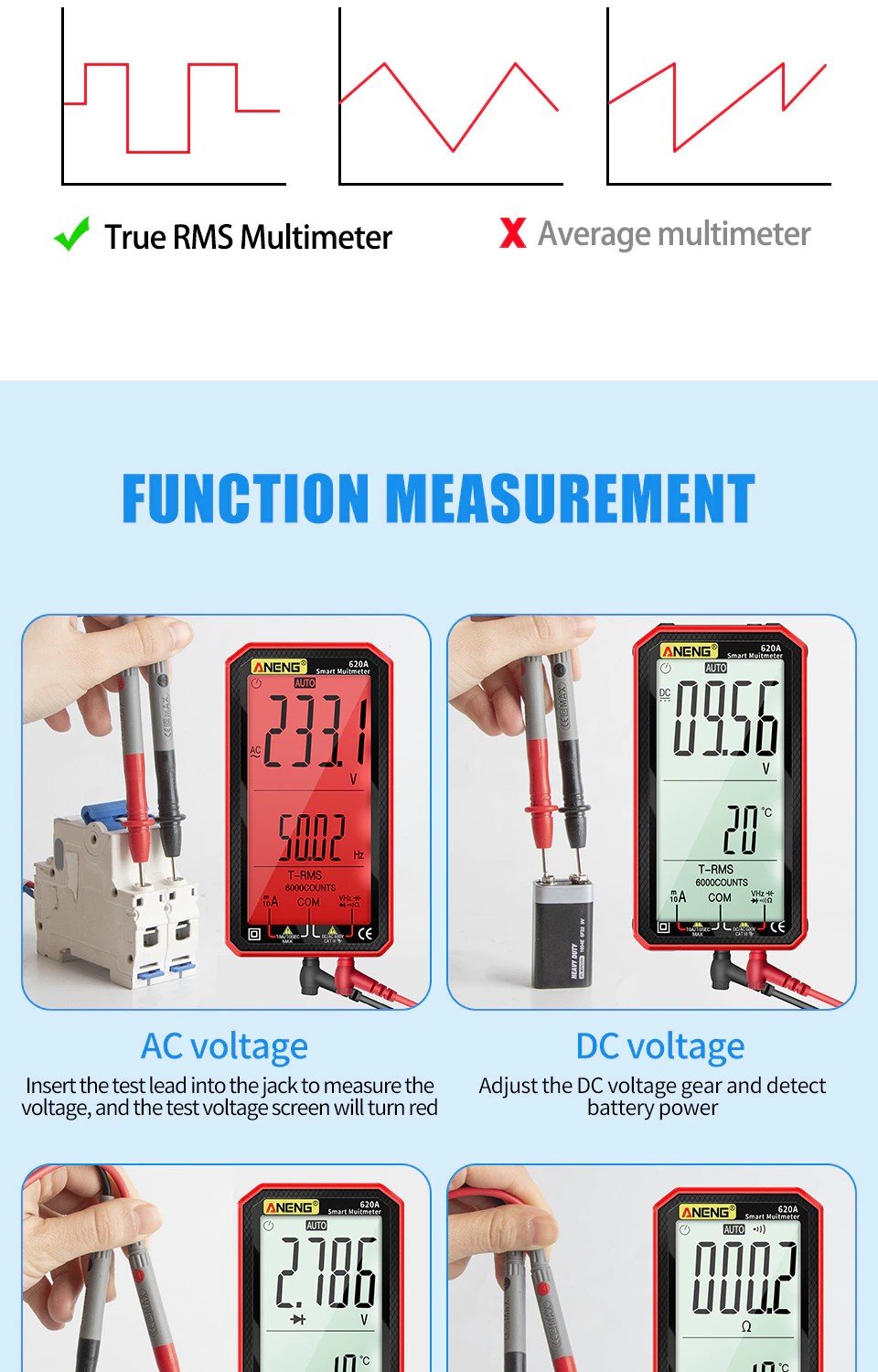

AC Voltage | 6V/60V/600V | +-(0.8%reading+5 digits) |
Line on-off Test | -- | 1Ω |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | +-(0.8%reading+3 digits) |
Diode Test | -- | 1V |
Capacitor | 6nF | +-(10%reading+40 digits) |
60nF/6uF/60uF/600uF/6mF/60mF | +-(2.5%reading+20 digits) | |
Temperature | -40~1000℃ | +-(1%reading+3℃) |
-40~1832℉ | +-(1%reading+3℉) | |
Frequency | 100Hz/1000Hz | +-(1.0%reading+5 digits) |
100Hz/1000Hz | +-(1.0%reading+5 digits) |
C.Package Include:
According to your choice
