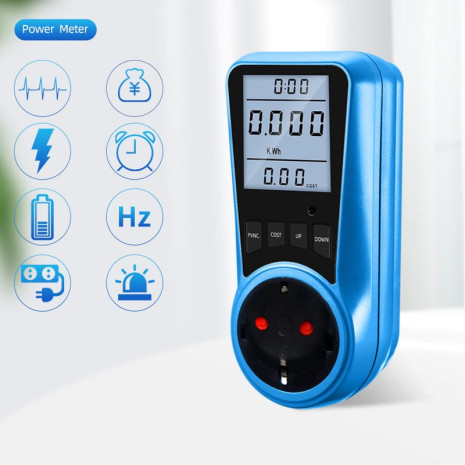

Ac Digital Lcd Backlight Power Meter Wattmeter Watt Energy Meter Monitor Time Voltage Display Socket Measuring Outlet
- 130 reviews
- 687 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
Display Type: Digital Only
Model Number: Digital Voltmeter Ammter
Certification: NONE
Power Supply: AC
Phase: Single Phase
Rated Voltage: 230V
Operating Temperature: -10~60Celcius
Accuracy Class: 1%+/-2 words
Max Operating Current: 19A & Under
watt meter: Power meter
AC Power Meter Digital Wattmeter Watt Energy Monitor Time Voltage Display Socket Analyzer EU UK AU US BR FR IT Plug Backlight 40% off
Features:
1.Large & Clear LCD Display for Easy Reading.
2.Seven display modes, transferred by pressing "FUNCTION" button.
3.Overload warning displayed on LCD.
4.Resetting for abnormal display or no-response of button.
5.Built-in 3.6V rechargeable battery (NI-MH) to store electricity and saving setting.
Descriptions:
1.Power Meter is a monitoring and testing instrument which determines the power consumption of a connected appliance and the cost of the electricity consumed.
2.Measure Voltage, Frequency, Current, Power Factor, Wattage, minimum & maximum Wattage and record cumulative Kilowatt-hour KWh, Time, Date and Electricity Expenses.
Specifications:
Model:KWE-PMB05
Operating voltage: 230V 50Hz for EU / UK / AU plug, 120V 60Hz for US plug
Operating current: Max 16A
Wide voltage range: 230V - 250V for EU / UK / AU plug, 110V - 130V for US plug
Timing display range: 0 second----9999 days
Wattage display (watts): 0W----3680W
Voltage display range: 0V----9999V
Current display (amps): 0.0----16.0A
Frequency display: 0Hz----9999Hz
Minimum wattage display range: 0.0W----3680W
Maximum wattage display range: 0.0W----3680W
Price display range: 0.000KWH----99.99KWH
Total kilowatt-hour and cost display: 0.000KWH----9999KWH
DIY supplies: electric
Plug: EU plug / US plug / UK plug / AU plug/FR plug/BR plug/IT plug(optional)
Color: blue
Item Size: 62X76X129mm
Package information:
Package size: 82X65X145mm/3.23 x2.56 x5.71 in
Package weight: 180g /6.34oz
Package included:
1 * Plug-in Power meter (Plug type accoring your order)
1* English Instruction manual
