Ac/Dc Current Clamp Probe Cc-65 Cc-650 Bandwidth 1Mv/10Ma 65A/650A With Bnc Plug
- 140 reviews
- 867 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Certification: CE
DIY Supplies: ELECTRICAL
Measuring Capacitance Range: /
Model Number: CC-650/CC-65
Dimensions: 21.5 * 11 * 5cm / 8.46 * 4.33 * 1.97in
Measuring Voltage Range: /
Operating Temperature: 0 - 50 centigrade degree
Measuring Resistance Range: /
Measuring Inductance Range: /
Weight: 303g / 10.71oz
Measuring Current Range: DCA ±(1.5%±5mA) 10mA ~ 20A
Display Type: Digital Only
Item: AC/DC Current Clamp meter
DCA: ±(2%±20mA) 100mA ~ 40A;
DCA-1: ±(4%±0.3A) 40A ~ 65A

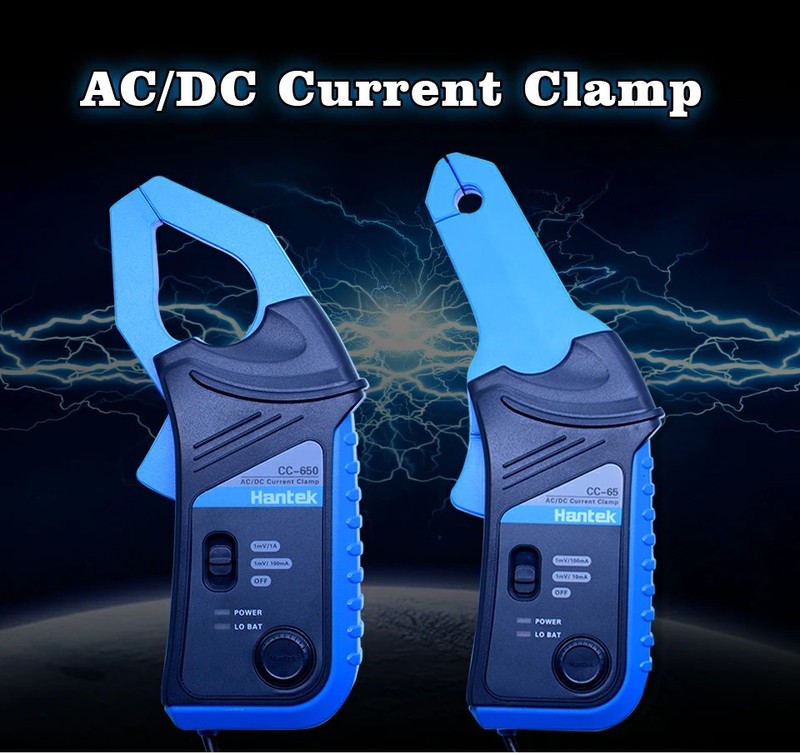

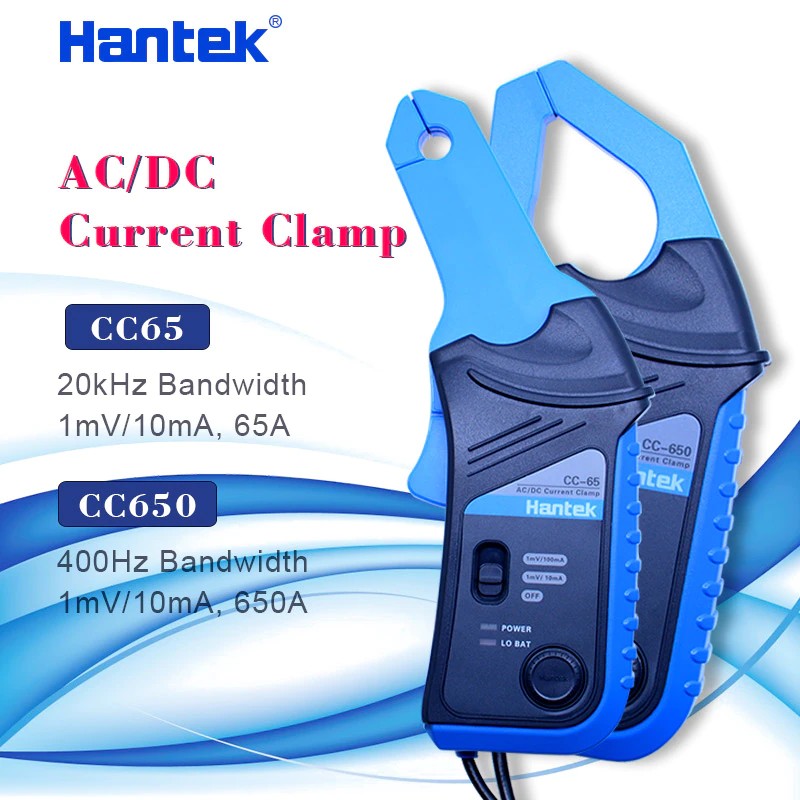

Hantek oscilloscope AC/DC Current Clamp probe CC-65 CC-650 20KHz/400Hz Bandwidth 1mV/10mA 65A/650A with BNC plug

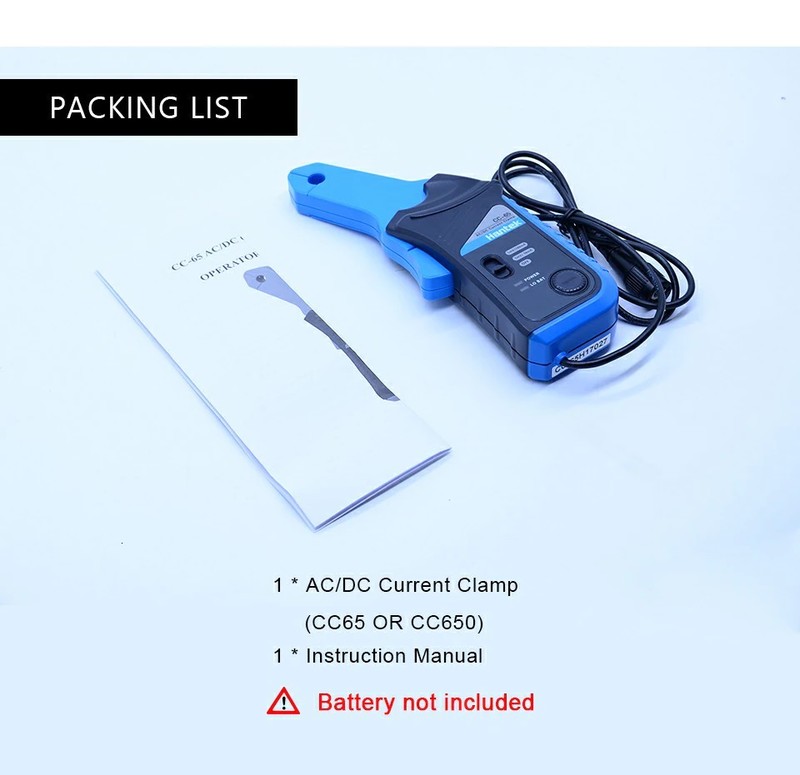

Please Note: Not included retail box and batteries!!!

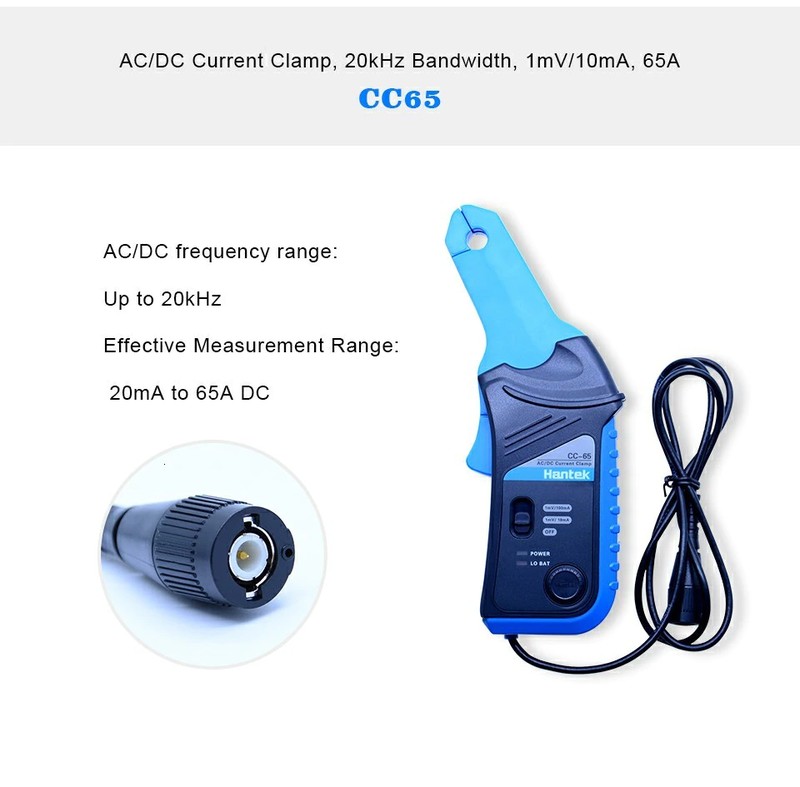

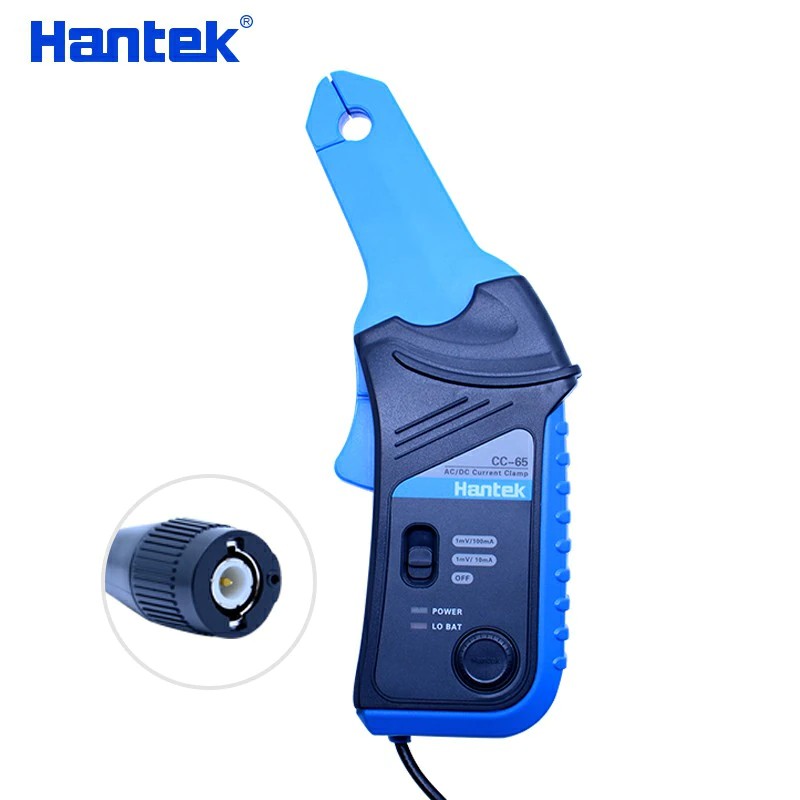

AC/DC Current Clamp CC-65
AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.
Feature
AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 65A DC

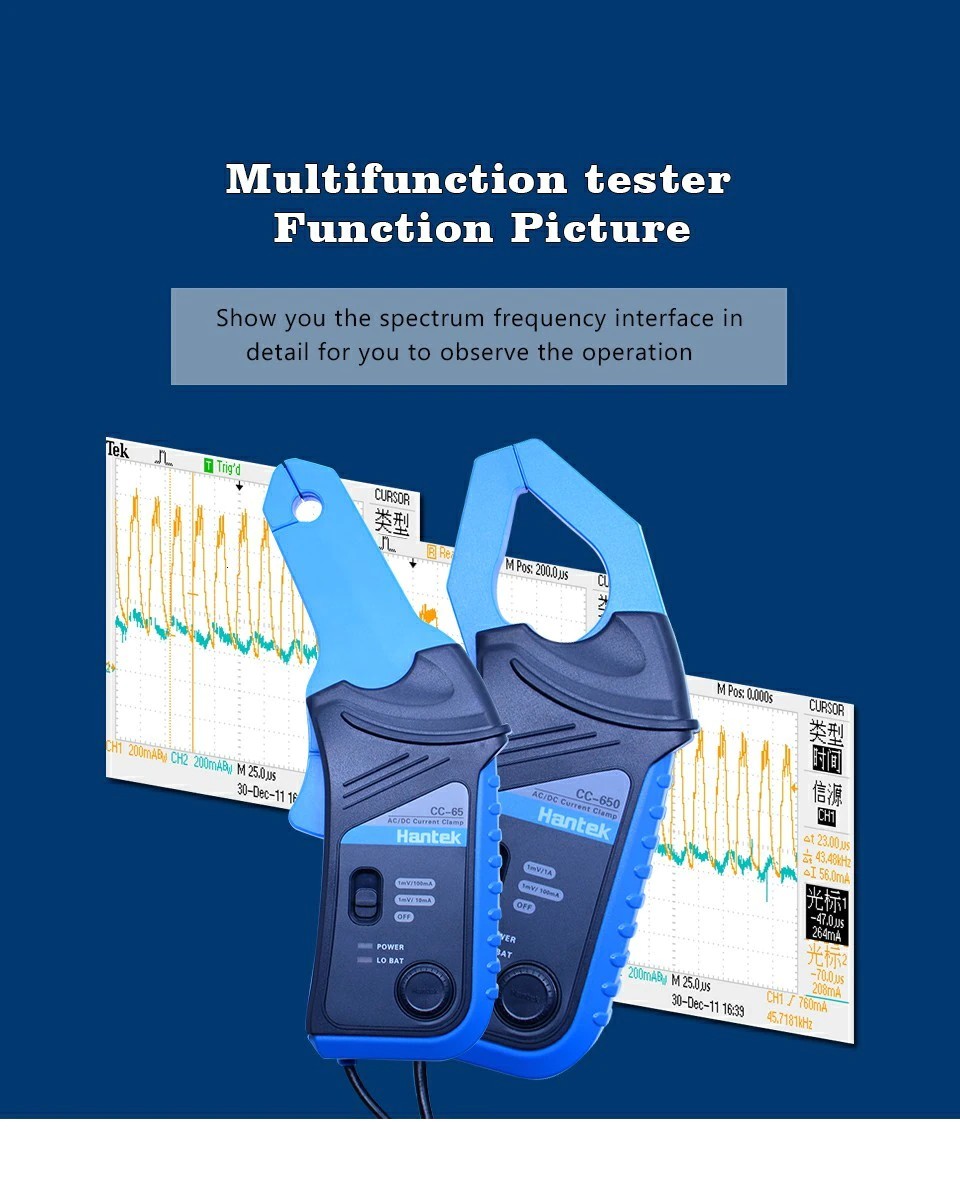

It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

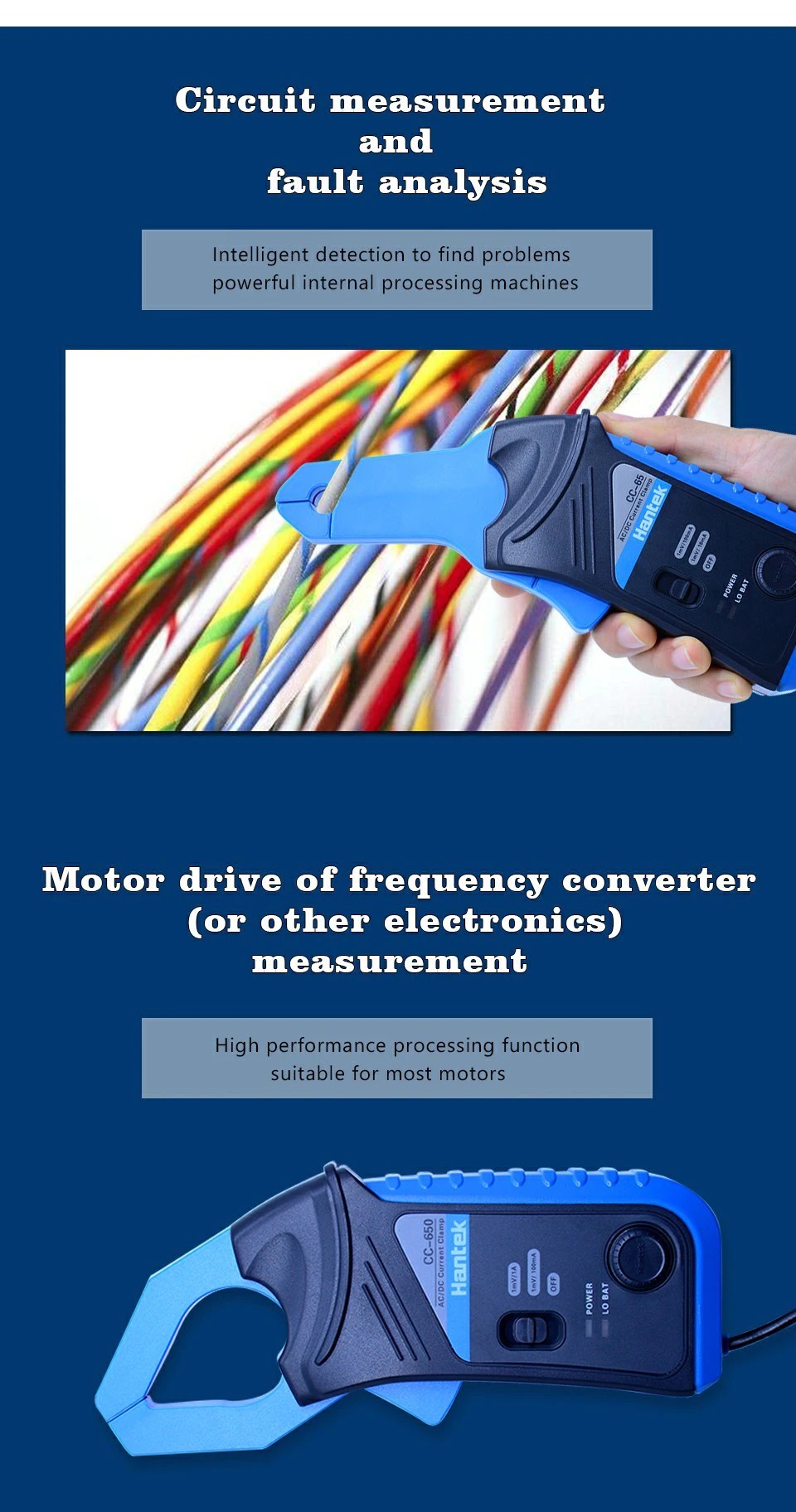

Application
Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

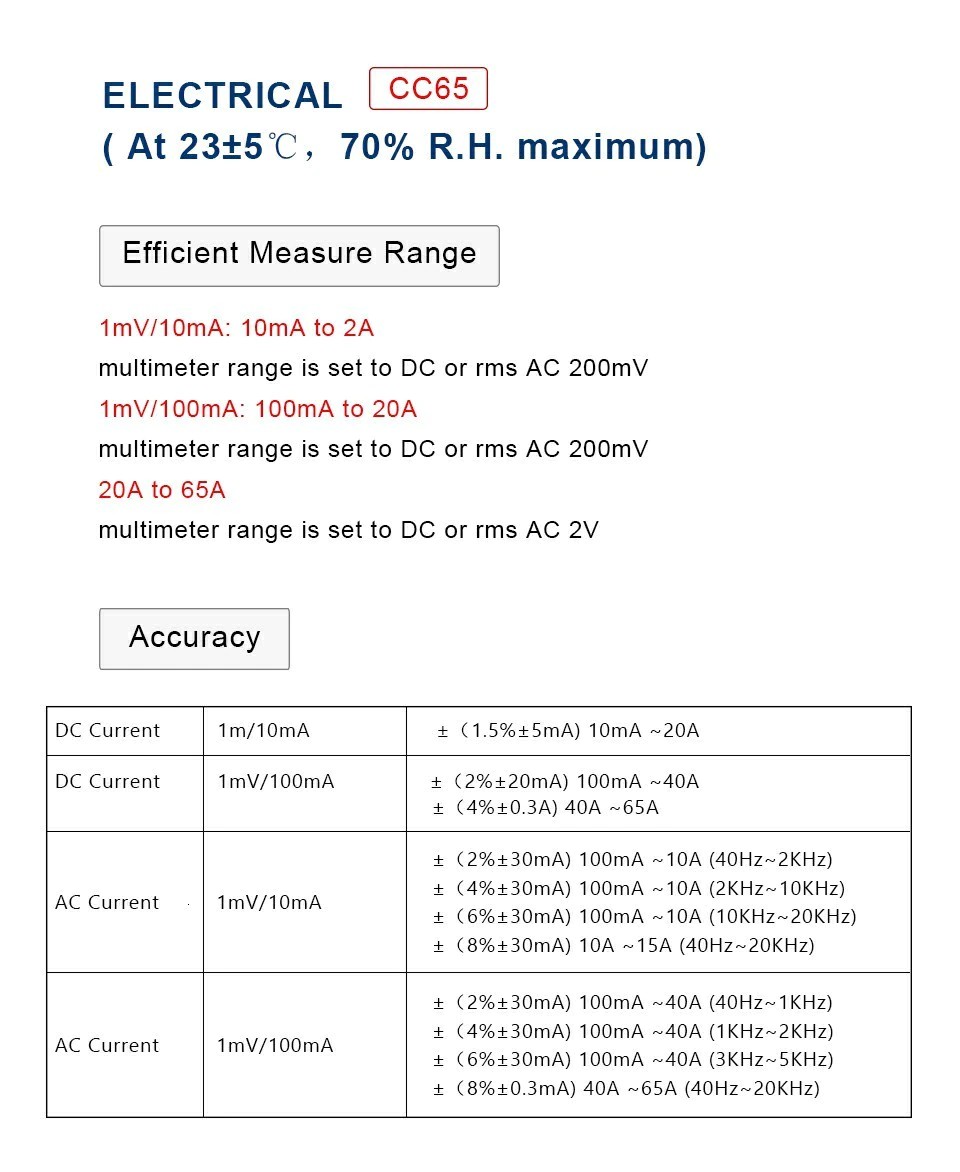

Specification |
||
DCARange |
1mV/10mA |
±(1.5%±5mA)10mA~20A |
1mV/100mA |
±(2%±20mA)100mA~40A; |
|
±(4%±0.3A)40A~65A |
||
ACARange |
1mV/10mA |
±(2%±30mA)100mA~10A(40Hz~2KHz); |
±(4%±30mA)100mA~10A(2KHz~10KHz); |
||
±(6%±30mA)100mA~10A(10KHz~20KHz); |
||
±(8%±30mA)10A~15A(40Hz~20KHz) |
||
1mV/100mA |
±(2%±30mA)200mA~40A(40Hz~1KHz); |
|
±(4%±30mA)200mA~40A(1KHz~2KHz); |
||
±(6%±30mA)200mA~40A(2KHz~5KHz); |
||
±(8%±0.3A)40A~65A(40Hz~20KHz) |
||

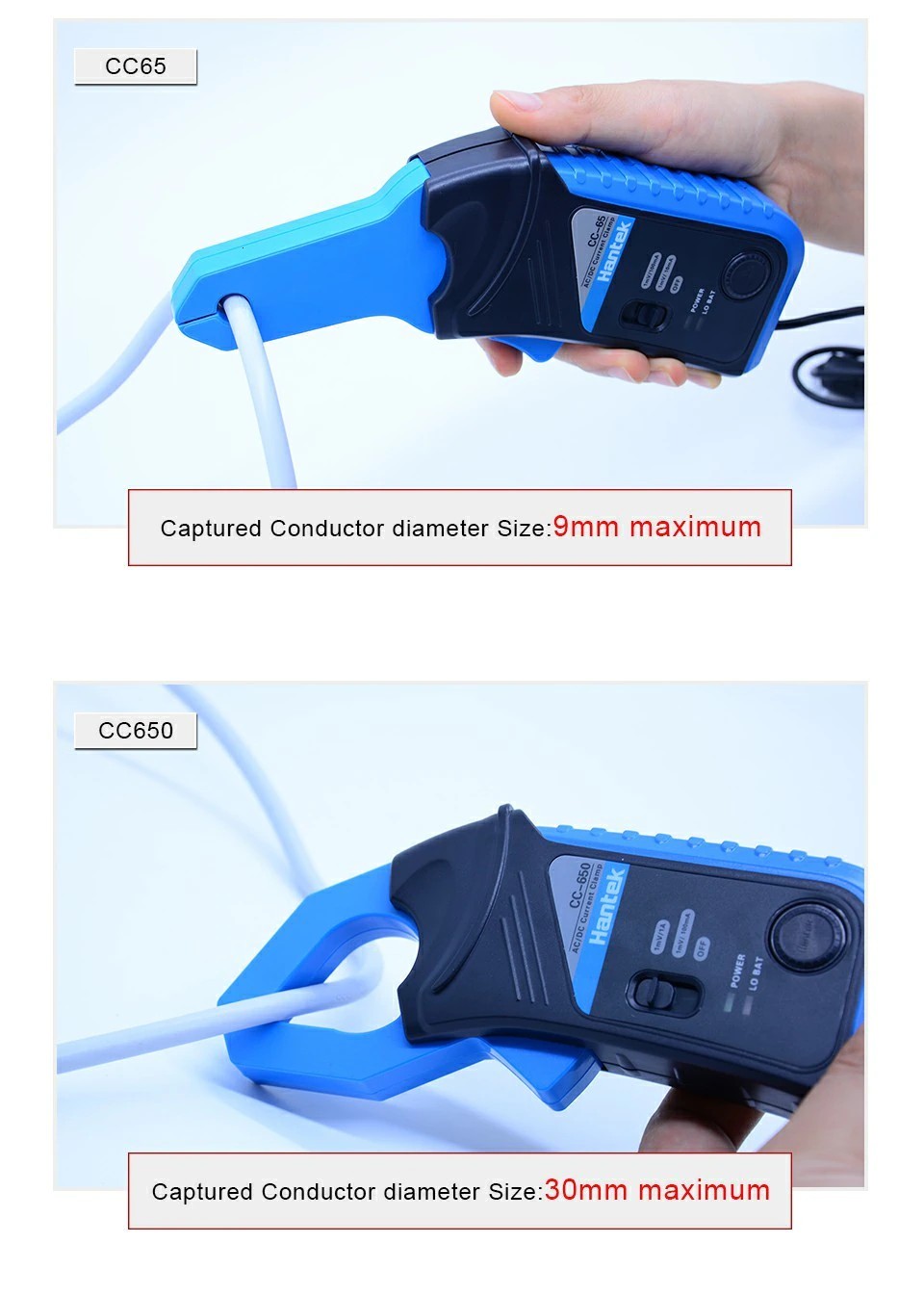

CapturedConductorSize |
9mmmaximum |
|

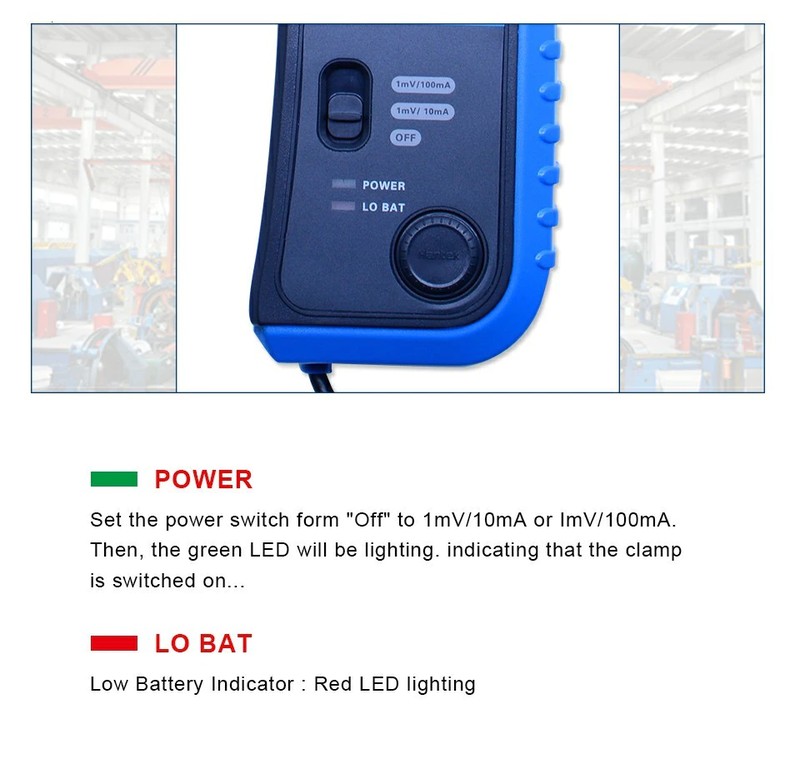

LowBatteryIndictor |
redLEDlighting |
|
OperatingTemperature |
0°to50°70%R.H. |
|
StorageTemperature |
-20°to+70°,80%R.H. |
|

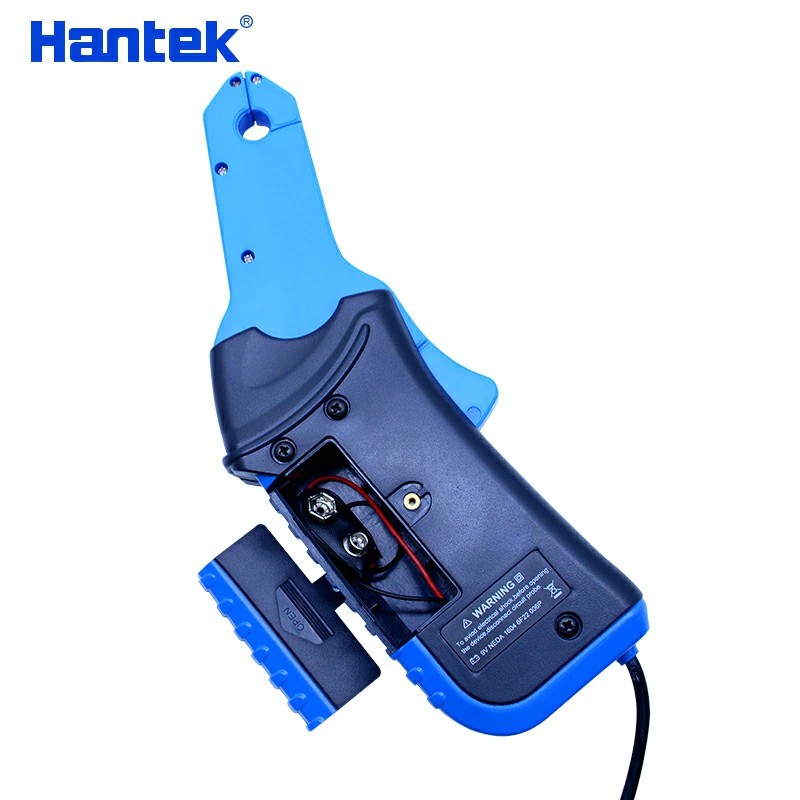

BatteryType |
9VDC,NEDA1604,6F22,0006P |
|
BatteryLife |
100hourstypicalwithalkaline |
|
Weight |
250gmtypical |
|
Dimensions |
195mm(H)x70mm(W)x33mm(D) |
|
Output |

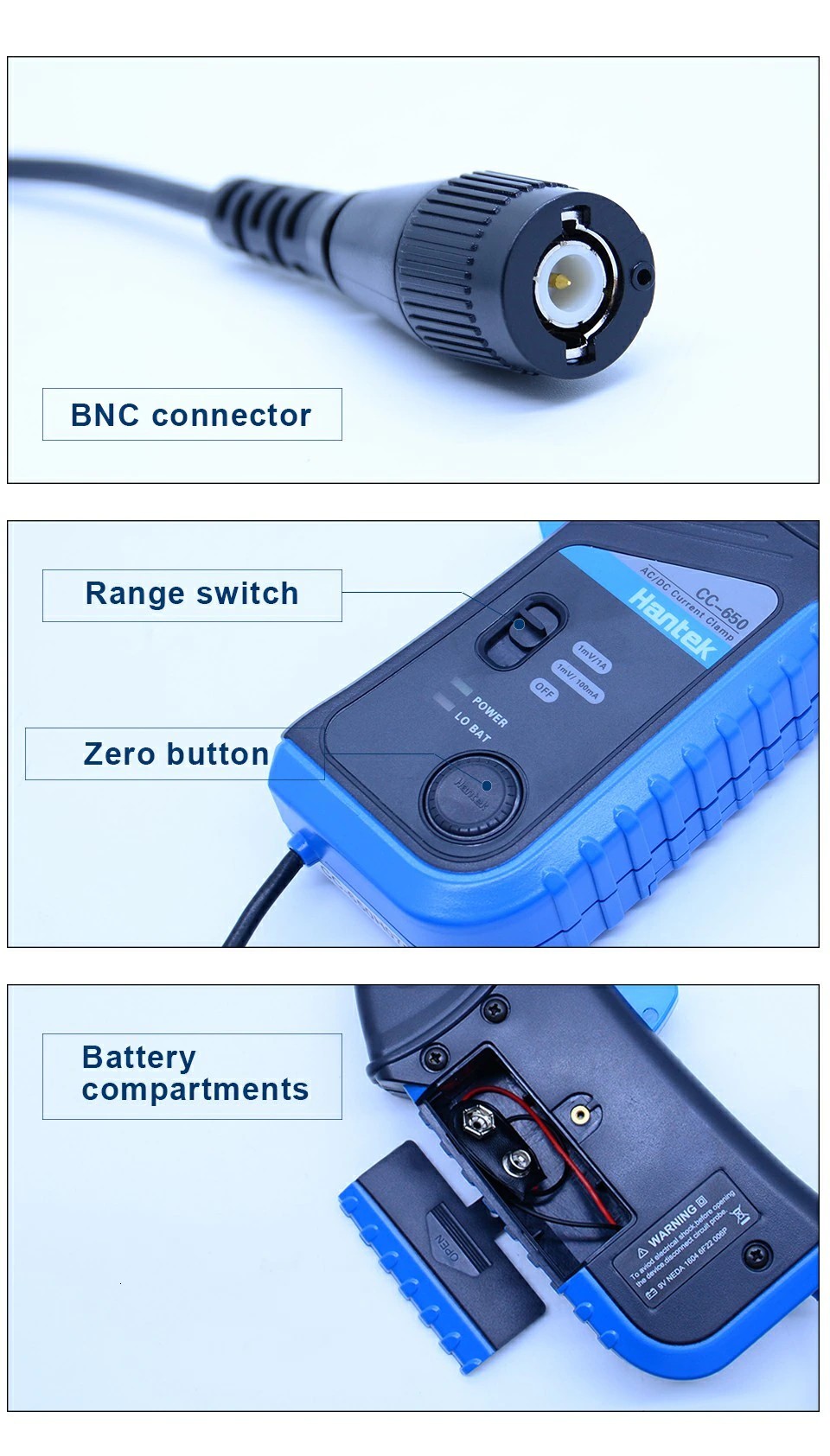

SuppliedwithcoilcablewithstraightbananaplugorBNCplug. |
|

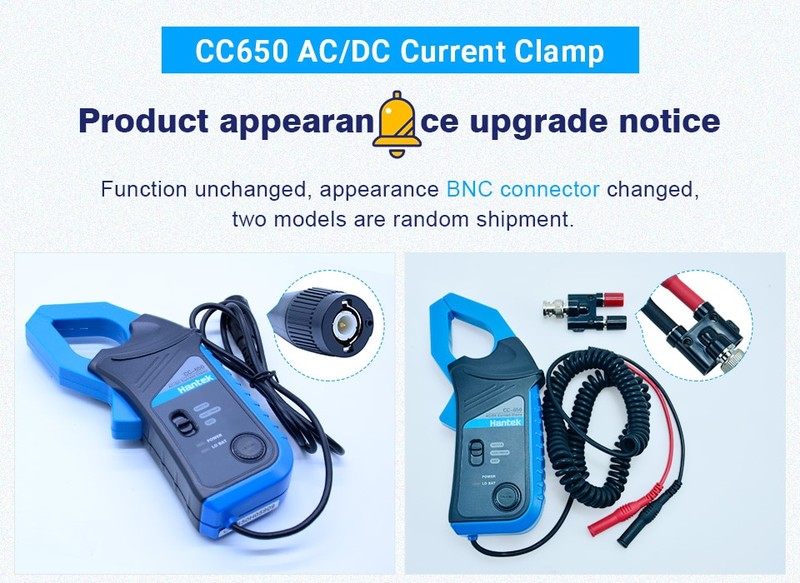

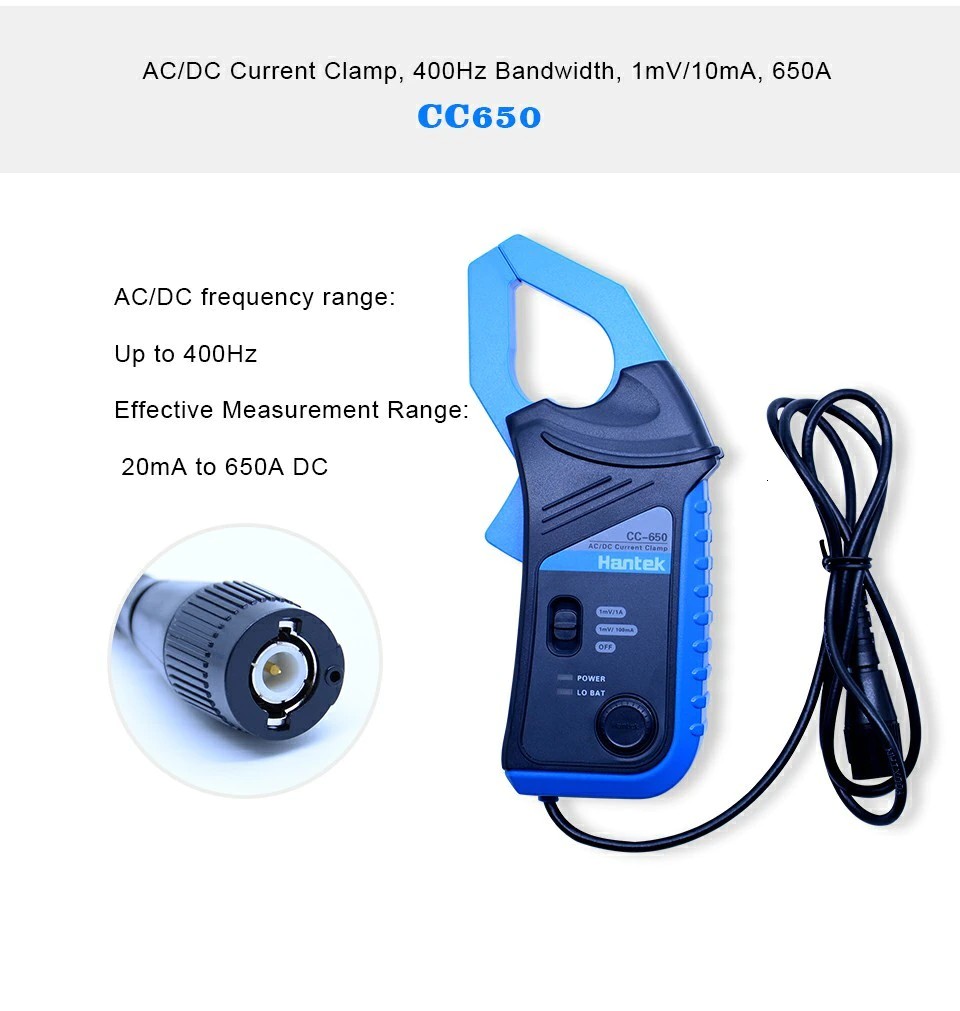

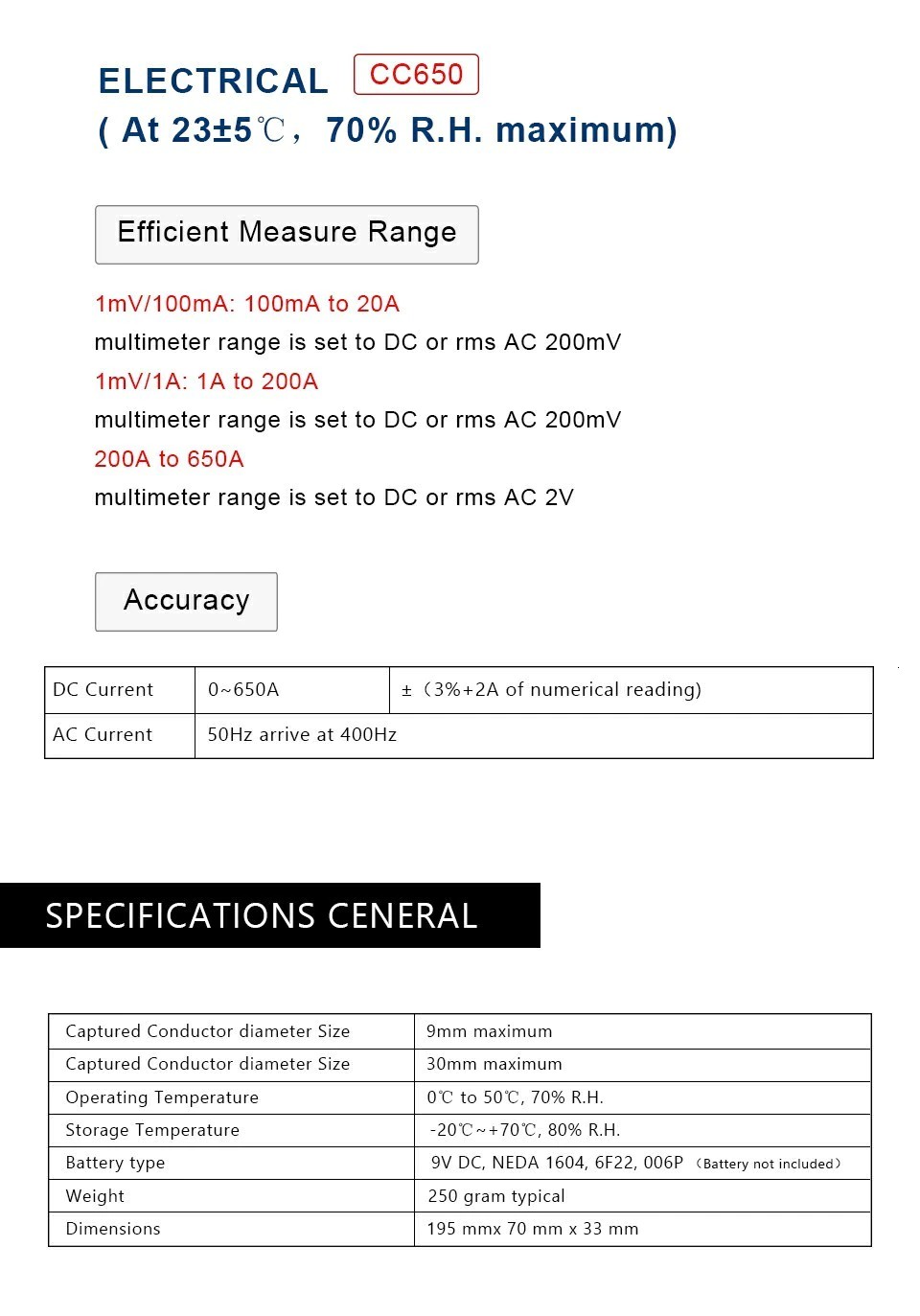

AC/DC Current Clamp CC-650
AC/DC Current Clamp, 400Hz Bandwidth, 1mV/10mA, 650A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Feature
AC/DC frequency range: Up to 400Hz
Effective Measurement Range: 20mA to 650A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.
Application
Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.
