9-12V Radio Frequency Wideband Amplifier Low Amplifier Lna (0.1-2000Mhz Gain 32Db)
- 131 reviews
- 148 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
Certification: CE
Model Number: 0.1-2000MHz Gain 32dB
Working frequency: 0.1-2000MHz
Working voltage: 9-12V
Working current: 27mA
9-12V Radio Frequency Wideband Amplifier Low Noise Amplifier LNA (0.1-2000MHz Gain 32dB)
Feature:
1) : The amplifier has the advantages of wide frequency range, high gain, low noise figure, etc.
2) : Can be used for various RF receiving front ends to increase the communication distance
3) : Large-scale shortwave, FM broadcasting, remote control receivers, cable TV signal amplifiers and other places that require low-noise, small-signal RF amplification
4) : Wide range of use
5) : Safe to use
1.Product Application:
The amplifier has the advantages of wide frequency range, high gain, low noise figure, etc., and can be used in various radio frequency receiving front ends to increase the communication distance! Large-range shortwave, FM broadcasting, remote control receivers, cable TV signal amplifiers and other places that require low-noise, small-signal radio frequency amplification.
2.Technical Indicators:
1) Working frequency: 0.1-2000MHz
2) Working voltage: 9-12V (suitable for lithium battery power supply)
3) Working current: 27mA
4) Amplification gain: 32dB (typical value)
F= 0.1MHz, gain=32dB
F = 500Mhz gain = 32dB
F=1000MHz gain=32dB
F=1500Mhz gain=32dB
F=2000MHz gain=32dB
F=2500MHz gain=30dB
F=3000MHz gain=29dB
5) Maximum output: 13dBm (20mW)
6) System impedance: 50 ohms
7) Connector model: SMA-K (internal thread, external thread, inner hole)

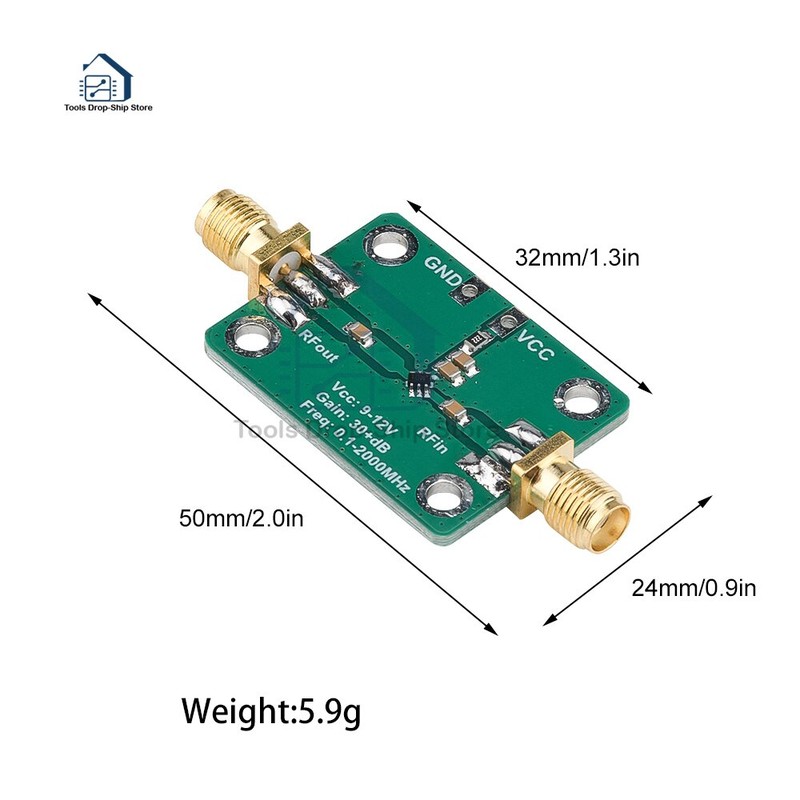

8) Size: 25*33mm (without connector)
9) Product weight: 5.9g

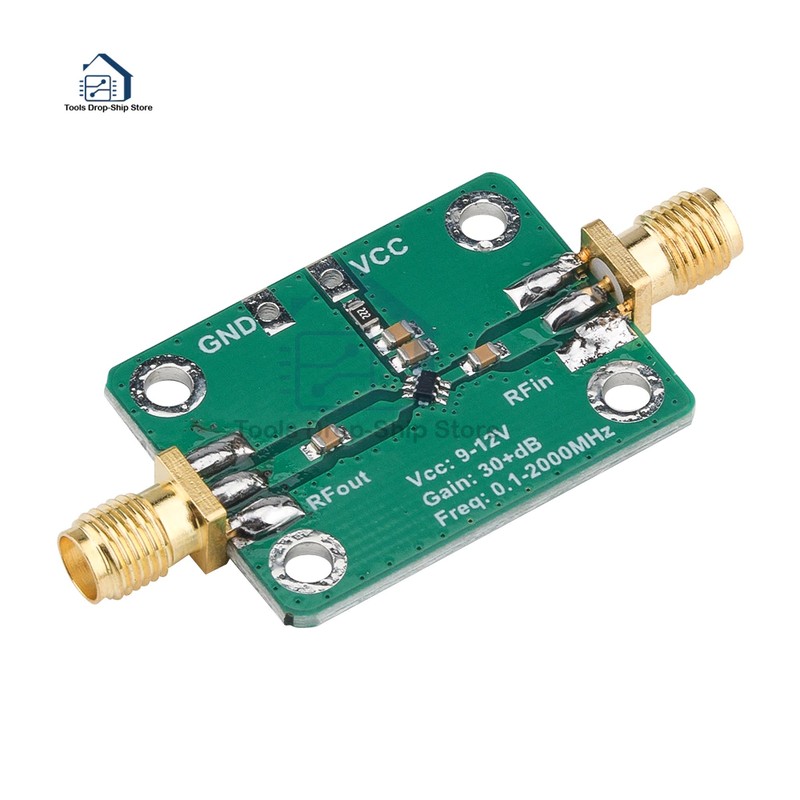

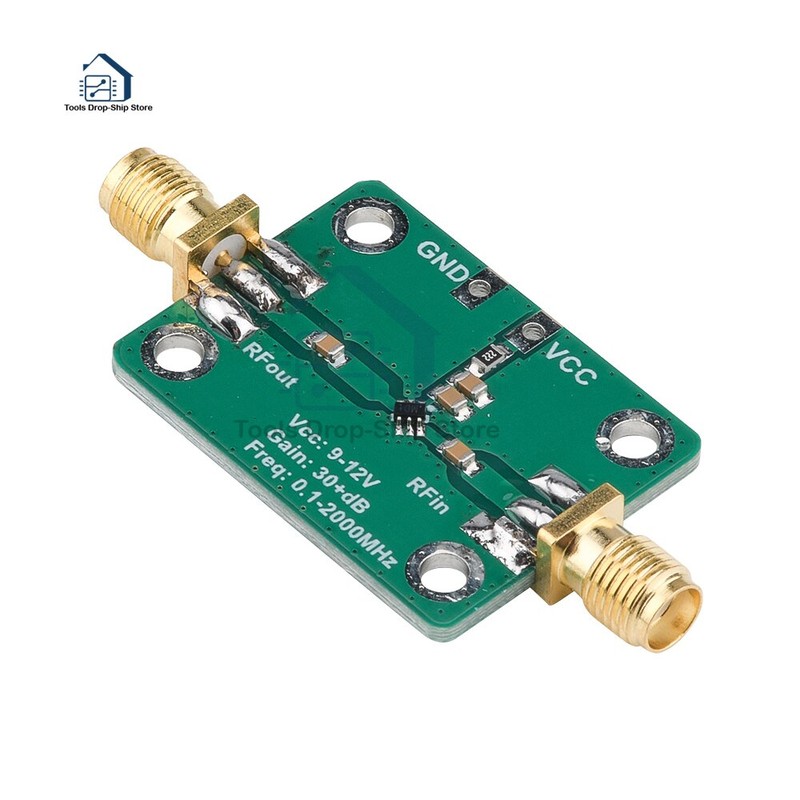

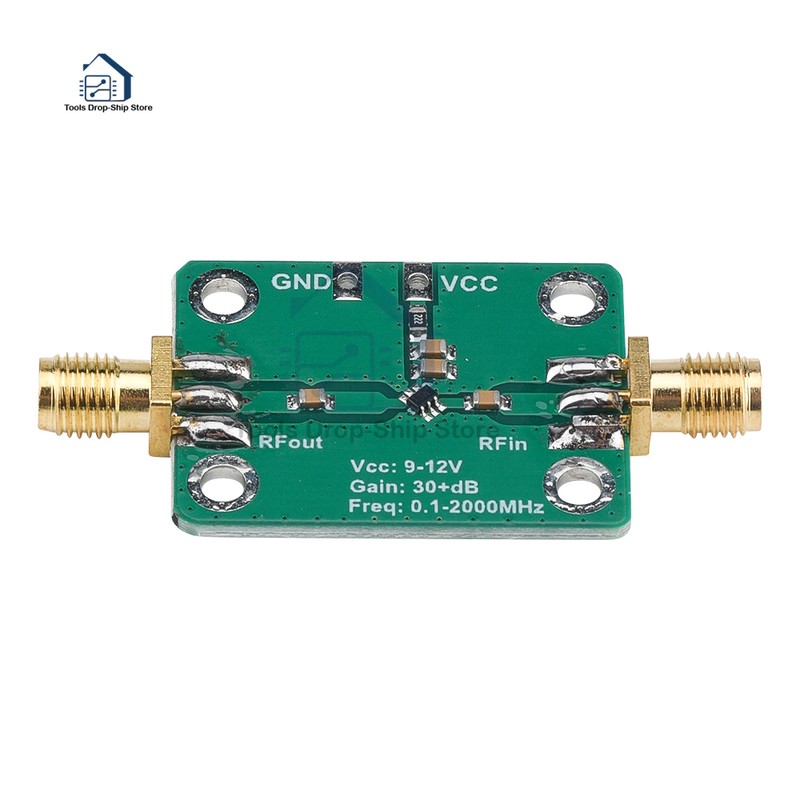

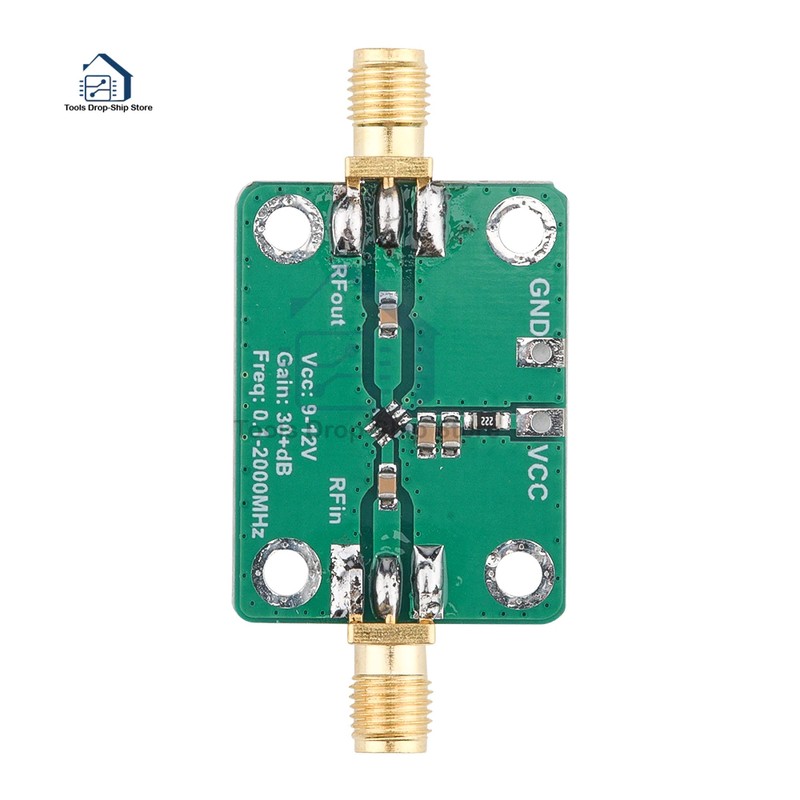

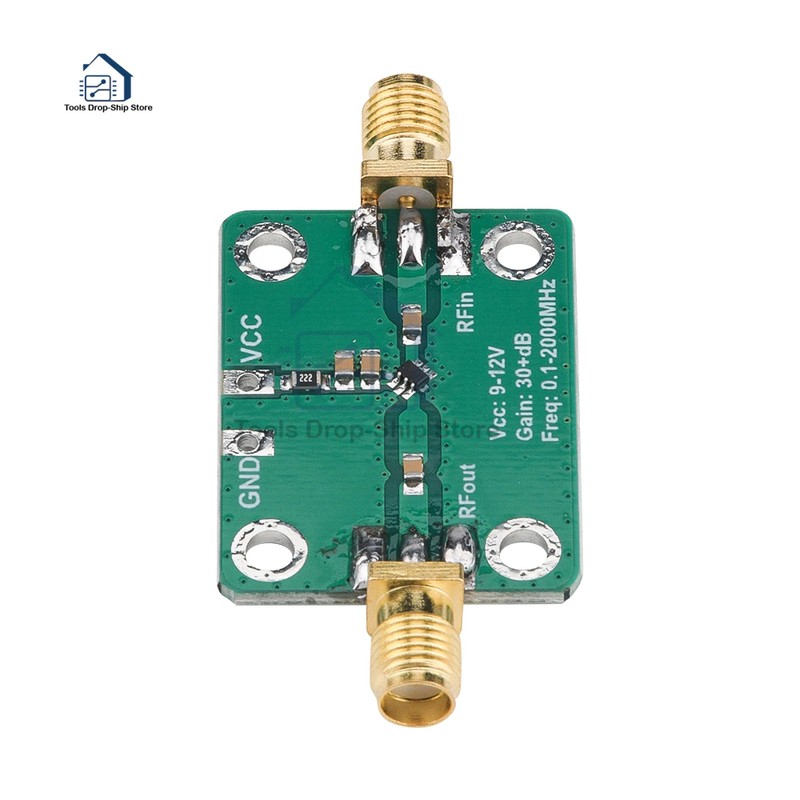

3.How to use:
RFin: Input signal amplification
RFout: output amplified signal
VCC: Positive power supply (for lithium batteries)
GND: negative pole of power supply
Package Included:
1*amplifier
