48V 750W Bafang Bbs02B Mid Drive Motor Electric Bicycle E-Bike Conversion Kits 68-73Mm 8Fun Powerful Engine Ebike 44T - 52T
- 134 reviews
- 165 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Design: Brushless
Certification: CE
Voltage: 48V
Wattage: > 400w
Motor Type: Side Hung Motor
Brand Motor Type: BBS02B MM G340.750
MAX SPEED: 50-58km/h
Work With: 48V/52V Battery

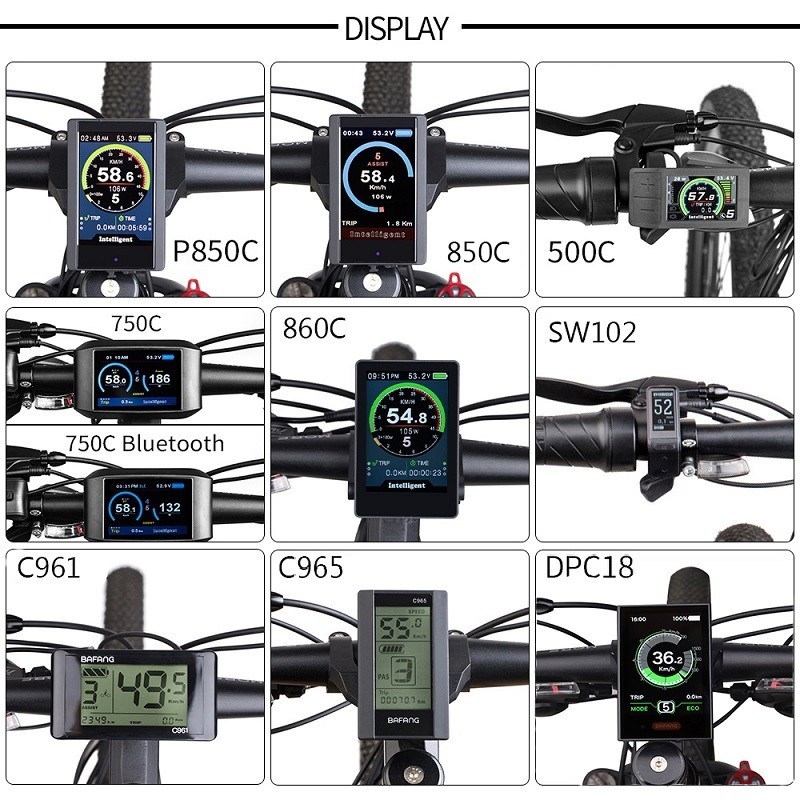

Display: 860C DPC18 P850C etc
MAX Tonque: 160N.m
RPM: 130-150
Motor Weight: 4.3 kg
Efficiency: ≥ 80%
Controller Current Max Limit: 25A

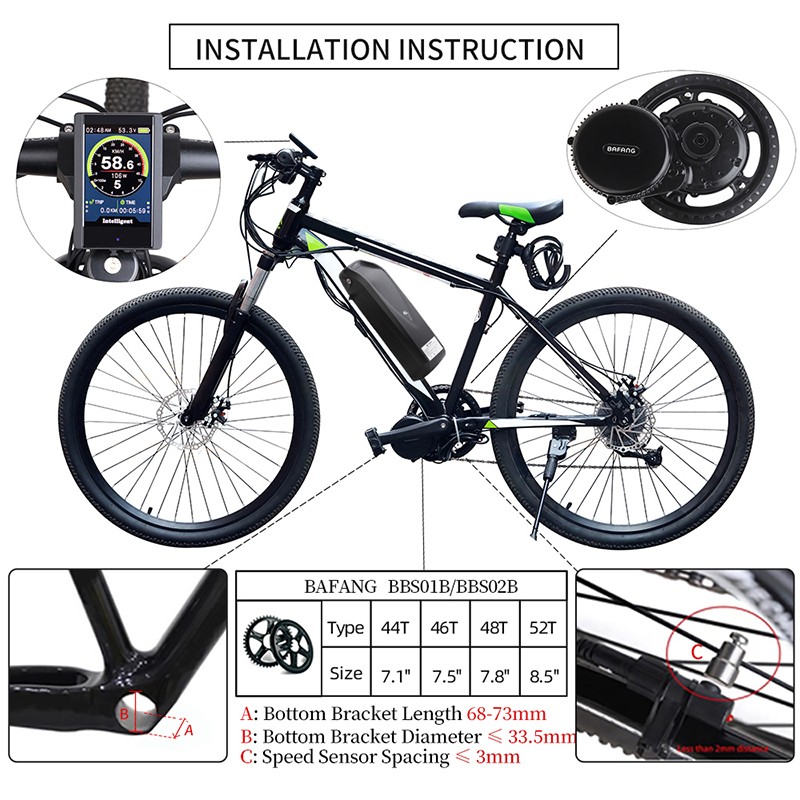

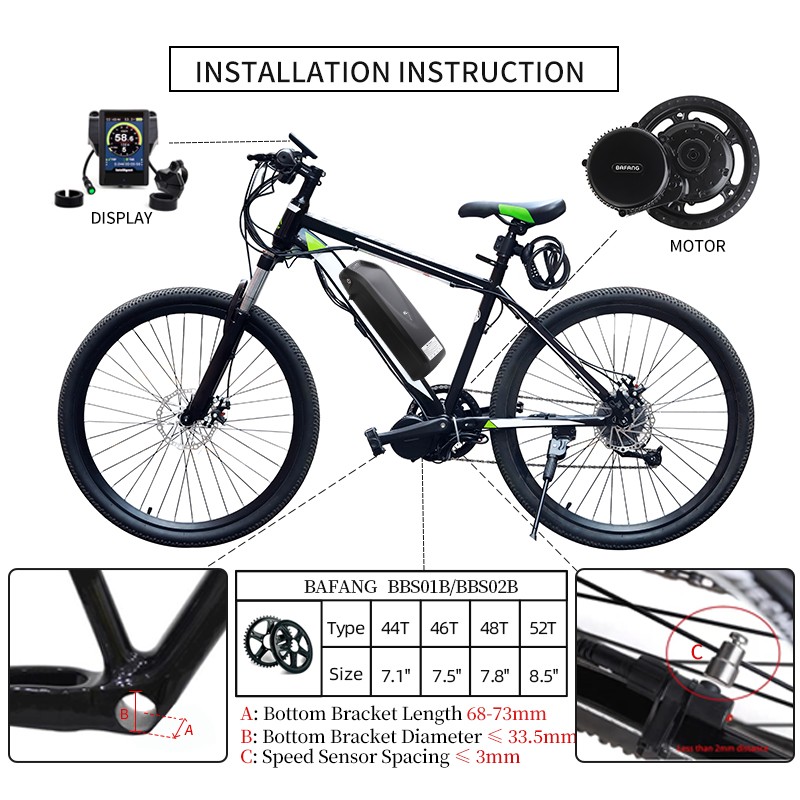

Fit For E-bike: Bottom Bracket 68-73mm
Latest Version Motor: With Gear Sensor and Light Ports
Waterproof Rate: IP 65
Motor Warranty: One Year
BBS02B 48V 750W Specification:
Motor with shift sensor and light ports
Power:750WVoltage:48V
Controller MAX Current:25A
No Load Speed(RPM):140-160
Load Speed(RPM):120-135
MAX Tonque:160N.m
Efficiency:>80%
Reduction Ratio: 1 : 21.9
Centification:CE/EN 14764/ROHS
Waterproof Grade:IP65
Motor Weight: 4.24kg
Bracket bottom length:68mm
Motor Operation Temperature:-20℃-45℃
Max speed:48-60km/h (Different work condition different speed)

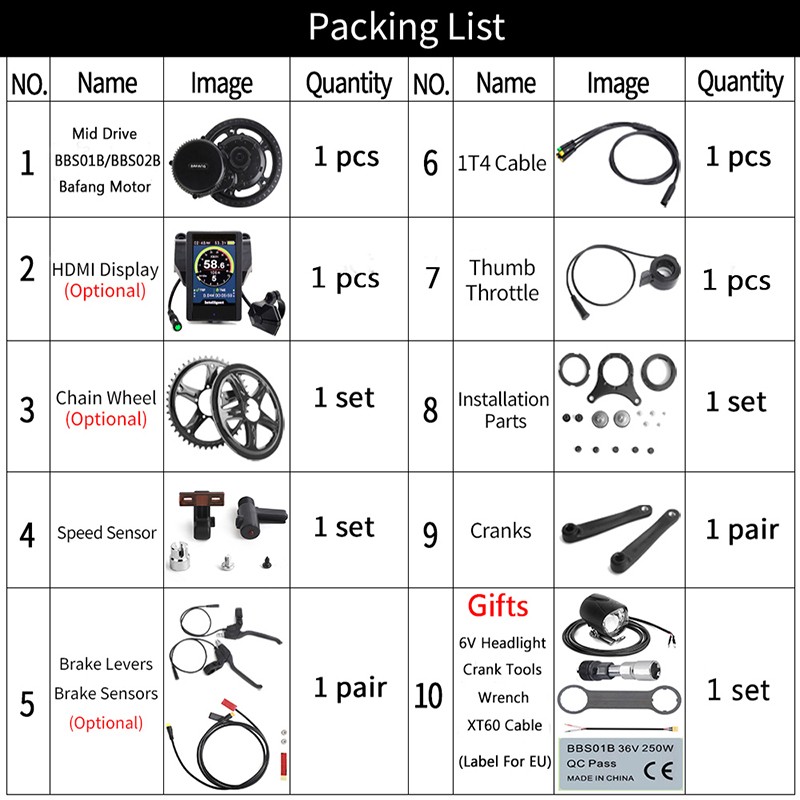

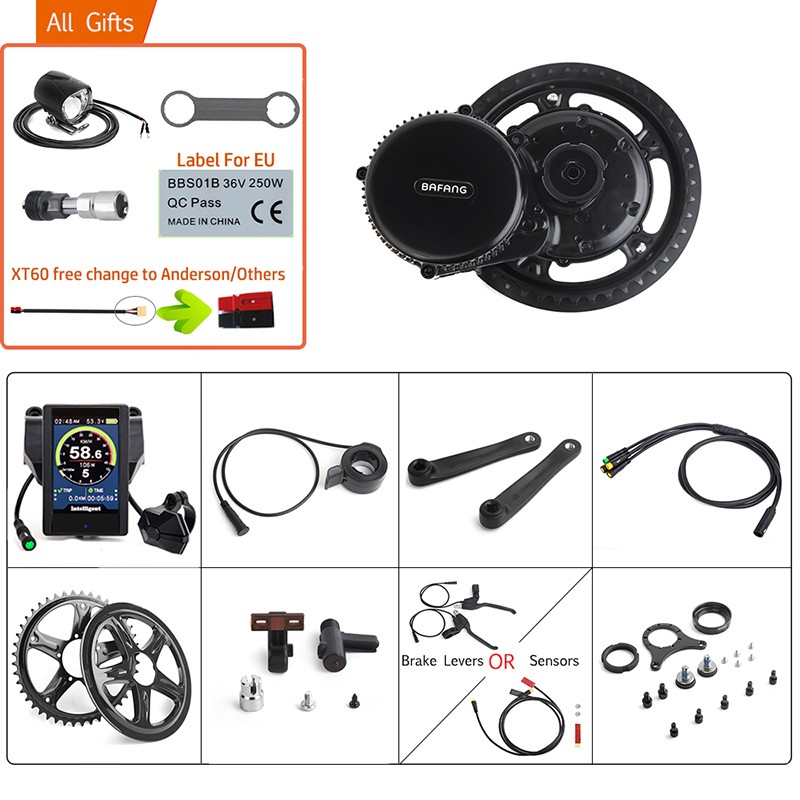

Packing List:

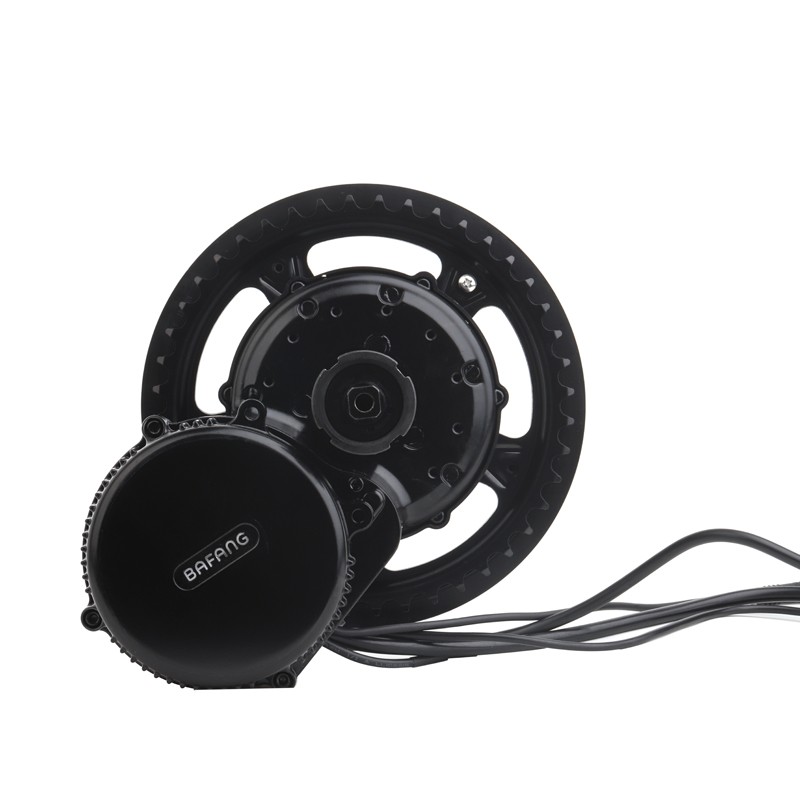

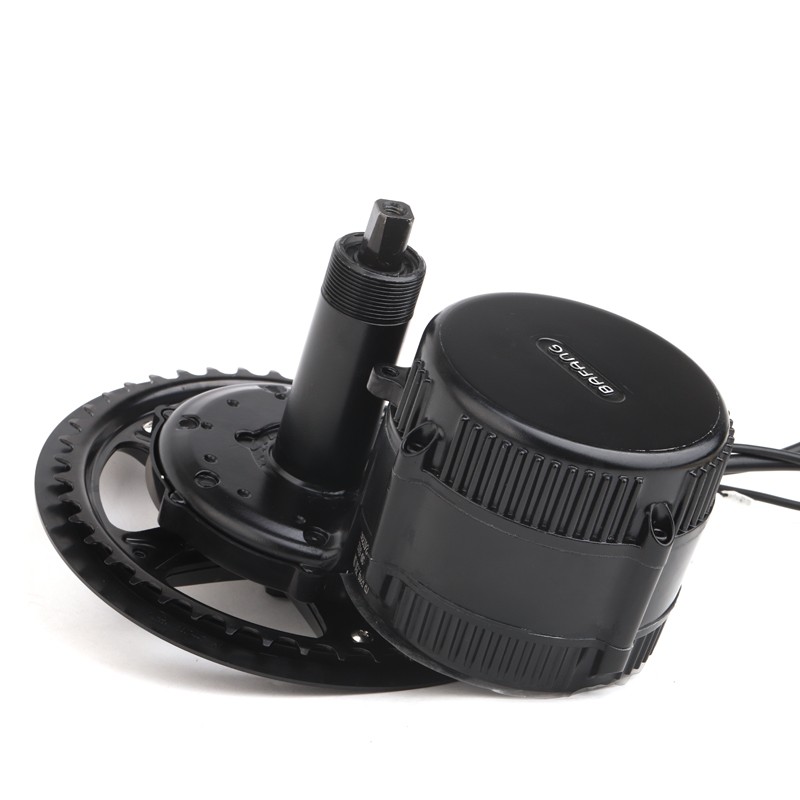

Bafang/8FUN BBS02B 48V 750W Motor
HDMI Display(Optional)

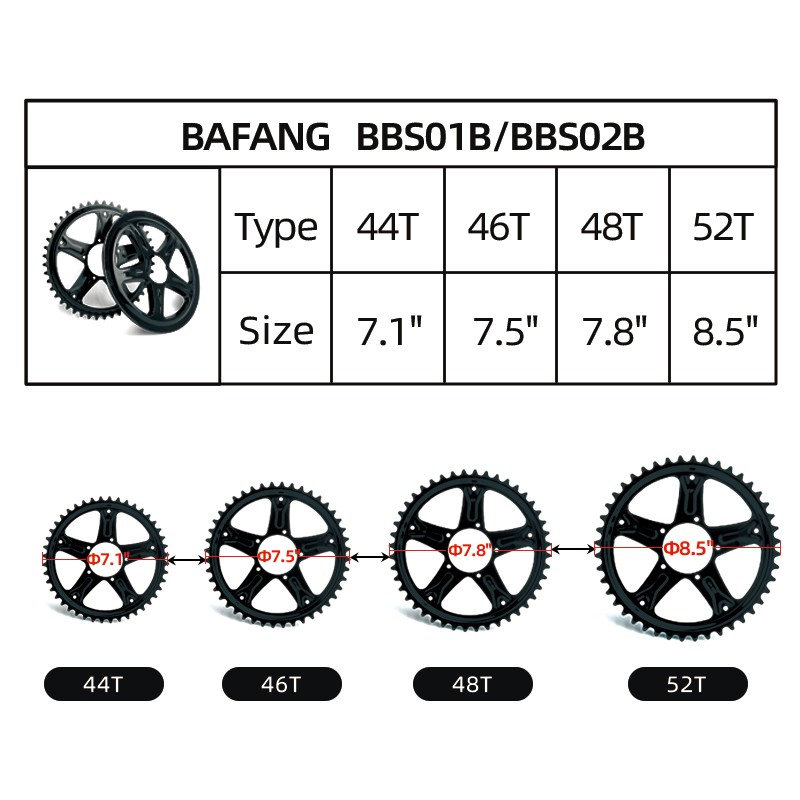

Chain wheel(Optional)
Speed sensor
Brake Levers/Brake Sensors(Optional)
1T4 Cable
Thumb throttle
Installation parts
Crank
Gifts:Wrench + 6V headlight + Crank Tools +XT60 Cable + 250 Stickers(Only for EU And Canada)
(Default we will send youbrake levers,brake sensor not incluce.If you want brake sensor instead of brake leversor change chain wheel size please leave us message.)
