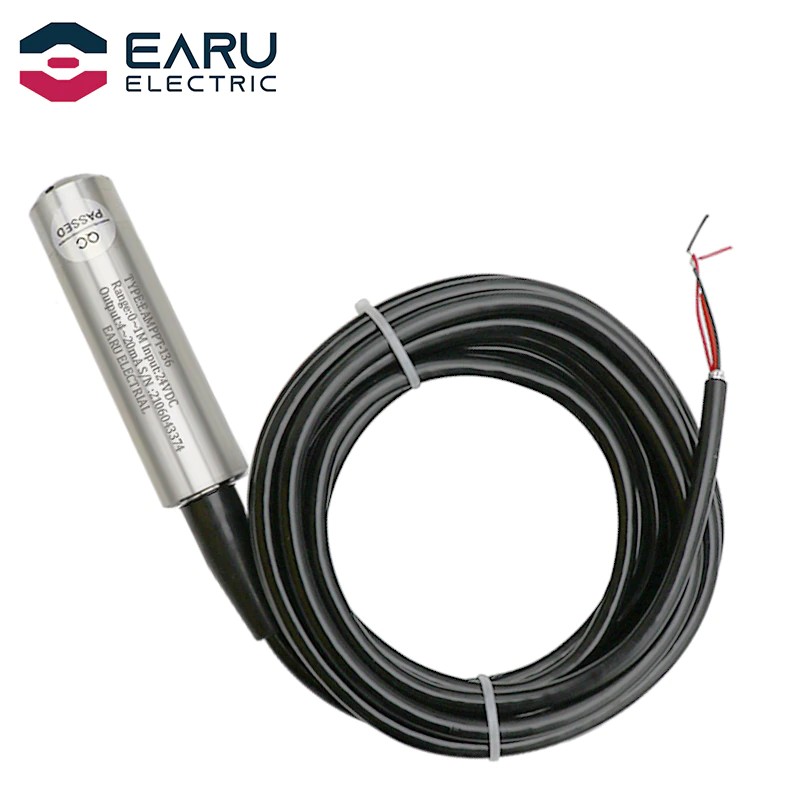

    • 4-20Ma Output Integral Level Oil Water Level Sensor Probe Detect Controller Float Switch 1-10M Rs485 For Pump

    USD $37.80VAT Included50% OFFFree Shipping
    Just for Dropshipping and Wholesale
    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    S***i Verified Buyer

    Installed and did some testing/calibrating: excellent precision! Down to 1L! (on the 0-1M model). Well made, heavy stainless steel. Installed in fresh watertank on RV connected to Victron GXTank140 to Cerbo. Works out of the box!

    5
    W***z Verified Buyer

    Very good quality of level transsmitters, very fast delivery from Spain to Bulgaria.

    5
    T***s Verified Buyer

    Works, how much time we'll see. Took in another store worked for 3 months and died.

    5
    E***j Verified Buyer

    Sensors look good, arrival you very fast and very concerned supplier, thanks

    5
    R***o Verified Buyer

    Corresponds to the description! checked-Works! how reliable-time will show

    4
    F***y Verified Buyer

    External sensor is made. High quality. Let's see, that will operate..

    5
    E***o Verified Buyer

    Thank you so much. Connected to siemens plc. Result was very good

    5
    Q***s Verified Buyer

    Very good quality of lewel transmitters, fast delivery.

    5
    D***e Verified Buyer

    Very accurate sensor. At 5 meters checked personally

    5
    J***x Verified Buyer

    Vwey good quality of level transsmitters

    5
    O***a Verified Buyer

    Very good quality of level transmitters

    5
    T***h Verified Buyer

    Very good quality of level transmitters

    5
    L***h Verified Buyer

    best quality of products

    5
    H***s Verified Buyer

    Excellent product!

    5

    Certification: NONE
    Max Measuring Range: 200 - 399 Bar
    Model Number: level transmitter
    Controller Power Supply: 85-260 VAC
    Sensor Power Supply: 10-30 VDC



    1. Product Overview

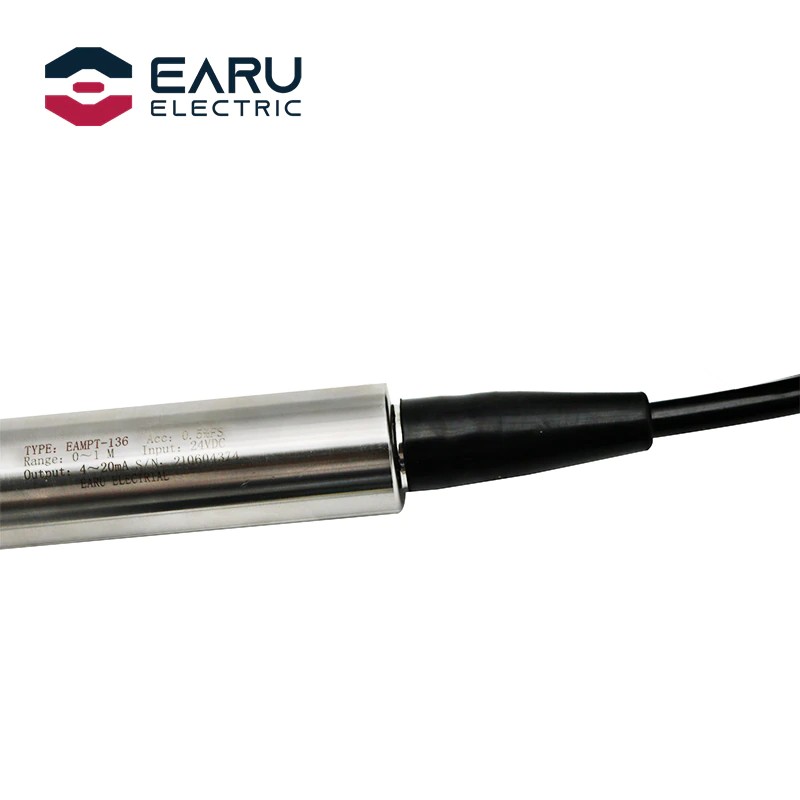

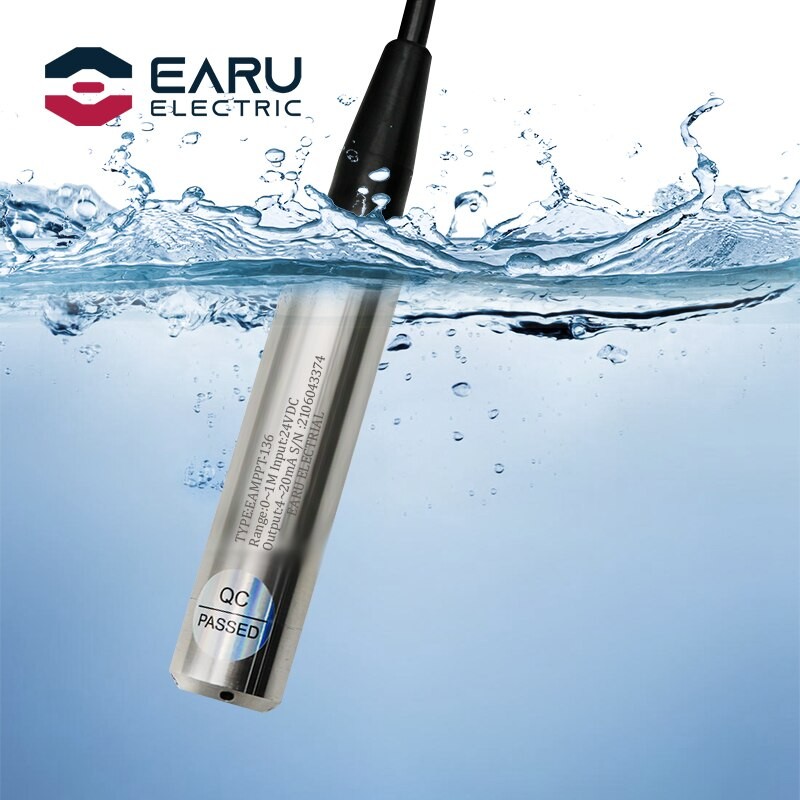

    The input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless steel housing. The front end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.
    2. Application range

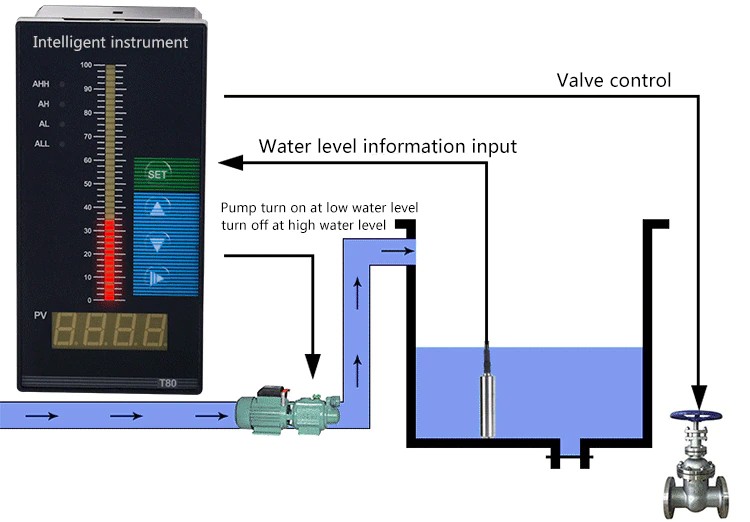

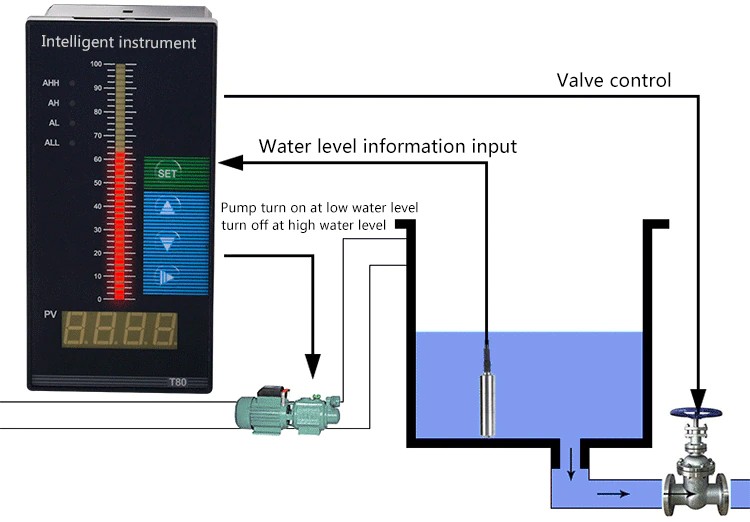

    Widely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places
    3. Technical parameters
    ◆ fully enclosed circuit, with moisture, condensation, anti-leakage function
    ◆ Range: 0～200meters
    ◆ One-piece
    ◆ Accuracy: 0.5%FS

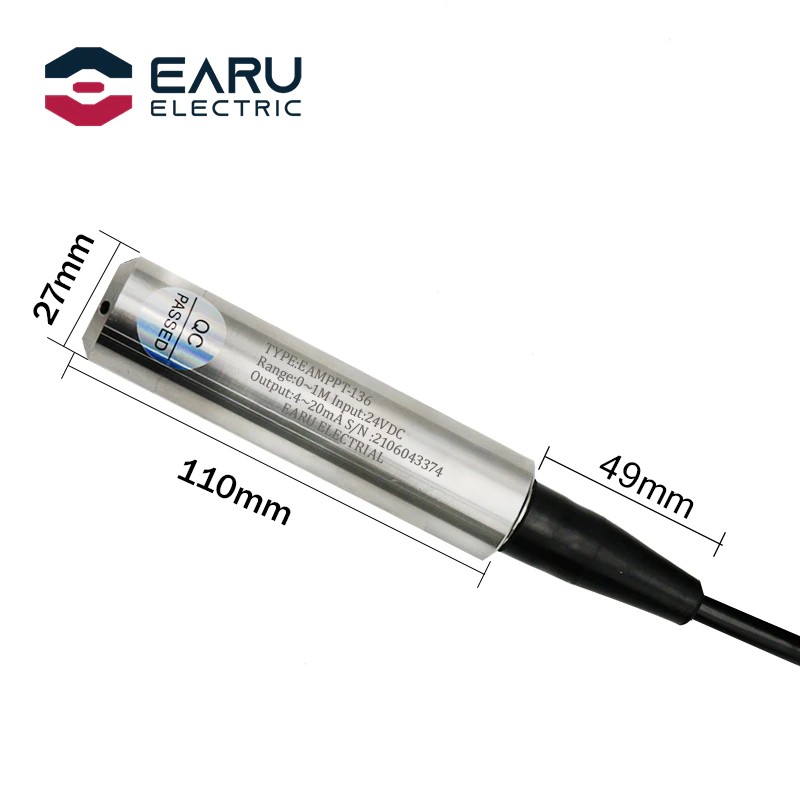

    ◆ Appearance size is about 145mm, diameter 28mm
    4. Technical parameters:
    Measurement form and range 0～1～200mH2O
    Allow overload 2 times full scale pressure
    Working temperature -20～60°C
    Temperature compensation -10～60°C
    Storage temperature -40～80°C

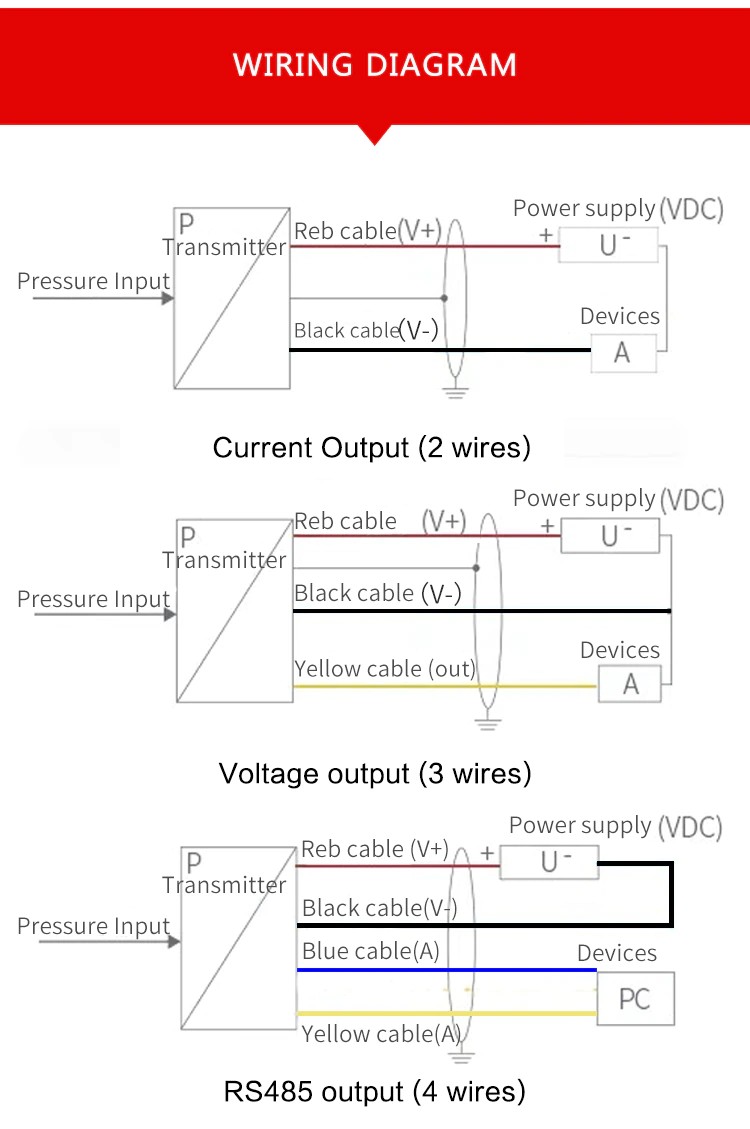

    Output signal 4-20mA
    Power supply 10~30 VDC (standard voltage 24VDC)
    Shell Material 304 Stainless Steel(exceptwe mark for 316 matarial ,others is 304)

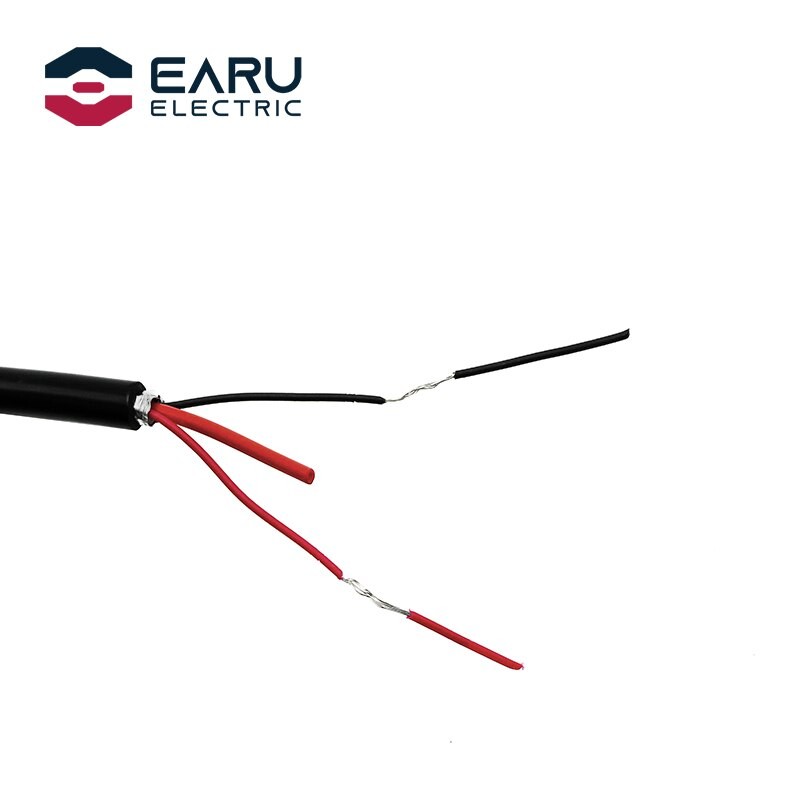

    Cable waterproof breathable cable
    Protection class IP68
    1m cable=1m range with 1m cable
    2m cable =2m range with 2m cable
    3m cable=3m range with 3m cable
    4m cable=4m range with 4m cable
    5m cable=1m or 2m or 3m or 4m or 5m range with 5m cable ,
    please choose which range you need .or we default 5m range with 5m cable
