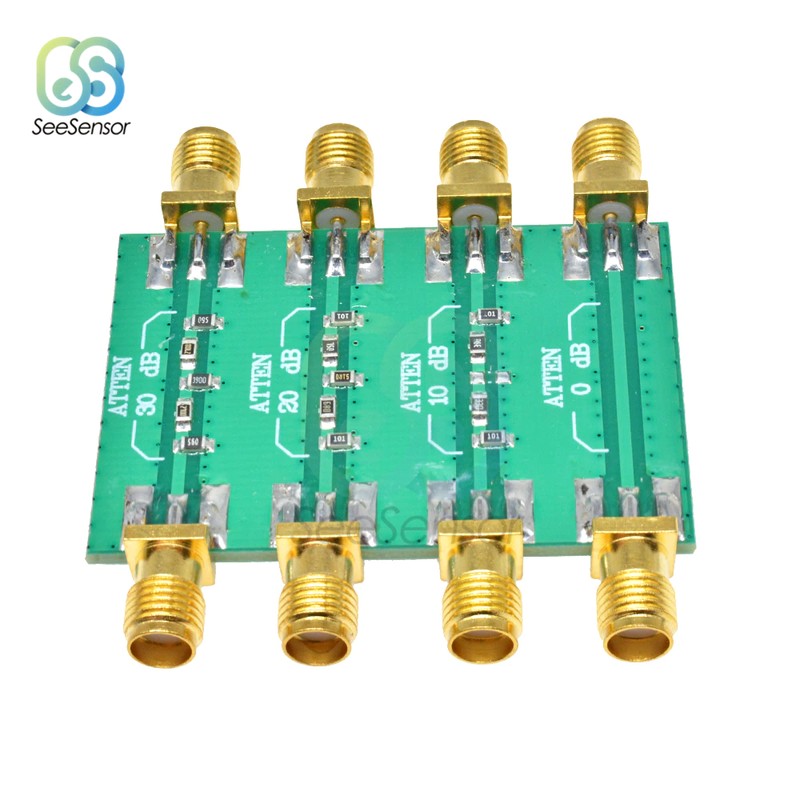

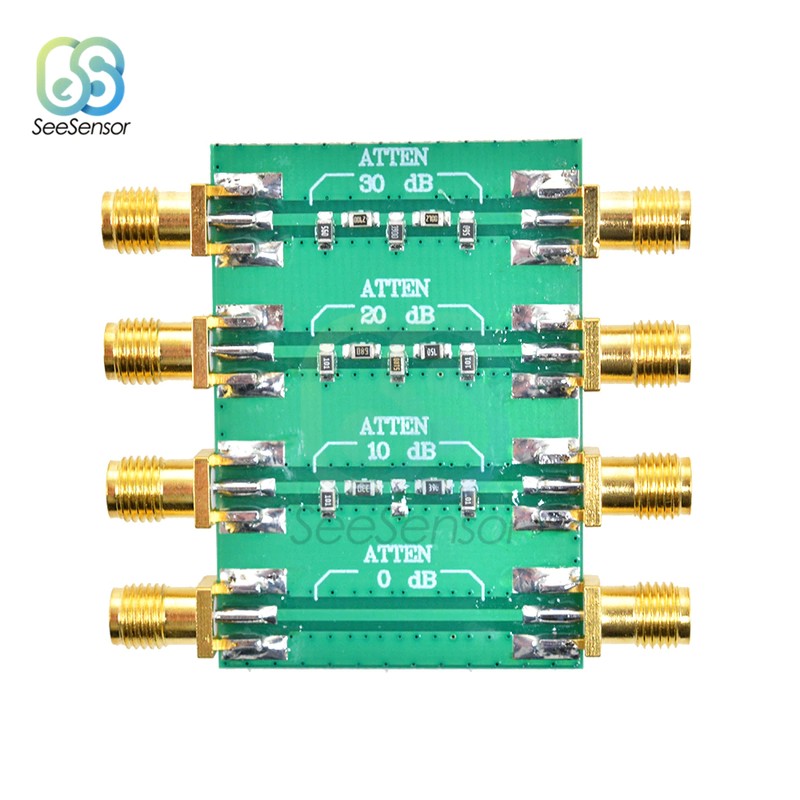

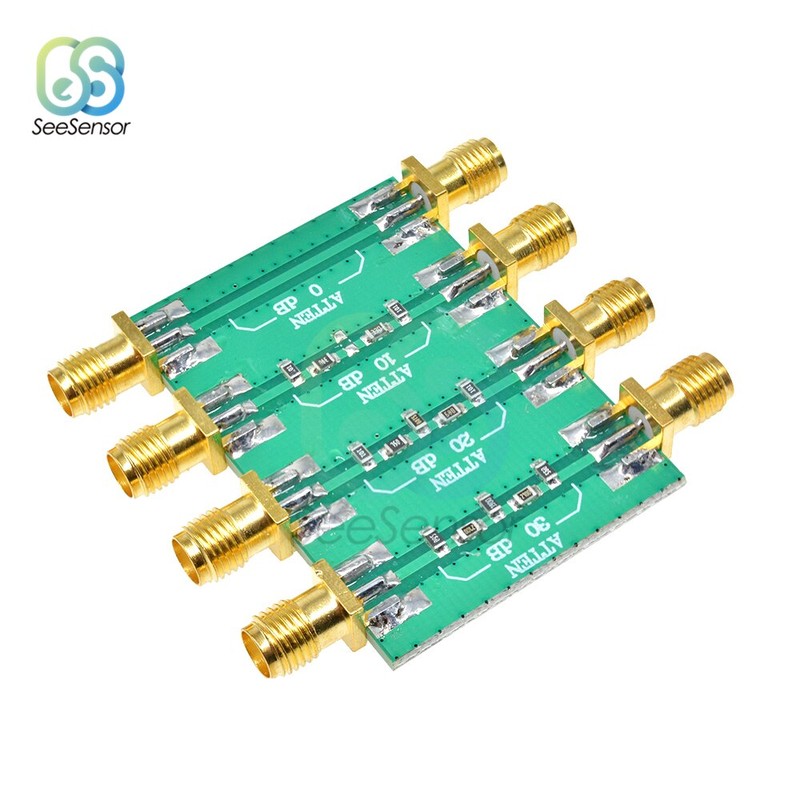

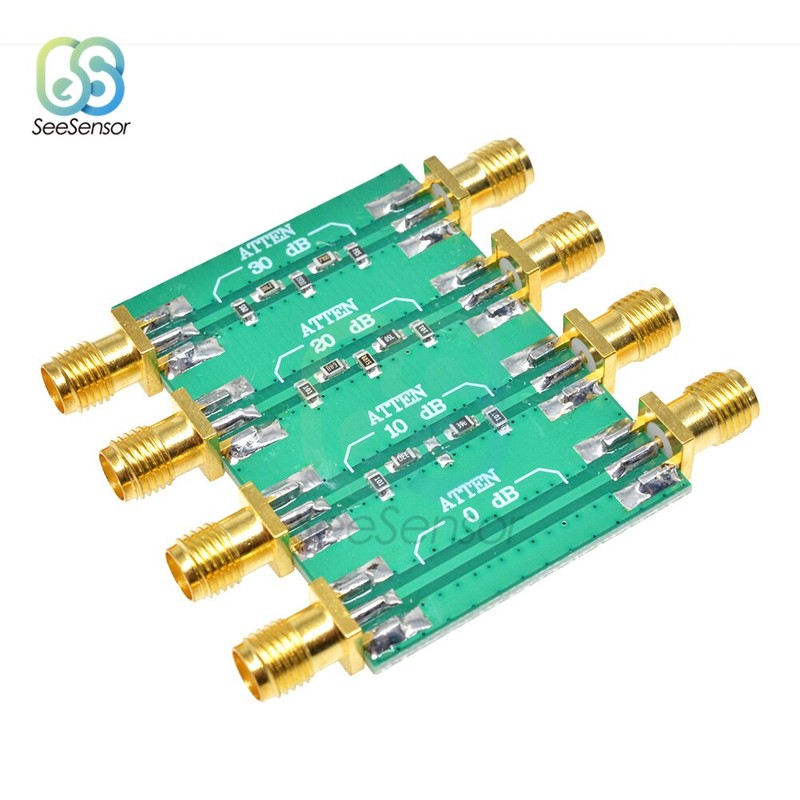

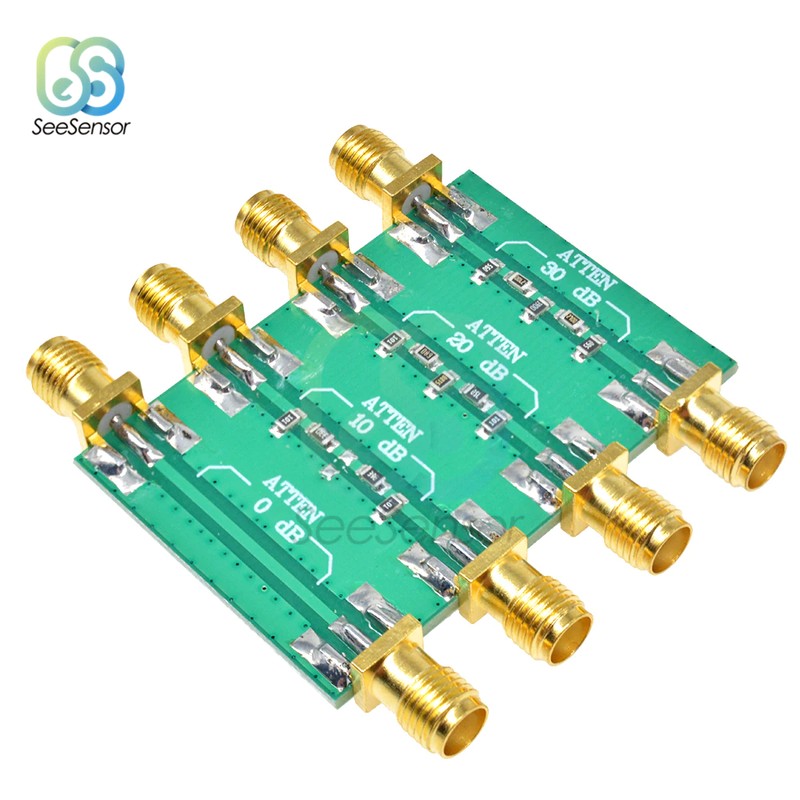

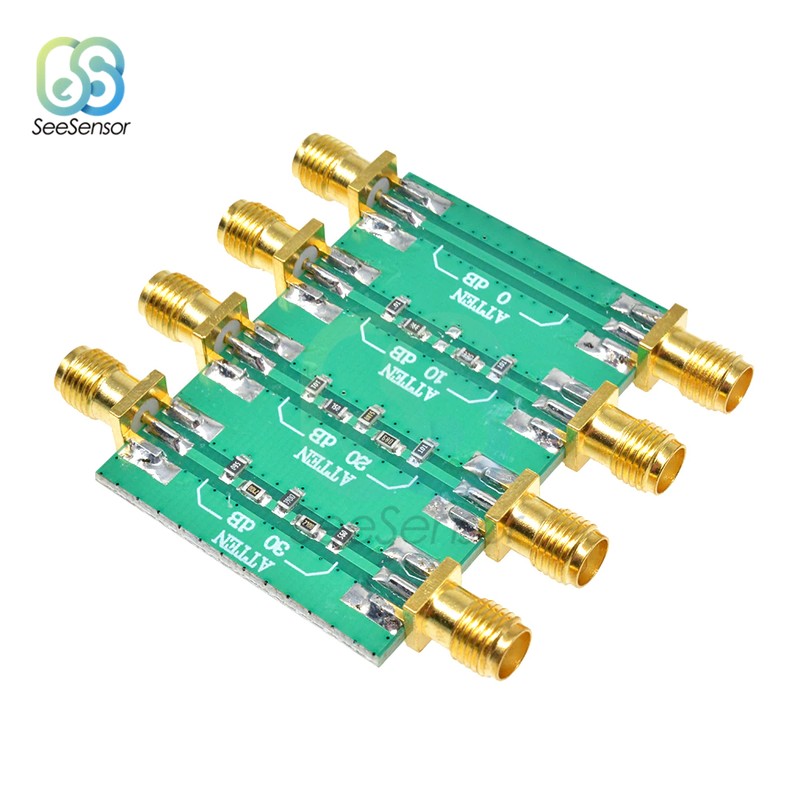

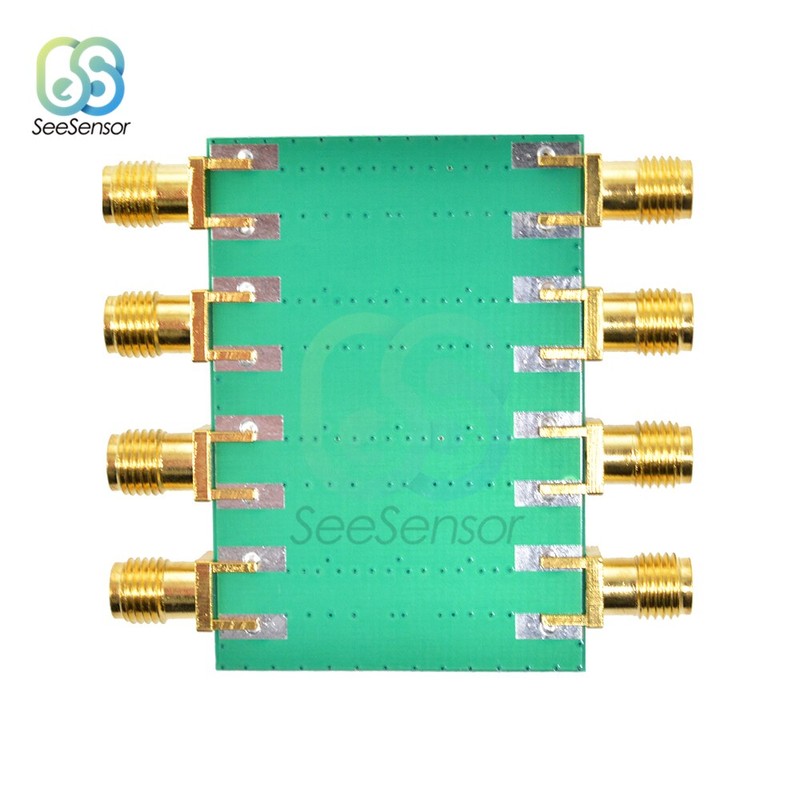

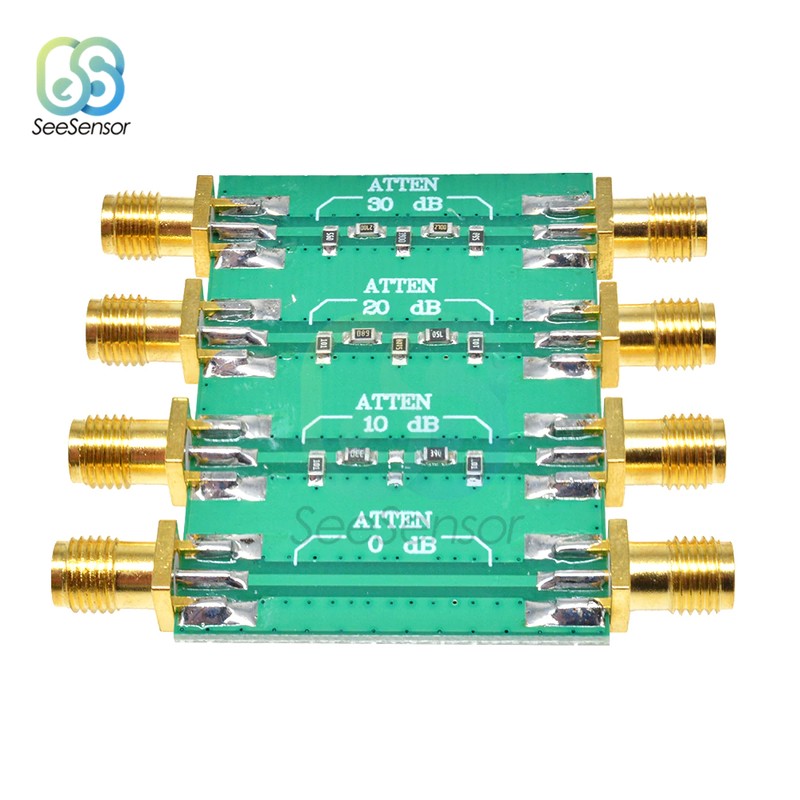

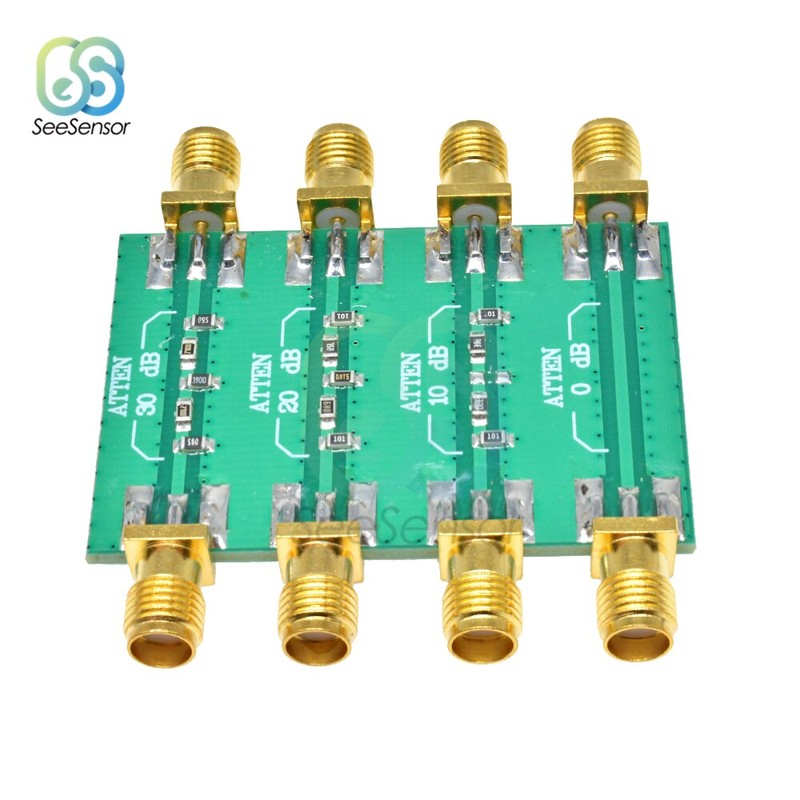

23Dbm Dc 4.0Ghz Rf Fixed Attenuator Module Board Sma Double Female Head 0Db 10Db 20Db 30Db
- 107 reviews
- 118 Sold
USD $4.23VAT Included50% OFFFree Shipping
Just for Dropshipping and Wholesale
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
Dimensions: Pls check description
Measuring Voltage Range: Pls check description
Operating Temperature: Pls check description
Accuracy Class: Pls check description
Model Number: RF Fixed Attenuator
Measuring Current Range: Pls check description
Product performance indicators:
Frequency range: DC - 4.0GHz
Maximum power: 23dBm (200mW)
Standing wave ratio: 1.20
System impedance: 50
RF interface: SMA double female head (Outer screw inner hole)
Attenuation:
Direct: 0dB (reference)
Level 1: 10 0.8 dB
Level 2: 20 1.1 dB
Level 3: 30 1.5dB
Package included:
1 x DC 4.0GHz RF Fixed Attenuator SMA Double Female Head 0dB 10dB 20dB 30dB
