220V Ac Eu Digital Lcd Power Meter Wattmeter Socket Wattage Kwh Energy Meter Fr Us Uk Au Br Measuring Outlet Power
- 140 reviews
- 3046 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
Measuring Energy Range: 0-9999V
Display Type: LCD
Output Voltage: 250V
Model Number: Energy meter
Certification: CE
Power Supply: AC
Phase: Single Phase
Rated Voltage: 230V

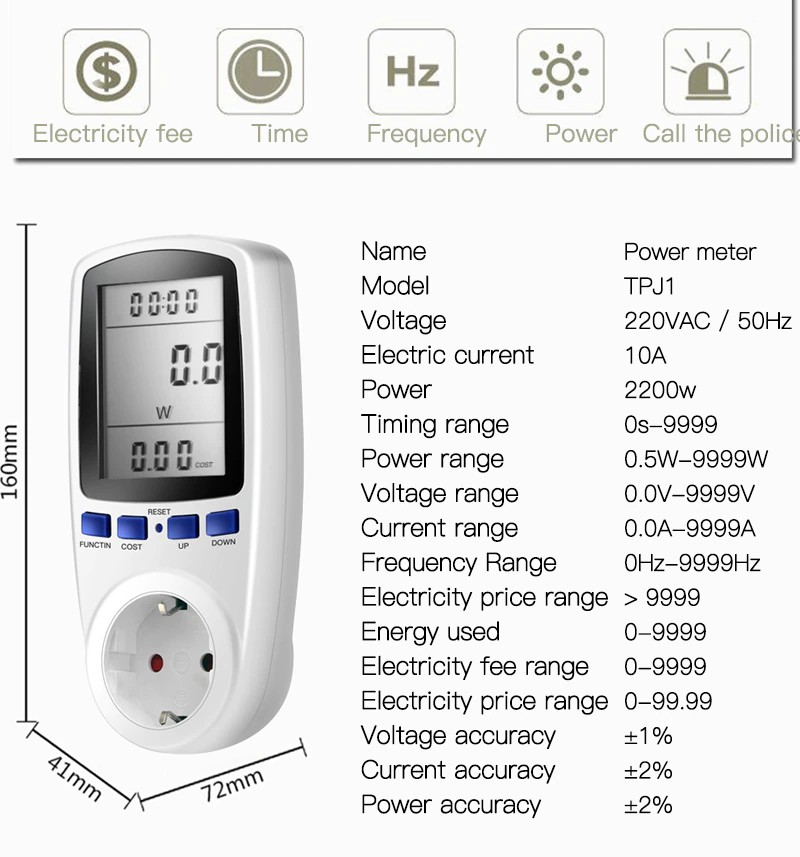

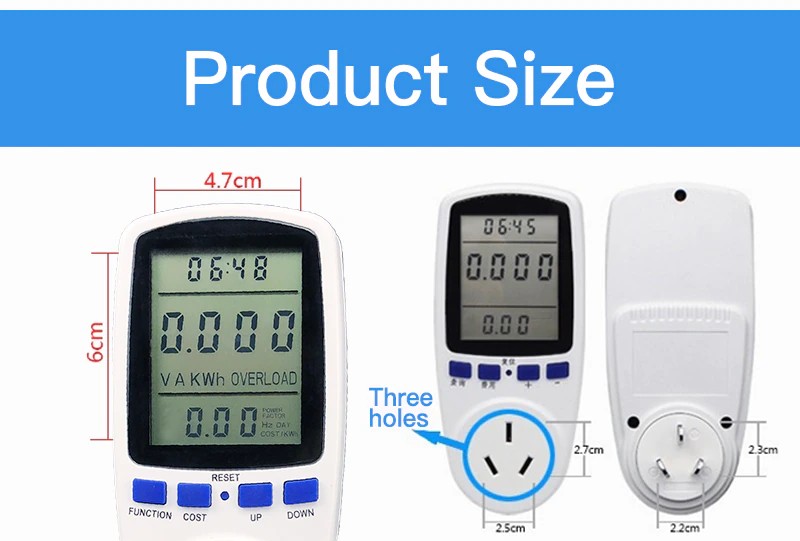

Dimensions: 160*41*72mm
Operating Temperature: 0~40℃
Accuracy Class: High quality
Max Operating Current: 19A & Under
Function 1: Wattmeter
Function 2: Power Meter

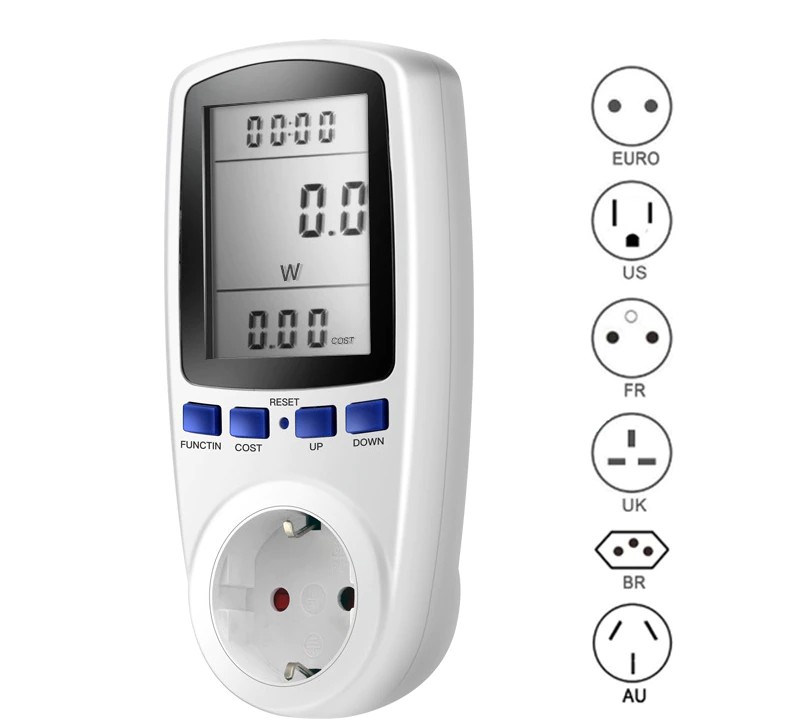

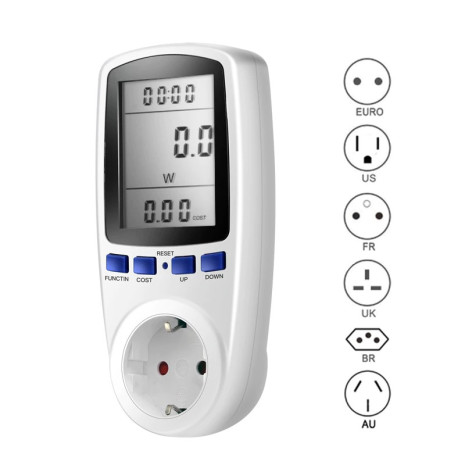

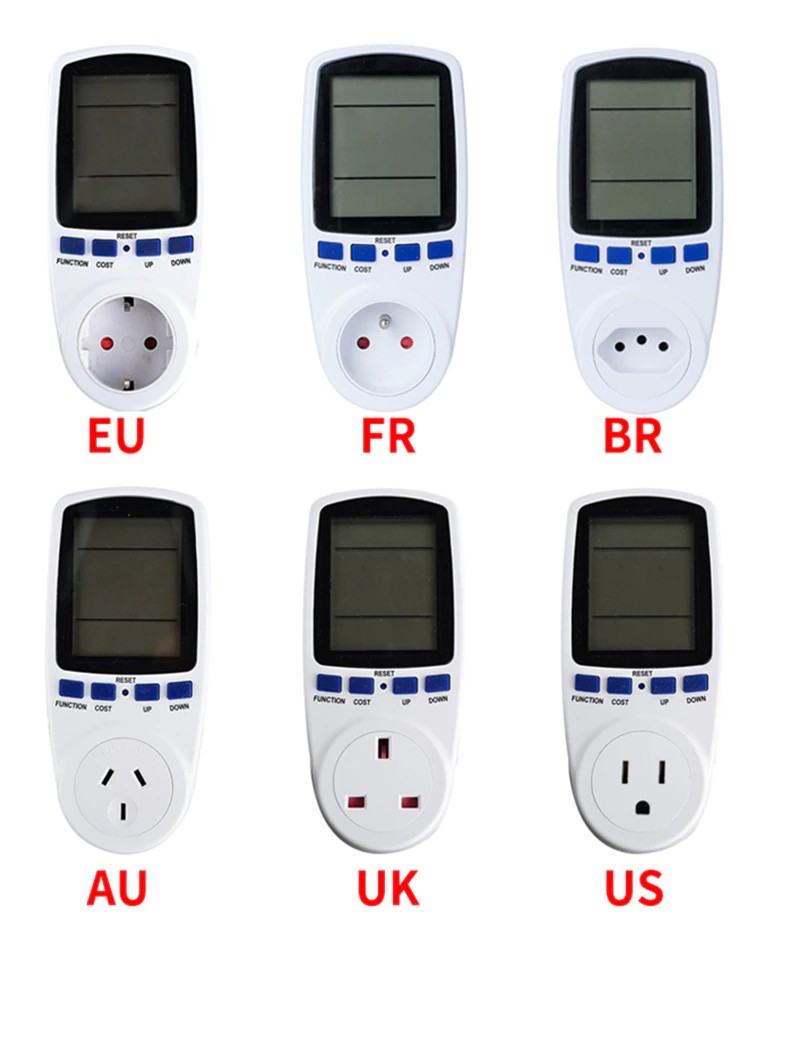

Plug Type: EU UK US AU BR FR
Color: White
EU: 230V 3680W 16A 50HZ
US: 120V 1800W 15A 60HZ
AU: 220V-240V 2400W 10A 50HZ
FR: 230V 3680W 16A 50HZ
UK: 230V 3680W 16A 50HZ
BR: 220V-250V 50HZ

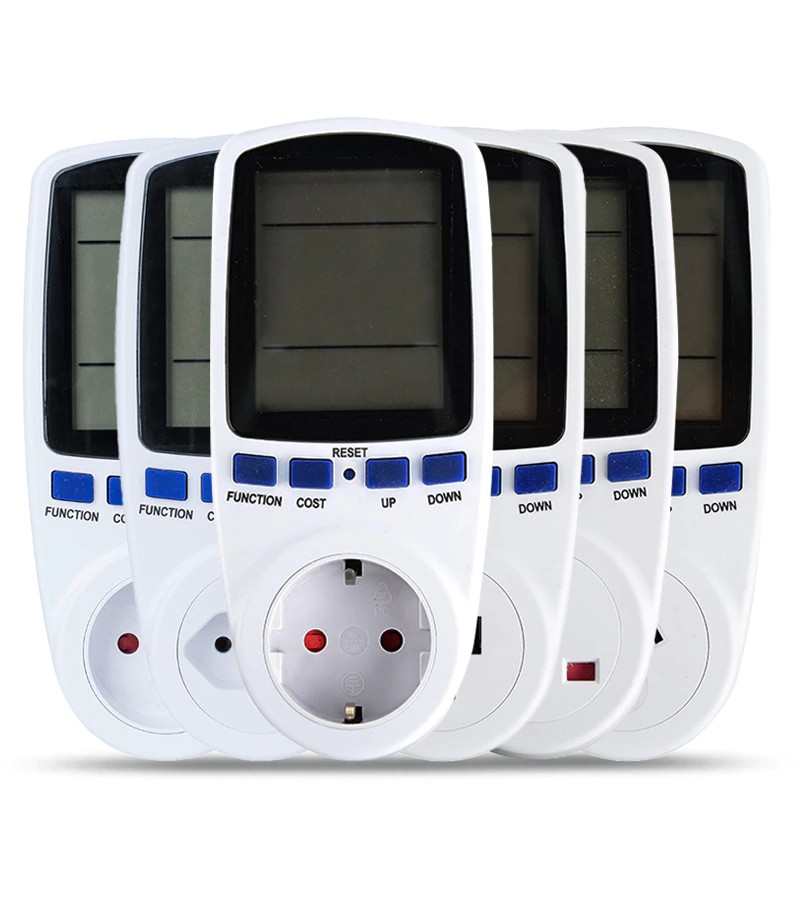

220V AC EU Digital LCD Power Meter Wattmeter Socket Wattage Kwh Energy Meter FR US UK AU BR Measuring Outlet Power Analyzer

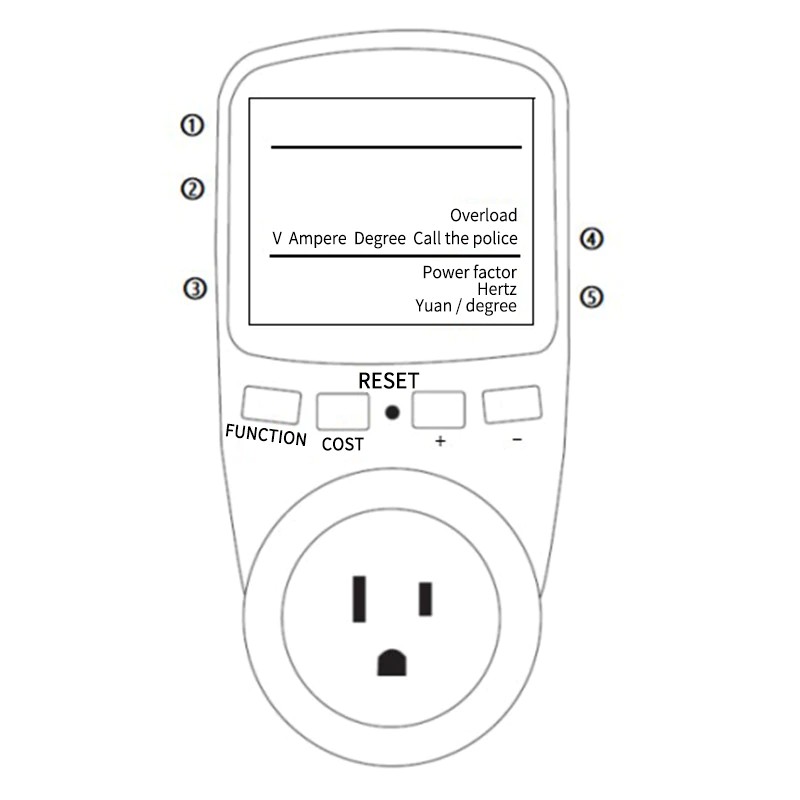

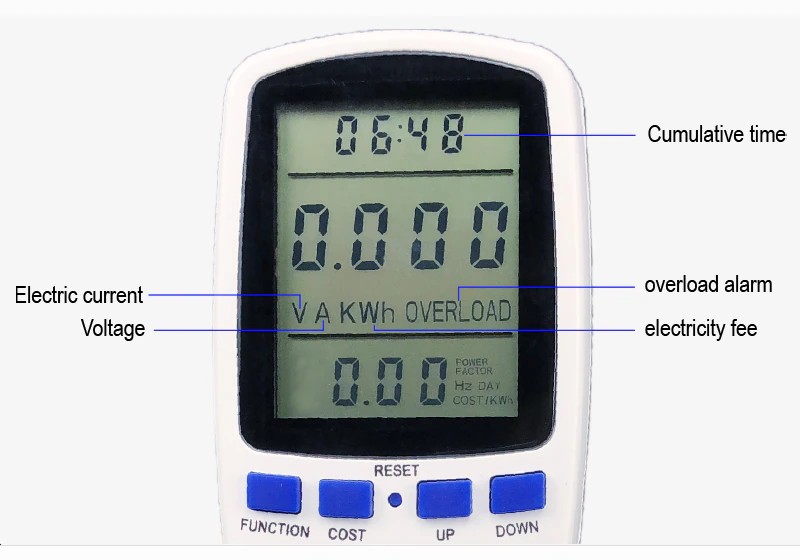

① Time display bar; ② Voltage / current / power / power consumption value; ③ Power factor / frequency / electricity value; ④ Volt: voltage; Ampere: current; (Kwh) degrees: electricity consumption; Watts: power; Overload alarm: Power overload reminder. ⑤ Power factor: the ratio of active power to apparent power; Hertz: AC frequency; Days: cumulative days of electricity consumption; Yuan: the total amount of power consumption; Degree: Cumulative electricity consumption; Yuan / degree: unit price of electricity.

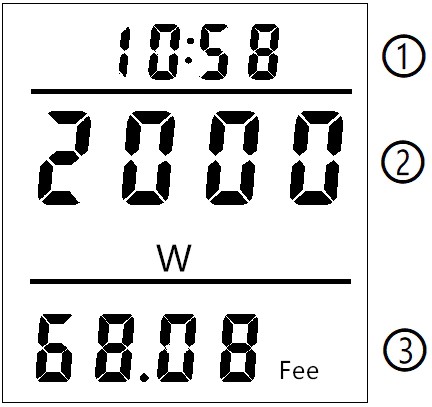

Page one: ① Running time: cumulative running time of electrical appliances, after 24 hours, days + 1; ② Current power: the actual power of the electrical appliance connected to it, in watts; ③ Cumulative electricity cost: as of now, the cost has been consumed, unit yuan.

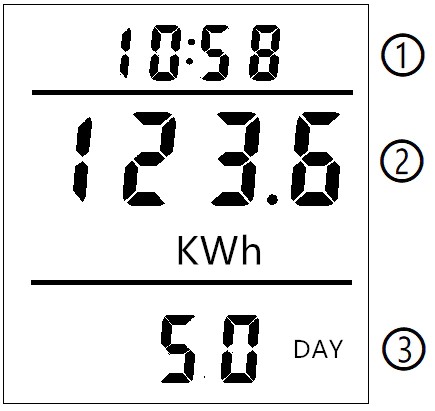

Page two: ① Running time ② Cumulative power consumption: as of now, the cumulative power consumption, in units of degrees; ③ Cumulative time: the cumulative number of days of operation with electrical appliances, in units of days.

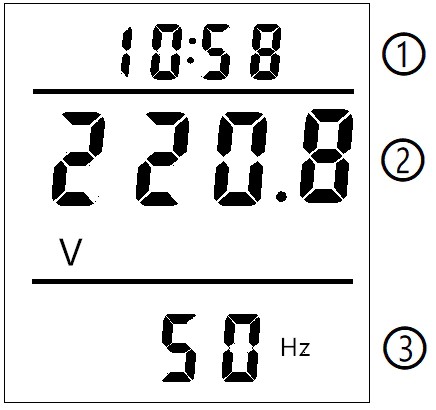

Page three: ① Running time ② Grid voltage: the current real-time voltage of the grid, in volts; ③ Grid frequency: Grid AC frequency, in hertz.

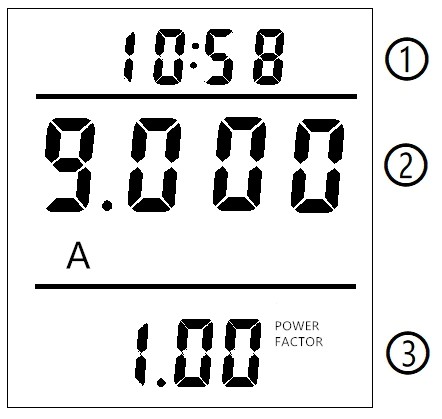

Page four: ① Running time ② Real-time current: the real-time current of the electrical appliance connected to it, in amperes ③ Power factor: the power factor of the electrical appliance connected to it

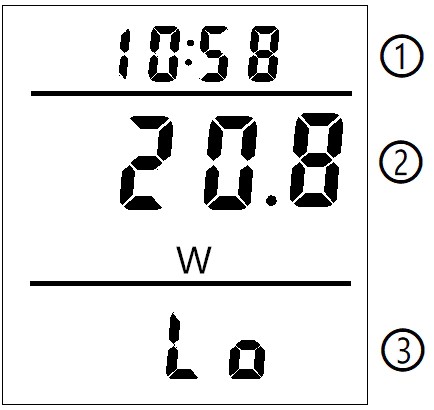

Page five: ① Running time ② Minimum power: the minimum power recorded during operation, in watts.

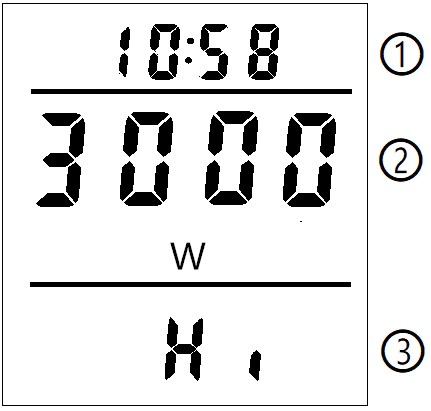

Page 6: ① Running time ② Maximum power: the maximum power recorded during operation, in watts

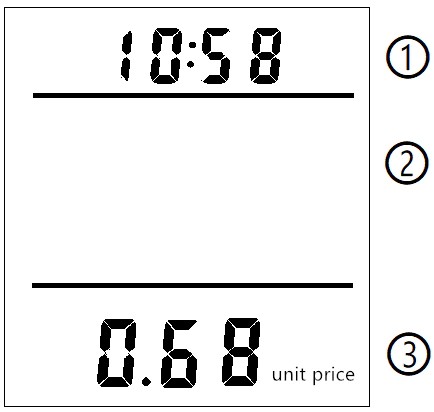

Page 7: ① Running time ③ Unit price of electricity: set unit price, unit yuan / degree
