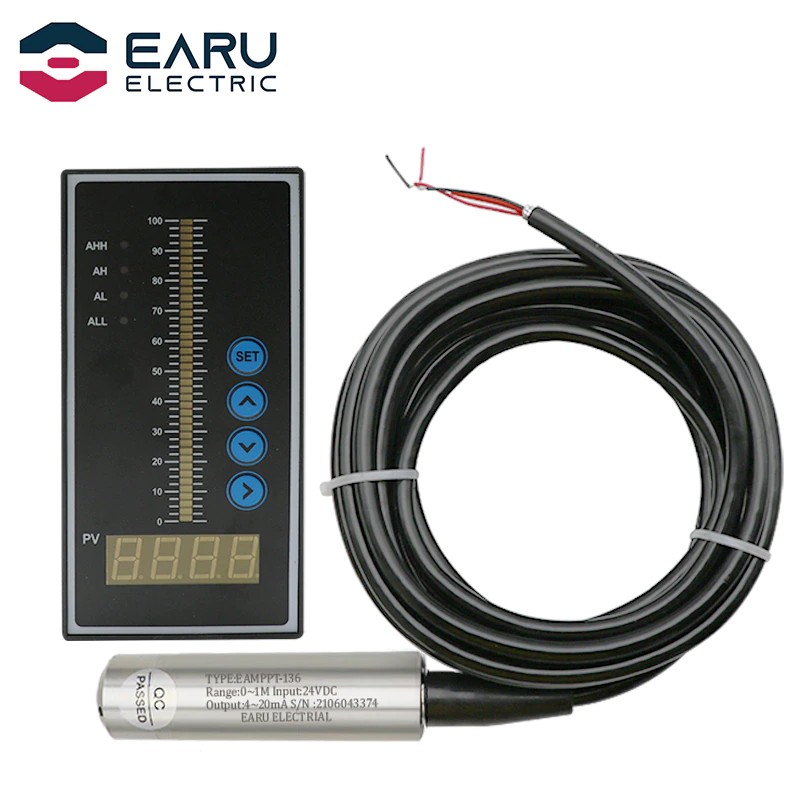

1Set 4-20Ma Output Integral Oil Water Level Sensor Probe Detect With Smart Controller Float Switch Alarm Pump

Description
Reviews (69)

Customer Reviews

*Note: Some reviews have been processed by Google Translate!

Max Measuring Range: 200 - 399 Bar
Model Number: level transmitter
Certification: NONE
Controller Power Supply: AC85~260V
Sensor Power Supply: DC10-30V

1. Product Overview

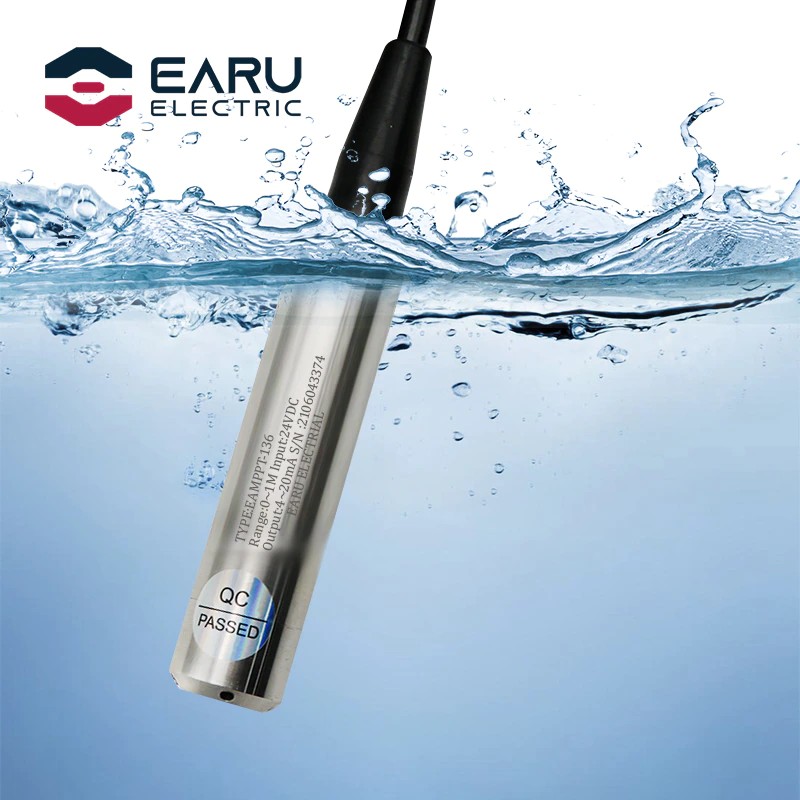

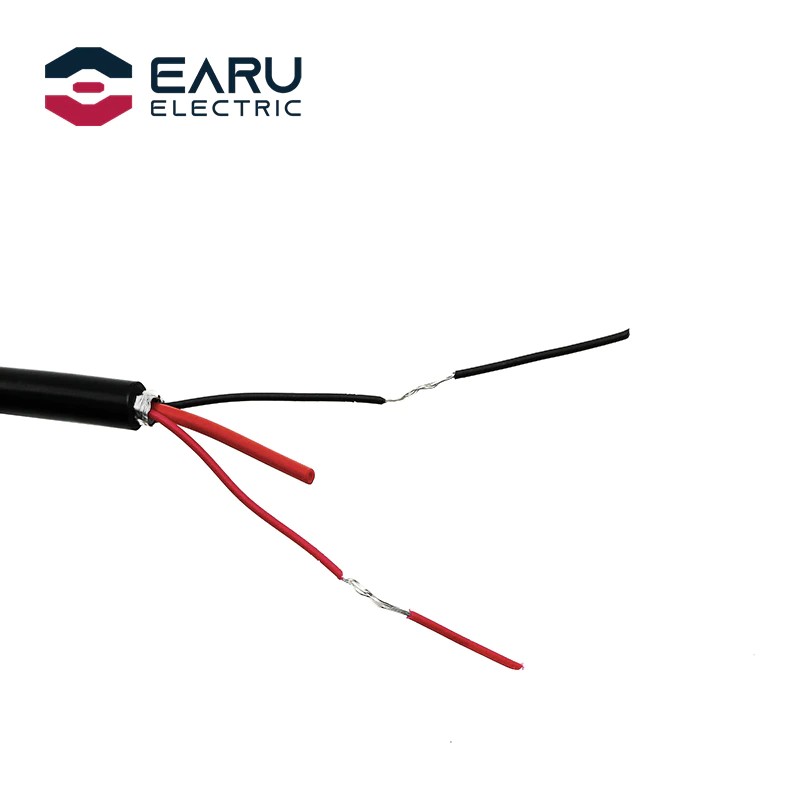

The input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless steel housing. The front end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.

2. Application range

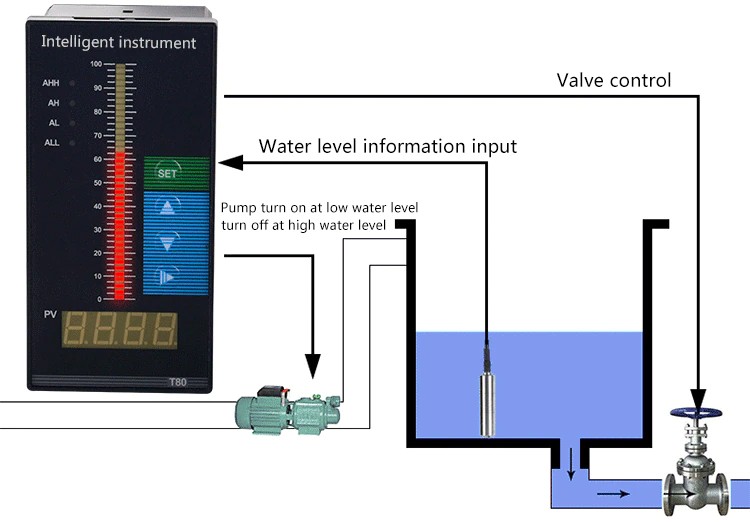

Widely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places

3. Technical parameters

◆ fully enclosed circuit, with moisture, condensation, anti-leakage function

◆ Range: 0～200meters

◆ One-piece

◆ Accuracy: 0.5%FS

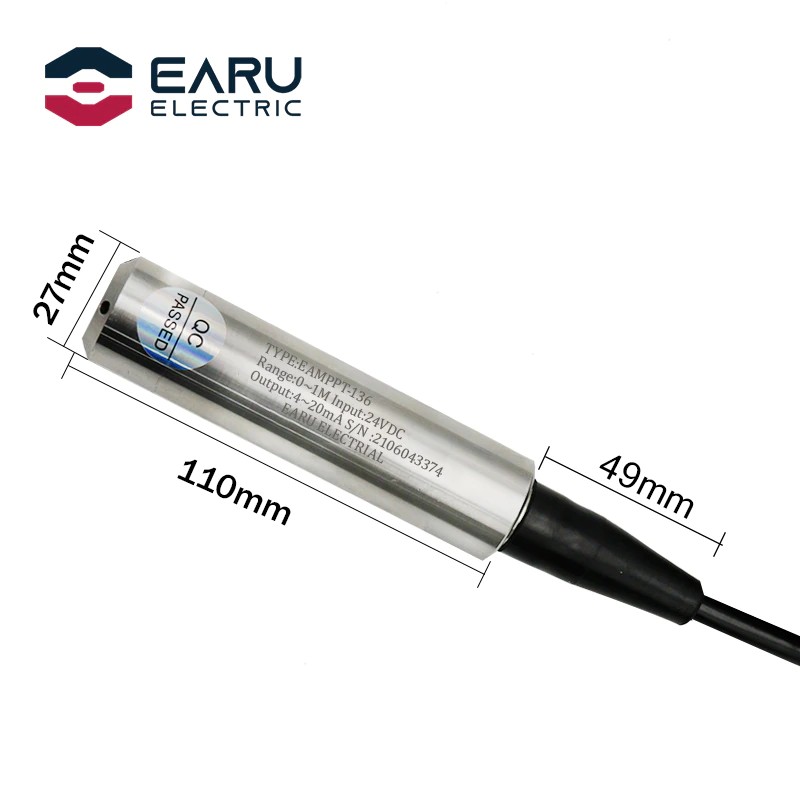

◆ Appearance size is about 145mm, diameter 28mm

4. Technical parameters:

Measurement form and range 0～1～200mH2O

Allow overload 2 times full scale pressure

Working temperature -20～60°C

Temperature compensation -10～60°C

Storage temperature -40～80°C
