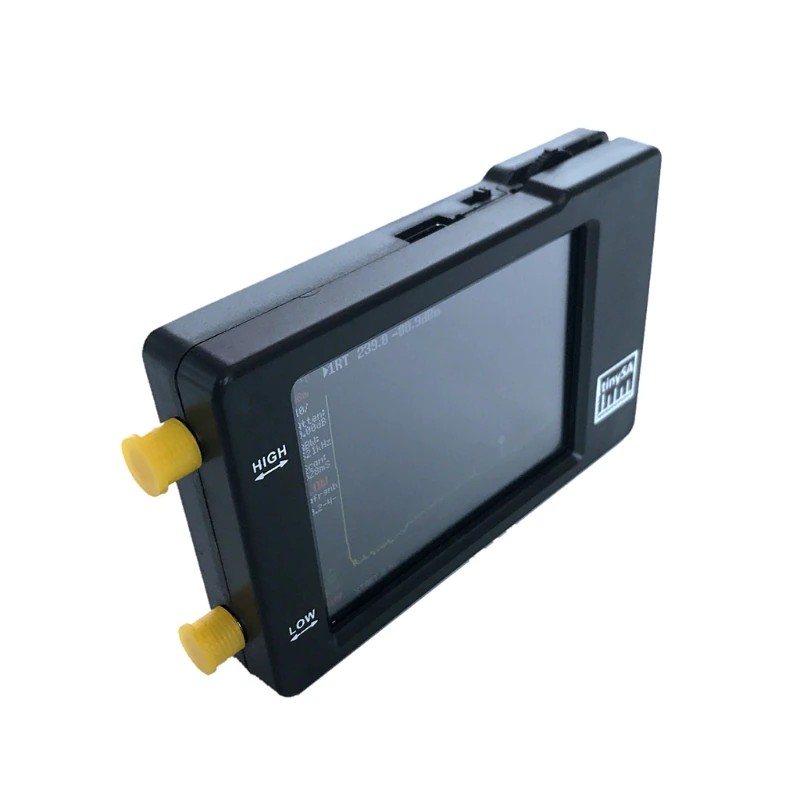

1Pc Portable Tiny Sa Spectrum 2.8 Inch Touching Screen Spectrums 58.7Mm X 91.3Mm X 17.1Mm
- 132 reviews
- 98 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!DIY Supplies: ELECTRICAL
Certification: NONE
Display Size: 3.0 - 4.9 Inches
Model Number: Tiny SA Handheld Spectrum Analyzer
100% brand new and high quality
Features:
Connected to a PC via USB it becomes a PC controlled spectrum analyzer.
Rechargeable battery allowing a minimum of at least 2 hours portable use. Input frequency range from 100KHz to 350MHz.
The tiny SA contains all the components of a conventional heterodyne swept spectrum analyzer. When not used as Spectrum Analyzer it can be used as Signal Generator.
The input/output specification of the tinySA is split over the 4 modes: Low input mode, High input mode, Low output mode, High output mode. The firmware of the tinySA can be updated by the user.

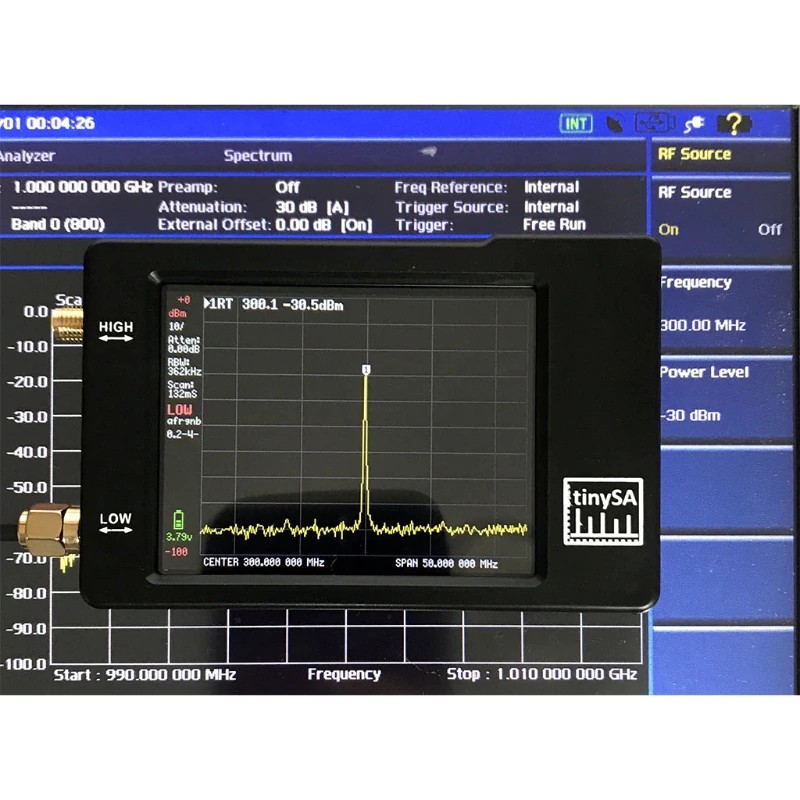

Spectrum Analyzer with two inputs, high quality MF/HF/VHF input for 0.1MHZ-350MHz, lesser quality UHF input for 240MHz-960MHz. Color display showing 290 scan points covering up to the full low or high frequency range.
Specifications:
Color:As pictures
Material:ABS
Size:Approx 58.7mm x 91.3mm x 17.1mm /2.31X3.59X0.67inches
Batteries : 1 650mAh Lithium ion batteries required.( included)
Screen Diagonal: 2.8"
Voltage: 5V
Note:
Due to the problems of lighting effects and shooting angles, there will be certain tolerances in the product, please understand.

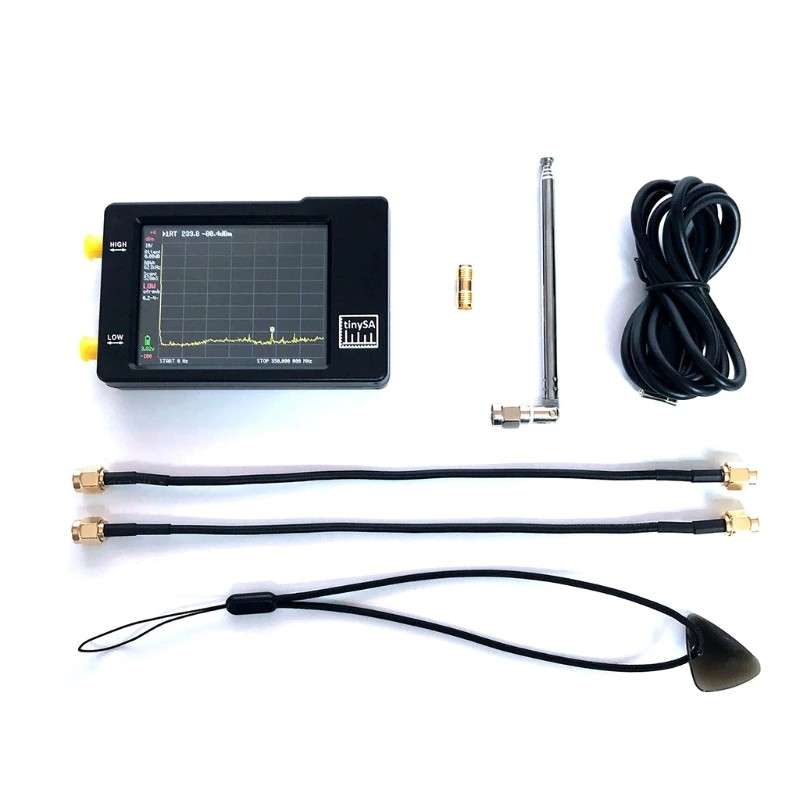

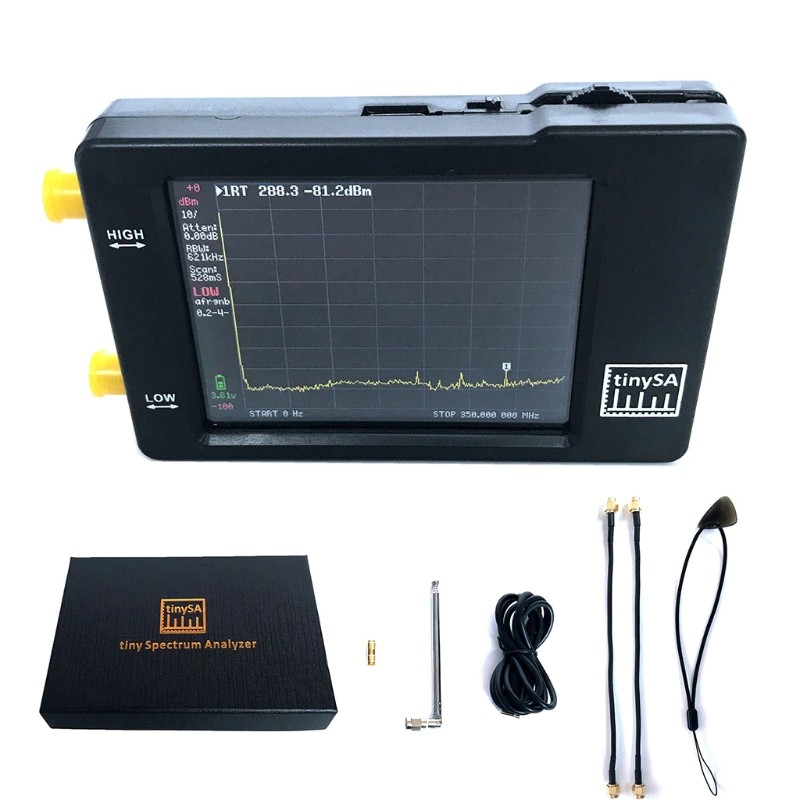

Package Includes:
1 Piece Spectrum Analyzer
2 Pieces SMA Cable and A Barrel Connector
1 Piece Antenna with An SMA Connector
1 Piece USB-C Cable
1 Piece Touching Screen Paddle
