    • 1Mhz-1.2Ghz Rf Frequency Counter Tester Plj-0802-E Digital Lcd Screen Display Meter For Ham Radio Dc 9-12V

    USD $9.44VAT Included50% OFFFree Shipping
    Just for Dropshipping and Wholesale
    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    W***e Verified Buyer

    I got it quickly, well, as a result, while I chose it before buying, I got confused and chose without a socket under the antenna. But Antin told himself, edrite madrite!

    5
    S***n Verified Buyer

    Yay, wait! The characteristic has heard and in the review of specialists, a very good thing. If it shows positive results, it will be possible to repeat.

    4
    G***n Verified Buyer

    Product Description. fast delivery, to Territory 10 days. Set up with the help of radio. Recommend seller.

    5
    X***o Verified Buyer

    It works, it is fixed, it checked with a frequency monitor. Fast shipping.

    5
    B***a Verified Buyer

    Received without damage. Check In, will add a review.

    5
    C***g Verified Buyer

    Well packed. Worker. Until I measured anything ....

    4
    Q***p Verified Buyer

    Shipping very fast. Good packaging. To missing test

    5
    T***t Verified Buyer

    Very well protected in foam, fast delivery, OK

    5
    B***k Verified Buyer

    Arrived very fast, thank you not tested yet..

    5
    Z***w Verified Buyer

    Works well no problems getting it to work.

    5
    X***l Verified Buyer

    Todo perfect and fast, highly recommended.

    5
    Y***v Verified Buyer

    It came quickly qualitatively Inexpensive

    5
    A***w Verified Buyer

    All as in the description. Recommend!

    4
    U***d Verified Buyer

    Fine, small frequency meter. Thanks.

    4
    O***f Verified Buyer

    Very satisfied. Tested and approved!

    5
    S***t Verified Buyer

    EXCELLENT SELLER PERFECT RECOMENDED

    5
    I***h Verified Buyer

    It works perfect ,it came very fast

    5
    E***v Verified Buyer

    Good Product , Fast Delivery .

    4
    F***q Verified Buyer

    Received! Thank you very much!

    5
    U***z Verified Buyer

    Received quickly works well

    5
    M***c Verified Buyer

    Super fast shipping.

    5
    P***t Verified Buyer

    All is OK - thanks

    5
    L***e Verified Buyer

    Works perfectly

    5
    X***c Verified Buyer

    Works properly

    5
    J***f Verified Buyer

    very thanks!

    5
    B***s Verified Buyer

    thanks

    5
    S***f Verified Buyer

    ok

    5

    Certification: NONE
    DIY Supplies: ELECTRICAL
    Measuring Range: 1MHz-1.2GHz
    Display Type: Digital Only
    Dimensions: 58mm x 32mm x 27mm
    Operating Temperature: Pls check description
    Model Number: 1MHz-1.2GHz RF Frequency Counter
    Accuracy Class: High

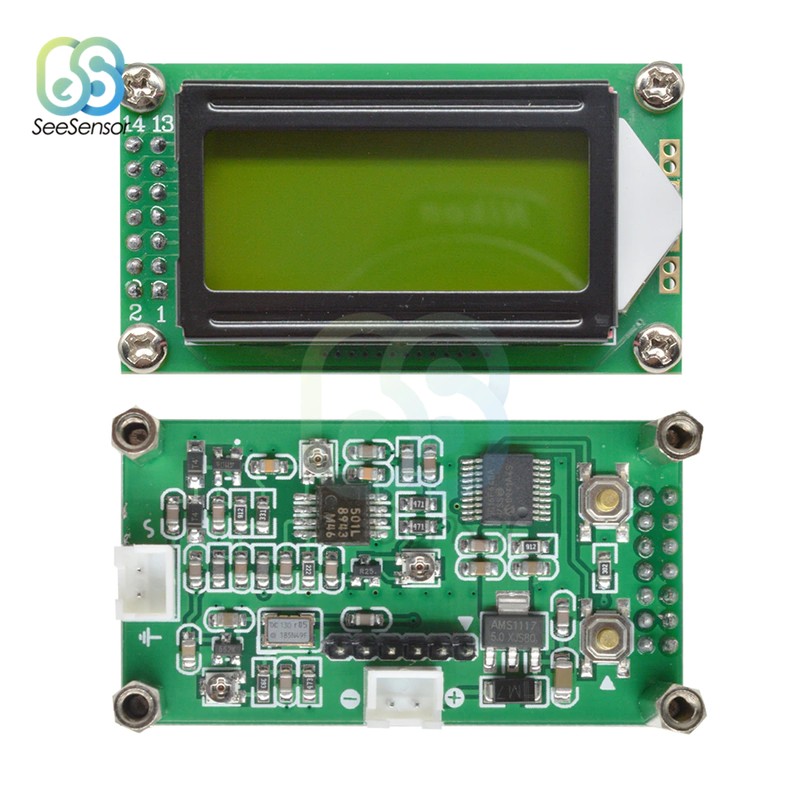

    PLJ-0802 Embedded intelligent frequency meter designed specifically for the HAM frequency measurement instruments.
    Its small and exquisite, simple, reliable, mainly for DIY transceiver for frequency value display can also be used for conventional frequency measurement.
    Micro chip's 8-bit microcontroller PIC16F648A as the core of the high-performance 1.2GHz frequency meter.
    Built-in frequency reference using temperature compensated voltage-controlled crystal oscillator (± 2.5 ppm VC-TCXO).
    Dual IF design, IF and add / subtract mode can be individually preset.

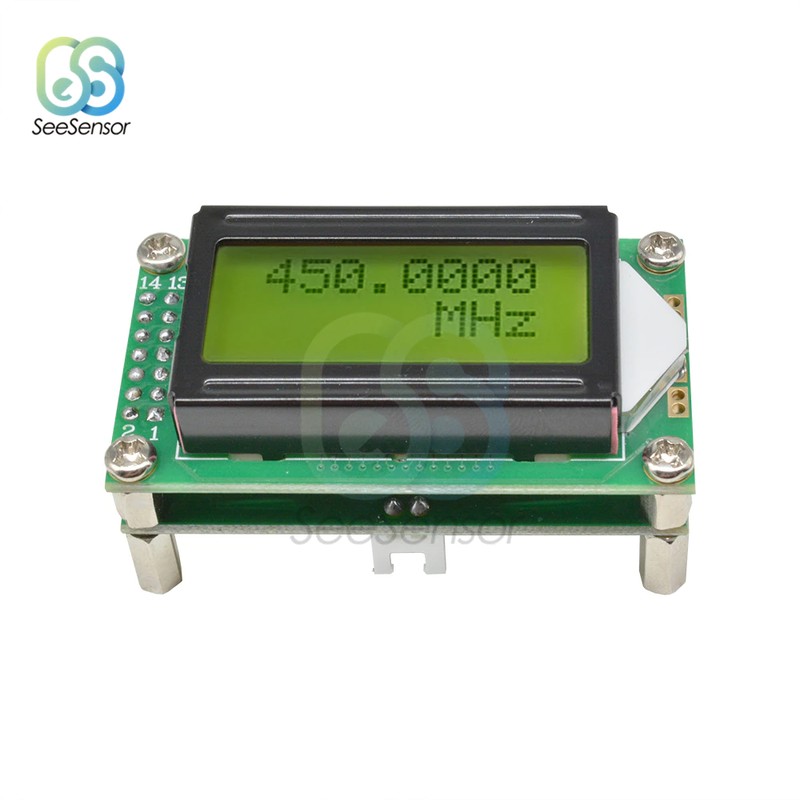

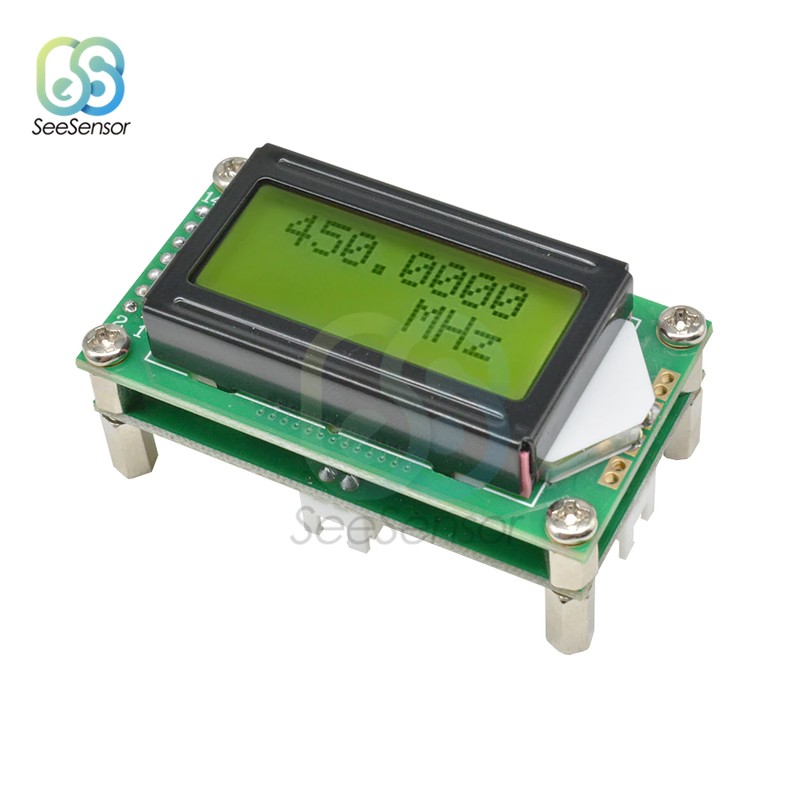

    LCD0802 LCD screen display, up to 7 digits can be displayed, the frequency value is invalid zero automatic blanking.
    Anti-power reverse design, low-power battery-powered programs.
    Double-button control, good man-machine interface.
    The settings are automatically saved, the next boot directly call.
    Technical Parameters:
    Gate time:0.64 sec
    Measuring range: 1 MHz to 1.2 GHz
    Measurement accuracy: ± 100Hz
    Channel Sensitivity: (HM8134-2 data)
    Test Frequency (MHz): 5 10 30 60 100 150 200 300 450
    Sensitivity (mV RMS): 35 20 10 3 3 4 8 15 12
    Test Frequency (MHz): 500 550 600 700 800 900 1000 1100 1200
    Sensitivity (mV RMS): 14 30 65 80 80 35 175 270 310
    Operating voltage:DC input: DC 9V ~ 12V (reverse polarity protection with power supply)
    Operating current:Enable backlight: ≤ 55 mA
    Display digits:The highest 8 digits are displayed
    Physical dimensions:Length × width × height: 58mm × 32mm × 27mm
    IF settings:IF adjustable minimum step of 100 Hz, the range of 0 to 999.9999 MHz, can be set to increase the IF or reduced IF mode.
    Frequency reference:The 13000-MHz temperature-compensated voltage-controlled crystal oscillator (VC-TCXO) in a 5032 package has a frequency stability of ± 2.5 ppm.

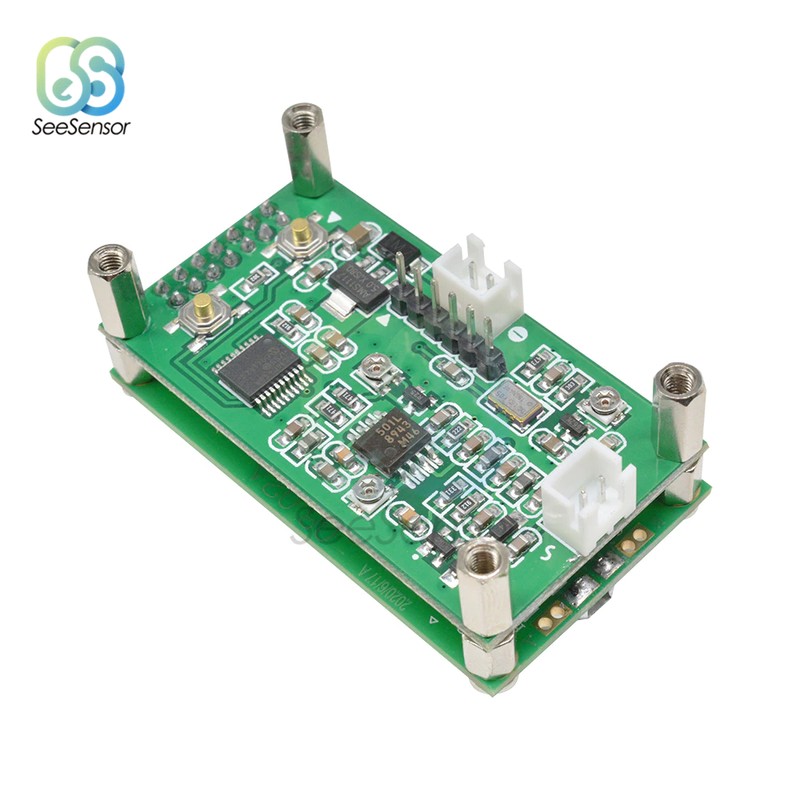

    Onboard interface:
    RF INPUT (measurement signal input): XH2.54-2P square mouth socket
    ICSP INPUT (MCU programming interface): XH2.54-6P pin
    POWER INPUT (power connector): XH2.54-2P square port socket
    Package List:

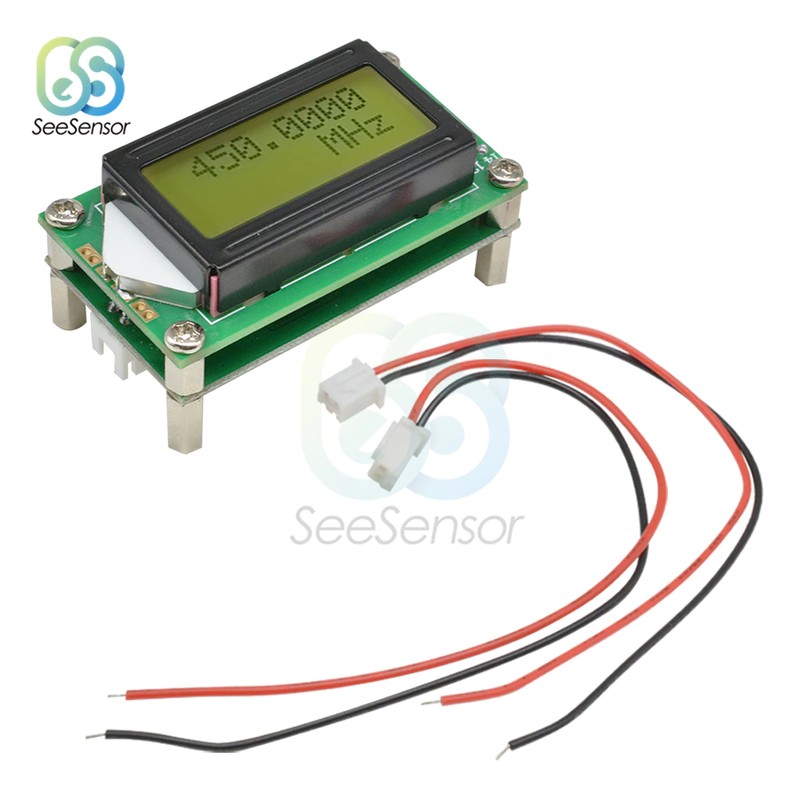

    1* PLJ-0802-E frequency counter meter
