    • 12 In 1 Color Pd Usb Tester Dc Digital Current Voltage Type-C Meter Amp Ammeter Detector Power Bank Charger

    USD $14.15VAT Included50% OFFFree Shipping
    Just for Dropshipping and Wholesale
    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    O***l Verified Buyer

    It’s accurate and does everything as advertised. The OLED screen is also really nice as the colors are vibrant and the blacks are black. This is not an adapter though, so you can’t use USB A as input and USB C as output. The input and output ports must match for it to work so USB A input must output to USB A and USB C input will only output to USB C output. The screen can also be rotated if you have the tester plugged in weirdly. Finally, the input and output ports don’t really matter. You can plug your charger into the “Type C Output” and plug the device into the “Type C Input” and it’ll still work. Shipping took 2 weeks to get to California

    4
    F***r Verified Buyer

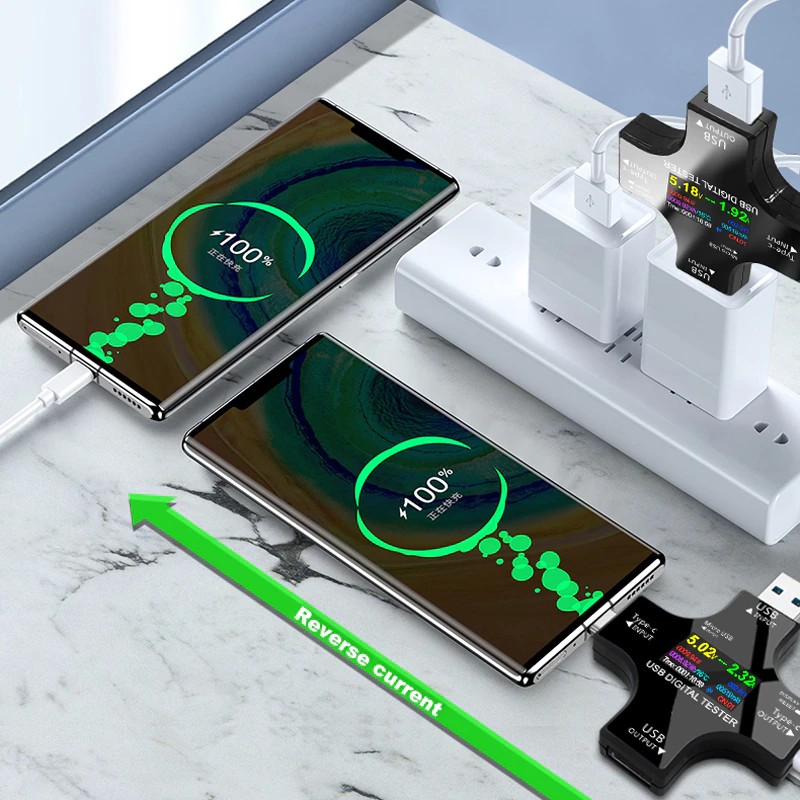

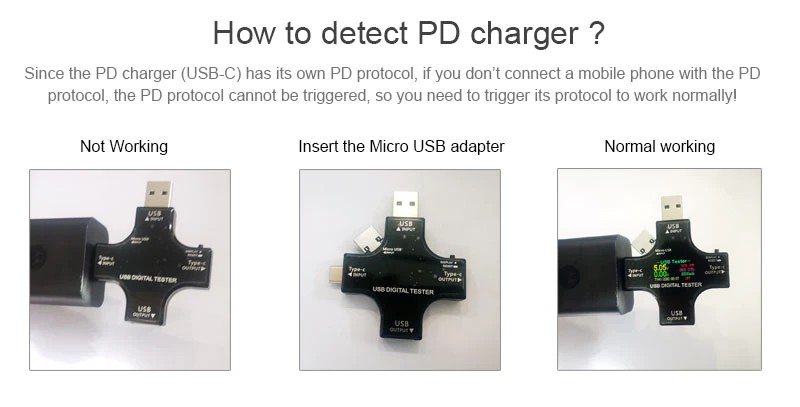

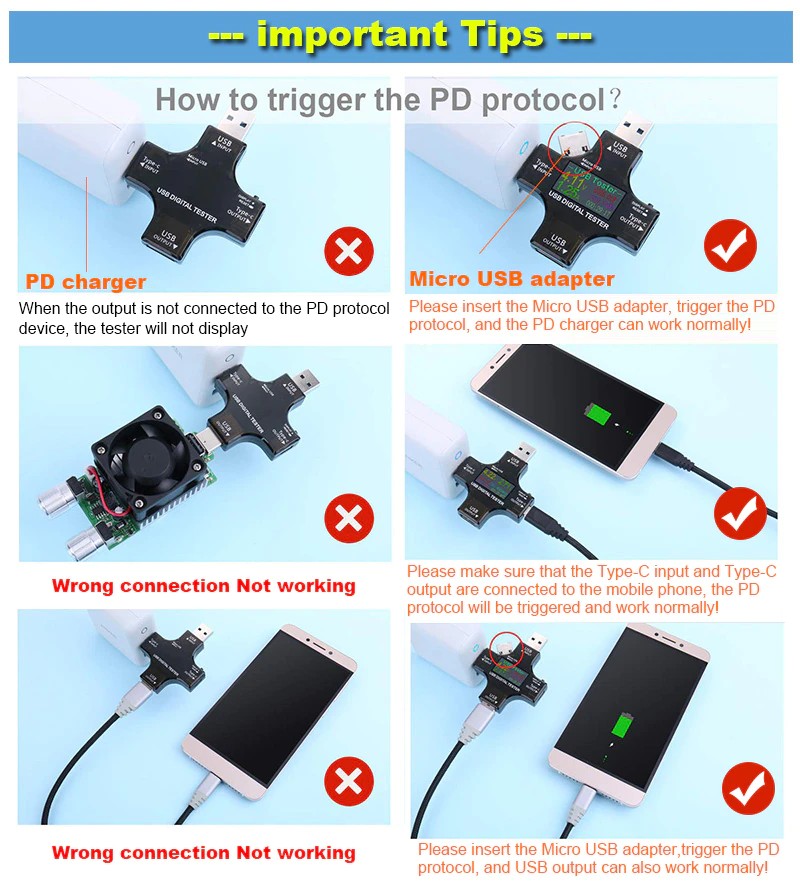

    The unit works fine, I was pleasantly surprised that it can even measure USB-C in both directions (plugged into the device or the charger). The voltmeter is not fully transparent when PD is used, sometimes handshake fails through it, or a lower current is used, but with some care you can take good measurements with it. The micro-USB-adapter trick to enable USB-C to USB-A charging didn't work at all for me.

    5
    W***y Verified Buyer

    Ordered-paid-13.01.2022. Received an order) Russia, Nizhny Novgorod)-24.01.2022. Only 11 days! Even for the selection standard shipment method, it's just fine! The track was fully tracked. Packed the tester in its blister and a navel postal bag. Everything came safe and sound. The tester has checked on different modes-it works. I am pleased. My recommendations and goods and seller.

    4
    D***f Verified Buyer

    Great. Great. I 've tried several Chargers. 45w, Xiaomi 33w and smaller 15w and 10w Samsung charger and perfect. It gives you a lot of information. You can even see, like the, phone or tablet changes the voltage from 5v to 9v and the amperage as it ends the charge. Indispensable tool to know if the Chargers that sell you are what they should be. Sent fast without delay

    5
    S***g Verified Buyer

    Great tester. Works fine. Thanks to him, I immediately realized what charging and wires are pretty. The best are Xiaomi and baseus, give out the maximum current and voltage. Wires too. Samsung wire does not hold 9 volts 3 amps. He took it away right away. The battery of the quadric is charged faster after the selection of the wire and charging.

    5
    Q***x Verified Buyer

    Delivery to M. O-24 days. Super. The track is tracked from start to receive. The product fully corresponds to the description. The seller and the goods are recommended to everyone. For fast shipment and quality of goods five stars.

    5
    S***z Verified Buyer

    Good tool but I couldn't trigger the quickcharging on my Samsung phone using the USB input to power the device. I'll try usb-c later. I was able to detect a couple of crap cables/chargers I have.

    5
    M***j Verified Buyer

    Fast arrival had four key C type called for belly iPhone View had the case because of the length is shorter and combined Ian is four can charge Volt and current is listed with nicer

    5
    V***p Verified Buyer

    Good seller. Sent and received quickly. Cool thing. Helps understand the principle of current consumption devices. Helped me avoid buying unnecessary, unnecessary charging.

    5
    C***w Verified Buyer

    Arrived very quickly to my place in the UK (only 16 days after purchase). Feels good quality and the image is very clear and sharp. Totally recommend

    5
    T***s Verified Buyer

    Loved the product, great tool, with a slight difference with other equipment, but also not know which one trust, but helped, tool useful

    5
    V***q Verified Buyer

    Recent years later buy Alibaba products China first arrived quickly did sink wholesale so much nicer. Days arrived in living dont think

    5
    O***j Verified Buyer

    Works nicely. Product as described, delivered quickly. Little micro usb adapter is very helpful. Nice gadget to have and check charge.

    5
    Z***x Verified Buyer

    It came in 14 days, super fast. Took for charging test from Xiaomi 67W (model mdy-12-eh). I saw a maximum of 57W.

    4
    I***b Verified Buyer

    Display the information for wholesale lot high USB-B, USB-C, micro-USB, can measure four women. Like women ~

    5
    I***i Verified Buyer

    Excellent and wonderful check you the charger wire shows you the ability and quality of the wire

    5
    G***h Verified Buyer

    Works well English letters as seen, days safe arrived High Quality good and cheaper ~

    4
    F***t Verified Buyer

    Everything is fine and fast, but it hurts very finely on the screen everything.

    5
    R***n Verified Buyer

    Still not used to see if it was worth. But the product came just like photo ad.

    4
    Y***z Verified Buyer

    Works well via usb and type c - as described and would recommend.

    5
    X***u Verified Buyer

    The quality is excellent, let's what we need, delivered quickly

    5
    L***b Verified Buyer

    High quality and fast and accurate!!! Highly Recommend product

    4
    E***g Verified Buyer

    Good apparently good product, more will test for more details

    5
    W***a Verified Buyer

    ??? ordered it on 24th and came on 27th. so fast. thank you

    5
    B***m Verified Buyer

    Everything works fine on hurray. delivery a couple of weeks

    5
    A***u Verified Buyer

    Shipping speed is very fast. Product quality is also good.

    5
    Y***r Verified Buyer

    Simple yet functional. Fast shipping. Good price. thanks

    5
    M***g Verified Buyer

    Thanks for the fast shipping. I have received it well.

    5
    Q***h Verified Buyer

    Item came on time.. happy with supplier

    5
    D***i Verified Buyer

    Small and very useful. Fast.

    5

    DIY Supplies: ELECTRICAL
    Dimensions: 60*60*11mm
    Operating Temperature: -10-60C
    Accuracy Class: 1% (Software calibration technique)
    Display Type: Analog and Digital
    Power Supply: DC
    Certification: CE
    Model Number: J7-c
    Alloy sampling technique: <2mR (Metal Manganin resistor Sampling technique)
    Display type: 128X64=8192pixel Dot Matrix Display Screen
    Boot screen: Display: Welcome!
    Data storage type: EEPROM (3500000 autotype)
    USB pin material: Pure copper metal
    Display panel type: Dot matrix LCD module display
    MCU chip storage: Flash memory
    Shell material: Add hard PC highlights material
    Protective film: 5C high transparent protective film


    important Notice:

    Our product is divided into curve version and non-curve version, see the product details for details

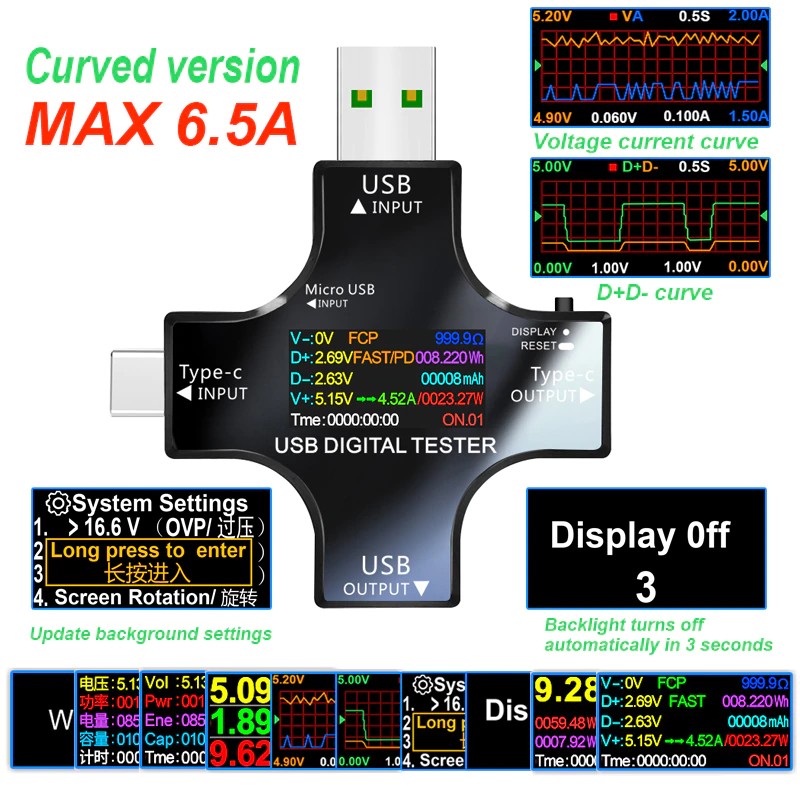

    New: Curved Version sales

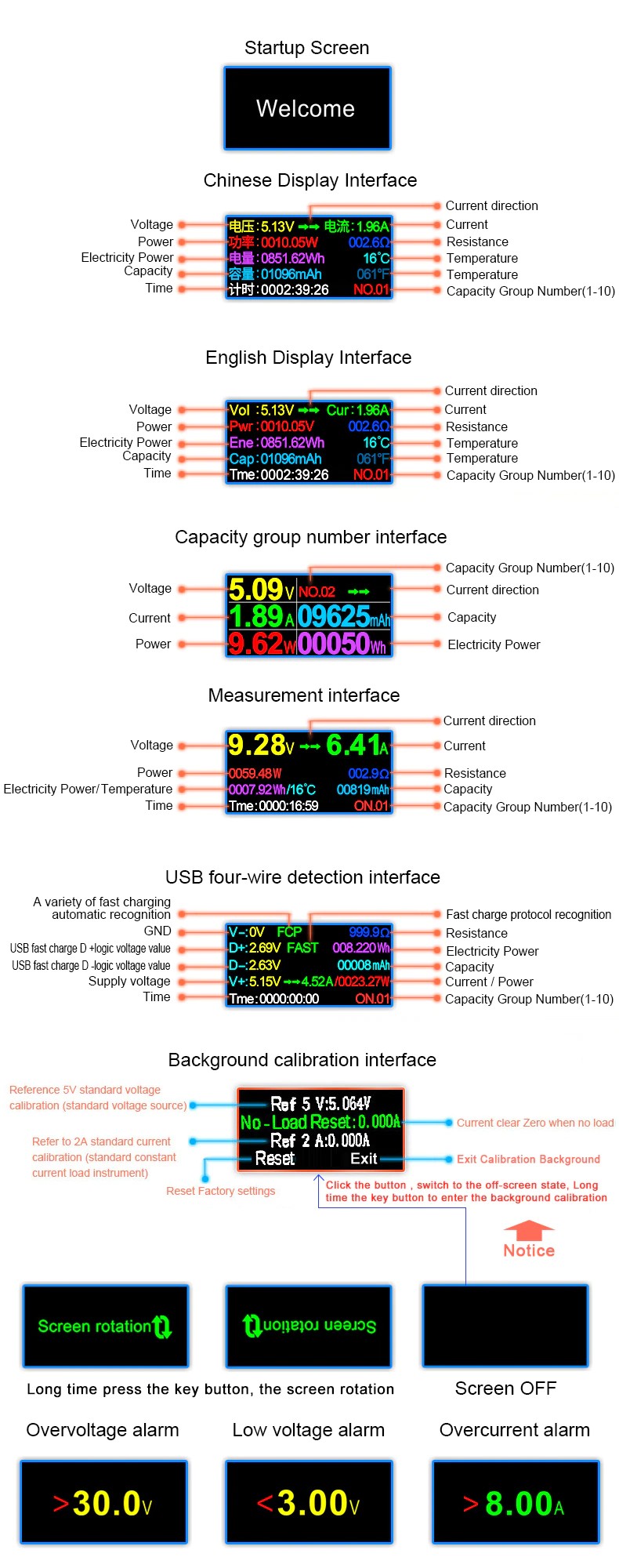

    Product multi-function interface display

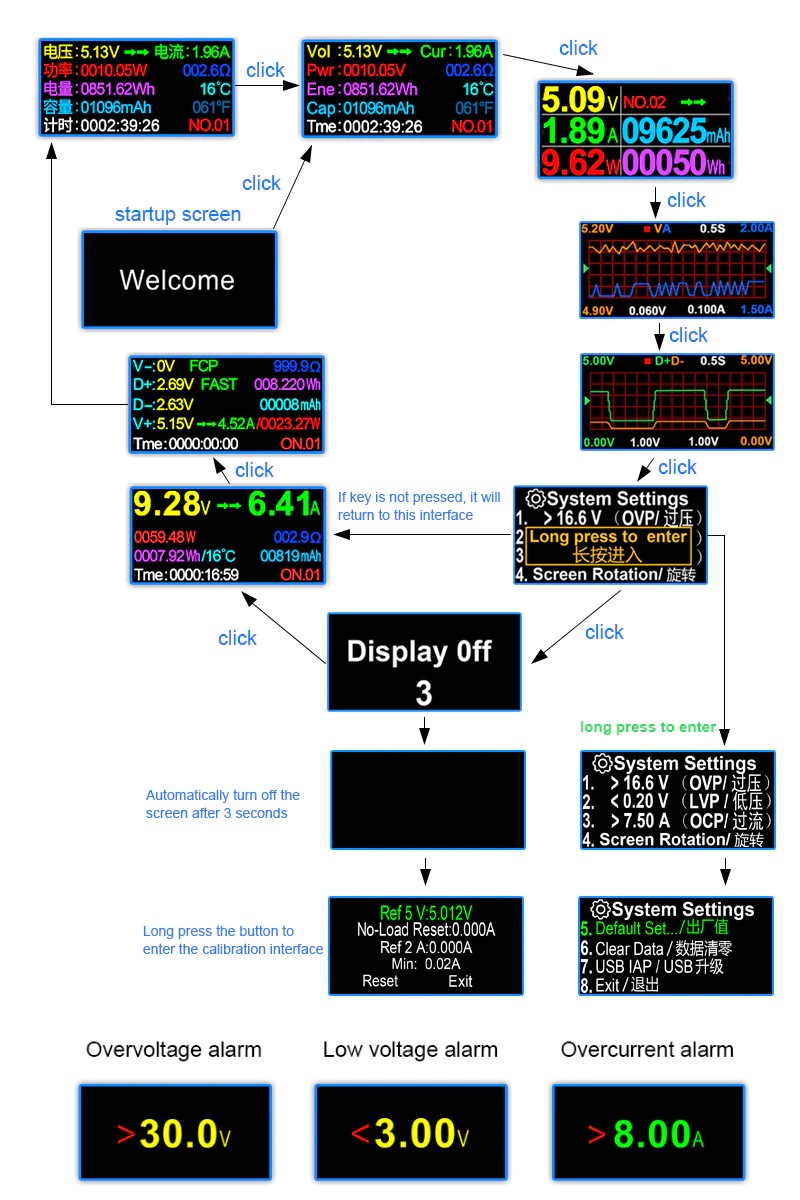

    Key button operation instructions

    1) Short press of the button is to switch the screen function
    2) Quickly double-click the capacity to reset to zero (mAh)
    3) Quick three-click battery reset and reset (Wh)
    4) Four quick clicks are timing reset to clear the current group (00:00:00)
    5) Quick five clicks are to change the cumulative data storage group number (NO.X)
    6) Press and hold the button to reset the capacity, power, and time to reset the current group.
    (mAh, Wh, 00:00:00)
    7) When short press on the System Settings setting interface, long press the button to enter the setting, and then short press to switch the setting column, and then long press in a certain column to execute the column, when the number of the execution column jumps and flashes, double-click is an addend. Adjust, click is subtraction adjustment, long press during addition or subtraction adjustment is continuous addition or continuous subtraction, after adjusting for a while, the word OK will be displayed and the system will automatically save the value, and continue to wait for a while to automatically exit the setting interface
    7.1 >32.0V (OVP/Overvoltage Protection)
    7.2 <0.00V (LVP/Low Voltage Protection)
    7.3 >8.00A (OPC/Overcurrent Protection)
    7.4 Scrren Rotation
    7.5 Default Setting
    7.6 Clear Data
    7.6 USB IAP/USB upgrade
    7.7 Exit
    8) When short press to the curve interface, long press the button to switch the refresh curve update speed 0.5S 1S 2S 5S several gears, and double-click the button quickly to stop and continue

    Non-curved version

    Note:

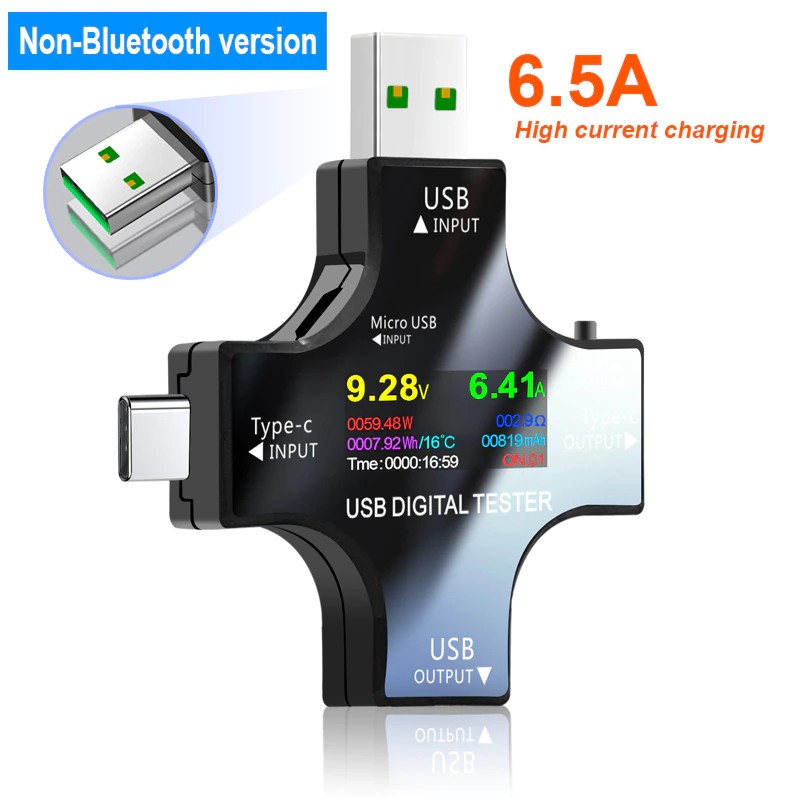

    This product does not include BluetoothIf you need Bluetooth products, please order another links, thank you
    https://www.Adafar.com/item/32859439118.html?spm=5261.ProductManageOnline.0.0.7d2d4edfsMLh2y

    Key button operation instructions

    1. Short press the button to switch the screen,
    2. Quickly double-click the capacity(mAH) to clear zero ,
    3. Quickly three-click the power( WH) to clear zero,
    4. Fast four-click time to clear zero,
    5. The quick five-click is to change the cumulative data storage group number (NO.X, 10 groups of data),
    6. Long press button the capacity and power time to clear all at once,

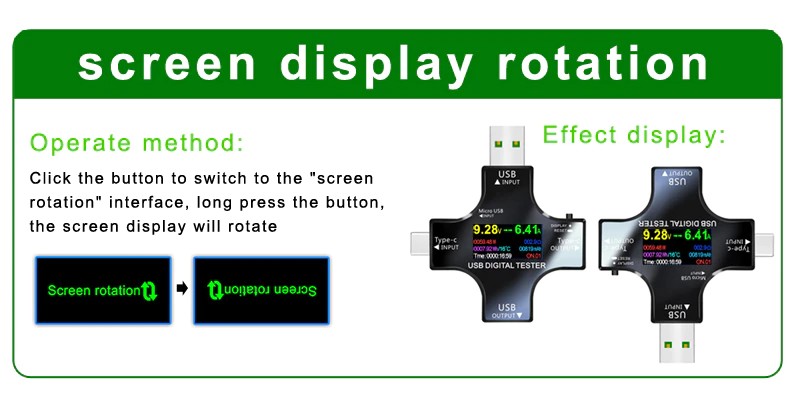

    7. In the (Screen rotation) interface, long press the button to rotate the screen;
    8. When the short key is pressed to the overvoltage, low pressure and overcurrent setting interface, the value can be adjusted by quickly double-clicking or quickly three-clicking.

    Production Description

    Voltage measuring range : 3.6V~32.0V Resolution Precision : 0.01V
    Current measuring range : 0.00~5.10A Resolution Precision : 0.01A Maximum test current 6.5A
    Capacity cumulative range: : 0~99999mAh Resolution Precision : 0.001Ah
    Power cumulative range : 0~999999mWh Resolution Precision : 0.001Wh
    Power metering range : 000.00~150.00 W Resolution Precision : 0.01W
    Impedance Measuring range : 1~999.9Ω Resolution Precision : 0.1Ω
    Temperature Measuring Range : 0~80℃ Resolution Precision : 1℃ Maximum
    Timing Measuring range : 999Hours 59Minutes 59 Seconds Resolution Precision : 1s
    USB D+ Voltage Range : 0V~2.999V Resolution Precision : 0.001V
    USB D- Voltage Range : 0V~2.999V Resolution Precision : 0.001V
    Time to refresh : 500mS/ times
    Measurement rate : 0.5 times/s
    Alarm Mode : Display Hints
    Product size : 61mm x 68mm x 10.8mm
    Self-consumable flow : <0.02A
    Working temperature : -10~+60℃
    Working humidity: : 10~80(no doubt)
    Pressure of work : 80~106kPa
    Certificate: RoHS, CE

    Product Details:

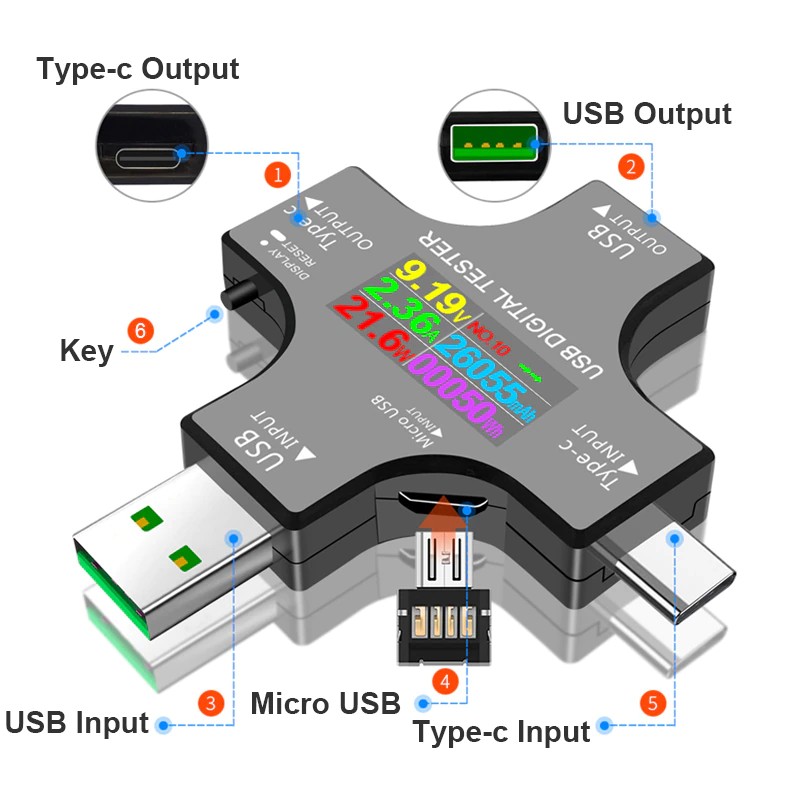

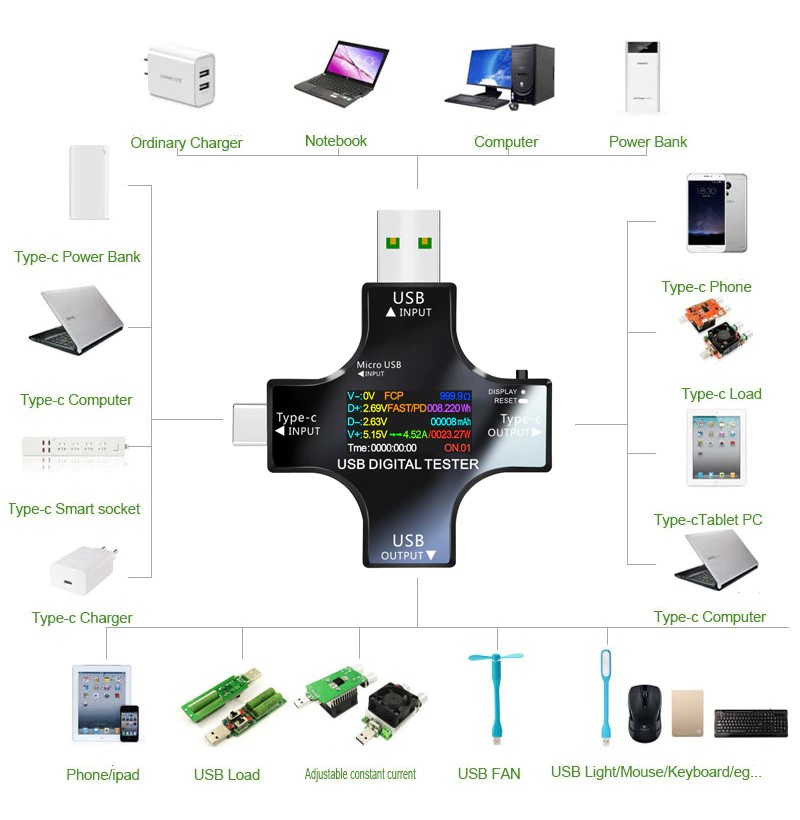

    Input Interface: Type-C / Micro USB / USB
    Output interface: Type-C / USB
    Timed charge reminder settings: 24-hour countdown
    Full charge threshold parameters: < 2 W / 0.5 hours
    Refresh time: > 500mS / time
    Measurement rate: about 0.5 time / S
    Alarm mode: siren sound and display prompt (double warning)
    Display type: micro-power LCD module LCM white font in English display
    Product dimensions: 60 x 60 x 11 mm
    Current consumption: < 0.02 A
    Operating temperature: -10 to +60 °C
    Working humidity: 10 to 80 (no doubt)
    Work oppression: 80 - 106 Kpa

    FAQ

    Patent certificate

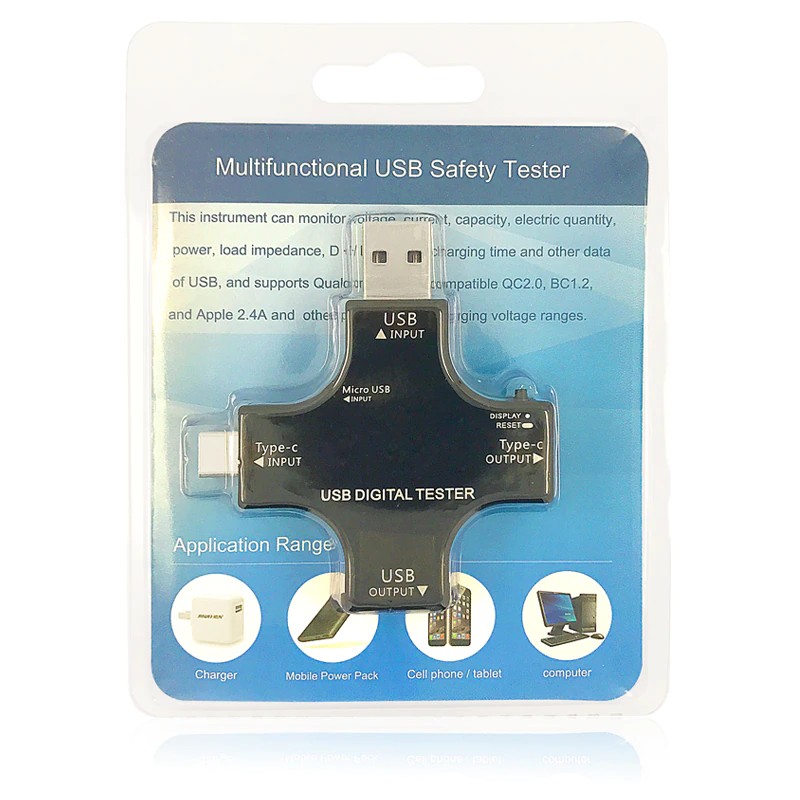

    Product packaging

    1.USB Type-C multi-interface color tester X1pcs

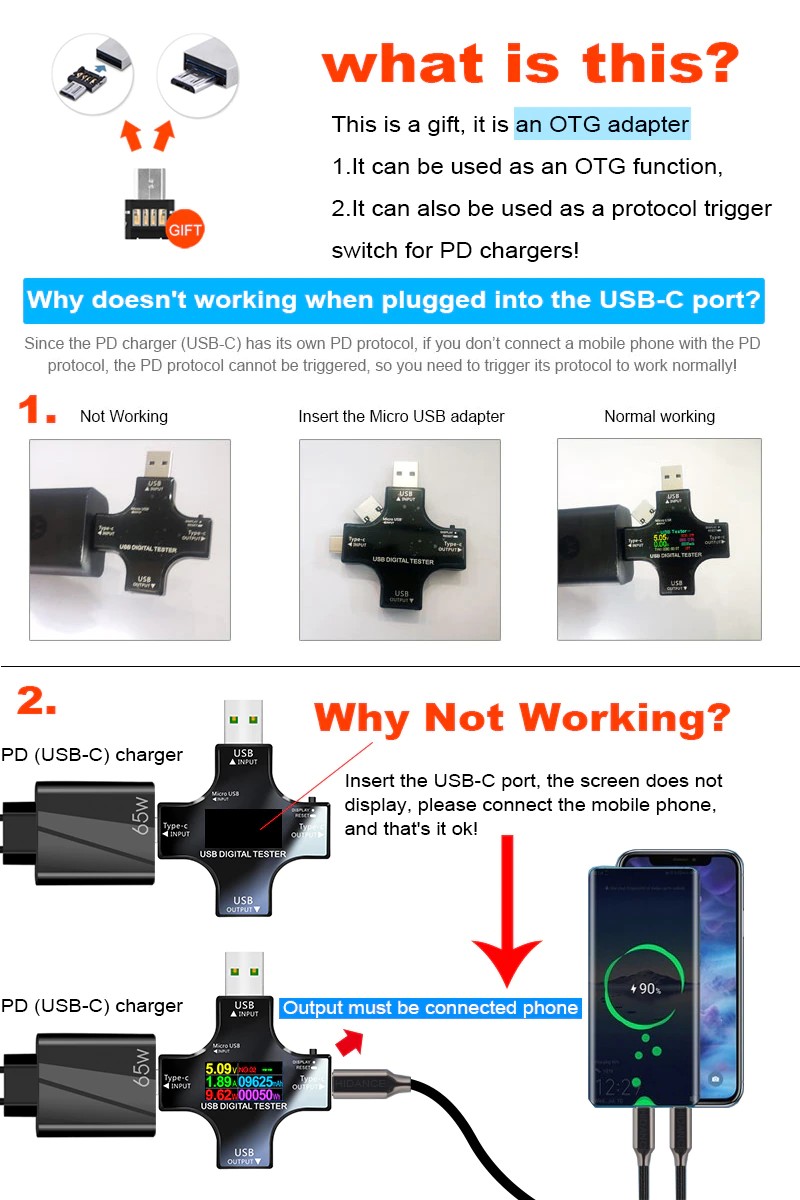

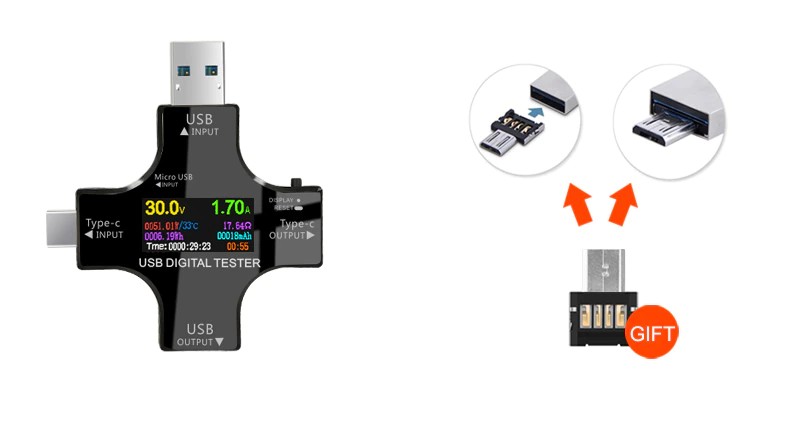

    2.Micro USB adapter X1pcs
    3.User Manual X1pcs
    4.Packing box X1pcs
