10M To 15M Automated Gate Safe Detector Sensor/ Swing /Sliding/Garage Gate / Door Safety Photocells
- 70 reviews
- 57 Sold
Customer Reviews
*Note: Some reviews have been processed by Google Translate!Certification: CE
Model Number: SRK609
Distance: 20m
Item type: Infrared Detector
Applicable: Home, door security system
POWER SUPPLY: 12 to 24V DC/AC
OPERATING TEMPERATURE: -10C to 70C

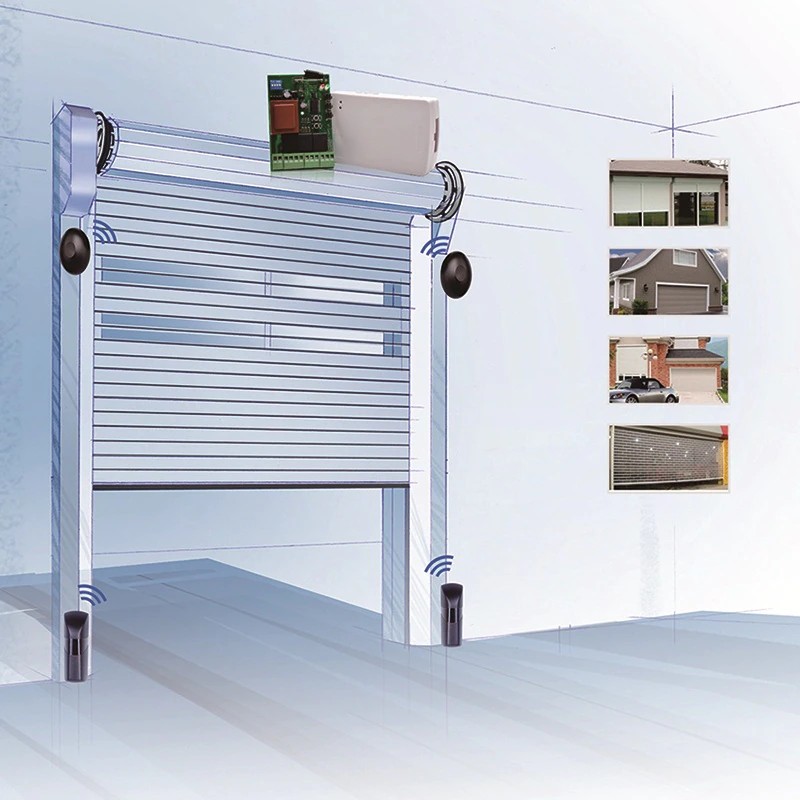

10m to 15m Automated Gate Safe Infrared Detector Sensor/ Swing /Sliding/Garage Gate / Door Safety Infrared Photocells
Technology: Infrared
Receiver Range: <15m
(Range can be reduced to 30% in bad weatherconditions: for, rain, dust, etc)
Infra-red Frequency: 1.92Khz
POWER SUPPLY: 12 to 24V DC/AC
WAVE LENGTH: 940nm
INPUT: RX 15MA-TX 30MA
OPERATING TEMPERATURE : -10C to 70C
RELAY OUTPUT: 1A max 36V
DIMENSION: 100X35X40MM

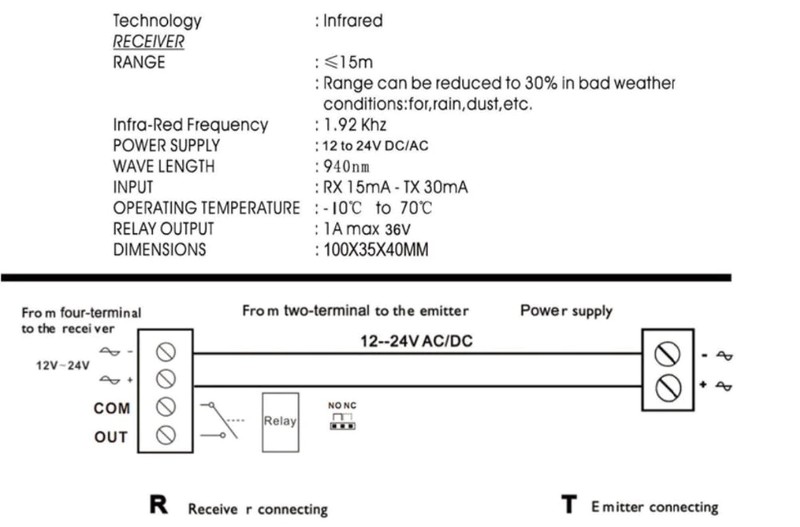

CONNECTINGTHE SENSOR
Installation: The best install height should big in 20 cm, install distance to be no smaller than 2 meters. Install shouldmake red outside the protection equip perpendicularity to place, and is on-line at same level. Instalshould install first to receive part, install blast-off part again. When together at always line, receive the OFFlight in the machine in order to put out, then fix, connect the line to install completion namely.
Attention: Because this product shoot power compare big, so when shoot machine with receive the machinedistance too near hour will appear have no the phenomenon of the reaction, at this time should drawback them one meter at least behind again try. When Install distance very near, discover not intelligentphenomenon, can shoot and receive medium of the condensing lens remove, can immediately raisean intelligent degree.

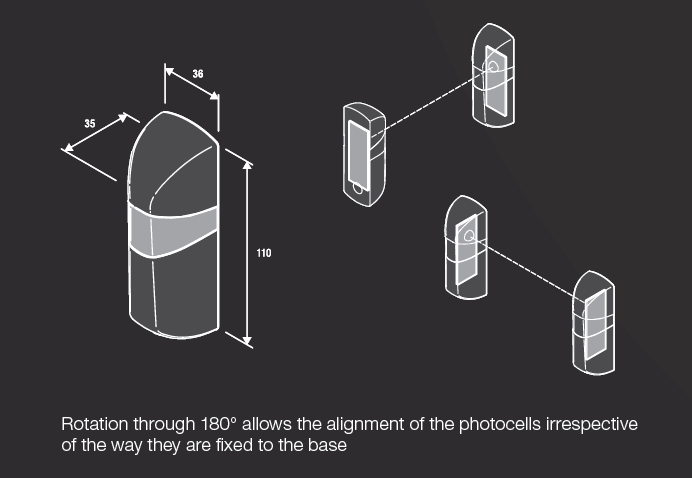

MOUNTINGTHESENSOR
Rotation through 180 allows the alignment of the photocells irrespectiveof the way they are fixed to the base.
