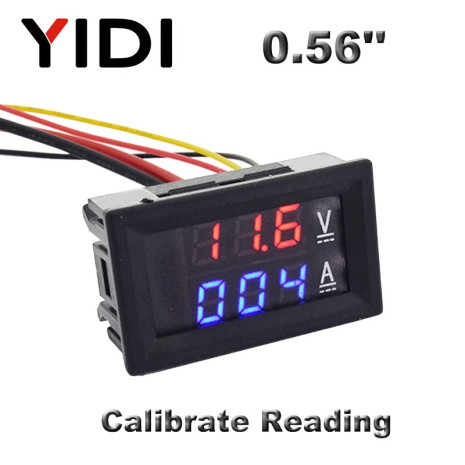

    • 0.56'' Digital Ammeter Dc 0-100V Ac60-500V 1A 10A 50A 100A Red Blue Led Display Voltage Current Meters Tester Detector

    USD $29.90 - 57.45VAT Included$59.80 - 114.9050% OFFFree Shipping
    $20.93 Just for Dropshipping and Wholesale
    Extra Discount:
    Items 2+ 5+ 10+ 50+
    Discount 10% 15% 20% 30%
    Unit Price $26.91 $25.41 $23.92 $20.93
    How to pay?
    • Ships in 24 hours via Fast Shipping.
    • Estimated Delivery 5 to 9 Business Days.
    Customer Reviews
    *Note: Some reviews have been processed by Google Translate!
    S***r Verified Buyer

    The device working how accurate readings to calibrate did not, in principle, for the old charger fit just right, even a nice bonus voltmeter, previously stood only ammeter, this product direct power to 10 A, additional shunts it requires, how durable will this miracle electronics is not known, but for the time being satisfied.

    5
    Y***y Verified Buyer

    The device came configured quite precisely. On the current more than 1 Amp, a point appears after the first sign. Small volumes measure exactly from 3-5 Ma. The voltage after the point is only one sign.

    5
    P***d Verified Buyer

    The goods received quickly, but I do not advise this device. At home began to check, and the current readings hang constantly at 61,7 amps. I opened a dispute but it's still quiet.

    4
    L***w Verified Buyer

    Still use the Shipping is April $ order Receipt of per-ve Mini power supply made to look After the leaves will ....

    5
    A***r Verified Buyer

    Package not addressed clearly, got sent to wrong address. The second time it's happened with this seller

    4

    DIY Supplies: ELECTRICAL
    Display Type: Digital Only
    Supply Voltage: DC 0-100V/AC 60-500V
    Certification: CE
    Model Number: YD-22
    Dimensions: 0.56inch
    Operating Temperature: -10~65'C
    Accuracy Class: +/- 1%
    Mounting hold size: 46x27mm
    Product Dimension: 48x29x22mm
    LED Color: Red+Blue
    Input Voltage: DC 4-30V/AC 60-500V
    Detection Voltage: DC 0-100V/AC 60-500V
    Detection Current: 1A/10A/50A/100A
    Refesh Rate: 500mS/Time
    Cable Length: 15-20cm
    Working Current: under 20mA


    If need to buy large quantity, Click photo below to get better price


    0.56'' Digital Voltmeter Ammeter DC 0-100V AC60-500V 1A 10A 50A 100A Red Blue LED display Voltage Current Meters Tester Detector

    Specification:

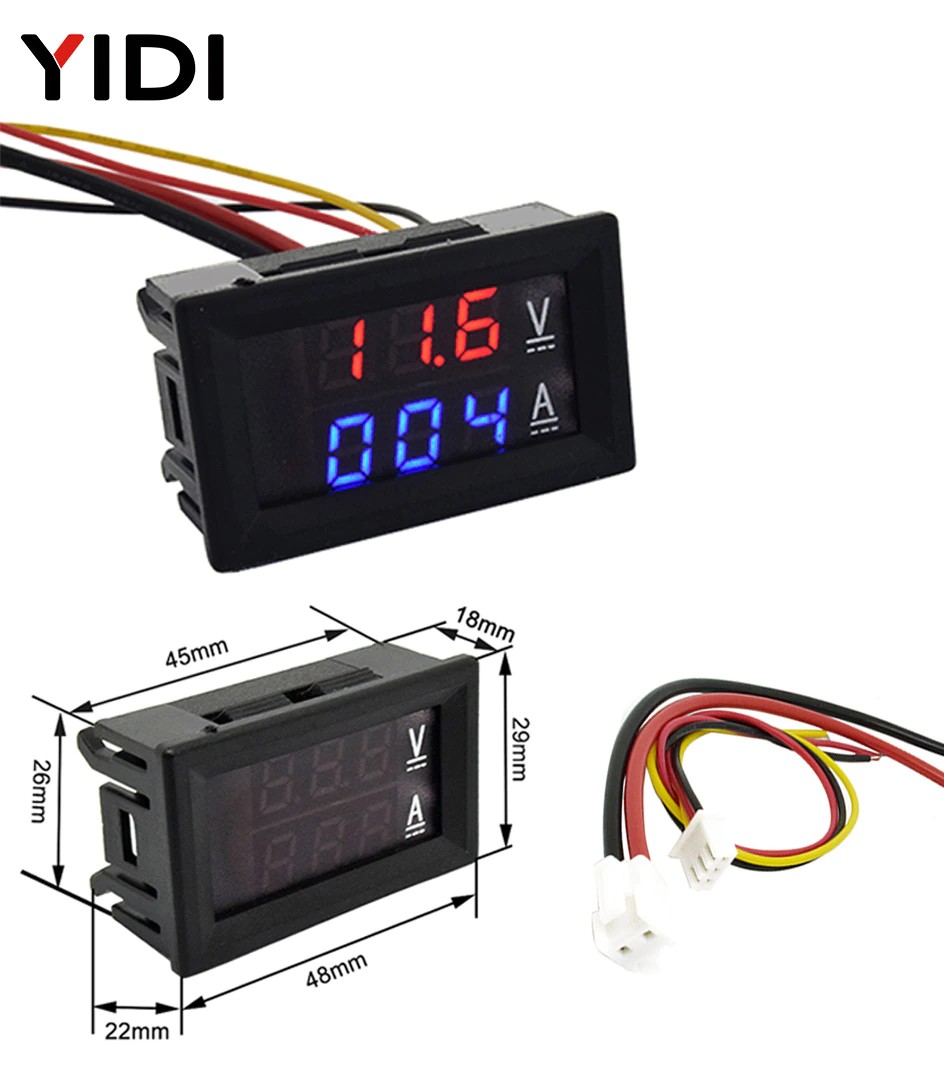

    Mounting Hold Size: 46 x 27mm
    Dimension: 0.56inch48 x 29 x 22 mm
    Detection Current Range:
    1A: 0-999mA / 10A: 0-10A / 50A: 0-50A / 100A: 0-100A
    Accuracy Class: ±1%
    Working Current: ＜20mA
    Working Temperature: -10~65℃
    Current Diverter: 75mΩ
    LED color: Red+Blue
    Cable Length: 15-20cm
    Marking:

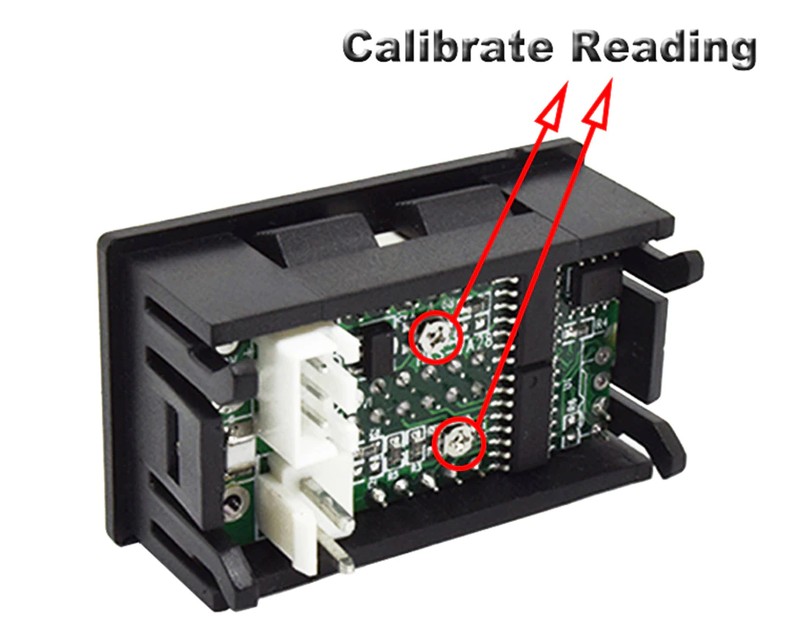

    -- Reading can be Calibrated

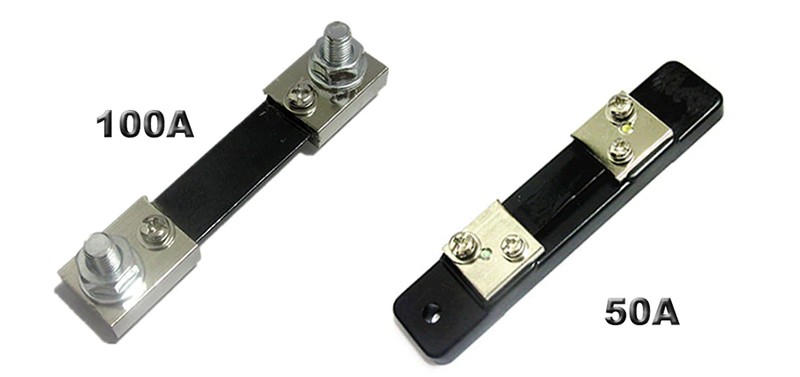

    -- For DC 50A and 100A, need extra shunt. Shunt isnot included, please choose shunt while place order.
    -- For AC 10A and 100A, need extra Current Transformer(CT). Current Transformer is not included, please choose the CT when place order.

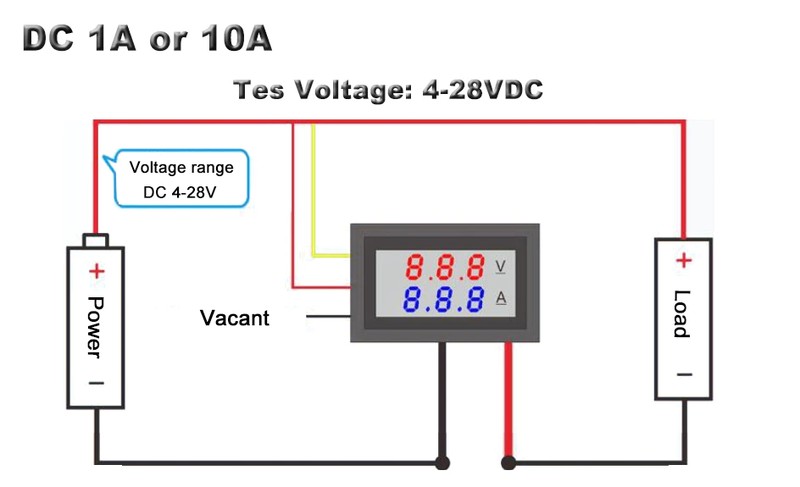

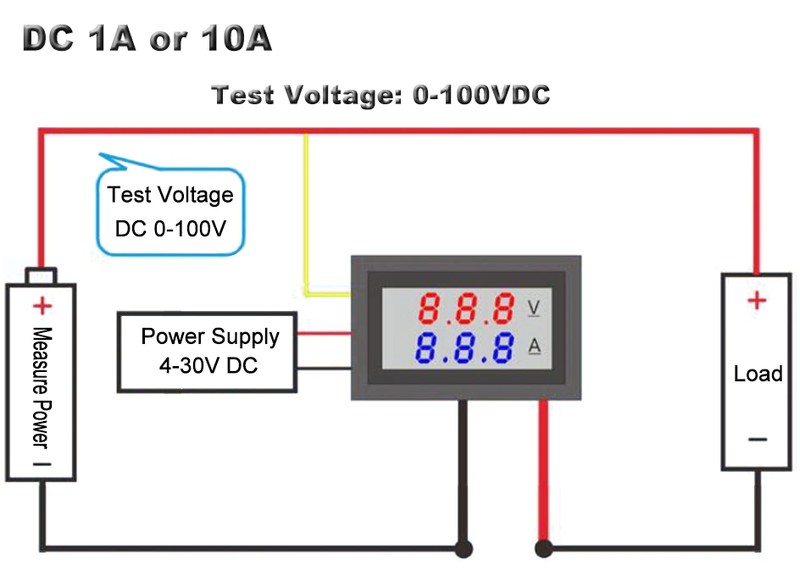

    1. DC 0-1A 0-10A 0-100V Current Meter Voltmeter

    Input Voltage: DC 4-30V
    Detection Voltage: DC 0-100V
    Detection Current: 1A: 0-999mA / 10A:0-10A
    Refresh Rate: 350mS/Time

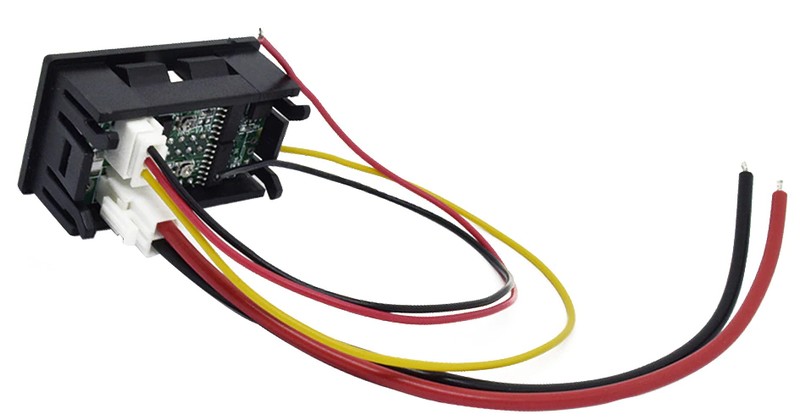

    Packing: Ampere Voltage Meterx1 + 2 set cables

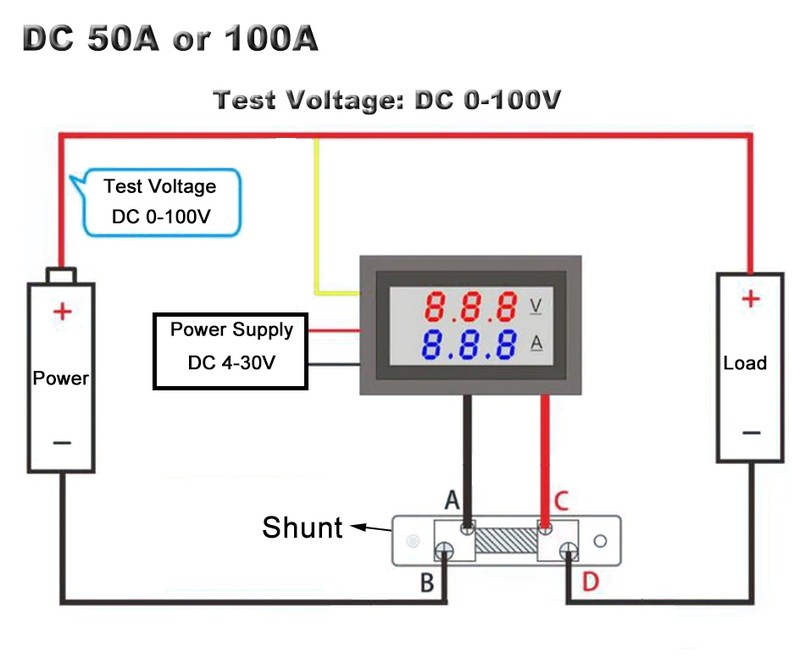

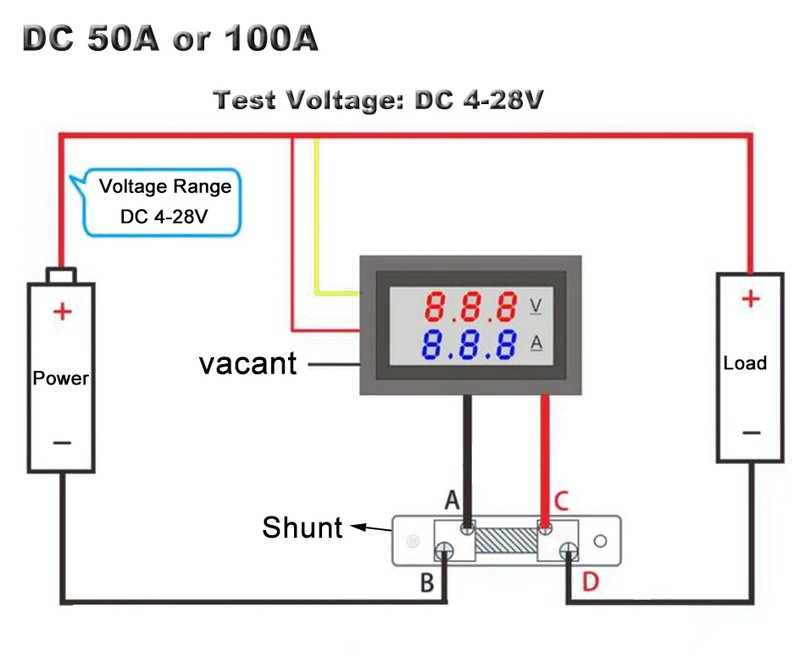

    2. DC 0-50A 0-100A 0-100V Current Meter Voltmeter
    Input Voltage: DC 4-30V
    Detection Voltage: DC 0-100V
    Detection Current: 50A: 0-50A / 100A:0-100A
    Refresh Rate: 350mS/Time
    Shunt: 75mΩ
    Packing: 1pc Ampere Voltage Meter + 2 set cables
    Shunt is not included

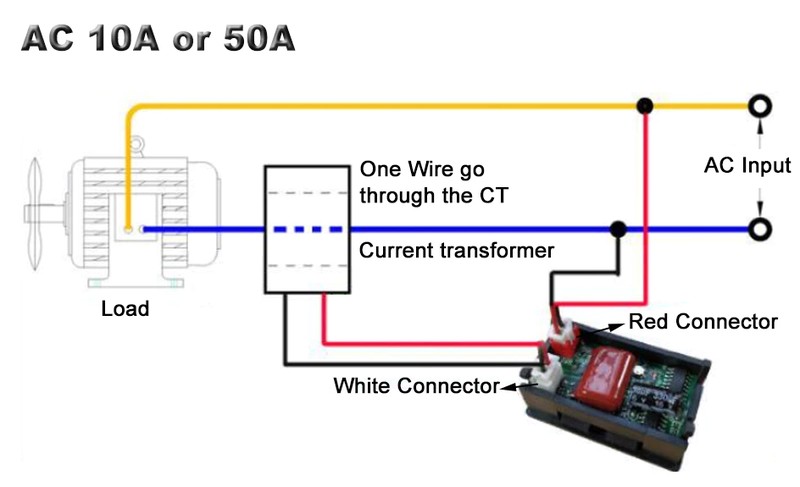

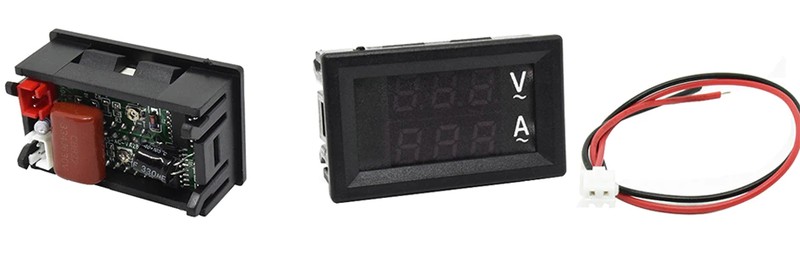

    3. AC 0-10A 0-50A 60-500V Current Meter Voltmeter

    Input Voltage: 60-500V
    Detection Voltage: 60-500V
    Detection Current: 10A: 0-10A / 50A:0-50A
    Refresh Rate: 500mS/Time
    Packing: 1pc Ampere Voltage Meter + 2 set cables
    Current Transformer (CT) is not included. Should choose the CT option together when place order.

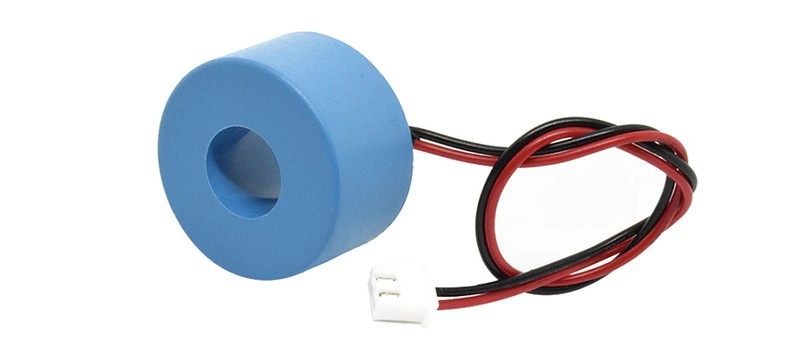

    Current Transformer Specification:
    One Input Voltage: 0 - 50A
    Senondary Output Voltage: 0 - 50mA
    Accuracy level: 0.2
    Ratio: 1000/1
    Load ≥ 50Ω
    Phase shift (δ): ＜20′
